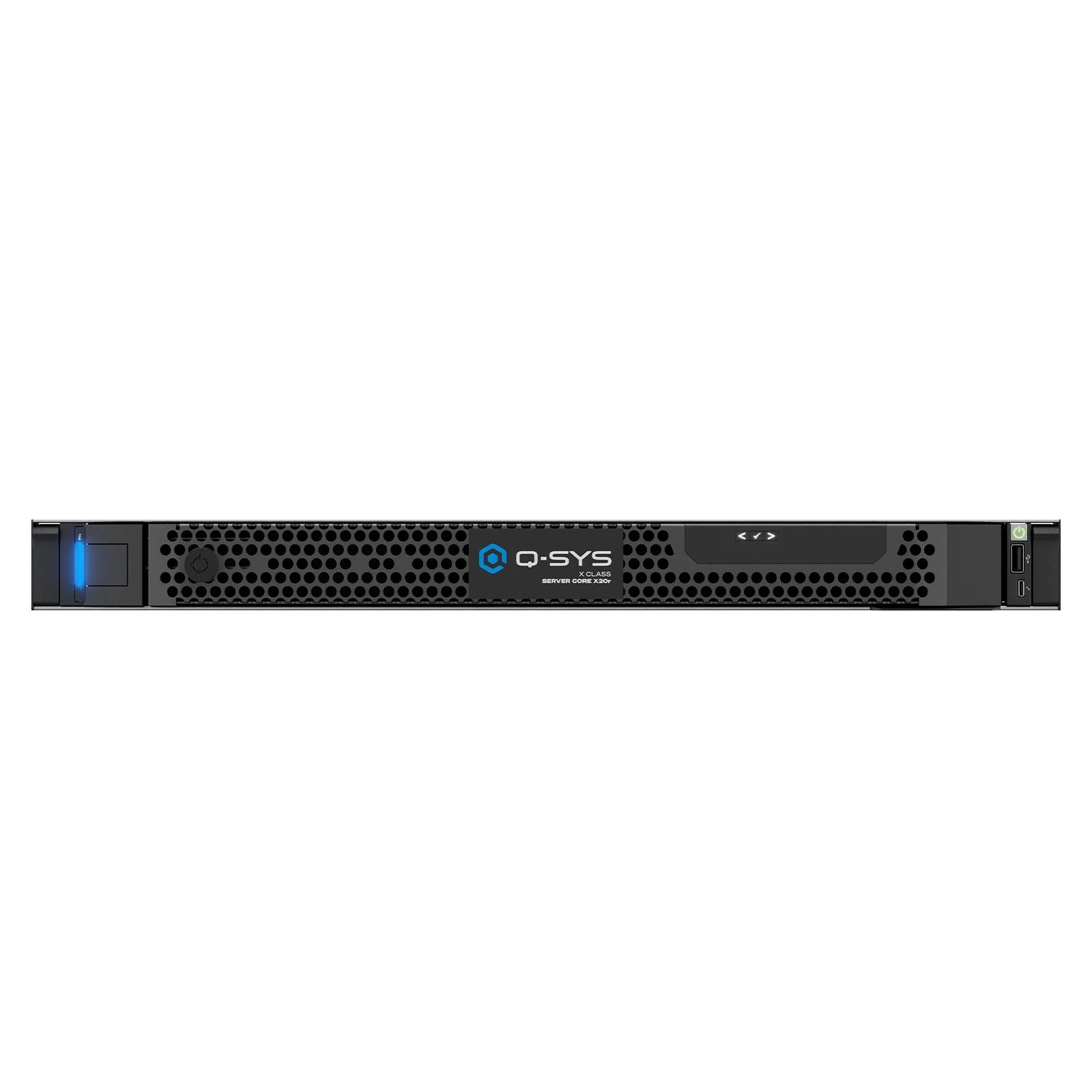

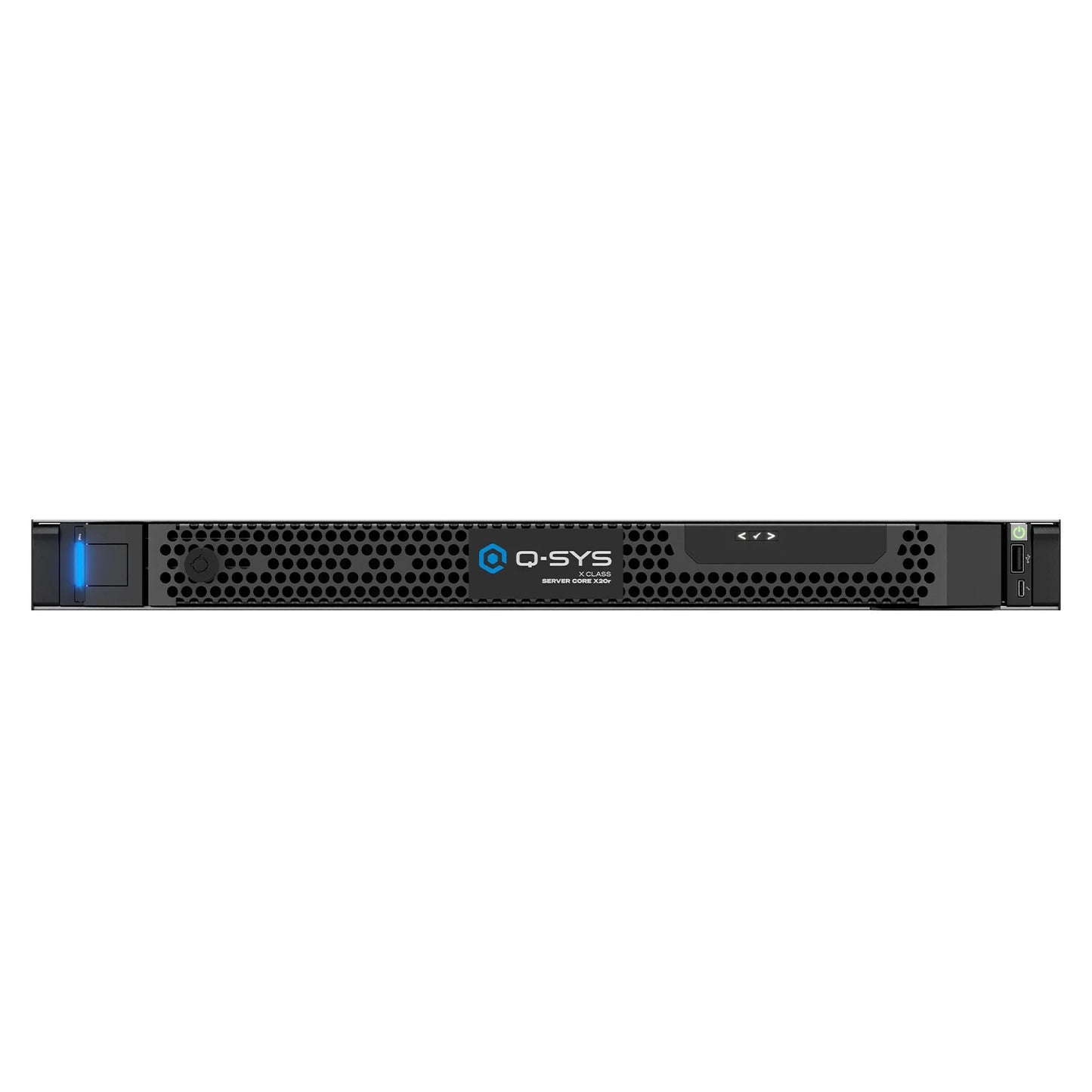

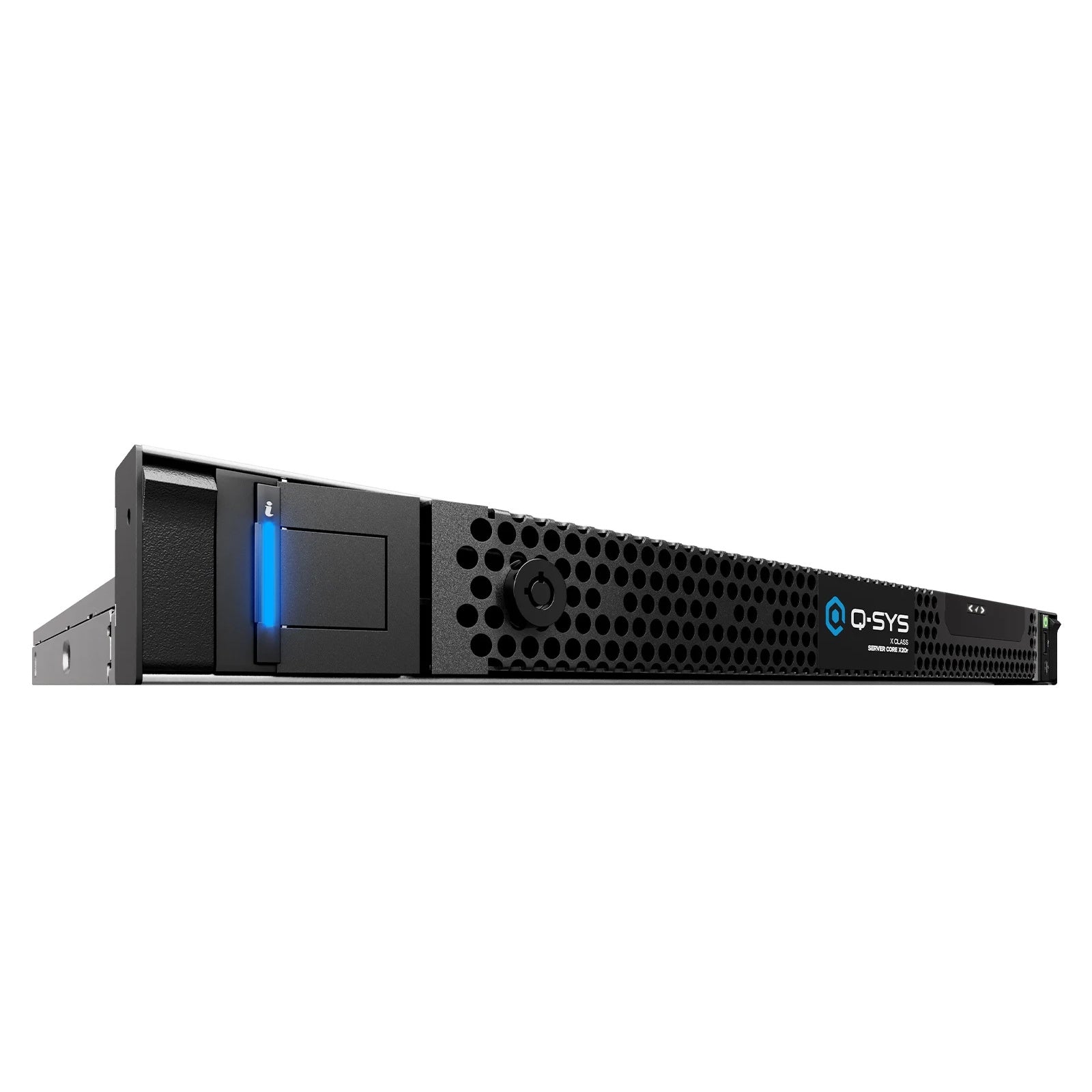

Q-SYS SERVER CORE X20r Full Stack AV Network I/O Processor

Q-SYS SERVER CORE X20r Full Stack AV Network I/O Processor

SoundPro Item: 151945 | Part Number: SERVER CORE X20r

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 384x384 Q-LAN and AES67 Networked Audio Scales To Large Multi-Zone Deployments
  • Software-Based Dante Included And Licensable Up To 256x256 For Flexible Network Audio
  • 128-Channel AEC Supports High-Density Conferencing And Collaboration Environments
  • Dual Redundant Hot-Swappable Power Supplies Protect Mission-Critical Installations
  • Four Independent Gigabit Ethernet Ports Allow Clean Segregation Of Network Services
  • Onboard Media Drive Supports Multitrack Playback Expandable Via Optional Licensing
  • Dell R360XE Enterprise Server Platform Delivers Proven Hardware Reliability
Log in or register for YOUR best price

The Q-SYS Server Core X20r is built for AV integrators and systems engineers deploying large-scale audio, video, and control infrastructures in corporate campuses, higher education facilities, hospitality venues, and entertainment environments. By combining the Q-SYS Full Stack AV Platform with enterprise Dell R360XE server hardware, it acts as the central processing hub that efficiently distributes network I/O across a facility, eliminating the bottlenecks that plague distributed systems relying on multiple standalone processors.

Where conventional DSP platforms hit channel count ceilings early, the Server Core X20r scales to meet complex demands. Its 384x384 networked audio channel capacity via Q-LAN and AES67, 128-channel AEC at 200 ms tail length, and software-based Dante expandable to 256x256 give integrators the headroom to design without compromise. Support for up to 64 VoIP softphone instances, 24 Q-SYS NM-T1 tabletop microphones, and 96x96 Media/WAN streaming capacity makes it equally suited for unified communications deployments and large-format conferencing spaces.

The 1 RU form factor fits standard rack infrastructure while dual redundant hot-swappable power supplies and a dedicated iDRAC v9 remote management port address the uptime requirements of mission-critical installs. Four independent gigabit Ethernet ports, split between multimedia and auxiliary functions, allow clean network segmentation for VoIP, SNMP, LLDP, LDAP, and WAN media services. The onboard 480 GB media drive supports multitrack playback expandable to 256 channels with optional licensing, making the Server Core X20r a long-term platform investment rather than a fixed-capacity appliance.

View full details

Specifications

Q-SYS Capacities
Total Network I/O Channels
384 x 384
Total Network I/O Streams
192 x 192
Dante Network I/O
8 x 8 included; up to 256 x 256 with Software-based Dante feature license
Media/WAN Channel Capacity
96 x 96
VoIP Softphones
64
AEC Channels (200 ms tail length)
128
Audio Recording / Playback
4 channels recording; 16 channels playback; expandable up to 256 channels playback with optional multi track playback license (SLMTP-32); stackable up to 8x
Media Drive Capacity
480 GB; at least 400 GB available for user media; at least 800 hours of uncompressed 48 kHz 24 bit mono WAV format audio files
Hardware
Platform
Dell R360XE
Power
2x universal input; 600 W PSU module

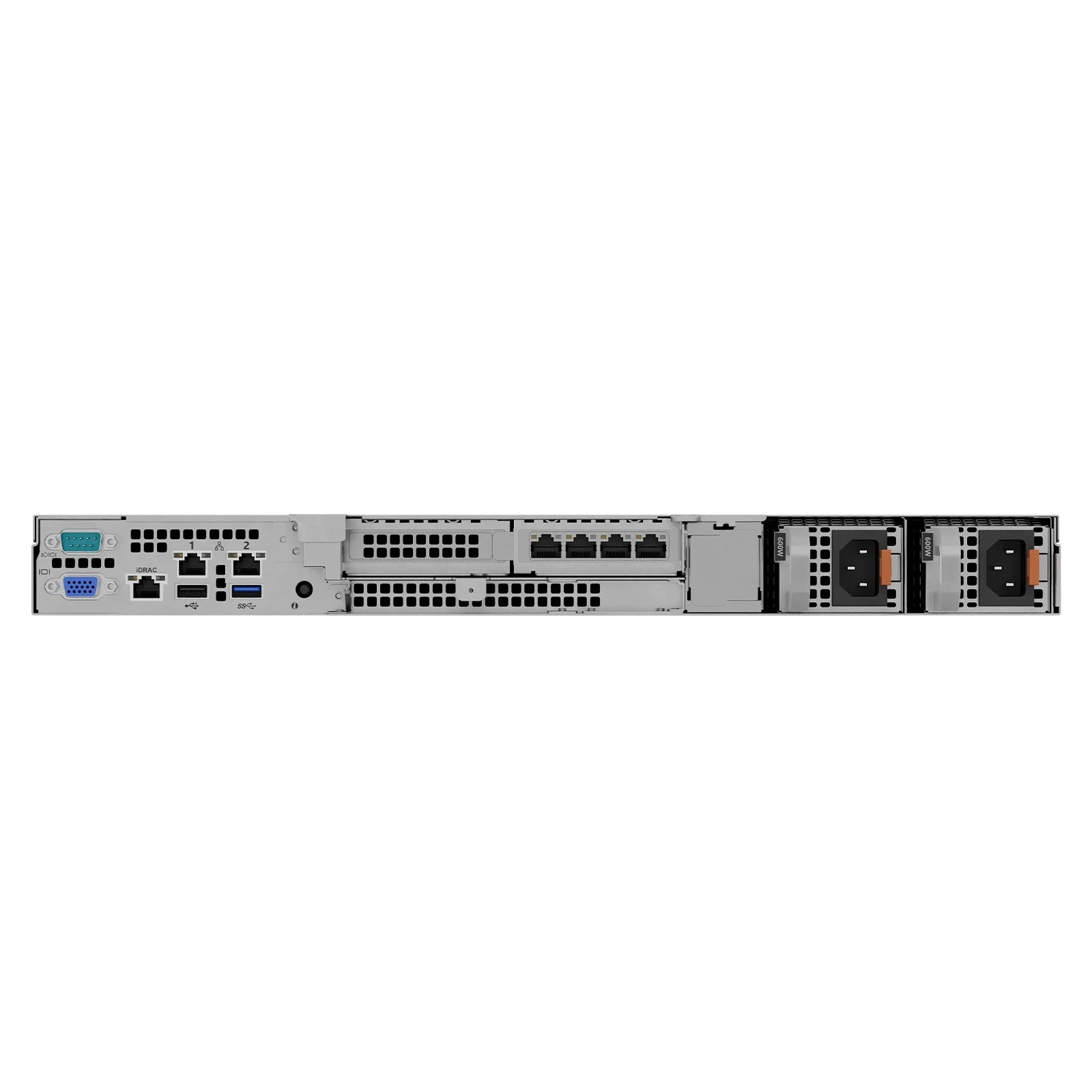

LAN
4x 1000 Mbps ports; 2x Q-SYS Multimedia; 2x Q-SYS Aux
RS232
1x DB-9 RS-232 port (rear panel); 16550-compliant
USB
2x USB-A
VGA
1x VGA port
iDRAC
1x dedicated iDRAC v9 Ethernet port (rear); 1x iDRAC Direct (Micro-AB USB) port (front)
Ventilation
Forced air; front intake; rear exhaust
Controls and Indicators
Front Indicators
Blue Power LED; White LED; Device Reset Button; Front Panel LCD module displays IP address
Navigation Controls
2 navigation buttons (left, right); 1 selection button
Dimensions
Product Dimensions (L x W x H)
23.6" x 19.0" x 1.68" (599 x 482.0 x 42.8 mm); including rack ears and handles
Shipping Carton Dimensions (L x W x H)
36.0" x 23.5" x 10.0" (914 x 597 x 254 mm)
Weight
Product Weight
29.17 lbs (13.23 kg)
Shipping Weight
38.3 lbs (17.4 kg)
Electrical
Line Voltage
100-240 VAC; ~50/60 Hz
Current Draw
2.0 A
BTU/Hour
2250 BTU/Hr
Battery Chemistry
Lithium manganese dioxide
Environmental
Operating Temperature Range
0°C to +40°C
Storage Temperature
-40°C to +70°C
Humidity
10% to 85%
Certifications
Regulatory
FCC 47 CFR Part 15 Subpart B; Canada ICES-003; EN 55032; EN 55035; EU RoHS directive 2011/65/EU; WEEE directive 2012/19/EU; REACH; China RoHS GB/T26572; RCM; IEC/EN/UL 62368-1
Included Items
Included Accessories
Rail kit; Environmental and Regulatory information booklet; 2x region-specific power cords (dual power supplies); Quick Start Guide
