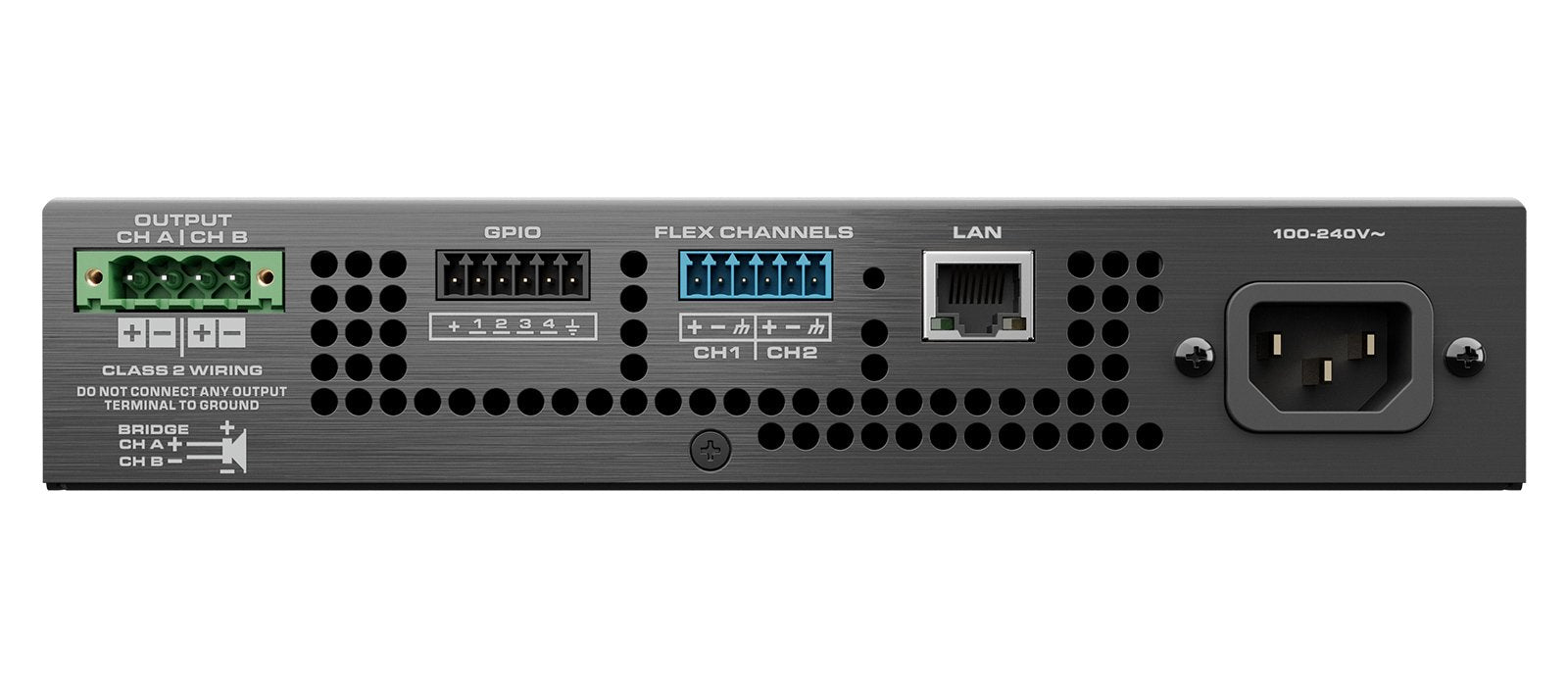

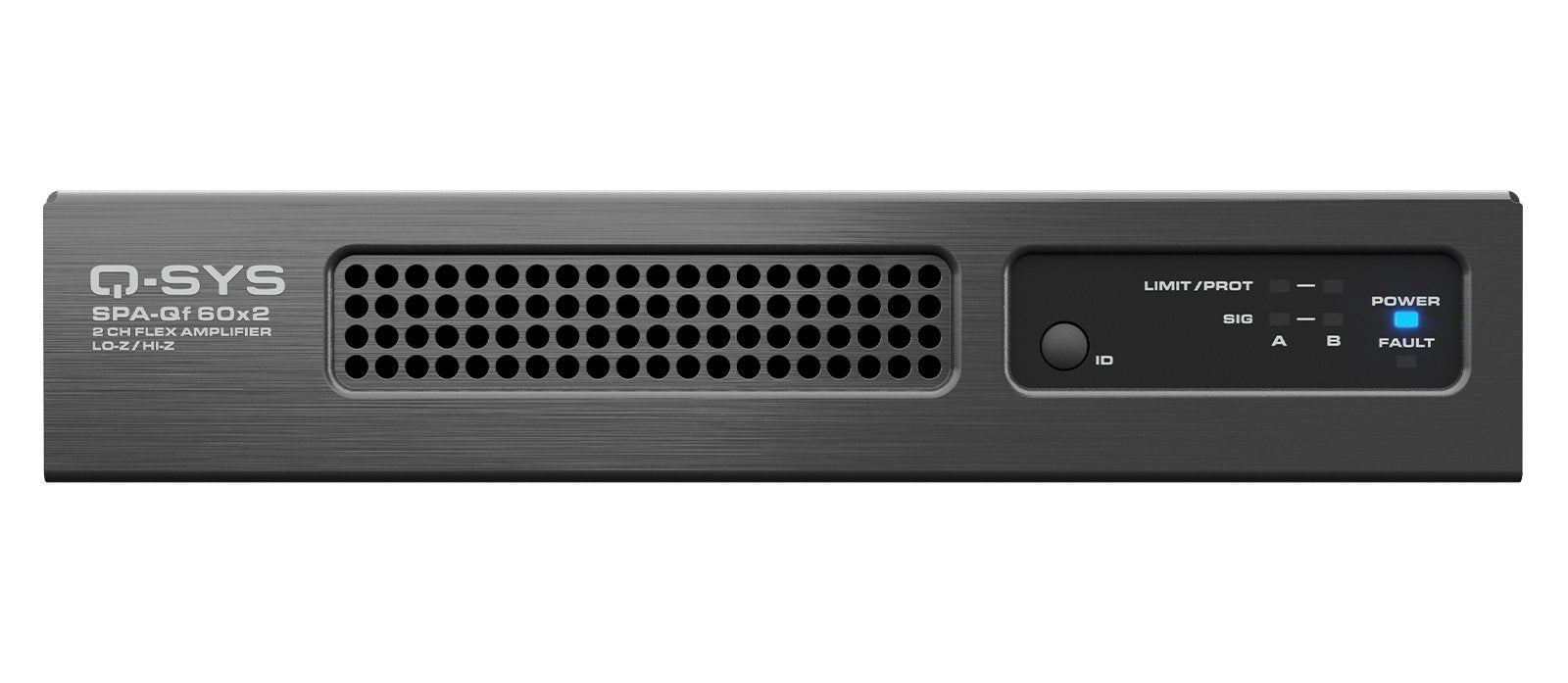

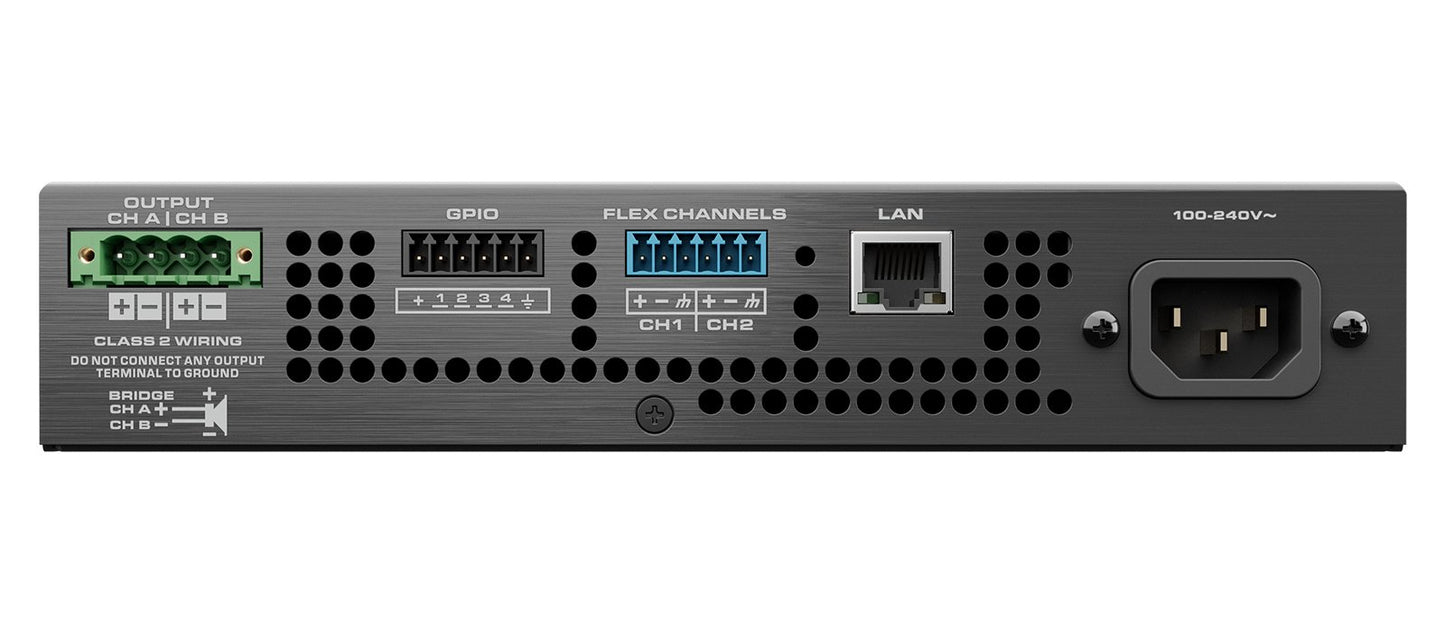

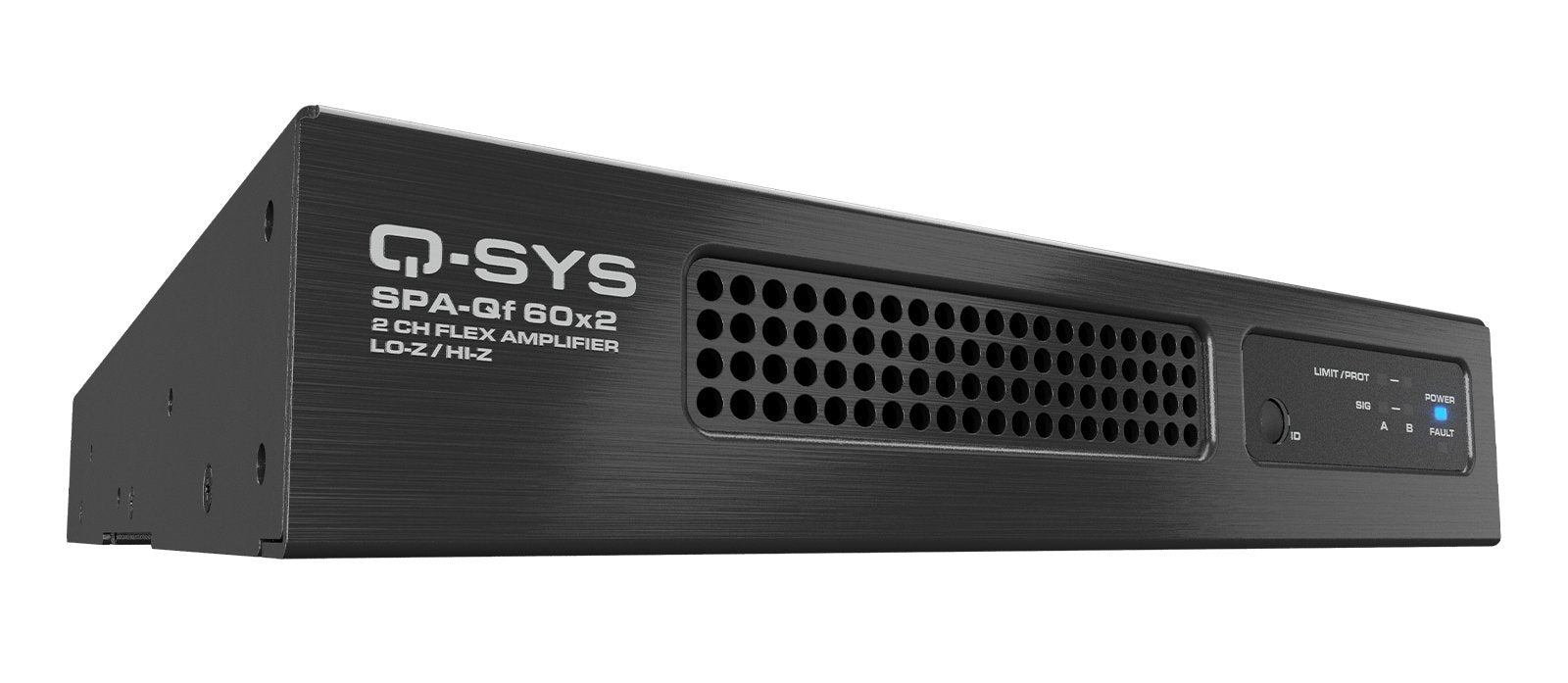

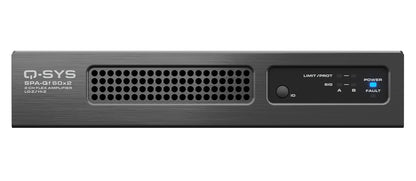

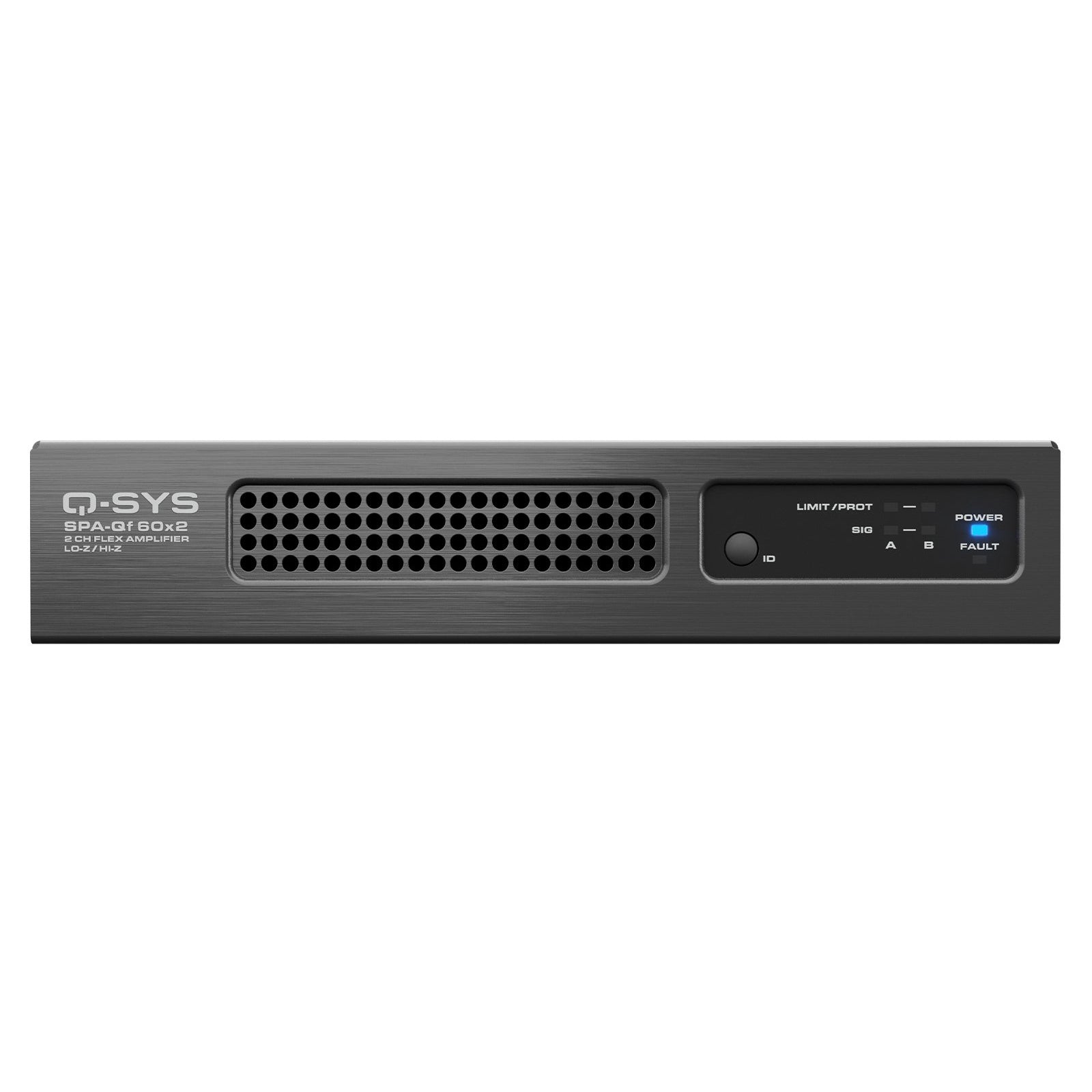

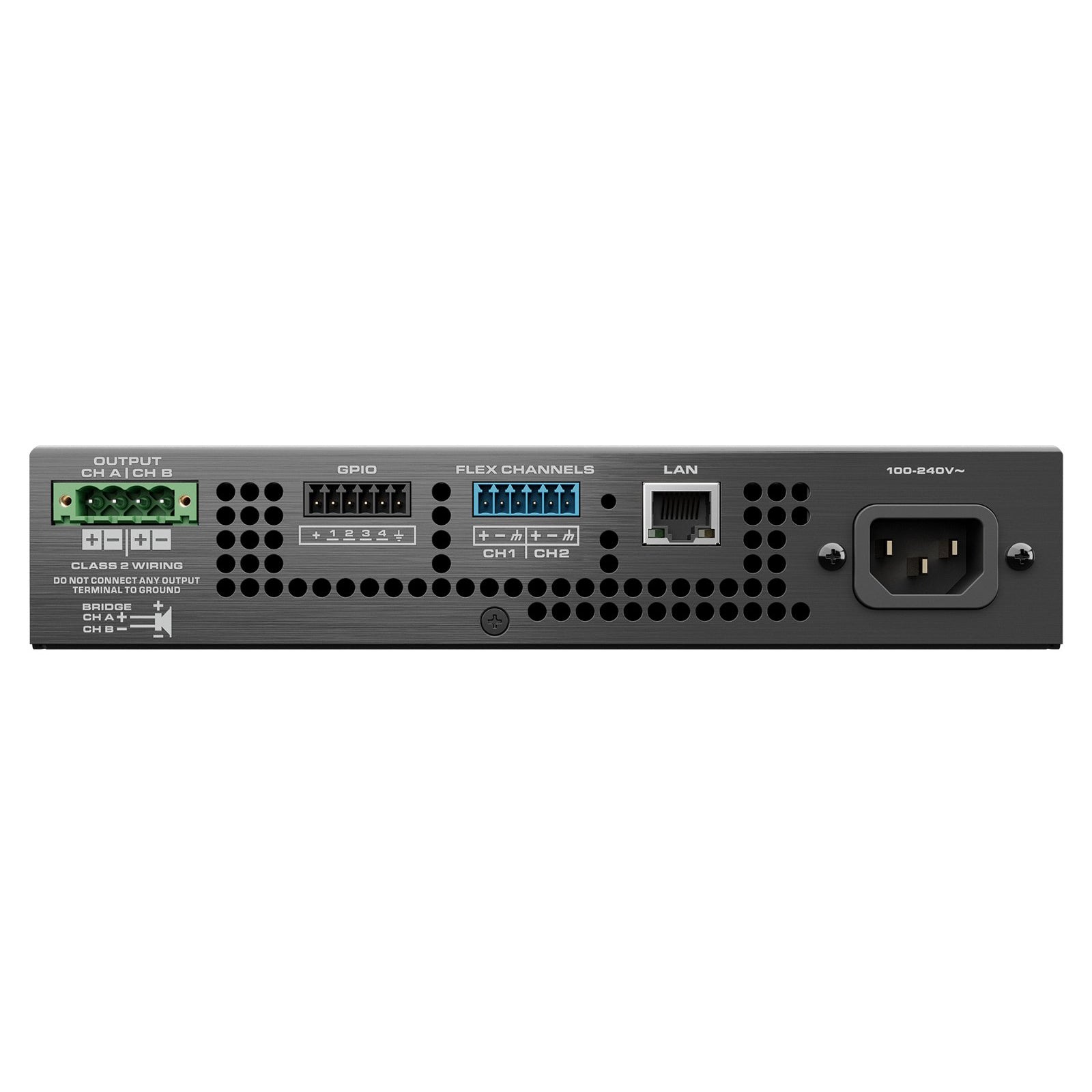

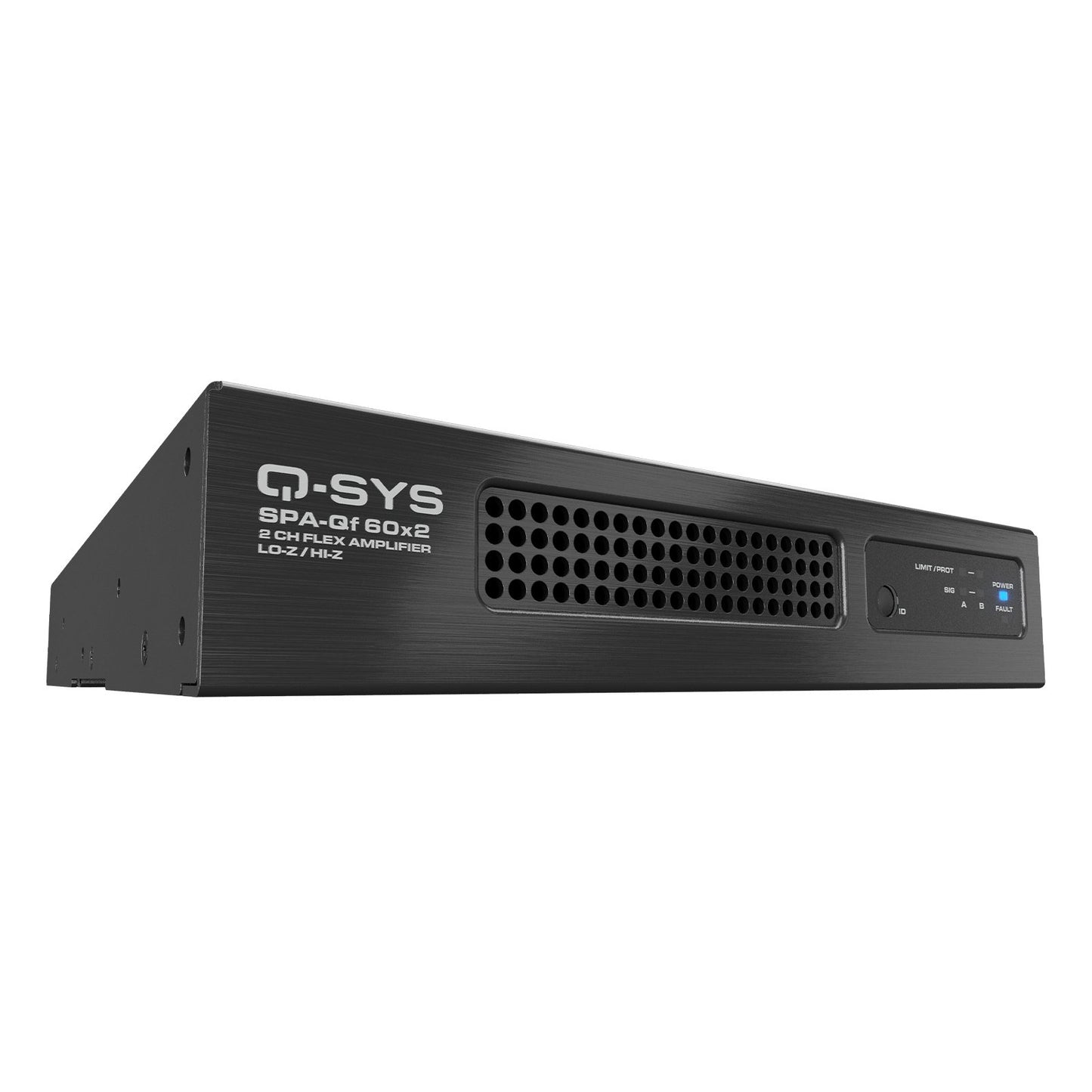

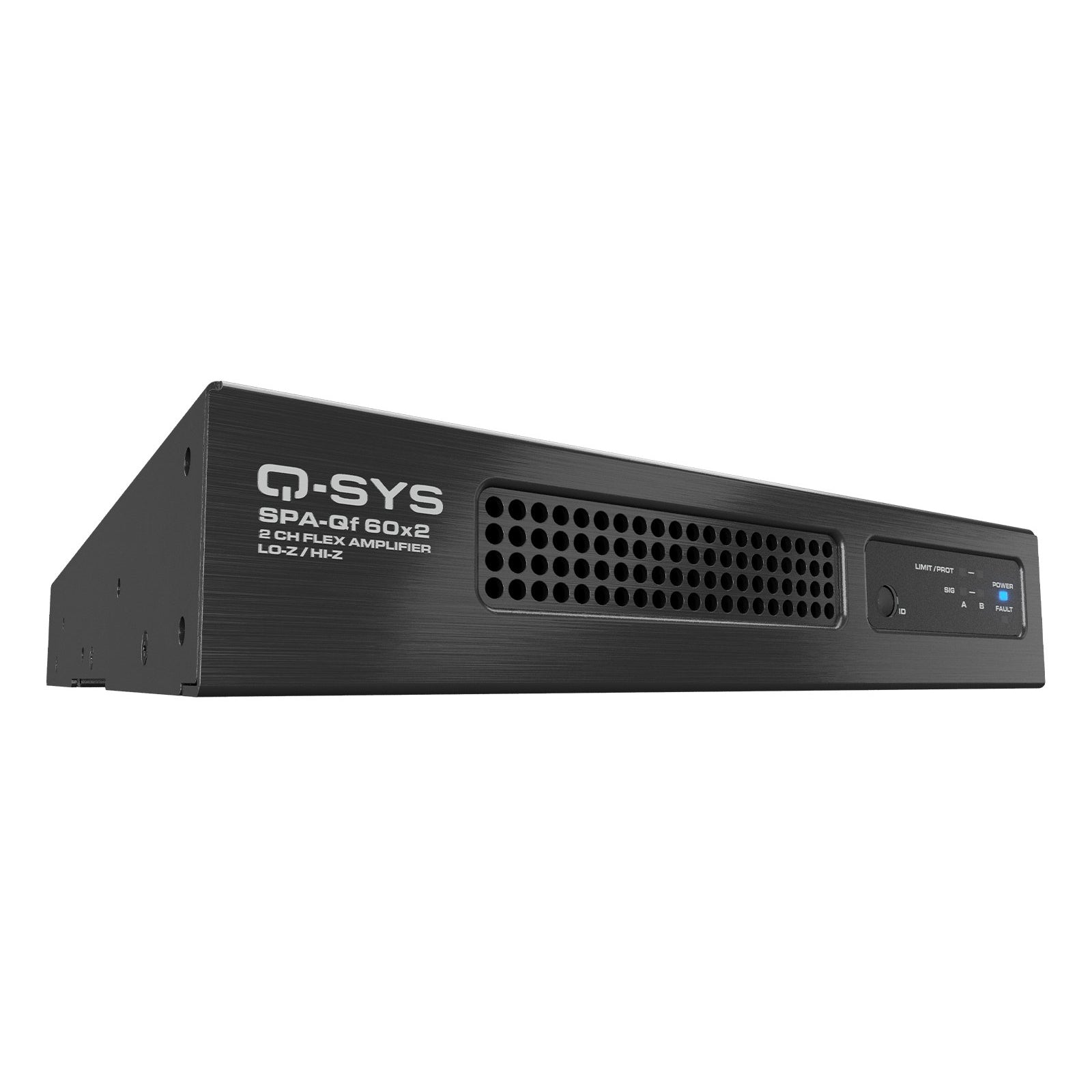

Q-SYS SPA-Qf 60x2-Two-Channel Network Amplifier

Q-SYS SPA-Qf 60x2-Two-Channel Network Amplifier

SoundPro Item: 139574 | Part Number: SPA-Qf 60x2

$1,590.00
$1,590.00 $1,590.00
Your Price Sold out
MSRP: $1,590.00 | MAP: $1,590.00

In stock and ready to ship

  • Rightsized Amplification: Two output channel models at 60 W per channel
  • Flex I/O: Two onboard software-definable flex channels (as mic/line inputs with 48V phantom power, or as line level outputs)
  • Bi-directional GPIO: Power/control microphone LEDs, sensors or buttons using four bi-directional GPIO pins
  • Compact Design: Half-rack, 1RU footprint and included hardware for multiple mounting options allows for flexible placement
  • Convection Cooled: Provides quiet, continuous performance
Log in or register for YOUR best price

The Q-SYS SPA-Qf 60x2 network amplifier continues the Q-SYS Platform evolution of pairing centralized Core OS processing with expanding endpoint utility. With available GPIO for control, two flex channels (either mic/line inputs or line outputs), and 70 Vrms/100 Vrms bridge outputs, the Q-SYS SPA-Qf 60x2 (two channel) provides the utility to centralize your processor's connectivity across more spaces, all within a trusted native Q-SYS network amplifier.

View full details

Specifications

Amplifier Channels
2
Single Ended*
Single Ended*
8 Ω
60 W
4 Ω
60 W
Bridge Tied Load
Bridge Tied Load
8 Ω
120 W
70 V rms
120 W
100 V rms
120 W
Frequency Response (4 & 8 Ω)
20 Hz - 20 kHz (+0.2/-.08 dB)
Voltage Peak Rating
75 Vpk
Current Peak Rating
12 Apk
Signal to Noise (20 Hz - 20 kHz, A-Weighted)
>100 dB
Output Circuitry
Class D
Voltage Gain (Lo-Z/70 V/100 V)
25/29/32 dB (Vrms/FS)
High-Z setting (software setting)
70 V RMS or 100 V RMS
Low-Z operation range
2 - 16 Ω
GPIO
1 x 3.5 mm 6 position Euro (Black) 4x bi-direction pins, 1x Power Pin (3.3V, 100mA), 1x Ground Pin
Audio flex channel capacity
2
Audio flex channel assignments
Each channel can be configured as a mic / line input or as a line output (configured through Q-SYS Designer Software)
Amplifier and load protection
Short circuit, open circuit, over current, over voltage, thermal, RF, DC fault shutdown, active inrush limiting, on/off muting
AC Power Input
Universal Power Supply 100 - 240 VAC + / -10%, 50 - 60 Hz with PFC
Cooling
Convection
Product Dimensions (HWD)
1.75 x 8.7 x 11.25 in (44 x 221 x 286 mm)
Agency Approvals (tentative)
UL, CE, RoHS / WEEE compliant, FCC Class B (conducted and radiated emissions), CCC, NOM
Included Accessories
Rack / wall mounting kit and power cord
