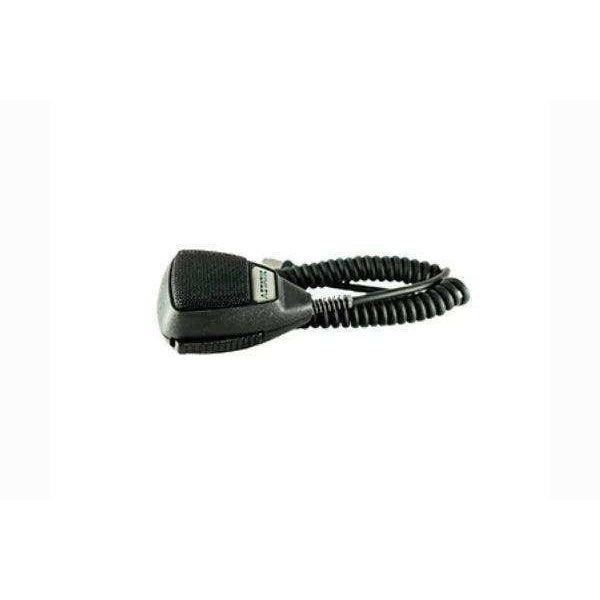

Q-SYS Zip4-PTT Mic-Mag Dante Paging Mic With Magnetic Base

Q-SYS Zip4-PTT Mic-Mag Dante Paging Mic With Magnetic Base

SoundPro Item: 42642 | Part Number: Zip4-PTT Mic-Mag

$505.00
$505.00 $505.00
Your Price Sold out
MSRP: $505.00 | MAP: $505.00

Usually ships in 5-7 business days

  • Magnetic Base Provides Secure, Repositionable Placement at Fixed Paging Stations
  • RJ-45 Termination Connects Directly to Zip4 Interface for Streamlined Cabling
  • PTT Dry-Contact Input Activates on Closure for Reliable Operator Control
  • Compatible With Dynamic or Phantom Powered Microphones Via Rear Panel Switch
  • Native Q-SYS Designer Integration Through Q-SYS Extension PA Router Support
  • Bi-Color Zone and Status LEDs Deliver at-a-Glance System Feedback to Operators
Log in or register for YOUR best price

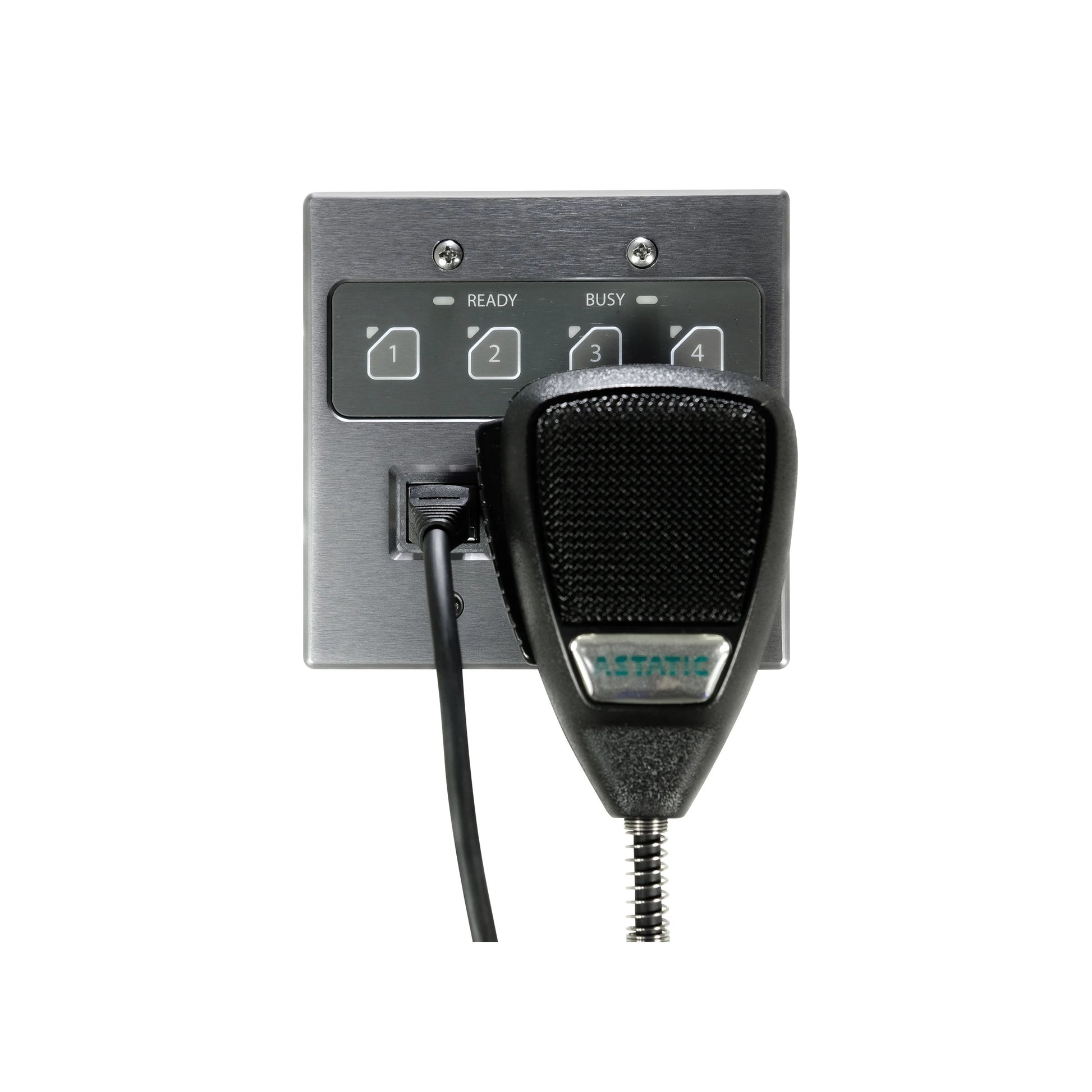

The Q-SYS Zip4-PTT Mic-Mag is a push-to-talk paging microphone engineered as a companion input device for the Attero Tech Zip4 four-zone Dante/AES67 paging interface. It is designed for systems integrators and AV engineers deploying large-scale paging infrastructure in sporting venues, airport terminals, train stations, convention centers, and corporate campuses where reliable zone-based announcements are critical to operations.

With RJ-45 termination and a magnetic base for secure, repositionable mounting, this microphone connects directly into the Zip4 interface's rear-panel mic input, supporting both dynamic and phantom-powered operation. The Zip4 platform routes paging audio and bi-directional control data over Dante or AES67 networks, integrating natively with Q-SYS Designer Software via the Q-SYS Extension for PA Router functionality, or connecting to third-party paging management systems.

For integrators specifying distributed paging in networked AV environments, this microphone completes a PoE-powered, network-centric paging workflow without requiring dedicated analog mic preamp hardware at the paging station, simplifying infrastructure while maintaining professional audio quality across all four zones.

Downloads

View full details

Specifications

System Details
Microphone/PTT Input
RJ-45 and side-mounted 6-pin depluggable; PTT input is dry contact, closed is active
Microphone Gain
+25 dB (with automatic phantom power) and +35 dB
Zone Buttons
Four, white backlit, each with an associated bicolor status LED; LED state is fully controlled over the network
Ready and Busy Indicators
Bi-color Ready and Busy system status LEDs; LED state is fully controlled over the network
Power
Power Over Ethernet
802.3af PoE PD compliant
Dimensions
Dimensions (H x W x D)
4.2" x 3.5" x 2" (106.7 x 88.9 x 50.8 mm)
