Specifications
Dimensions
Product Dimensions Including Wall Bracket (H X W X D)
3.6 x 3.5 x 5.4 inches (92.5 x 89 x 136 mm)
Weight
Net Weight
0.95 lb (433 g)
Electrical
Rated Noise Power / Voltage
6 25 W / 20 V (rms)
Transformer Taps / Impedance Bypass
16 Ω
Audio
Sensitivity [db] (rated @ 1 W, 1 m)
82
Maximum SPL [db] (rated, 1 M (continuous / peak)
90 / 96
Connectivity
Connector
2-pole Euroblock
Construction
Enclosure Material
ABS
Grille Material
Powder coated steel
Included Items

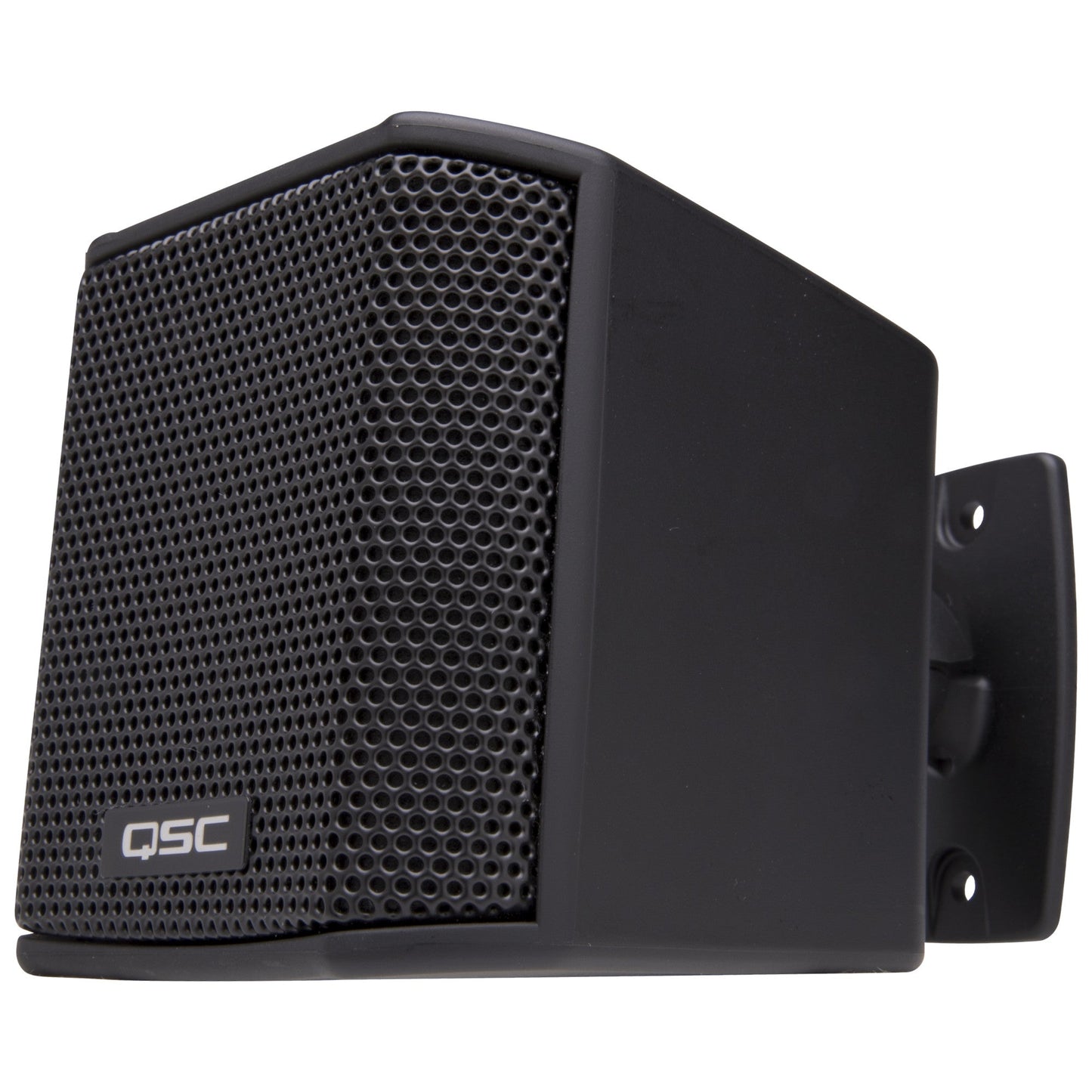

QSC AD-S.SAT 2.75" Surface Mount Satellite Speaker
1x
X-Mount Mini
1x
Euroblock Connector (pair packed)
1x
Environmental
Operating Temperature Range
-4 to 122° F (-20 to 50° C)
General
LF Transducer
N/A
HF Transducer
2.75-inch (70 mm) weather treated paper cone woofer
Effective Frequency Range
150 Hz – 20 kHz
Coverage (-6 dB) [°]
170 Conical
Directivity Factor
TBD
Directivity Index [db]
TBD
Recommended Amplifier
25 W (with 1st order high-pass filter at 200 Hz)
Ingress Protection
IP-34
Operating Environment
Designed for indoor use
Safety Agency
Transformer UL registered per UL1876, ROHS, CE compliant
