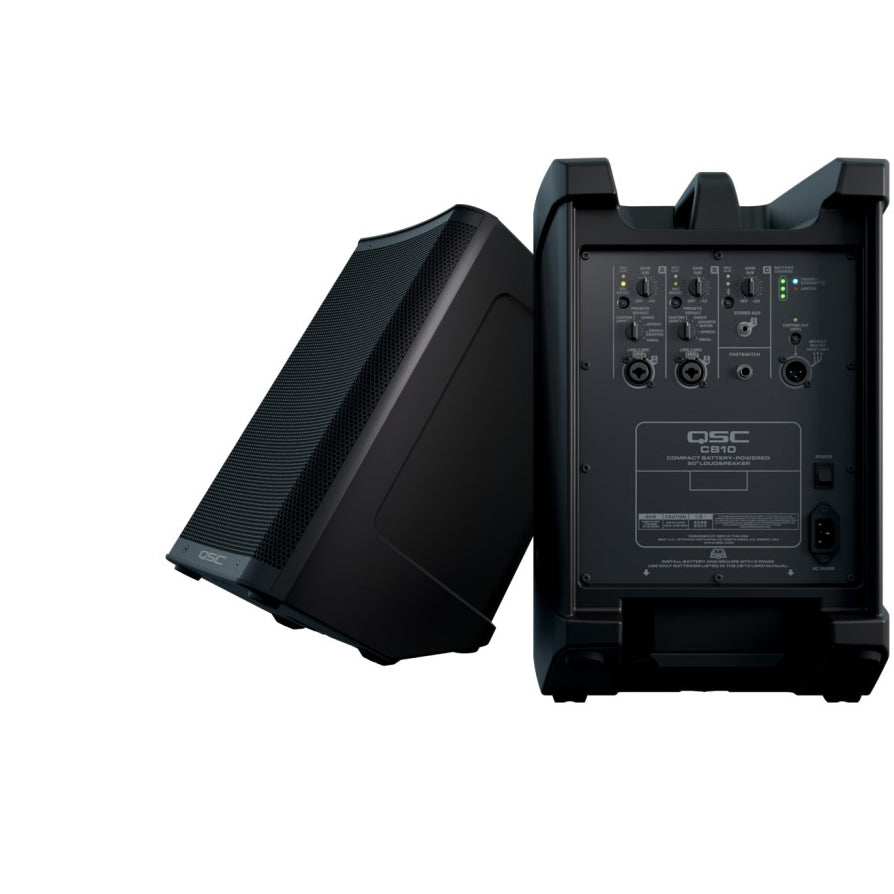

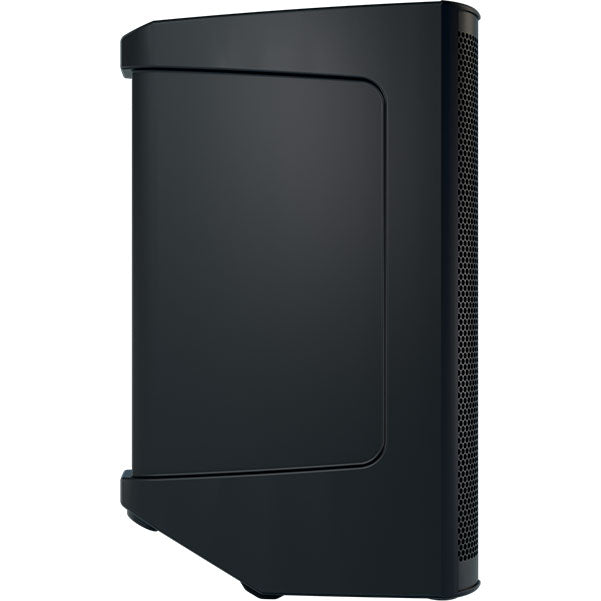

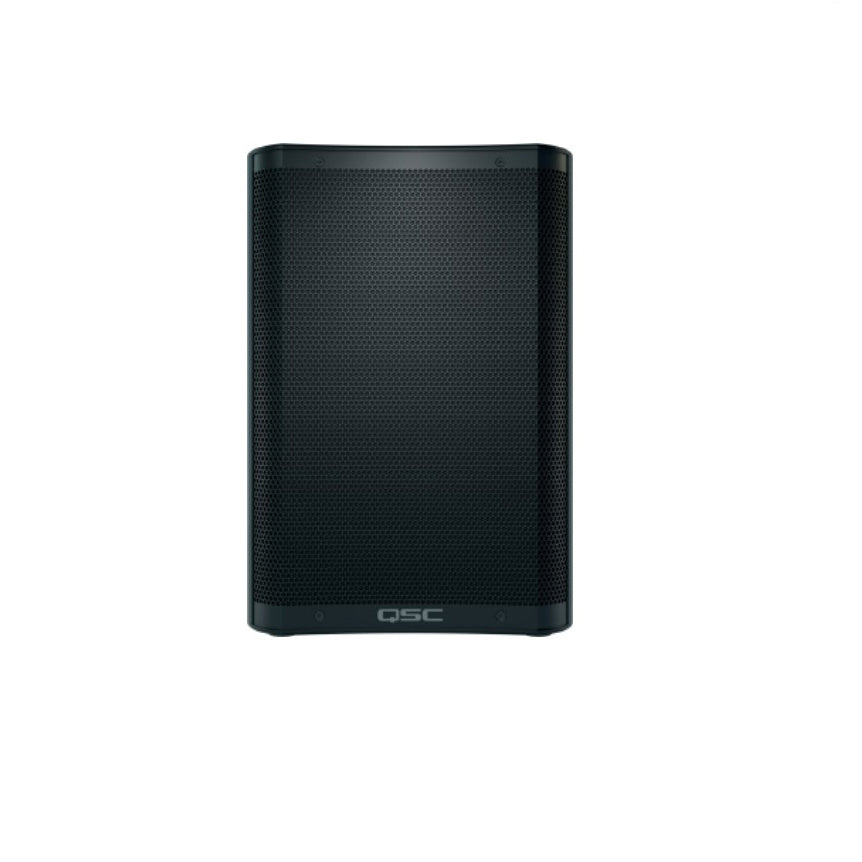

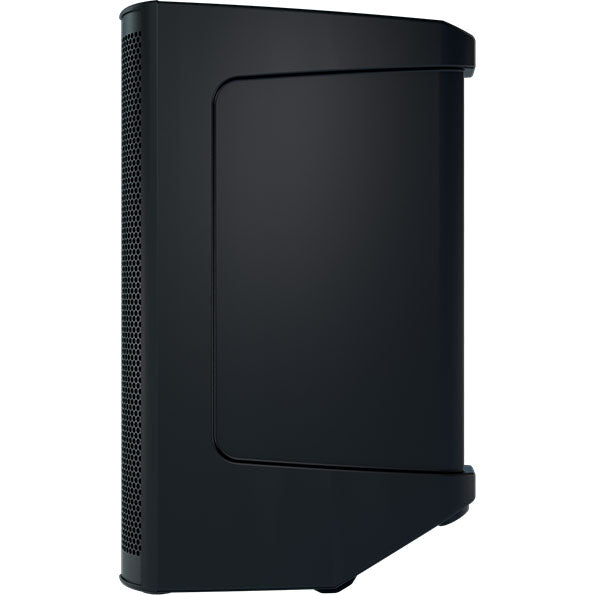

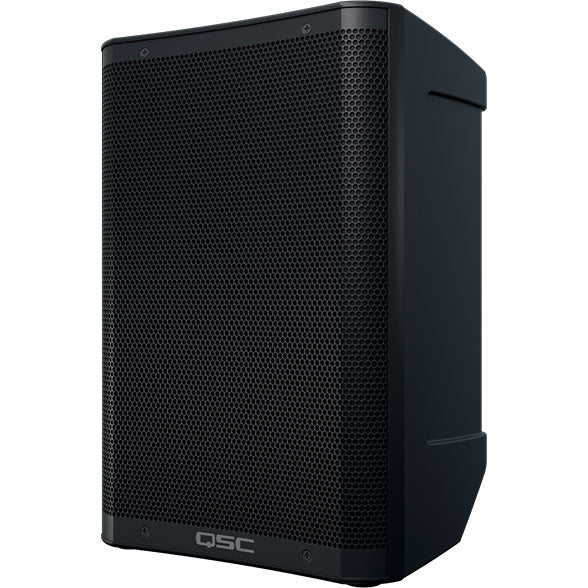

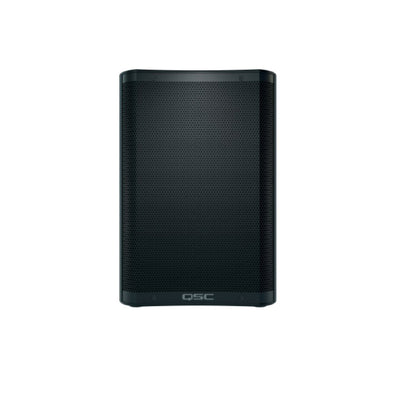

QSC Audio CB10 Compact Battery-Powered Loudspeaker

QSC Audio CB10 Compact Battery-Powered Loudspeaker

SoundPro Item: 202230 | Part Number: CB10

$799.99
$933.99 $799.99
Your Price Sold out
MSRP: $933.99 | MAP: $799.99

In stock and ready to ship

  • High-performance, compact 2-way system featuring a high excursion 10-inch (254 mm) low-frequency driver and a 1-inch (25.4 mm) compression driver for clear high-frequency response without distortion.
  • Light and portable with battery and AC power options for versatile use.
  • Integrated 3-channel mixer with remote control via QSC Loudspeaker Control app for easy operation and
  • customization.
  • Two combo XLR inputs with independent Factory Presets, ideal for small event’s needs.
  • Useful on-board Room Delay (up to 200 ms) for larger distributed PA deployments.

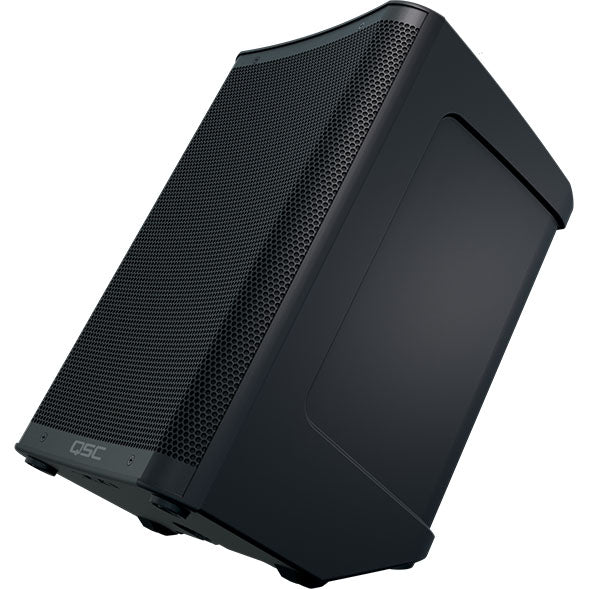

  • Tilt-back angle for perfect floor deployment and sound coverage; can also be stand or pole mounted.
  • Bluetooth 5.1 for control and audio with True Wireless Stereo (TWS) for low latency pairing between loudspeakers and music source.
Log in or register for YOUR best price

The CB10’s compact but powerful 10-inch LF driver delivers exceptional low-end reproduction and extension, while its class leading 1-inch compression driver ensures superior high-frequency response and coverage, without distortion. The integrated 3-channel mixer allows simple and easy connections of microphones and instruments, as well as the option to stream Bluetooth music. Input presets and DSP further optimize system performance and ease of setup, while the intuitive rear panel coupled with expanded control via the QSC Loudspeaker Control app offers simple plug-and-play operation and more expansive customization. Additionally, programmable room delay makes the CB10 an ideal system extension for distributed PA deployments.

View full details

Specifications

Configuration
Two-way Rechargeable Loudspeaker System
LF Transducer:
254 mm (10-inch), cone
HF Transducer:
25.4 mm (1-inch), compression driver
Frequency Response (-6 dB)
51 Hz - 18 kHz
Frequency Range (-10 dB)
47 Hz - 20 kHz
Nominal Coverage Angle:
90° Axisymetric
Maximum Rated SPL:
127 dB @ 1 m
Amplification (peak):
Class D, 440 W
Cooling:
Convection cooling

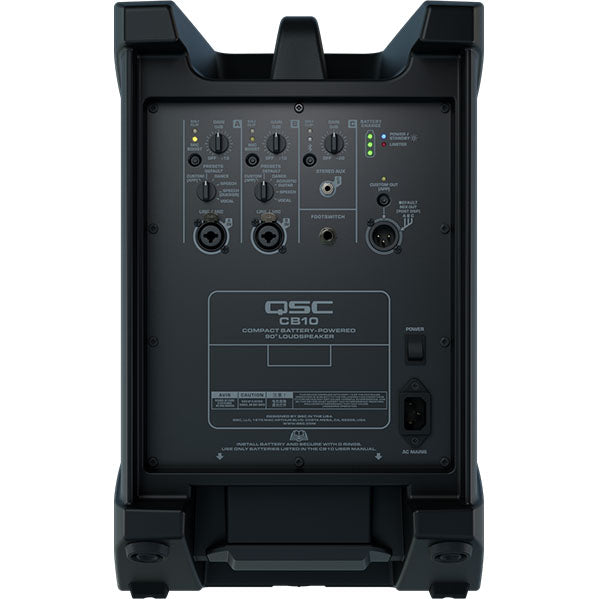

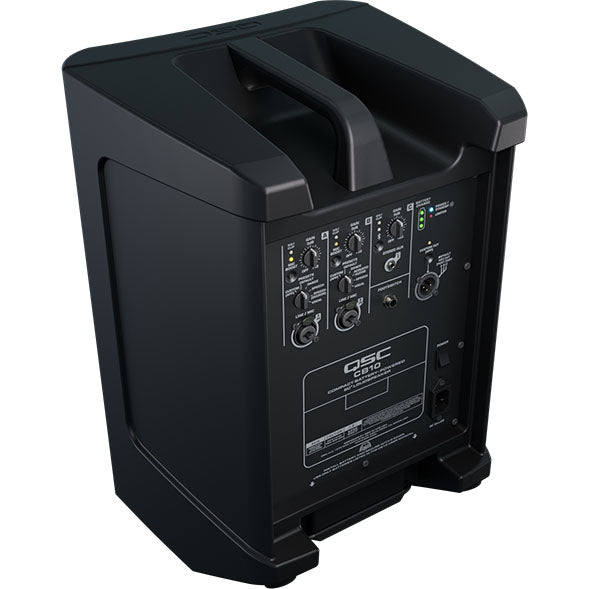

Backpanel Controls:
3 x Rotary level potentiometers (Gain)
2 x MIC Boost Push-Switch
2 x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)
1 x Bluetooth Switch
1 x Output Select Switch
1 x AC Power Switch
Loudspeaker Control App Functions:
Input Channels: Gain Control, Presets (Channels A and B), EQ
Reverb (Channels A and B )
Ducker (Channel A)
Contour Selection
Custom Output Routing
Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost
Bluetooth Audio Configuration
Loudspeaker Firmware Updates
Backpanel Indicators:
3 × Input Signal/Clip LEDs
2 x MIC selected LEDs
3 x Battery Charge LEDs
1 x Limiter Active LED
1 x Bluetooth LED
1 x Output Select LED
1 x Power/Standby LED
Connectors:
2 × locking XLR/F ¼ inch combo (Line Input and Mic/Line Input)
1 × 3.5 mm TRS (Stereo Input)
1 x 6.3 mm TS (Footswitch)
1 × XLR/M (Mix Output)
1 × locking IEC Power Connector
DC Power (Battery):
Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10)
Battery life: up to 12 hours / Battery charging time: approx. 4 hours
AC Power Input:
Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption:
100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
Enclosure Material:
Polypropylene
Color:
Black (RAL 9011)
Grille:
Powder-coated steel with internal lining (18 Gauge)
Loudspeaker Dimensions (H×W×D):
465 x 313 x 287 mm / 18.3 x 12.3 x 11.3 in
Carton Dimensions (H×W×D):
559 x 406 x 381 mm / 22 x 16 x 15 in
Net Weight:
12.2 kg / 26.9 lb
Shipping Weight:
14.5 kg / 32 lb
Battery Chemistry:
Lithium Nickel Manganese Cobalt Oxide
Regulatory:
CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
Optional Accessories:
CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System
CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module
