Specifications
Dimensions
Speaker Dimensions (HxWxD)
16.2 x 10.7 x 10.1 in
Weight
Net Weight
21.0 lb
Audio
Frequency Response
56 - 20 kHz (-6 dB)
Maximum Rated SPL
124 dB

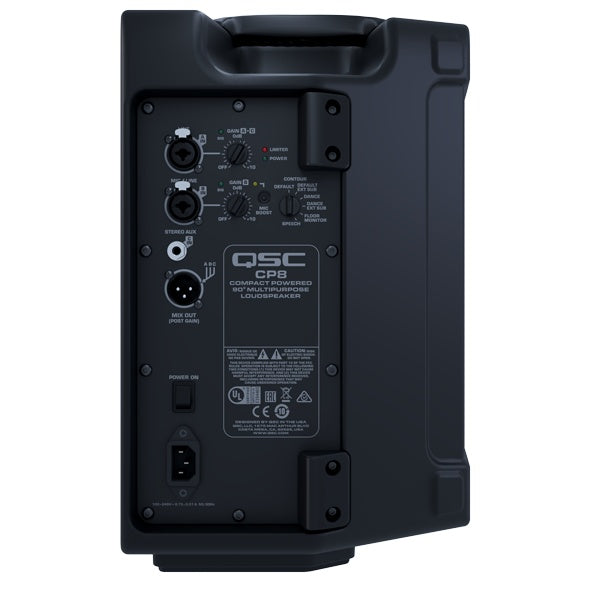

Connectivity
Connectors
2 x locking XLR/F 1/4" combo (Line Input and Mic/Line input), 1 x 3.5 mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x IEC power connector
AC Power Input
Universal power supply 100 - 240 VAC, 50 - 60 Hz
Construction
Enclosure Material
Polypropylene
General
LF Transducer
203 mm (8-Inch) , cone
HF Transducer
35.6 mm (1.4-Inch) compression driver
Nominal Coverage Angle
90° Axisymetric
Amplifier Power Capacity
Peak: 800 W (LF), 200 W (HF) (Class D)
Mounting Options
M8 threaded insert
RF
Frequency Range
53 - 20 kHz (-10 dB)
