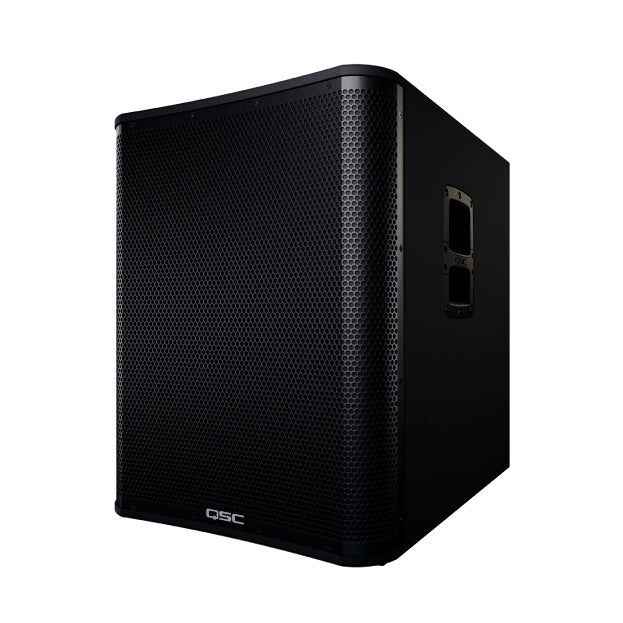

• CS18-NA front three-quarter view with perforated steel grille, QSC logo and side recessed handle, QSC

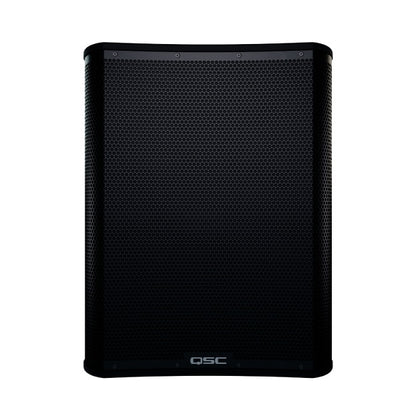

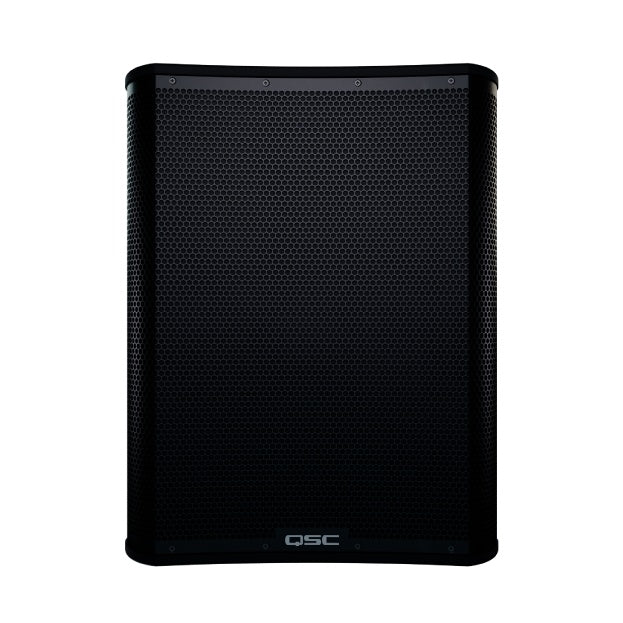

  • CS18-NA straight-on front view of full hex-pattern perforated grille with QSC logo at bottom center, QSC

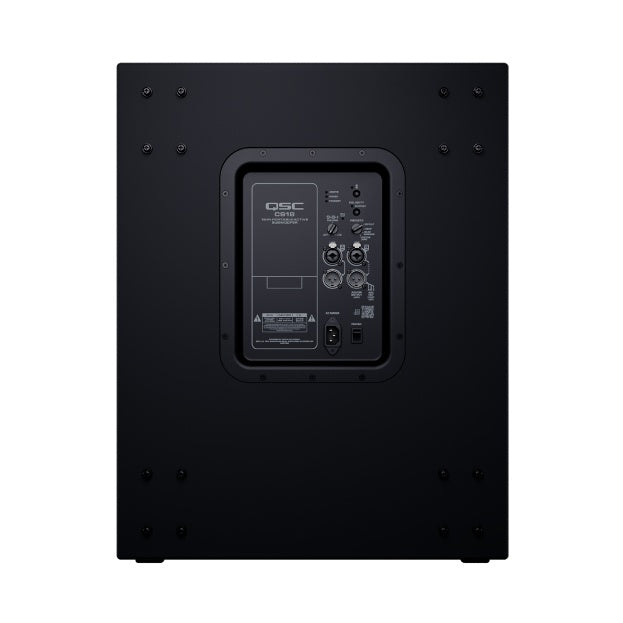

  • CS18-NA rear view of black cabinet with recessed amplifier panel and mounting screws, QSC

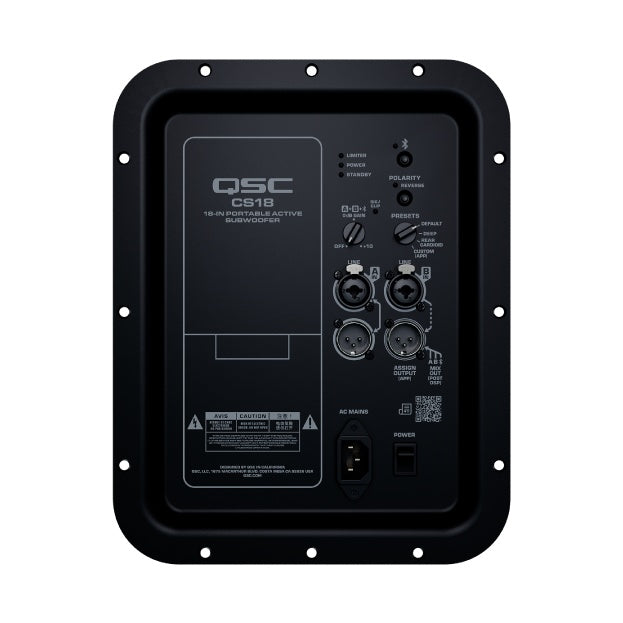

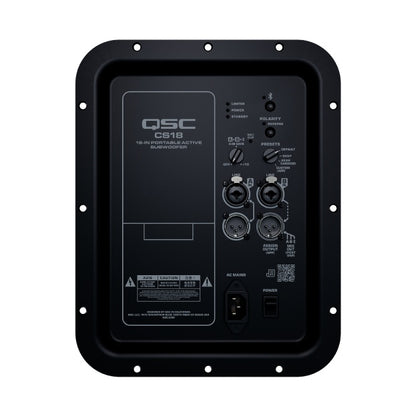

  • CS18-NA rear amplifier panel close-up showing XLR/combo line inputs and outputs, preset selector, polarity switch, IEC AC mains inlet and power switch, QSC
1 4

QSC CS Series Compact Powered Subwoofer With Bluetooth Control | 18"

QSC CS Series Compact Powered Subwoofer With Bluetooth Control | 18"

SoundPro Item: 209059 | Part Number: CS18-NA

$1,199.99
$1,399.99 $1,199.99
Your Price Sold out
MSRP: $1,399.99 | MAP: $1,199.99

Usually ships in 5-7 business days

  • DEEP Preset Extends Low Frequency Response For More Impact On Bass Heavy Program Material
  • Cardioid Deployment Preset Simplifies Directional Arrays When Running Multiple Subwoofers
  • Rear User Interface Speeds Setup And Allows Quick Adjustments On The Job
  • Bluetooth Audio With True Wireless Stereo Pairs Sources To Left And Right Loudspeakers Together
  • QSC Loudspeaker Control App Enables Wireless Adjustment Of Loudspeaker Features
  • XLR Inputs With Direct Pass-Thru And Assignable Outputs Simplify Multi-Sub Signal Routing
  • Rugged Painted Wood Enclosure Provides Lasting Durability For Repeated Transport
Log in or register for YOUR best price

The CS Series is built for working audio teams that need dependable low end without a heavy rig. Corporate AV crews, houses of worship, DJs, mobile production companies, and small venue installers can pair it with compact tops for fixed rooms, rentals, and one-off events. It is offered in 15-inch and 18-inch driver versions, so you can match output and extension to the room, the program material, and the truck space you have available.

Powered operation removes the need for a separate amplifier rack, and a universal power supply makes the same unit practical across venues in different regions. A tech can dial in the system, then fine-tune it from the room instead of walking back to the stage. Running two or more units opens up directional low-frequency control for stages and rooms where bass buildup is a problem.

Compared with passive subs that need external amplification and processing, the CS Series keeps the signal chain short, which means fewer cases, fewer cables, and faster load-in and teardown. Choose the smaller version for tight rooms and portable rigs, or the larger version when the program calls for more low-frequency extension.

Downloads

View full details

Specifications

Certifications
Regulatory
CE, CB, cTUVus, FCC, NOM, PSE, KCC, BSMI, RCM, RoHS 3.0, CA65, WEEE, etc.
Dimensions
Height
25.2" (640 mm)
Width
20.2" (513 mm)
Depth
25.9" (658 mm)
Weight
Net Weight
82.9 lbs (37.6 kg)
Electrical
Amplification
Class D
Peak Power
2600 W
AC Power Input
Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption
100 VAC, 2.7 A / 120 VAC, 2.2 A / 240 VAC, 1.1 A, 50/60 Hz
Audio
Configuration
Direct Radiating
LF Transducer
460 mm (18-inch), cone
Frequency Response (-6 dB)
46 Hz - 96 Hz
Frequency Response (-6 dB) With DEEP
39 Hz - 96 Hz
Frequency Range (-10 dB)
40 Hz - 103 Hz
Frequency Range (-10 dB) With DEEP
35 Hz - 103 Hz
Nominal Coverage Angle
Omni-Directional or Cardioid Radiation Modes (Cardioid Setup Requires min. 2 Units)
Maximum Rated SPL
134 dB
Connectivity
Inputs
2 x locking XLR/F 1/4 inch combo
Outputs
2 x XLR/M (1 x Loop-Thru Output, 1 x Post-DSP Output)
Power Connector
1 x IEC
Construction
Enclosure Material
12-15 mm Birch Plywood
Color
Black (RAL 9011)
Grille
Powder-coated steel, black (16 Gauge)
Cooling
Convection cooling
Controls
Controls
Power On/Off, Gain Control, 2 x Selection Buttons
Indicators
1 x Power LED, 1 x Limiter Active LED, 1 x Input System LED, 2 x Signal LED
Shipping
Shipping Weight
98.3 lbs
Package Length
28.5"
Package Width
23"
Package Height
28"
