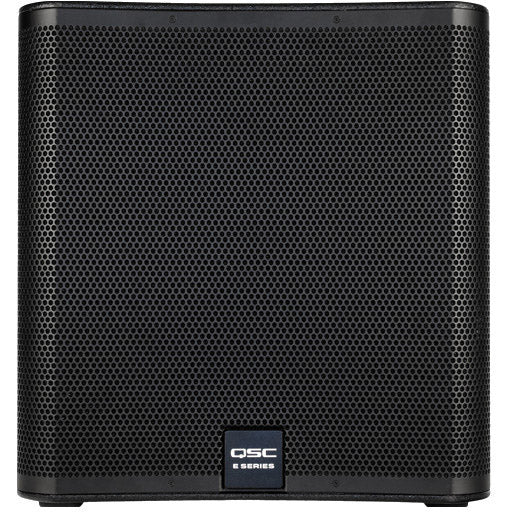

QSC E118sw 18-Inch Passive Subwoofer
QSC E118sw 18-Inch Passive Subwoofer
SoundPro Item: 14619 | Part Number: E118SW
Usually ships in 5-7 business days
- Passive subwoofer for adding punch to your professional sound system
- High output, professional quality sound with 800 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- Rugged tour-grade textured paint
- Foam-lined perforated steel grille
- E118sw includes loudspeaker pole
- 4-inch caster kit and transport cover
- Optional accessories: 4-inch caster kit and transport cover
Part of QSC’s E Series, the E118sw is a high-performance direct radiation subwoofer with a single, 800W, 18-inch, aluminum frame woofer. Its 4-ohm impedance means that this single woofer can be optimally powered by a less expensive amplifier, making it easy to achieve deep subwoofer “punch” on a budget.
- Configuration1 × 18-inch, subwoofer, non-powered
- Frequency Response (-6 dB)37 Hz to 230 Hz
- Frequency Range (-10 dB)32 Hz to 230 Hz
- Power capacity [1]: continuous/peak800 W / 3200 W
- Sensitivity98 dB, 1 W @ 1 m
- Coverage AngleN/A
- Ouput [2] (peak SPL @ 1 m)133 dB
- Drivers
- LF: 457 mm (18 in) driver with 102 mm (4 in) voice coil
- HF: N/A
- Nominal Impedance4Ω
- Cross-overRecommended 80 – 120 Hz LPF
- Input connectors2 × NL4, 1 × barrier strip
- EnclosureRectangular, plywood, black texture paint finish. Four side mounted handles. Rear panel provision for optional 4-inch casters. Perforated, powder-coated steel grille with foam lining.
- Mounting and suspension M20 threaded pole-mount socket (24"/610mm pole included)
- Speaker Dimensions (W×H×D)23.2×24.2×23.8" (590 × 616 × 605 mm)
- Carton Dimensions (W×H×D)28×27×28" (710 × 690 × 712 mm)
- Net weight95 lbs (43 kg)
- Shipping weight102 lbs (46.3 kg)
- Notes
- [1] Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet with Xover, full range 30 Hz 12 dB / octave.
- [2] With QSC Processing
