Specifications
Audio
Configuration
Active 3-Way Column Loudspeaker System
LF Transducer
305 mm (12-inch), cone
MF Transducer
2 x 102 mm (4-inch), cone
HF Transducer
25.4 mm (1-inch), compression driver
Frequency Response (-6 dB)
45 Hz - 18.5 kHz
Frequency Range (-10 dB)
40 Hz - 20 kHz
Nominal Coverage Angle
145° H x 35° V
Maximum Rated SPL 1 (peak)
132 dB @ 1 m
Electrical
Amplification (peak)
Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
AC Power Input
Universal power supply, 100-240VAC, 50/60 Hz
AC Power Consumption
100-240VAC ~ 3.7-1.8 A
Cooling
Low noise, variable speed fan
Connectivity

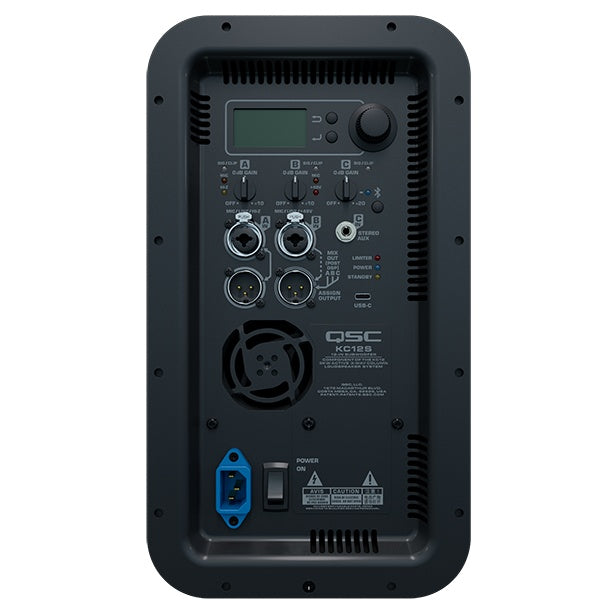

Connectors
2 x locking XLR/F 1/4 inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V), 2 x XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP), 1 x 3.5 mm TRS (Stereo Input), 1 x USB-C (Output: 5V/3A), 1 x locking IEC power connector
Controls
Controls
1 x Rotary encoder and 2 x Push buttons, 3 x Rotary level potentiometers, 1 x AC power switch
Indicators
Monochrome LCD Display 45 x 25.4 mm (1.75 x 1"), 2 x Power LEDs (blue), 1 x Standby LED (yellow), 1 x Limiter LED (red), 3 x Input Signal/Clip LEDs
Dimensions
System Height (Tall Deployment)
2270 mm / 89.4"
System Height (Short Deployment)
1463 mm / 57.6"
KC12T (H x W x D)
890 x 141 x 158 mm / 35 x 5.6 x 6.2"
KC-SP32 (H x W x D)
881 x 74 x 46 mm / 34.7 x 3 x 1.8"
KC12S (H x W x D)
655 x 357 x 455 mm / 25.8 x 14 x 18"
Weight
Net Weight (Tall Deployment)
27.3 kg / 60.3 lbs
KC12T Net Weight
4.0 kg / 8.9 lbs
KC-SP32 Net Weight
1.3 kg / 2.9 lbs
KC12S Net Weight
22.0 kg / 48.5 lbs
Construction
Enclosure Materials
Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Grille
Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)
Color
Black (RAL 9011)
Certifications
Regulatory
CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Items
System Components

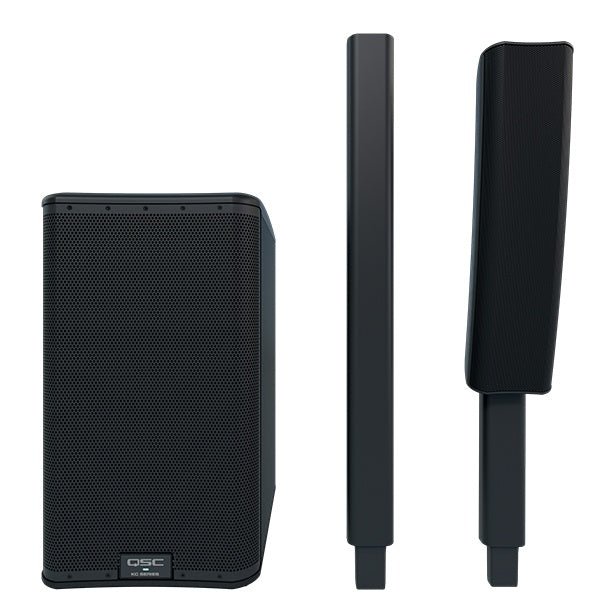

KC12T 145° Dual 4-inch Column System Loudspeaker, KC-SP32 32-inch Column System Pole, KC12S 3kW Active 12-inch Column System Subwoofer
Supplied Accessory

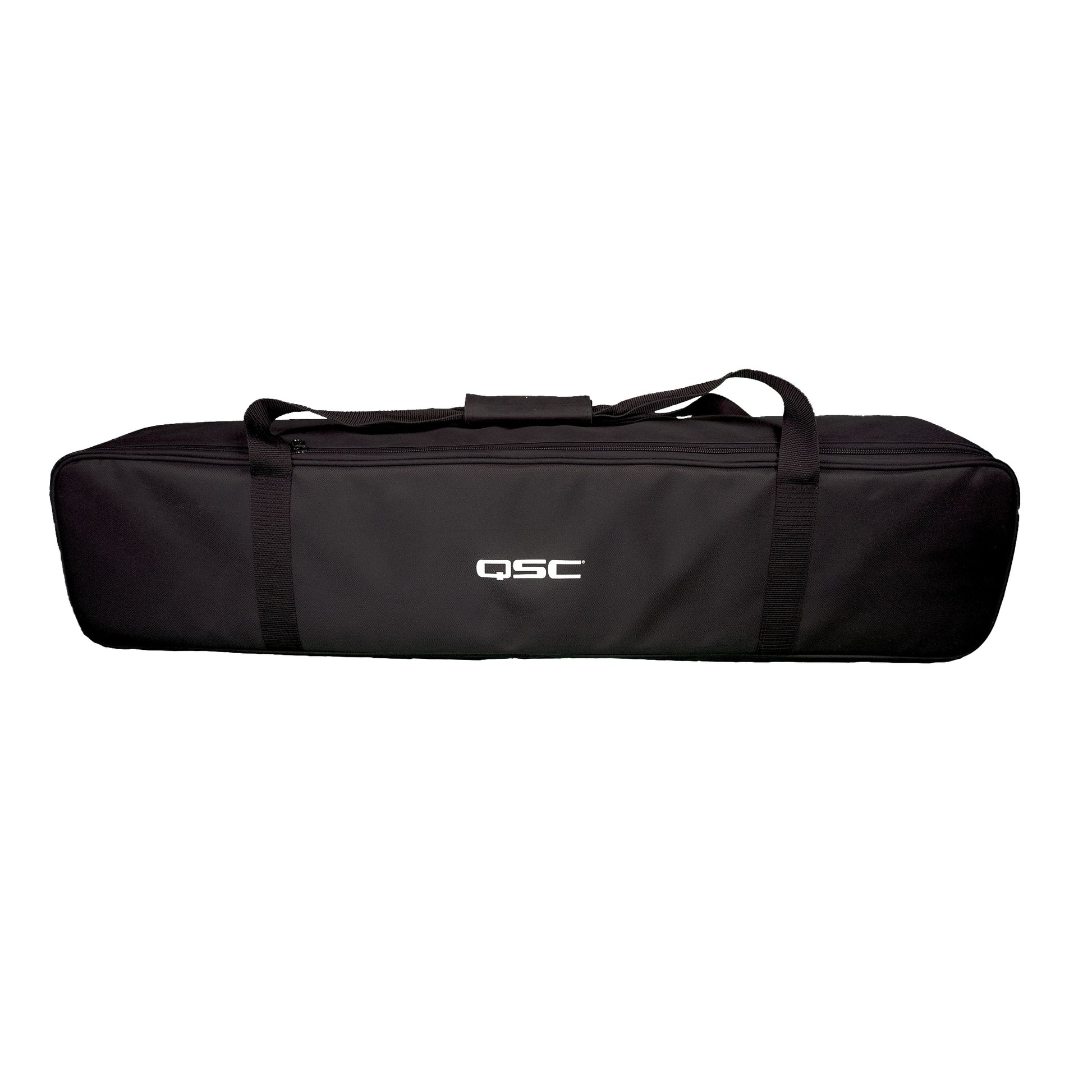

KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
Identifiers
Optional Accessory
KC12 CVR: Cover for the KC12S Subwoofer
