Specifications
Dimensions
Speaker Dimensions (H × W × D)
25.2 × 20.5 × 30.9 inches (640 × 520 × 785 mm)
Carton Dimensions (H × W × D)
22.5 × 29.3 × 35.3 inches (572 × 743 × 896 mm)
Weight
Shipping Weight
124.6 lbs (56.5 kg)
Electrical
AC Power Consumption (1/8 power)
100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A
Audio
Frequency Response (-6 dB)
41 Hz - 98 Hz
Maximum Rated SPL
136 dB @ 1 m (peak)
Connectivity

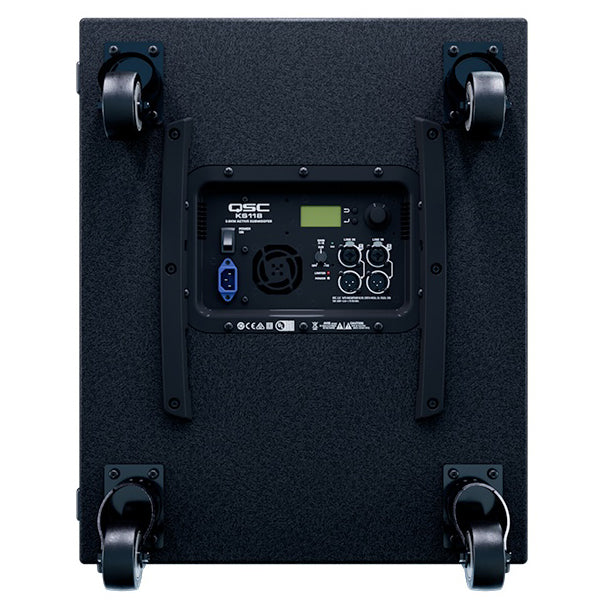

Connectors
2 × locking XLR/F ¼ inch combo, 2 × XLR/M (Loop-thru Output), 1 × locking IEC power connector
AC Power Input
Universal power supply 100 – 240 VAC, 50 – 60 Hz
Construction
Color
Black (RAL 9011)
Grille
16-gauge Black Powder Coated Steel
General
LF Transducer
460 mm (18 in), Cone
Frequency Range (-10 dB)
35 Hz - 111 Hz
Nominal Coverage
Angle Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Amplifier
Class D, 3600W (peak)
Cooling
Low-noise, variable speed fan
Controls
Power On/Off, Gain Control, Rotary encoder, 2 × selection buttons
Indicators
2 × Power LED (front and rear), Input Signal LED, Limiter active LED
Enclosure Details
Enclosure 18 mm birch plywood, Net Weight (including casters) 104 lbs (47 kg)
Regulatory
CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Cable
Configuration
Direct Radiating
