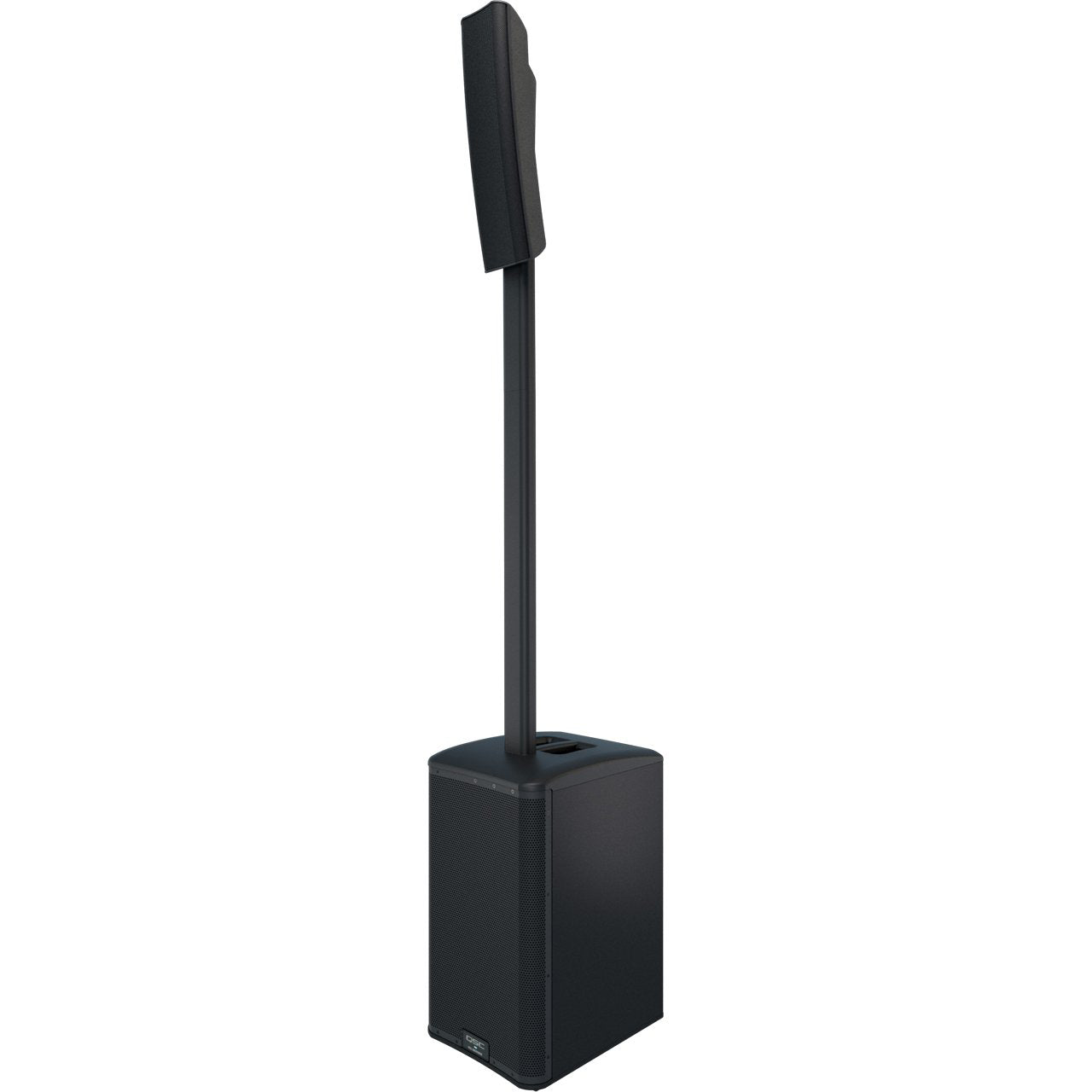

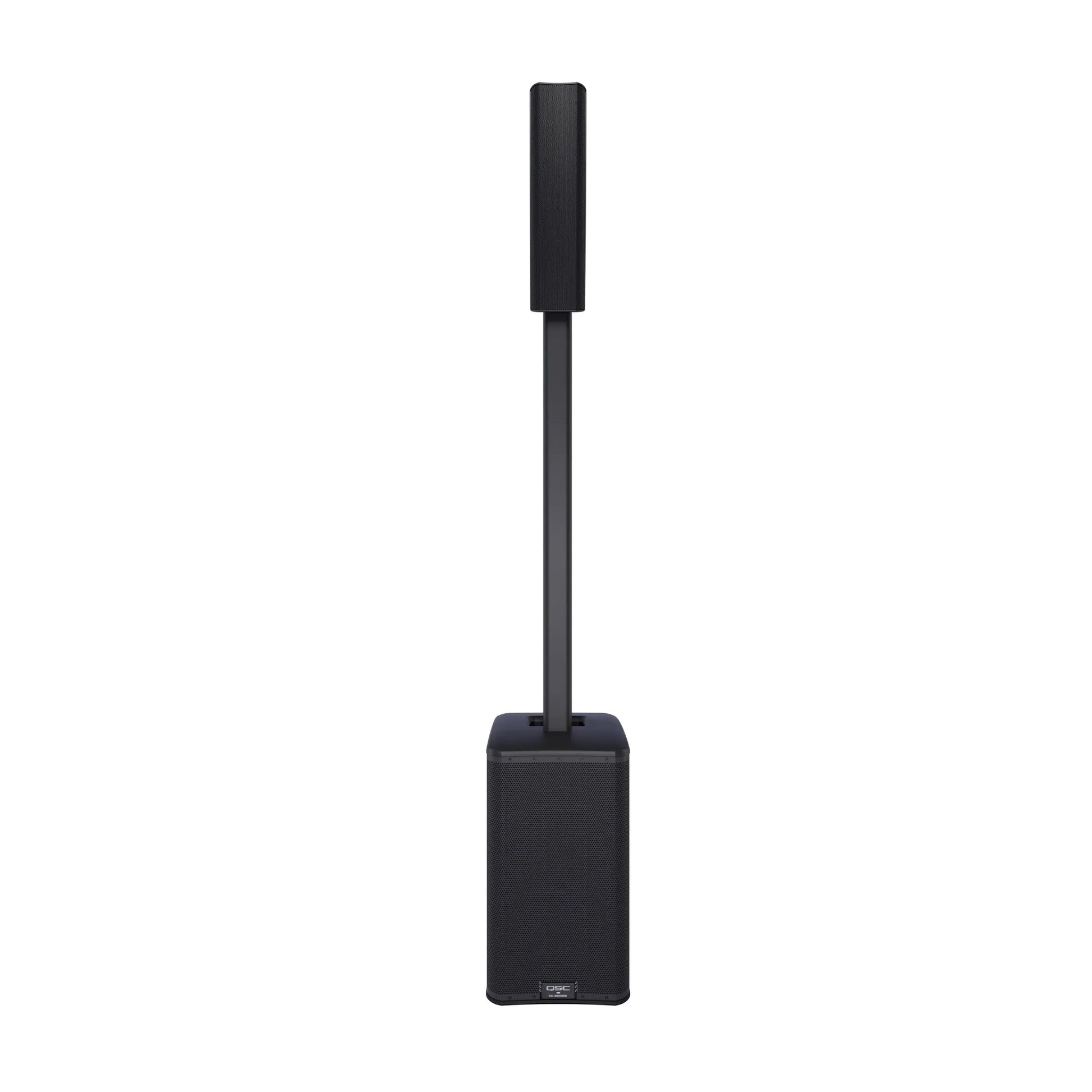

QSC KC12 Powered 3-Way Column Loudspeaker System

QSC KC12 Powered 3-Way Column Loudspeaker System

SoundPro Item: 146795 | Part Number: KC12T-BK

$525.00
$525.00 $525.00
Your Price Sold out
MSRP: $525.00 | MAP: $525.00

In stock and ready to ship

Log in or register for YOUR best price

Building on the legacy of the World of K portfolio, the KC12 is a 3-way, 3000-watt loudspeaker system encompassing the visual aesthetic of a column loudspeaker, while surpassing the acoustic performance of conventional designs. Simple and rapid to deploy, the elegant KC12 is ideal for solo entertainers, musicians and bands, mobile entertainers and DJs, AV productions and static installations.? ?The highly portable KC12 system consists of a ported subwoofer, housing a 12-inch driver extending down to 40 Hz. The groundbreaking design of the mid/high enclosure features a 1-inch compression driver combined with the innovative QSC LEAF (Length-Equalized Acoustic Flare) waveguide, as well as two high-excursion 4-inch midrange drivers. Thanks to this 3-way design, the system provides an outstanding full-range horizontal coverage of 145 degree, and 35 degrees of audience-directed vertical coverage, with clean and natural sound at all output levels.? Configured with or without its column pole, the system is ideally suited for direct deployment on a floor, stage or riser. Available in black and white, the KC12 is backed by an industry-best global 6-Year Extended Warranty, with product registration.?

View full details

Specifications

Configuration
Active 3-Way Column Loudspeaker System
LF Transducer
305 mm (12-inch), cone
MF Transducer
2 x 102 mm (4-inch), cone
HF Transducer
25.4 mm (1-inch), compression driver
Frequency Response (-6 dB)
45 Hz - 18.5 kHz
Frequency Range (-10 dB)
40 Hz - 20 kHz
Nominal Coverage Angle
145° H x 35° V
Maximum Rated SPL1 (peak)
132 dB @ 1 m
Amplification (peak)
Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
Cooling
Low noise, variable speed fan
Controls
1 x Rotary encoder and
2 x Push buttons
3 x Rotary level potentiometers
1 x AC power switch
Indicators
Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)
2 × Power LEDs (blue), Subwoofer front and rear
1 x Standby LED (yellow)
1 x Limiter LED (red)
3 × Input Signal/Clip LEDs (Signal: green / Clipping: red)
Input A: Mic/Line with assignable Hi-Z selected LED
Input B: Mic/Line with assignable +48 V selected LED
Input C: Bluetooth selected LED
Connectors
2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V)
2 × XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)
1 × 3.5 mm TRS (Stereo Input)
1 x USB-C (Output: 5V/3A)
1 × locking IEC power connector
AC Power Input
Universal power supply, 100-240 VAC, 50/60 Hz
AC Power Consumption2
1100-240 VAC ~ 3.7-1.8 A
System Components
KC12T 145° Dual 4-inch Column System Loudspeaker
KC-SP32 32-inch Column System Pole
KC12S 3kW Active12-inch Column System Subwoofer
Enclosure Materials
Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Color
Black (RAL 9011), White (RAL 9010)
Grille
Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)
System Height
Tall Deployment: 2270 mm / 89.4 in (with KC-SP32)
Short Deployment: 1463 mm / 57.6 in (without KC-SP32)
Dimensions (H x W x D)
KC12T: 890 × 141 × 158 mm / 35 × 5.6 × 6.2 in
KC-SP32: 881 × 74 × 46 mm / 34.7 × 3 × 1.8 in
KC12S: 655 × 357 × 455 mm / 25.8 × 14 × 18 in
Net Weight
Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32)
KC12T: 4.0 kg / 8.9 lb
KC-SP32: 1.3 kg / 2.9 lb
KC12S: 22.0 kg / 48.5 lb
Supplied Accessory
KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
Optional Accessory
KC12 CVR: Cover for the KC12S Subwoofer
Regulatory
CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
