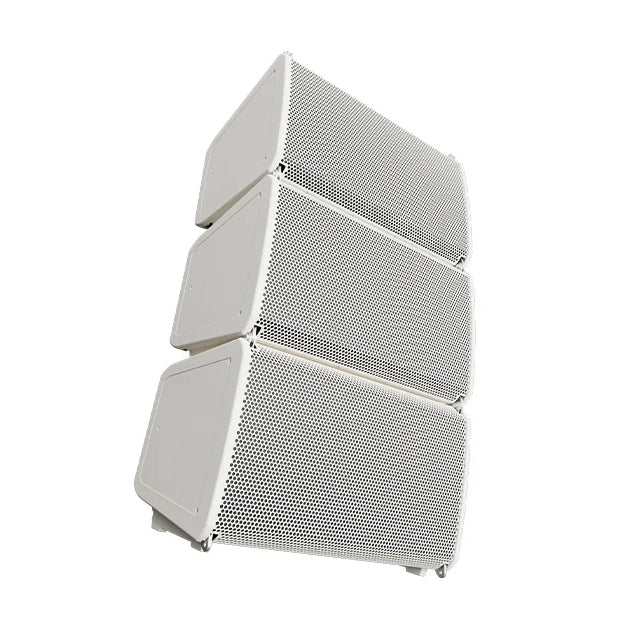

Q-SYS PL-LA12-WH 12" Two-Way Passive Installation Line Array Speaker | White

Q-SYS PL-LA12-WH 12" Two-Way Passive Installation Line Array Speaker | White

SoundPro Item: 204478 | Part Number: PL-LA12-WH

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 90° X 15° Coverage For Controlled Audience Area
  • Weatherized Enclosure For Protected Outdoor Use
  • Integrated Rigging Supports Flexible Array Deployment
  • Passive/Bi-Amp Design Fits Installed System Planning
  • Speakon And Euroblock Inputs Simplify Integration
Log in or register for YOUR best price

The Q-SYS PL-LA12-WH is a two-way passive/bi-amp installation line array loudspeaker built for small to medium-sized professional AV deployments. It uses a 12-inch low-frequency transducer and dual compression drivers in a bass reflex enclosure, providing controlled 90° x 15° coverage for front-of-house reinforcement in entertainment spaces, corporate auditoriums, lecture halls, and similar installed environments.

Its weatherized ABS enclosure is suited for indoor applications and protected outdoor locations where durability matters. Integrated rigging hardware supports flown arrays of up to twelve loudspeakers, and the cabinet can also be used in ground-stacked configurations when deployed with the required frame or compatible subwoofer support. The PL-LA12-WH also fits into Q-SYS system designs when paired with compatible CX-Q Series 4-channel network amplifiers for custom voicings and filter sets.

View full details

Specifications

Enclosure Configuration
Bass Reflex, Two-Way Passive/Bi-Amp Line Array Loudspeaker
Transducers
LF: 12 In (320 Mm), 2.5 In (64 Mm) Voice Coil, Neodymium Magnet HF: 2x Compression Driver, 1.75 In (44 Mm) Voice Coil
Coverage (Horizontal X Vertical)
90° X 15°
System Bandwidth (-10 dB With EQ)
53 Hz-20 kHz (No Subwoofer)
System Sensitivity
102.3 dB @ 1 W/1 m
Max SPL (Continuous)
129 dB
System Power Rating
49 Vrms, Continuous 300 W @ 8 Ω
Connectors
2x Speakon NL4 (Cable Connector Not Provided) 1x Euroblock (Parallel To Speakon): Solid Wire 8-24 AWG, 4 Poles
Recommended Amplifiers
Q-SYS CX-Q Series 4ch Network Amplifiers Up To Four (4) Loudspeakers Per Channel On CX-Q 8K4 Up To Two (2) Loudspeakers Per Channel On CX-Q 4K4
Rigging Angles
0.5, 1.5, 3, 4.5, 6, 8, 10, 12
Deployment
Ground Stacking 3x PL-LA12 (Requires PL-LA12-AF Array Frame Or A PL-SUB18) Flyable Up To 12x PL-LA12 Or 3x PL-SUB18 + 10x PL-LA12 (Requires PL-LA12-AF Array Frame)
Enclosure Material
Impact-Resistant ABS
Enclosure Color
Black (RAL 9011)
Weatherization
IP54 Stainless Screws UV And Corrosion Treated Grille Aluminum Rigging Hydrophobic Stainless Steel Mesh Behind Grille Input Cup (IP65) Sealing With Gland
Dimensions
15.4 X 24.4 X 15.8 In (392 X 620 X 381 Mm)
Weight
47 Lbs (21.5 Kg)
