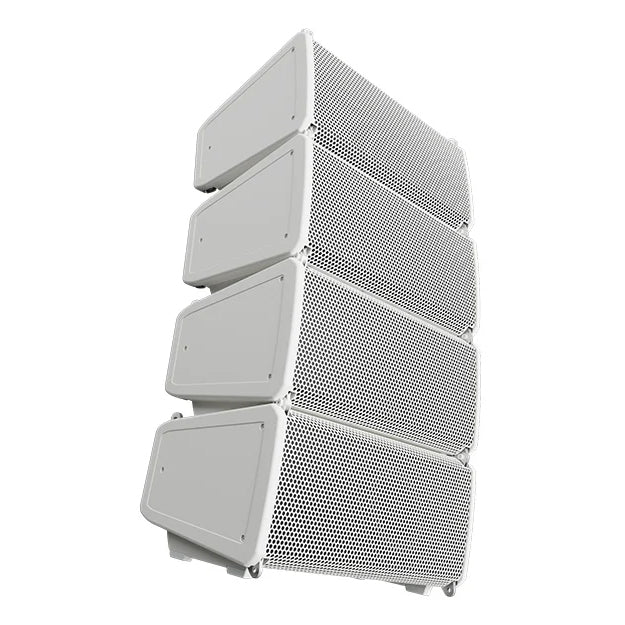

Q-SYS PL-LA8-WH 8" Two-Way Passive Installation Line Array Speaker | White

Q-SYS PL-LA8-WH 8" Two-Way Passive Installation Line Array Speaker | White

SoundPro Item: 204477 | Part Number: PL-LA8-WH

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Compact Array Format For Installed FOH Coverage
  • Weatherized IP54 Build For Protected Outdoor Use
  • LEAF Waveguide Supports Consistent Coverage
  • Integrated Rigging Speeds Array Deployment
  • Works With CX-Q Amps For Tuned System Setup
Log in or register for YOUR best price

The Q-SYS PL-LA8-WH is a two-way passive 8-inch installation line array built for small to medium-sized venues that need controlled, professional front-of-house reinforcement. Its bass-reflex enclosure combines an 8-inch low-frequency transducer with a high-frequency compression driver, supporting applications such as corporate auditoriums, lecture halls, entertainment spaces, and small sporting venues.

For integrators and venue operators working in demanding environments, the enclosure is weatherized to IP54 and uses impact-resistant ABS construction with corrosion-treated components for indoor and protected outdoor deployment. The cabinet also incorporates QSC LEAF waveguide technology for consistent coverage, helping designers build arrays that suit intelligible speech and full-range program material.

The PL-LA8-WH is designed to streamline installed system deployment when paired with compatible Q-SYS CX-Q Series 4-channel network amplifiers, enabling custom voicings and filter sets. Integrated rigging hardware supports flown arrays and ground-stacked configurations when used with the required array frame, making it a practical choice for venues that need scalable coverage from a compact loudspeaker platform.

View full details

Specifications

Enclosure Configuration
Bass Reflex, Two-Way Passive/Bi-Amp Line Array Loudspeaker
Transducers
LF: 8 In (200 Mm), 2 In (50 Mm) Voice Coil, Neodymium Magnet; HF: Compression Driver, 1.75 In (44 Mm) Voice Coil
Coverage (Horizontal X Vertical)
100° X 15°
System Bandwidth (-10 dB With EQ)
61 Hz-20 kHz (No Subwoofer)
System Sensitivity
101.2 dB @ 1 W/1 m
Max SPL (Continuous)
126 dB
System Power Rating
46 Vrms, Continuous 250 W @ 8 Ω
Connectors
2x Speakon NL4 (Cable Connector Not Provided); 1x Euroblock (Parallel To Speakon): Solid Wire 8-24 AWG, 4 Poles
Amplification
Recommended Amplifiers
Q-SYS CX-Q Series 4ch Network Amplifiers; Up To Four (4) Loudspeakers Per Channel On CX-Q 8K4; Up To Two (2) Loudspeakers Per Channel On CX-Q 4K4
Rigging And Deployment
Rigging Angles
0.5, 1.5, 3, 4.5, 6, 8, 10, 12
Deployment
Ground Stacking 4x PL-LA8 (Requires PL-LA8-AF Array Frame); Flyable Up To 14x PL-LA8 (Requires PL-LA8-AF Array Frame)
Construction
Enclosure Material
Impact-Resistant ABS
Enclosure Color
Black (RAL 9011)
Weatherization
IP54; Stainless Screws; UV And Corrosion Treated Grille; Aluminum Rigging; Hydrophobic Stainless Steel Mesh Behind Grille; Input Cup (IP65) Sealing With Gland
Dimensions
10.7 X 20.1 X 13.7 In (272 X 512 X 349 Mm)
Weight
30 Lb (13.5 kg)
