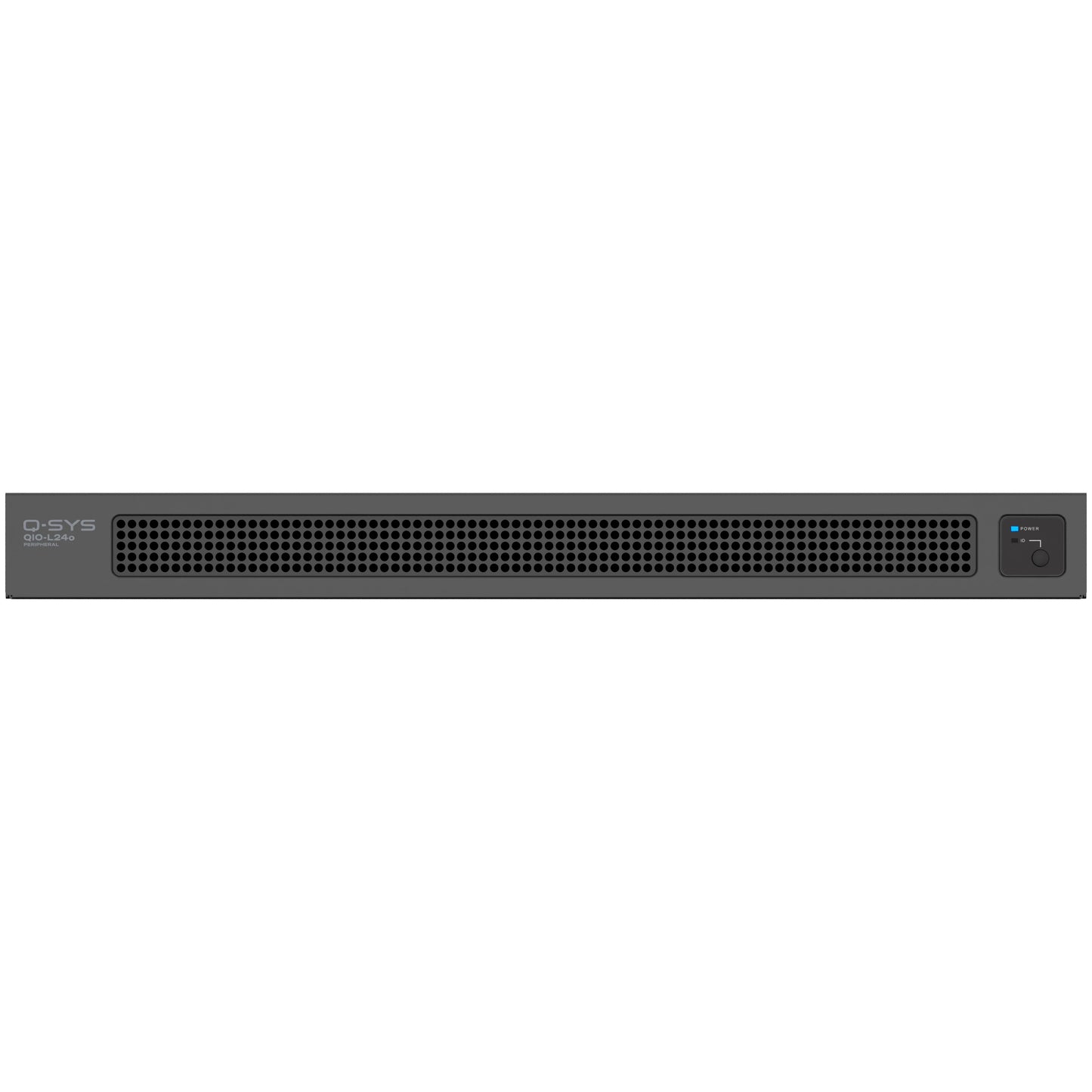

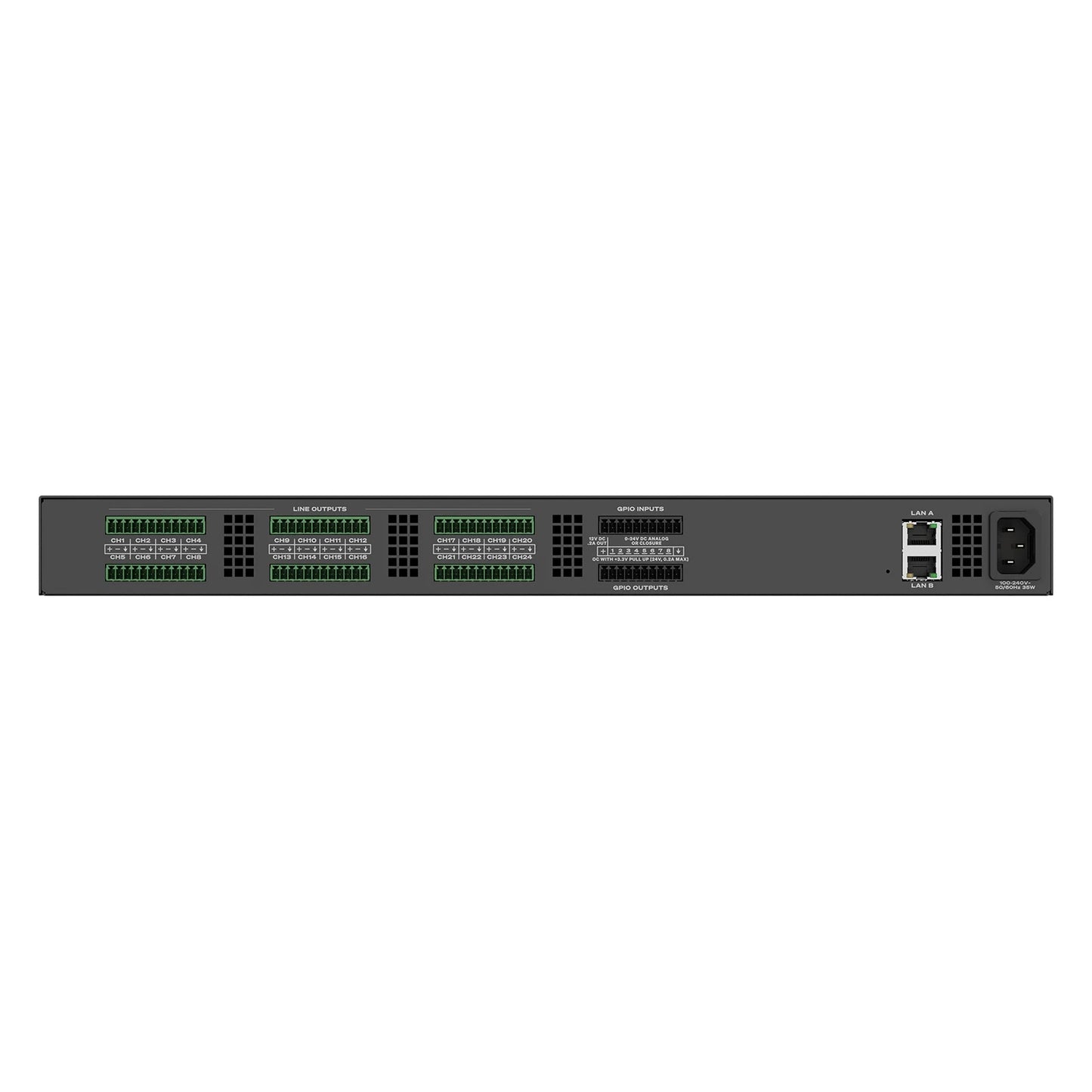

Q-SYS QIO-L24o Network Audio Expander 24 Line Outputs

Q-SYS QIO-L24o Network Audio Expander 24 Line Outputs

SoundPro Item: 201770 | Part Number: QIO-L24o-NA

$2,960.00
$2,960.00 $2,960.00
Your Price Sold out
MSRP: $2,960.00 | MAP: $2,960.00

In stock and ready to ship

  • 24 line outputs for high-density signal distribution
  • Dual Ethernet supports network redundancy
  • 1RU chassis saves rack space in larger systems
  • 8 x 8 GPIO links third-party control devices
  • Relay mute reduces power-up transients
  • Surface or rack mounting fits varied installs
Log in or register for YOUR best price

The QIO-L24o extends Q-SYS with high-density analog output capacity in a single 1RU peripheral. It provides twenty-four line level outputs for larger systems that need centralized audio distribution without using multiple smaller devices.

Designed for professional AV environments, it supports network and peripheral redundancy, includes 8 x 8 GPIO for third-party control integration, and offers surface or rack mounting. Typical applications include event productions, hospitality installations, paging systems, and judicial spaces.

View full details

Specifications

Audio Output
Connectivity
Twenty-four (24) line level outputs
Sample rate
48 kHz
Bit depth
24 bit
Output audio range level
-36 dBu to +24 dBu
Output dynamic range
>110 dB
Output to output crosstalk @ 1 kHz
> 102 dB typical, >90 dB max
Output impedance
100 Ω
Physical
Product dimensions (L x W x H)
12.0 x 17.4 x 1.72 in (304.8 x 443.0 x 43.6 mm)
Product weight
8.5 lb (3.86 kg)
Mounting options
Surface- or rack-mountable; 1RU, full-rack width
Included accessories
1x AC mains power cord (country-specific) Removable rack ears for rack- or surface-mounting
Optional accessories
QIO-CK redundancy cable kit (sold separately)
Power and Network
Power supply input
1x universal input rated 100-240 V, 50/60 Hz
AC input rating
35 W Max
LAN
2x gigabit Ethernet connectors (does not provide or accept PoE)
Environmental and Compliance
Ambient operating temperature range
32° to 122° F (0° to 50° C)
Storage temperature range
-4° to 158° F (-20° to 70° C)
Humidity range
5% to 85%, non-condensing
Thermal dissipation
119 BTU/h
Regulatory
FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
