Q-SYS QIO-LVR4 Low-Voltage Relay Network I/O Expander

Q-SYS QIO-LVR4 Low-Voltage Relay Network I/O Expander

SoundPro Item: 145114 | Part Number: QIO-LVR4

$580.00
$580.00 $580.00
Your Price Sold out
MSRP: $560.00 | MAP: $560.00

In stock and ready to ship

  • Four dry contacts for relay-based control interfacing
  • NO C and NC terminals support varied control wiring
  • PoE operation simplifies single-cable deployment
  • Ethernet thru supports daisy-chain network layouts
  • Drag-and-drop setup in Designer speeds integration
  • Surface hardware included for install flexibility
Log in or register for YOUR best price

The QIO-LVR4 extends a Q-SYS system with low-voltage relay connectivity for interoperability with non-networked control devices. Its modular network I/O approach helps separate local connections from processing hardware to support scalable system design.

It provides four dry contact closure relay circuits and supports PoE over a Gigabit Q-LAN connection. Ethernet daisy-chaining and local DC power daisy-chaining allow flexible deployment, while support in Q-SYS Designer Software v9.12 enables streamlined setup and management.

View full details

Specifications

Relay I/O
Model
QIO-LVR4
Connectivity
Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections
Rating
30 V AC @ 1A 24 V DC @ 2A

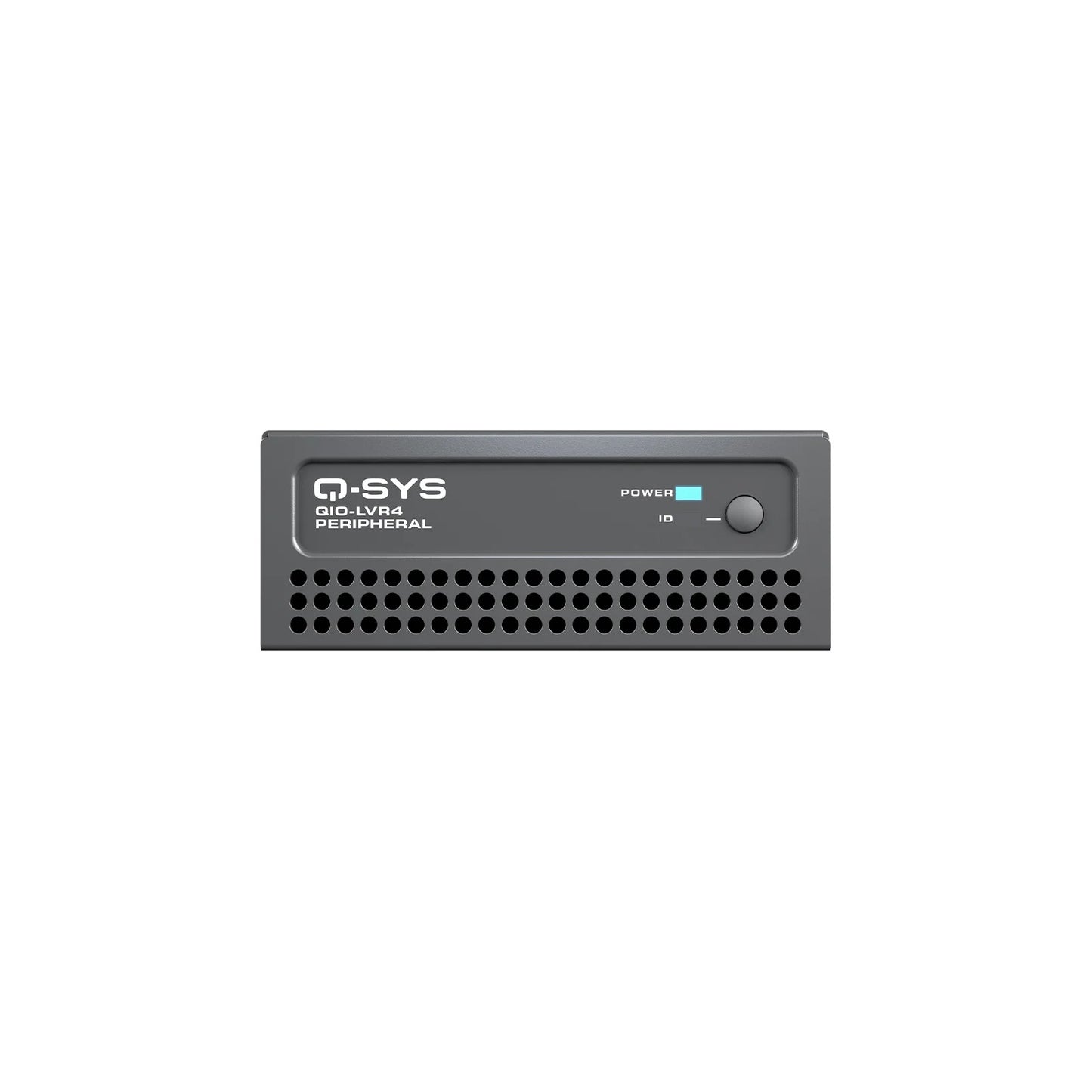

Controls and Indicators
Front panel LEDs
Power (blue LED), ID (green LED)
Front panel control
ID button (momentary)

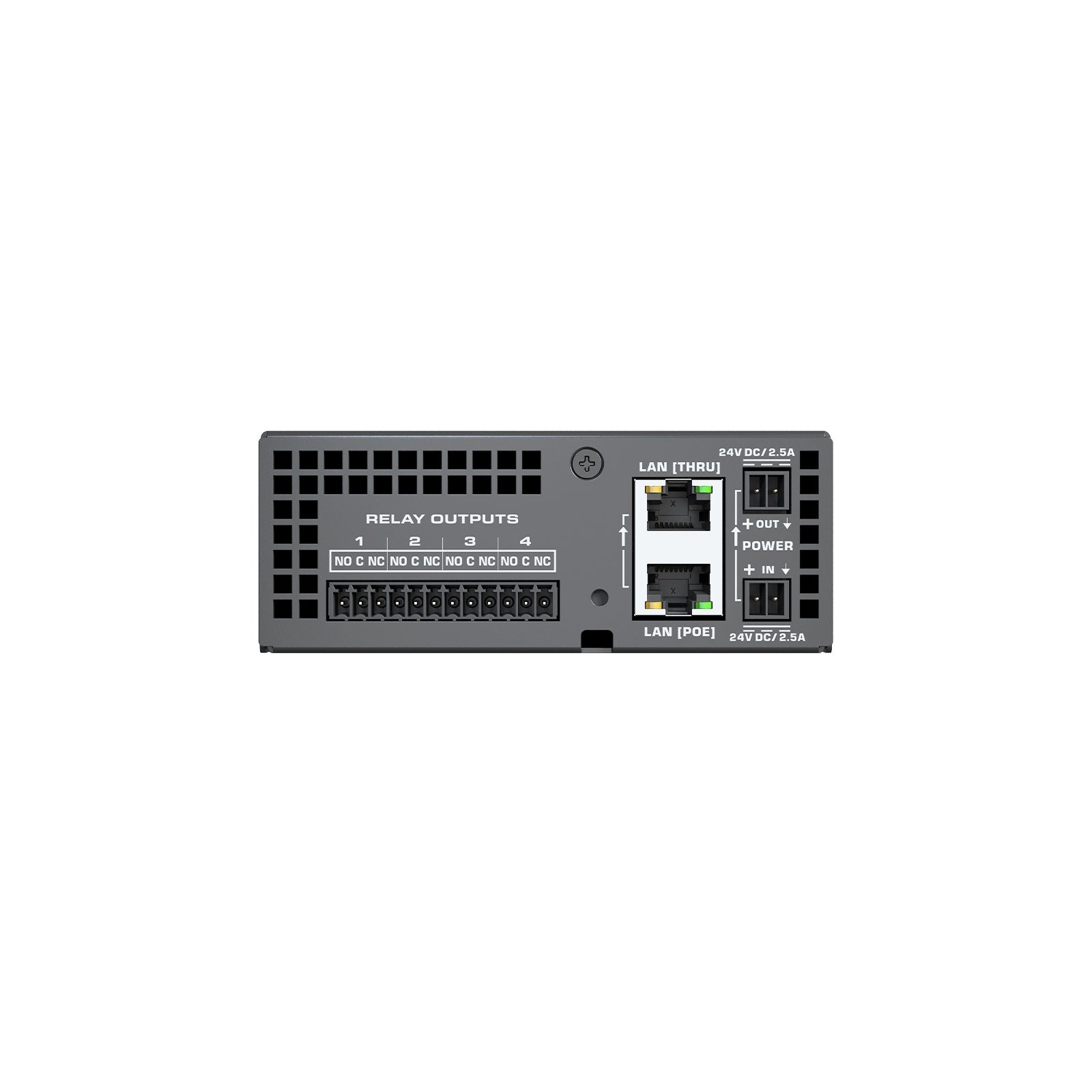

Rear panel indicators
LAN (Thru) - link, speed, activity multi-color LEDs LAN (PoE) - link, speed, activity multi-color LEDs
Network and Power
LAN (PoE)
Gigabit LAN connection for Q-LAN, PoE
PoE specification
Conforms to IEEE 802.3af Type 1, Class 1
LAN (Thru)
Ethernet daisy-chaining
External power supply
24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
Power consumption
2.2 W typical
Heat load
7.5 BTU/hr
Physical
Dimensions
5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
Weight
1.18 lb (0.54 kg
Shipping Weight
1.84 lb (0.83 kg)
Mounting options
Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, half-rack width (QIO-RMK rack kit sold separately)
Environmental
Ambient operating temperature range
0° C to + 50° C,
Humidity
5% to 85% RH through 30°C, non-condensing
Storage temperature
-20° C to + 70° C
Compliance
Compliance
FCC Part 15 Subpart B, ICES-003:2020, cTUVus, CAN/CSA 22.2, IEC 62368-1, RoHS 2, WEEE, CE, EN 55032, EN 55035, RCM: AS/NZS CISPR 32, NOM, GB8898, GB13837, GB17625.1, China RoHS, KS C 9035, KS C 9032, KC 62368-1
