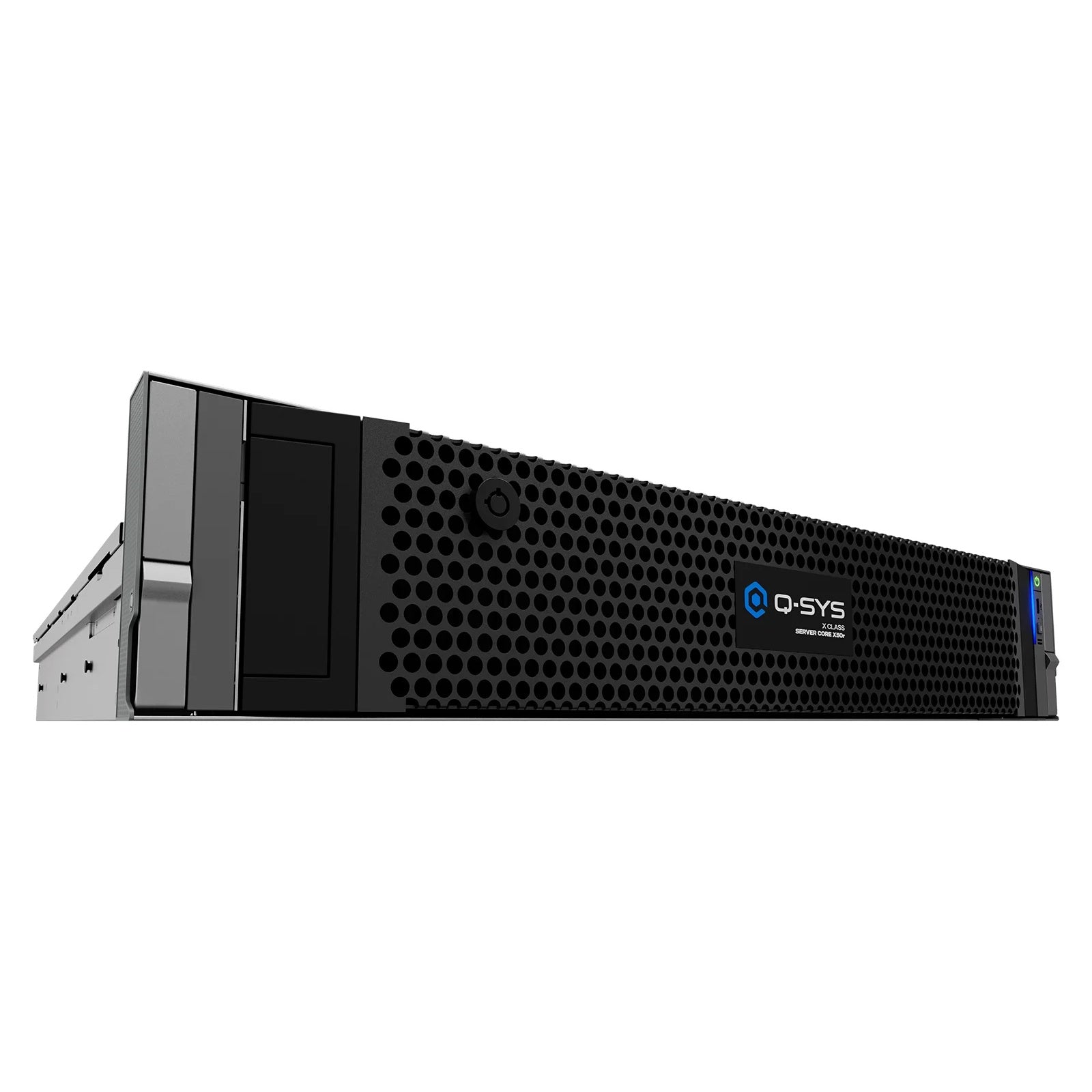

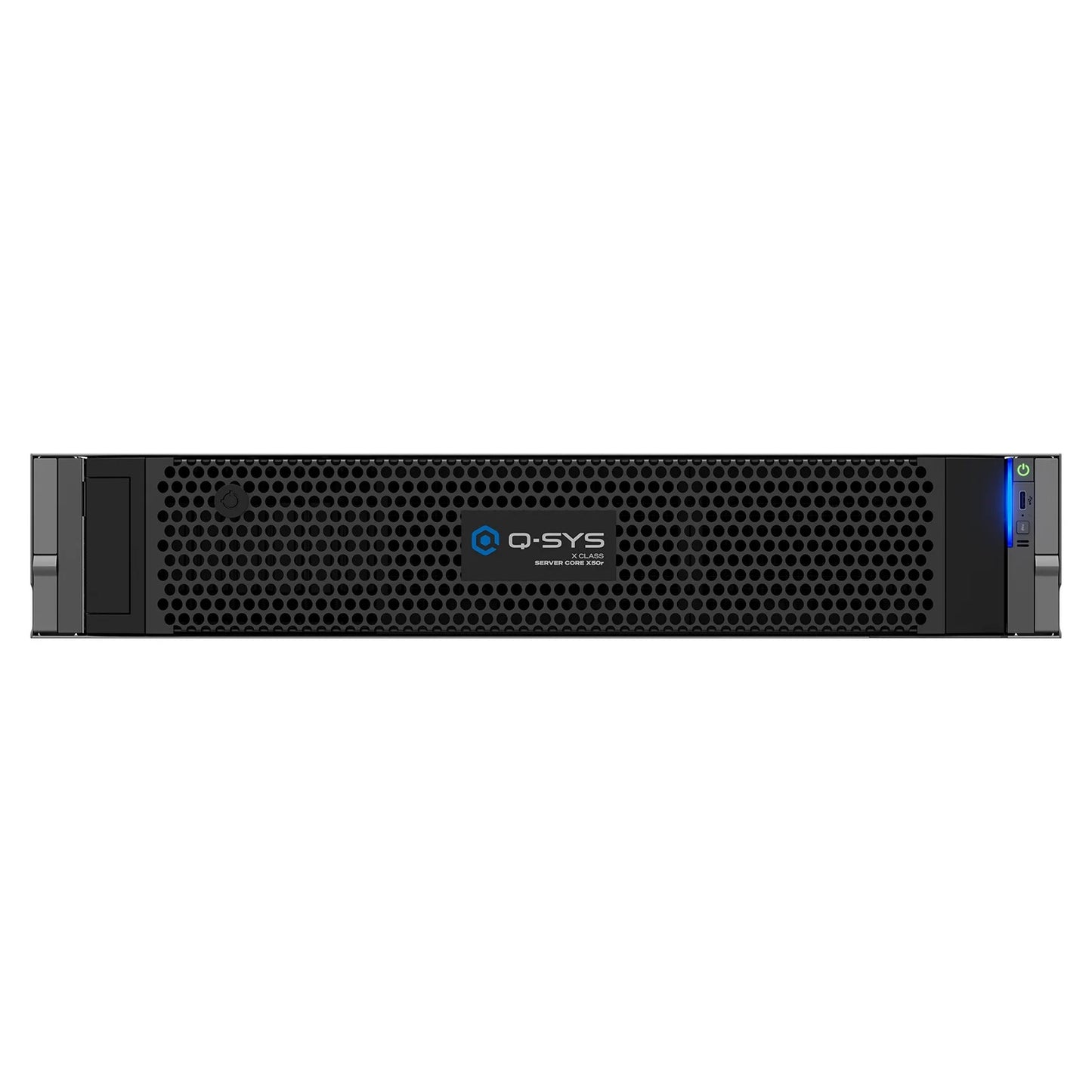

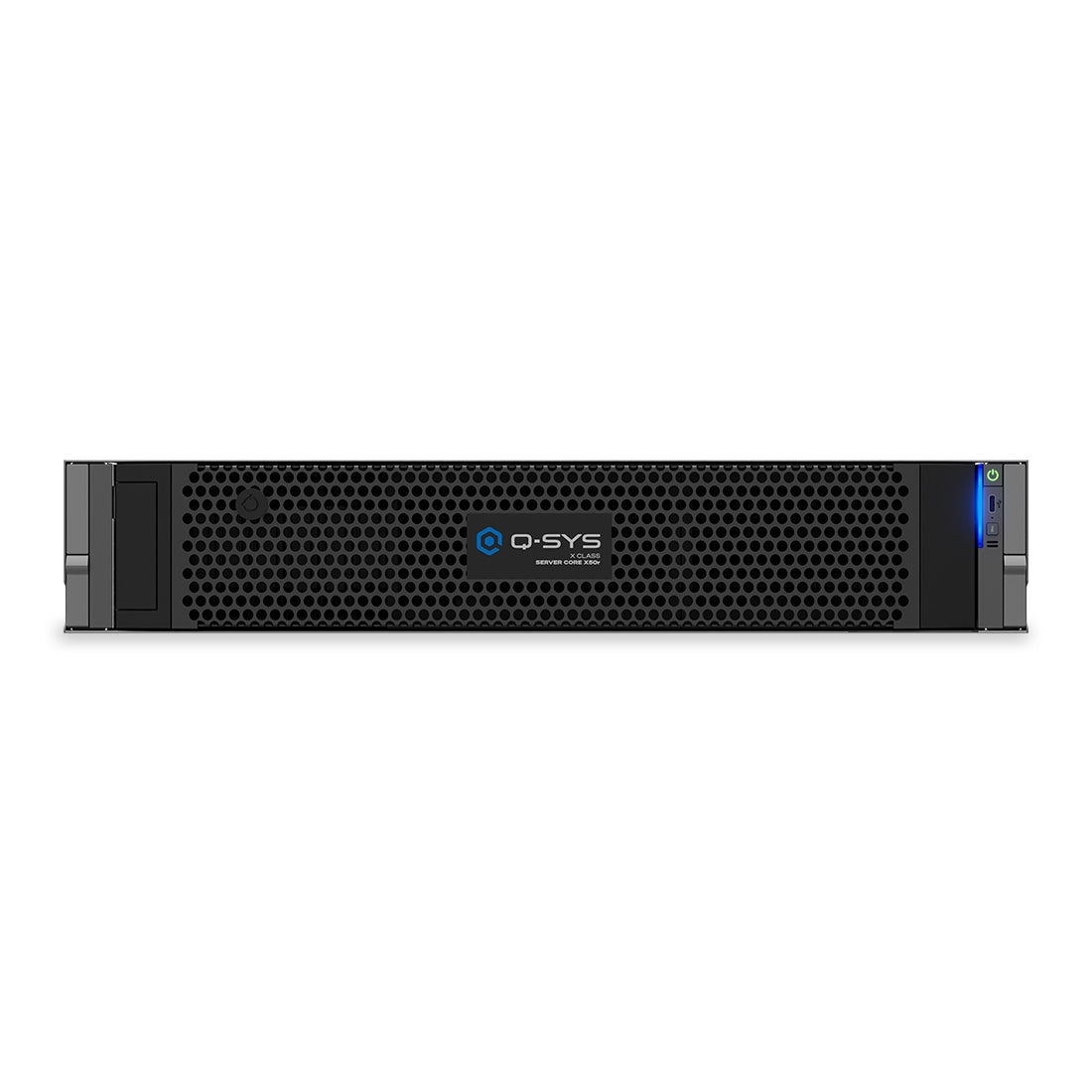

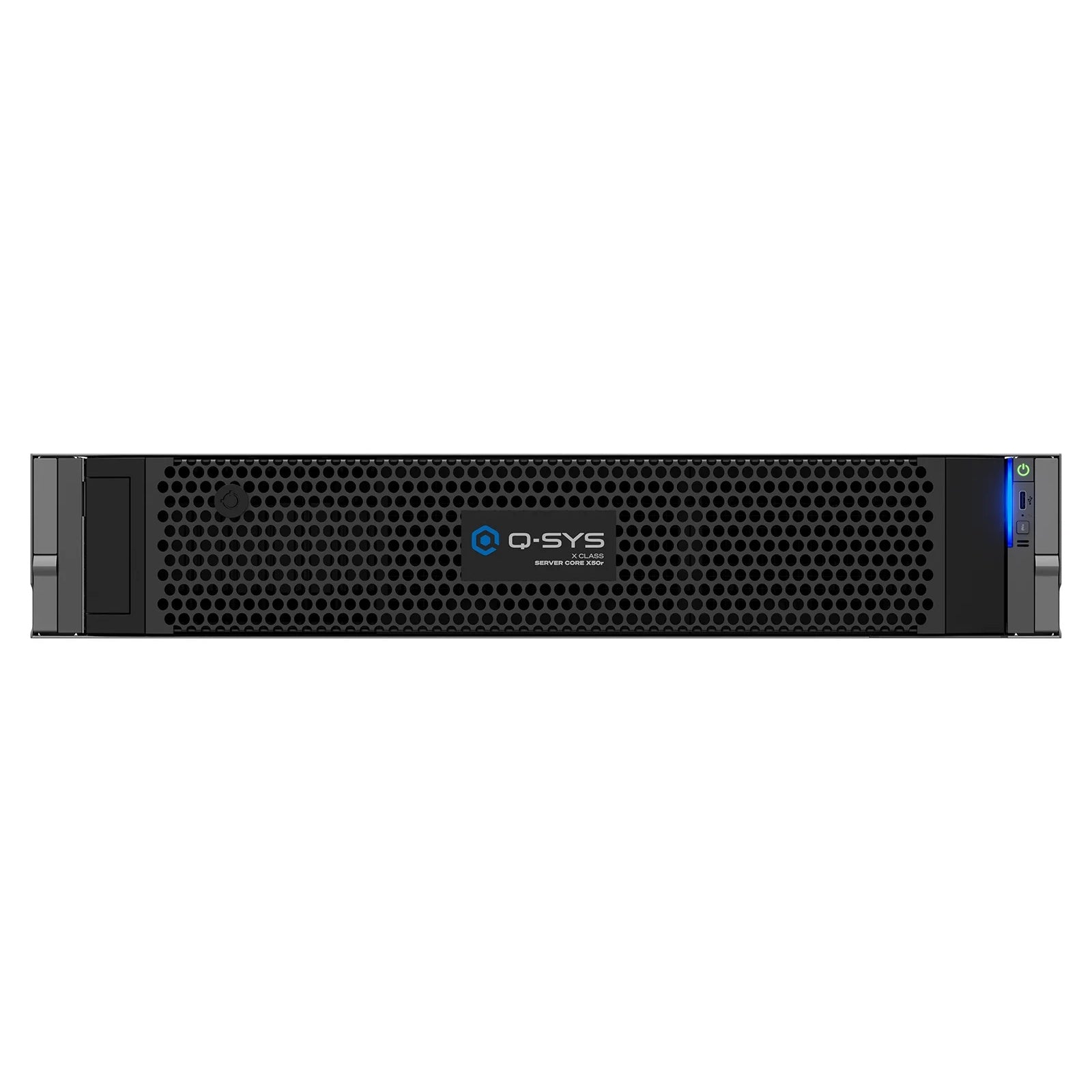

Q-SYS SERVER CORE X50r X Class Server Core For Large Systems

Q-SYS SERVER CORE X50r X Class Server Core For Large Systems

SoundPro Item: 204474 | Part Number: SERVER CORE X50R

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Handles Large-Scale Centralized AV Services
  • Supports High-Density Networked Audio Workflows
  • Enables Software-Based System Scalability
  • Built For Mission-Critical Install Reliability
  • Supports Distributed Q-SYS Edge Architectures
Log in or register for YOUR best price

The Q-SYS SERVER CORE X50r is designed for large, centralized AV systems that demand substantial processing headroom and networked audio capacity. Built on the Q-SYS Full Stack AV Platform and deployed on Dell server hardware, it supports complex enterprise, hospitality, entertainment, and large venue environments where a single Core may need to serve extensive edge I/O, distributed processing, and mission-critical services.

This model is suited to projects requiring high channel counts, software-based scalability, and integration across audio, video, and control workflows. It supports up to 4096 x 4096 networked audio channels at 10 Gbps, includes software-based Dante capability, and offers Media/WAN capacity for broader system transport needs. Redundant hot-swappable power supplies and field-replaceable network connectivity options make it a strong fit for installations where uptime and serviceability matter.

With a 2RU form factor, onboard media storage, acoustic echo cancellation resources, multitrack playback and recording capability, and support for centralized AV services, the SERVER CORE X50r addresses the needs of demanding Q-SYS designs without forcing separate platform approaches across spaces or buildings.

View full details

Specifications

Performance
Model
Server Core X50r
@ 10Gbps
4096 x 4096
@ 1Gbps
512 x 512
@ 10Gbps
1024 x 1024
@ 1Gbps
256 x 256
Dante network I/O
8 x 8 included (up to 512 x 512 with Software-based Dante feature license)
Media/WAN channel capacity
256 x 256
VoIP softphones
96
AEC channels (at 200 ms tail length)
256
Audio recording / playback
4 channels recording / 16 channels playback, [expandable up to 256 channels playback with optional multi track playback license (SLMTP-32) stackable up to 8x]
Media drive capacity
960 GB (at least 900 GB available for user media, or at least 1800 hours of uncompressed 48 kHz, 24 bit, mono WAV format audio files)
Hardware
Platform
Dell PowerEdge R570
Power
2x universal input, 1100 W PSU module
LAN

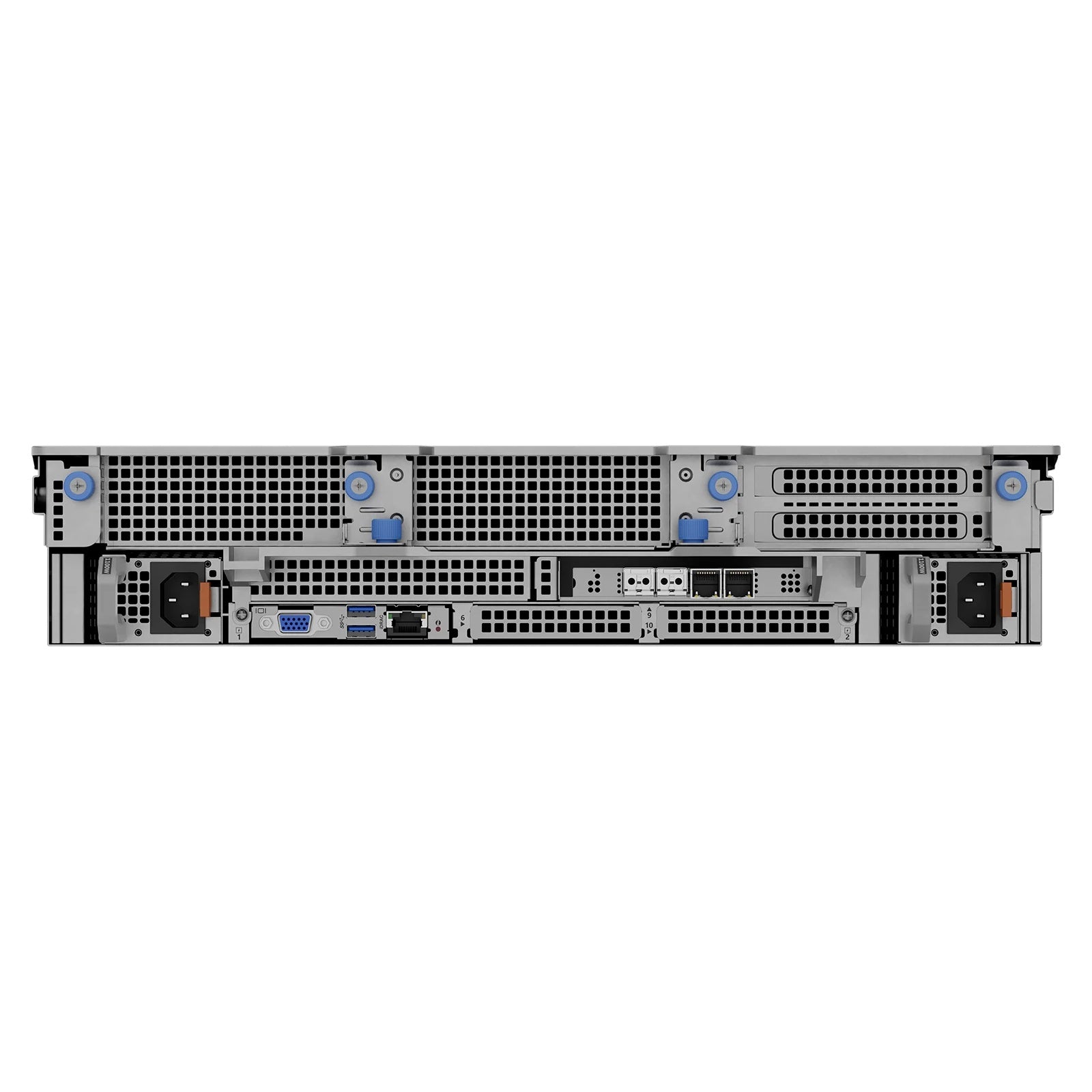

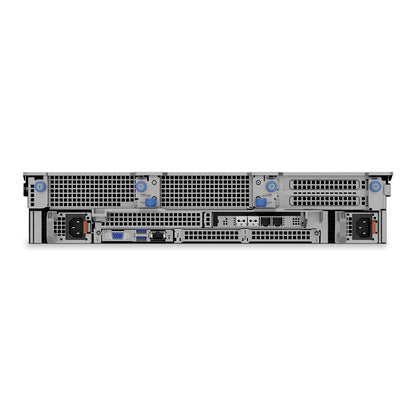

4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps fiber / 2x 1Gbps copper RJ45; field-replaceable)
USB
2x USB-A
iDRAC
1x dedicated iDRAC v10 Ethernet port (rear) 1x iDRAC Direct (USB-C) port (front)
Ventilation
Forced air – front intake, rear exhaust
Front
Power button / LED System ID button
Dimensions & Weight
Product dimensions (L x W x H)
32.09 x 19.0 x 3.42 in (815 x 482.0 x 86.8 mm), including rack ears and handles
Product weight
40.0 lbs (18.1 kg)
Shipping carton dimensions (L x W x H)
39.5 x 26.0 x 12.5 in (1003 x 660 x 318 mm)
Shipping weight
54.3 lbs (24.6 kg)
Included Items
Included accessories
Rail kit Environmental and Regulatory information booklet 2x Region-specific power cords (for dual power supplies) Quick Start Guide
Electrical & Environmental
Line voltage
100-240 VAC, ~50/60 Hz
Current draw
~12 A @100-120 VAC, ~6.1 A @200-240 VAC
Operating temperature range
5°C to +45°C
Storage temperature
-40°C to +70°C
BTU/hour
4100 BTU/Hr
Humidity
8% to 90%
Regulatory
FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
Battery chemistry
Lithium manganese dioxide
