• Quam C10X/BU/WS Ceiling Mounted Speaker
1 1

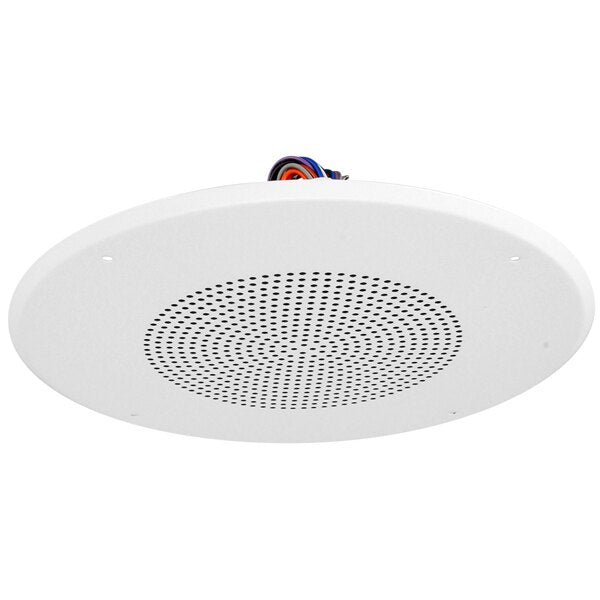

Quam C10X/BU/WS Ceiling Mounted Speaker

Quam C10X/BU/WS Ceiling Mounted Speaker

SoundPro Item: 95581 | Part Number: C10X/BU/WS

$52.15
$52.15 $52.15
Your Price Sold out
MSRP: $52.15 | MAP: $52.15

Usually ships in 5-7 business days

  • Average Sensitivity - 95 dB SPL, 1W/ 1M
  • Loudspeaker Power Rating - 20W RMS, EIA 426A Standard
  • Maximum Power Rating - 15W @ 8 Ohms
  • Calculated Output - 102 dB SPL, 5W/ 1M
  • Magnet Type & Weight - BeFe Ceramic, 5 oz. Nominal
  • Frequency Response - 65 Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle - 100° Included Angle, -6 dB / 2 kHz, Half space
  • Audio Connection - 7" Color-Coded Leads
  • Wattage Taps - 0.32W, 0.63W, 1.25W, 2.50W, 5W
Log in or register for YOUR best price

The C10X/BU/WS consists of an 8C10PAX - 8" O.D. dual cone loudspeaker with a 10 oz. magnet, TBLU - 5W-25/70V transformer, and a BR8WS - round, stud-mount baffle.

View full details
  • Application
    • Intended Use: Indoor environment
    • Program Material: Signal tones, voice and music
  • Audio Performance
    • Average Sensitivity: 95 dB SPL, 1W/1M
    • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
    • Maximum Power Rating: 15W @ 8 Ohms
    • Calculated Output: 102dB SPL, 5W/1M
    • Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal
    • Frequency Response: 65Hz - 17kHz, EIA 426A Standard
    • Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half Space
    • Audio Connection: 7", Color-coded, Pre-tinned Leads
  • Component
    • Dimensions: 12 7⁄8" (Diameter) x 2 ½" (D)
    • Combined Weight: 4.2 lbs.
    • Loudspeaker Model: 8C10PAX
    • Loudspeaker Specs: 8" O.D. loudspeaker, 10 oz. magnet
    • Transformer:TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5.0W)
    • Baffle:BR8WS: round, steel, stud-mount
    • Finish: White powder coat finish
