Quam SOLUTION 2 Ceiling Speaker Assembly

Quam SOLUTION 2 Ceiling Speaker Assembly

SoundPro Item: 99190 | Part Number: SOLUTION 2

$213.16
$213.16 $213.16
Your Price Sold out
MSRP: $213.16 | MAP: $213.16

Usually ships in 5-7 business days

  • Complete, speaker/transformer/baffle/ backbox/tile bridge assembly
  • Designed for drop-tile ceiling installations
Log in or register for YOUR best price

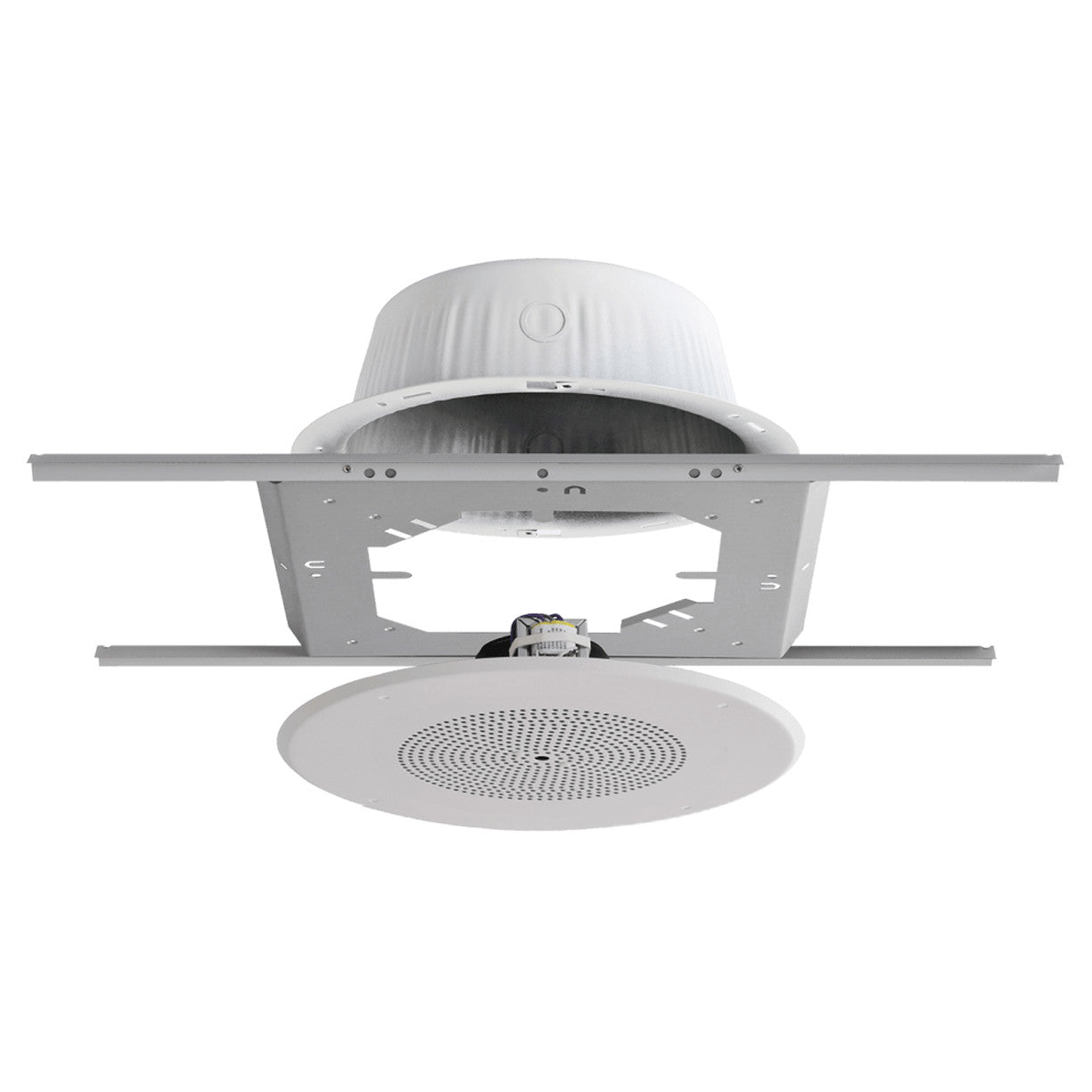

The Quam SOLUTION 2 Ceiling Speaker Assembly is a complete, speaker/transformer/baffle/ backbox/tile bridge assembly. It is designed for drop-tile ceiling installations. The SOLUTION 2 includes two (2) of each of the following: 8″ O.D. speaker with 10 oz. magnet and a 5W, 25/70V transformer with a screwdriver or detachable knob (knob included) adjusted volume control, round, steel, stud-mount baffle, rust-resistant steel, load bearing support bridge, round, steel, 275 CID backbox. Each SOLUTION 2 includes two (2) complete speaker assemblies.

View full details

Specifications

Dimensions
Baffle Dimension
12 7⁄8" (Diameter) x 5⁄16" (H)
Backbox Dimension
12 5⁄16" (Diameter) x 4 ¼" (H)
Mounting Support Dimension
23 ¾" (W) x 14 3⁄8" (H) x 9⁄16" (D)
Weight
Magnet Type & Weight
BeFe Ceramic, 10 oz. Nominal
Combined Weight
15 lbs.
Audio
Average Sensitivity
95 dB SPL, 1W/1M
Frequency Response
60Hz - 17kHz, EIA 426A Standard
Connectivity
Calculated Output
102dB SPL, 5W/1M
Audio Connection
7", Color-coded, Pre-tinned Leads
Construction
Program Material
Signal tones, voice and music
Transformer
TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)
Finish
White powder coat finish on baffle
General
Intended Use
Indoor environment
Installation
Downward-firing in a 24" wide, drop-tile ceiling
Loudspeaker Power Rating
20W RMS, EIA 426A Standard
Nominal Coverage Angle
90° Included Angle, -6dB/2kHz, Half Space
Loudspeaker Model
C10X/BU/WS/VC
Loudspeaker Specs
8" O.D. loudspeaker, 10 oz. magnet
Baffle
BR8WS: round, steel, stud-mount
Backbox
ERD8U: round, steel
Mounting Support
SSB-3: rust-resistant steel
Other
Volume control knob included
