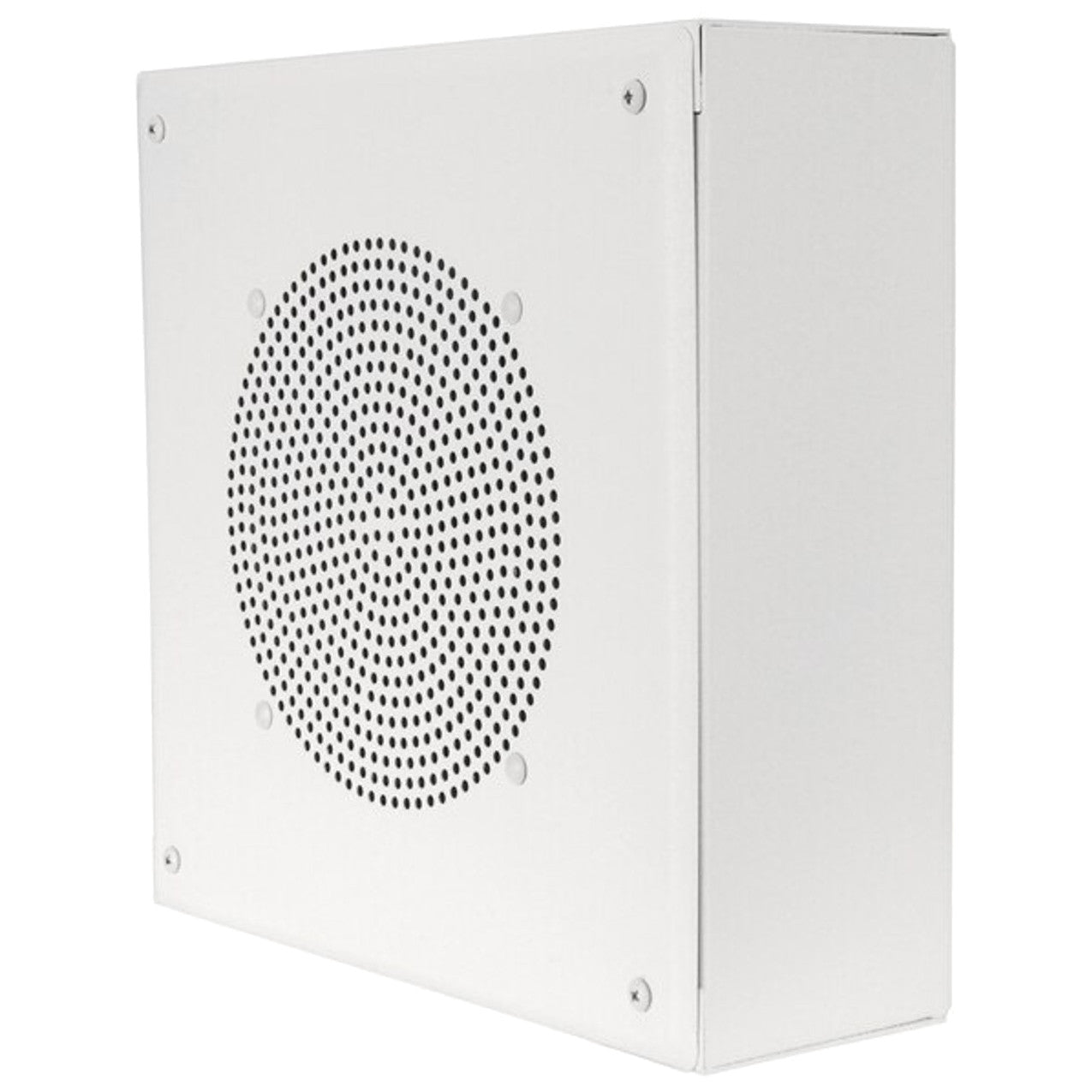

• Quam SYSTEM 1 Wall Mount Speaker System

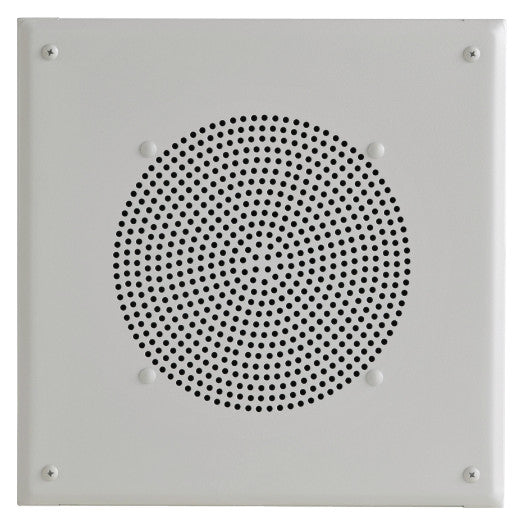

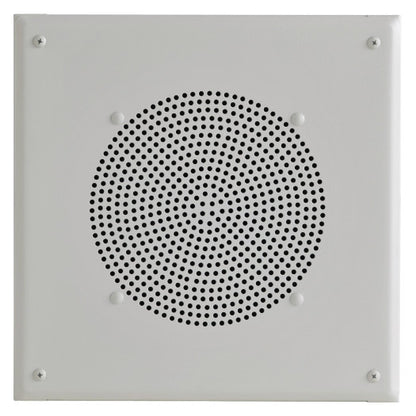

  • Quam SYSTEM 1 Wall Mount Speaker System front

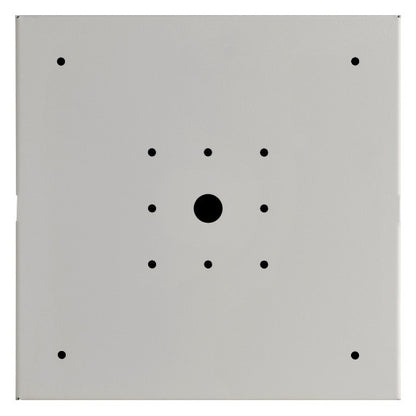

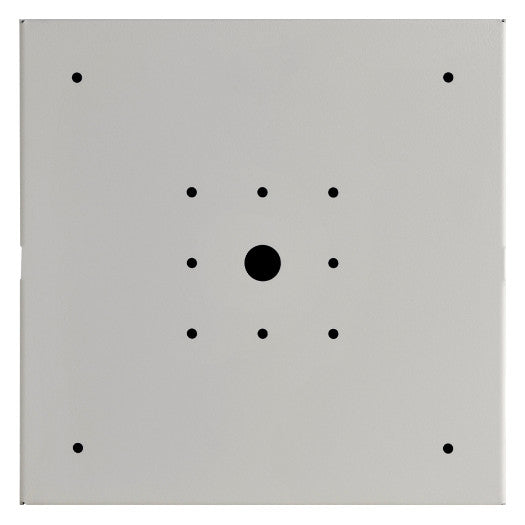

  • Quam SYSTEM 1 Wall Mount Speaker System back
1 3

Quam SYSTEM 1 Wall Mount Speaker System

Quam SYSTEM 1 Wall Mount Speaker System

SoundPro Item: 90098 | Part Number: SYSTEM 1

$111.17
$111.17 $111.17
Your Price Sold out
MSRP: $111.17 | MAP: $111.17

Usually ships in 5-7 business days

  • Average Sensitivity - 92 dB SPL, 1W/1M
  • Loudspeaker Power Rating - 12W RMS EIA 426A Standard
  • Maximum Output - 15W @ 8 Ohms
  • Calculated Output - 99 dB-SPL 5W/1M
  • Magnet Type & Weight - BeFe Ceramic, 4.8 oz. Nominal
  • Frequency Response - 65 Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle - 90° Included Angle -6 dB / 2 kHz, Half space
  • Audio Connection - 7" color-coded pigtails, pre-cut
Log in or register for YOUR best price

The SYSTEM 1 from Quam is a complete wall-mount loudspeaker system consisting of an 8C5PAX - 8Ω O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W 25/70V transformer mounted on a BS8W - square, screw mount, steel baffle with a SE1WVP - square, steel, vandal resistant, surface mount enclosure with four (4) 8-32 threaded inserts and a single 1/2"conduit entrance. White powder coat finish.

View full details
  • APPLICATION
    • Intended Use: Indoor environment
    • Program Material: Signal tones, voice and music
    • Installation: Horizontal or vertical surface mount
  • AUDIO PERFORMANCE
    • Average Sensitivity: 92dB SPL, 1W/1M
    • Loudspeaker Power Rating: 12W RMS, EIA 426A Standard
    • Maximum Power Rating: 15W @ 8 Ohms
    • Calculated Output: 99dB SPL, 5W/1M
    • Magnet Type & Weight: BeFe Ceramic, 4.8 oz. Nominal
    • Frequency Response: 65Hz - 17kHz EIA, 426A Standard
    • Nominal Coverage Angle: 90° Included Angle, -6dB/2kHz, Half Space
    • Audio Connection: 7 color-coded pigtails, pre-cit
  • COMPONENT
    • Dimensions (HxWxD):11 5⁄8 x 11 5⁄8 x 4 1/8”
    • Weight: 10 lbs.
    • Loudspeaker: 8C5PAX
    • Transformer: TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5.0W)
    • Baffle: BS8W
    • Backbox: SE1WVP with four (4) 8-32 threaded inserts
    • Finish: White powder coat
