Quam SYSTEM 12 Ceiling Tile Speaker System
Quam SYSTEM 12 Ceiling Tile Speaker System
SoundPro Item: 90081 | Part Number: SYSTEM 12
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Average Sensitivity - 92 dB SPL, 1W/1M
- Loudspeaker Power Rating - 12W RMS EIA 426A Standard
- Maximum Power rating - 15W @ 8 Ohms
- Calculated Output - 99 dB-SPL 5W/1M
- Magnet Type & Weight - BeFe Ceramic, 5 oz. Nominal
- Frequency Response - 65 Hz - 17 kHz EIA 426A Standard
- Nominal Coverage Angle - 100° Included Angle -6 dB / 2 kHz, Half space
- Audio Connection - 4" Color-Coded Leads
- Unit Weight - 6.15 Lbs

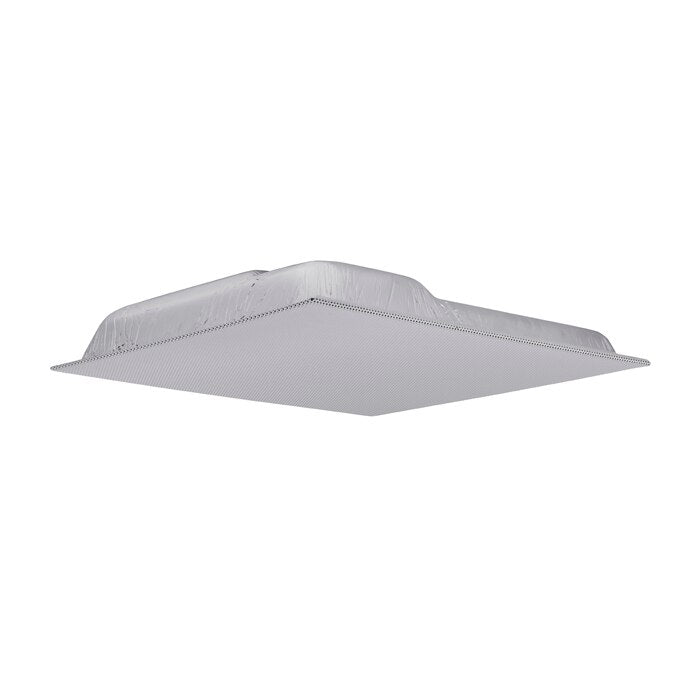

The SYSTEM 12 is a complete, UL Listed, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. with a 5 oz. magnet and a TBLU - 5W-25/70V transformer. Molded fiber enclosure is 1,412 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp is included. No assembly required.
- Application
- Intended Use:Lay-in ceiling tile replacement
- Program Material:Signal tones, voice, and music
- Installation:Mounted parallel to floor plane in a 24" wide suspended ceiling tile grid
- Audio Performance
- Average Sensitivity: 92dB SPL, 1W/1M
- Loudspeaker Power Rating: 12W RMS, EIA 426A Standard
- Maximum Power Rating: 15W @ 8 Ohms
- Calculated Output: 99dB SPL, 5W/1M
- Magnet Type & Weight: BeFe Ceramic, 5 oz. Nominal
- Frequency Response: 65Hz - 17kHz, EIA 426A Standard
- Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half Space
- Audio Connection: 3 ½", Color-coded, Pre-tinned Leads3 ½", Color-coded, Pre-tinned Leads
- Component
- Dimension: 3 1/2" (H) x 23 13⁄16" (W) x 11 13⁄16" (D)
- Weight: 6.2 lbs
- Loudspeaker Model: 8C5PAX
- Loudspeaker Specs: 8" O.D. loudspeaker, 5 oz. magnet
- Transformer: TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)
- Integral Enclosure: 1,283 CID molded fiber
- Grille: Standard perforated steel with four (4) seismic tie-off points
- Finish: White powder coat finish
