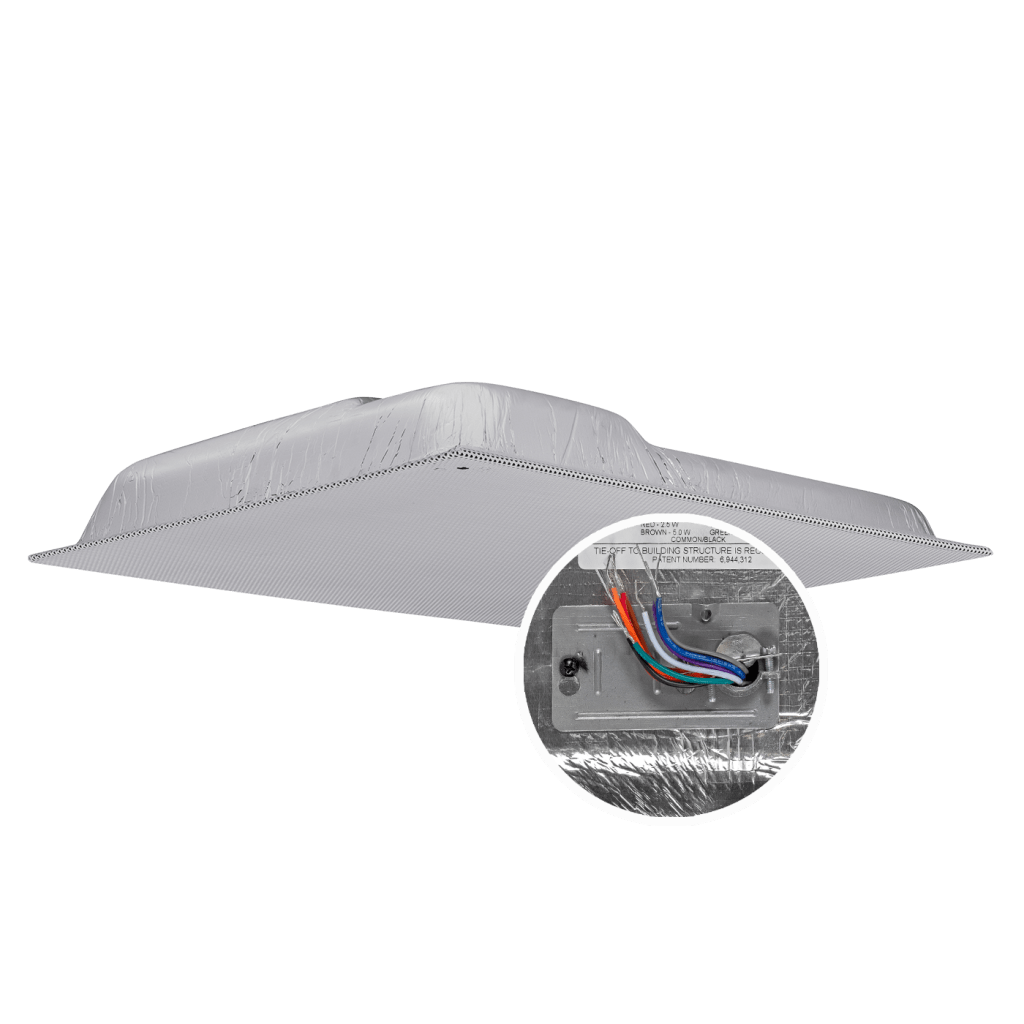

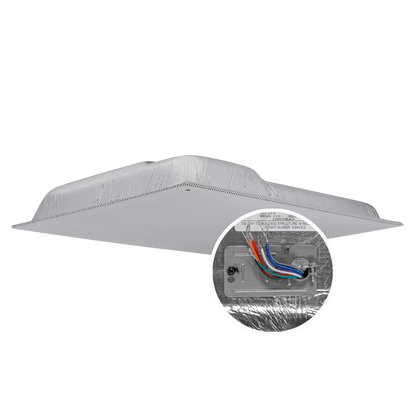

  • Quam SYSTEM 12/VC Cables

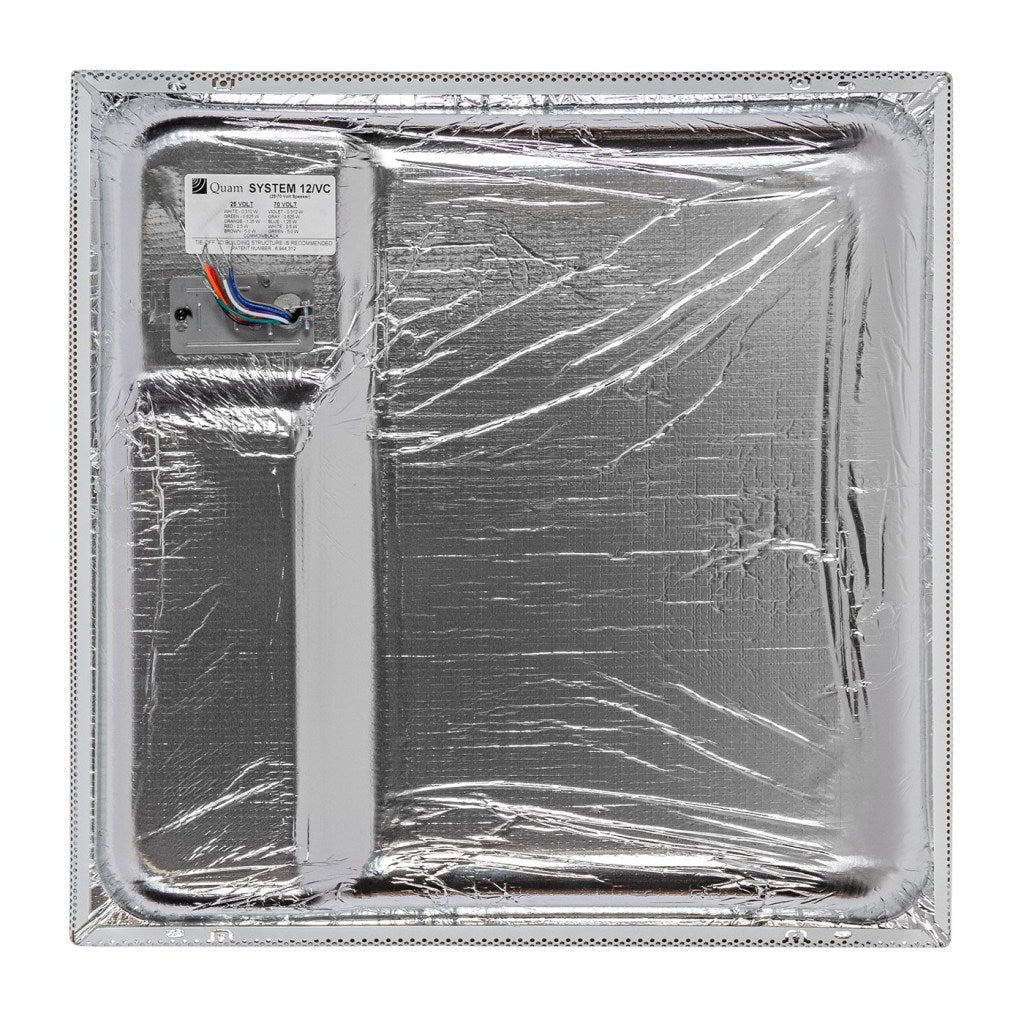

  • Quam SYSTEM 12/VC back

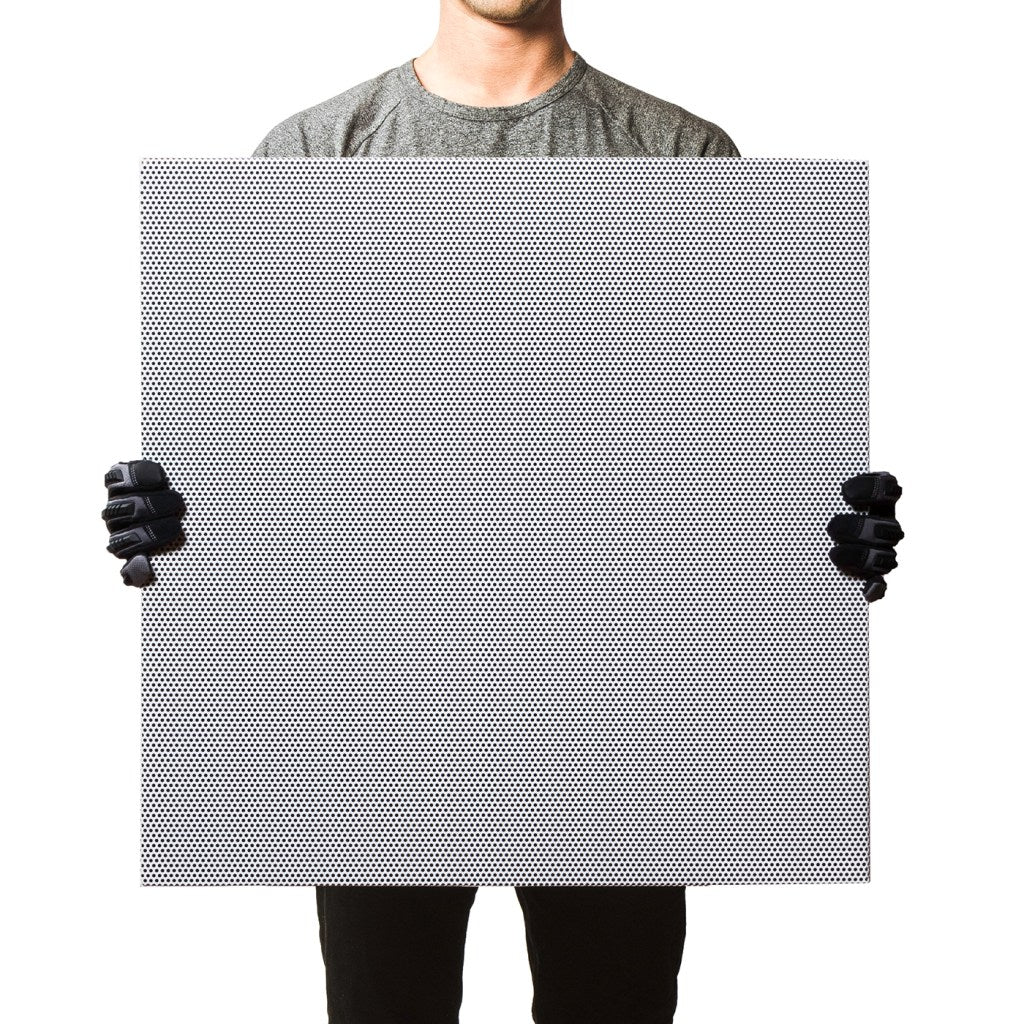

  • Quam SYSTEM 12/VC sizing
1 4

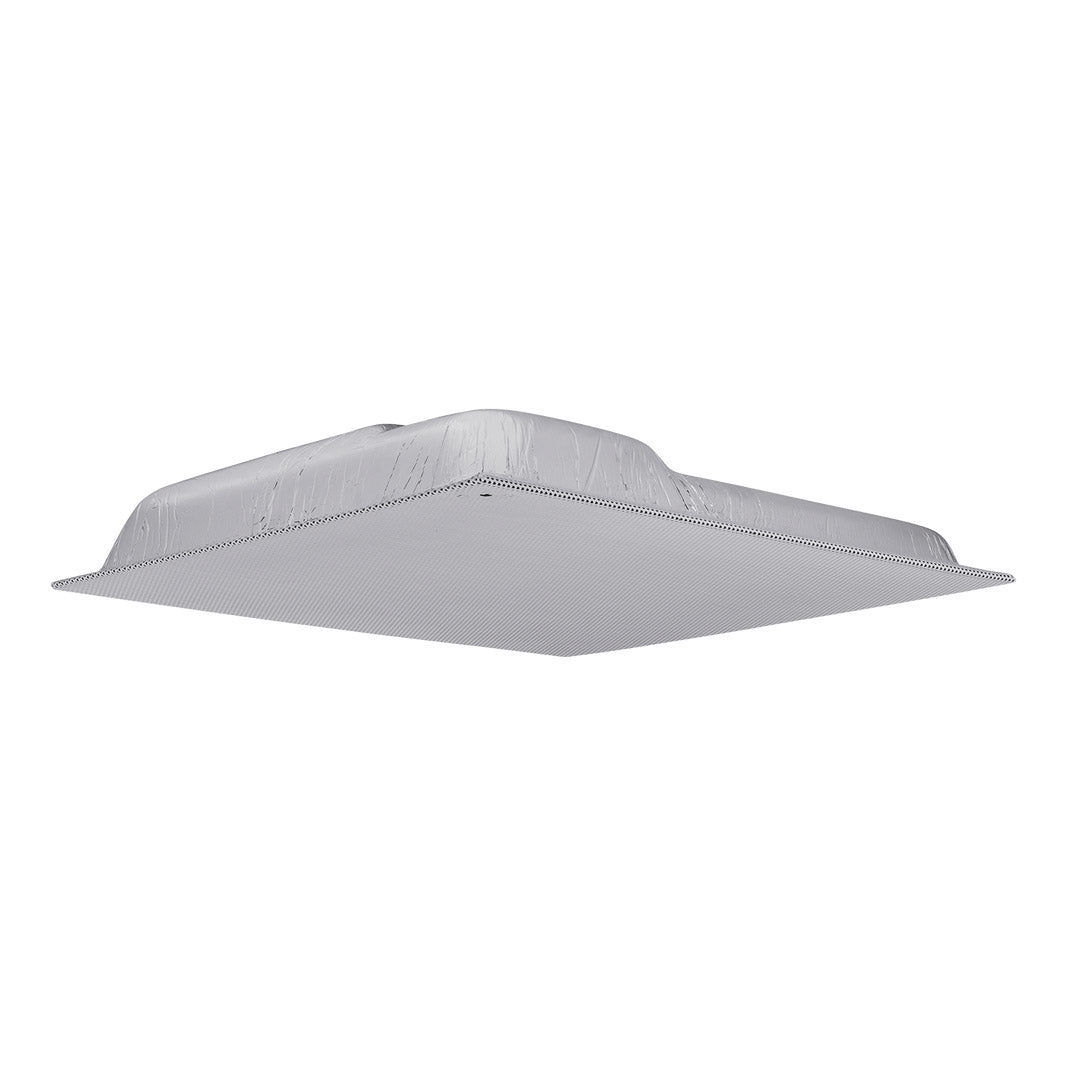

Quam SYSTEM 12/VC Ceiling Tile Replacement Speaker System

Quam SYSTEM 12/VC Ceiling Tile Replacement Speaker System

SoundPro Item: 90090 | Part Number: SYSTEM 12/VC

$177.19
$177.19 $177.19
Your Price Sold out
MSRP: $177.19 | MAP: $177.19

Usually ships in 5-7 business days

  • Ceiling tile replacement loudspeaker system
  • Shallow depth
  • Lightweight
  • Molded fiber enclosure
  • Powder-coated steel baffle
  • No assembly required
Log in or register for YOUR best price

The Quam SYSTEM 12/VC is a complete, shallow depth, lightweight, 2′ x 2′ ceiling tile replacement loudspeaker system consisting of an 8″ O.D. loudspeaker with a 5 oz. magnet and a 5W, 25/70V transformer with screwdriver adjusted volume control. Molded fiber enclosure is 1,283 CID. The SYSTEM 12/VC has a powder coated steel baffle with standard perforation and four (4) seismic tie-off points. The cable clamp is included. No assembly required.

View full details

Specifications

Dimensions
Dimension
3 1/2" (H) x 23 13⁄16" (W) x 11 13⁄16" (D)
Weight
Magnet Type & Weight
BeFe Ceramic, 5 oz. Nominal
Audio
Average Sensitivity
92dB SPL, 1W/1M
Frequency Response
65Hz - 17kHz, EIA 426A Standard
Connectivity
Calculated Output
99dB SPL, 5W/1M
Audio Connection
3 ½", Color-coded, Pre-tinned Leads3 ½", Color-coded, Pre-tinned Leads
Construction
Program Material
Signal tones, voice, and music
Transformer
TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)
Grille
Standard perforated steel with four (4) seismic tie-off points
Finish
White powder coat finish
Shipping
Weight
6.2 lbs
General
Intended Use
Lay-in ceiling tile replacement
Installation
Mounted parallel to floor plane in a 24" wide suspended ceiling tile grid
Loudspeaker Power Rating
12W RMS, EIA 426A Standard
Maximum Power Rating
15W @ 8 Ohms
Nominal Coverage Angle
100° Included Angle, -6dB/2kHz, Half Space
Loudspeaker Model
8C5PAX
Loudspeaker Specs
8" O.D. loudspeaker, 5 oz. magnet
Integral Enclosure
1,283 CID molded fiber
