Quam SYSTEM 2 Speaker System

Quam SYSTEM 2 Speaker System

SoundPro Item: 90100 | Part Number: SYSTEM 2

Regular price $122.41
Regular price $122.41 Sale price $122.41
Your Price Sold out
MSRP: $122.41 | MAP: $122.41

Usually ships in 5-7 business days

  • Complete loudspeaker system consisting
  • 8″ O.D., dual cone loudspeaker
  • 5W, 25/70V transformer
  • Square, screw-mount, steel baffle
  • Steel, vandal-resistant, surface-mount enclosure
  • Four 8-32 threaded inserts
  • One 1/2″ conduit entrance on the back
  • Two Wiremold knockouts
  • White, powder coat finish

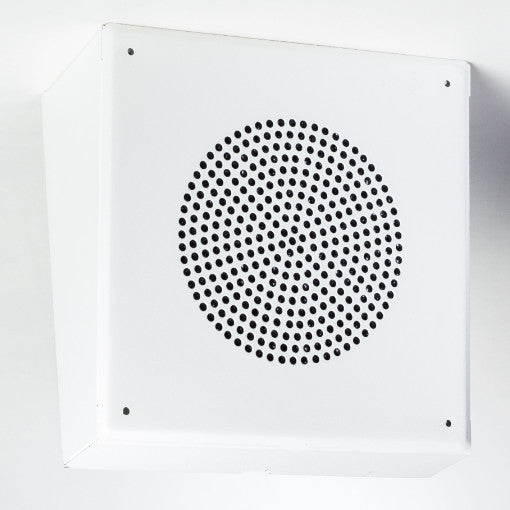

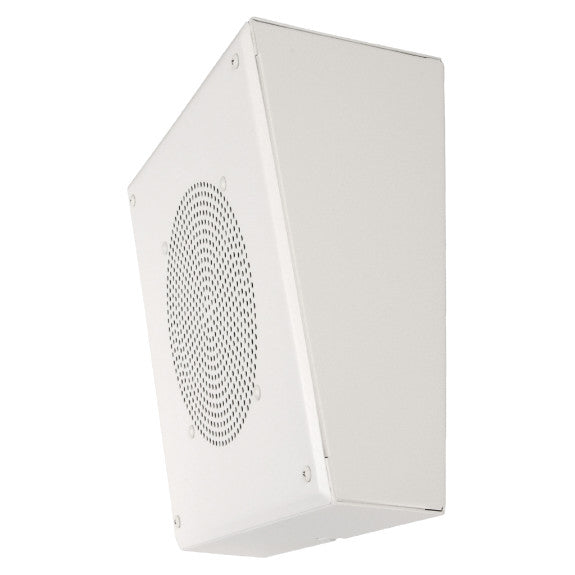

SYSTEM 2 is a complete loudspeaker system consisting of an 8″ O.D., dual cone loudspeaker and a 5W, 25/70V transformer mounted on a square, screw mount, steel baffle with a slanted, steel, vandal resistant, surface mount enclosure with four (4) 8-32 threaded inserts, a single 1/2″ conduit entrance on the back, and two (2) Wiremold knockouts and a white, powder coat finish.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
11 5⁄8 x 11 5⁄8 x 5 3/8”
Weight
Magnet Type & Weight
BeFe Ceramic, 5 oz. Nominal
Audio
Average Sensitivity
92dB SPL, 1W/1M
Frequency Response
65Hz - 17kHz EIA, 426A Standard
Loudspeaker
8C5PAX
Connectivity
Calculated Output
99dB SPL, 5W/1M
Audio Connection
7, Color-coded, Pre-tinned Leads
Construction
Program Material
Signal tones, voice and music
Transformer
TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5.0W)
Finish
White powder coat
Shipping
Weight
10 lbs
General
Intended Use
Indoor environment
Installation
Horizontal or vertical surface mount
Loudspeaker Power Rating
12W RMS, EIA 426A Standard
Maximum Power Rating
15W @ 8 Ohms
Nominal Coverage Angle
100° Included Angle, -6dB/2kHz, Half Space
Baffle
BS8W
Backbox
SE2WVP with four (4) 8-32 threaded inserts
