• Quam SYSTEM 21 Ceiling Speaker
1 1

Quam SYSTEM 21 Ceiling Speaker

Quam SYSTEM 21 Ceiling Speaker

SoundPro Item: 90097 | Part Number: SYSTEM 21

$111.02
$111.02 $111.02
Your Price Sold out
MSRP: $111.02 | MAP: $111.02

Usually ships in 5-7 business days

  • Recessed mount loudspeaker system
  • For hard ceiling applications
  • Baffle and backbox have a white, powder coat finish
Log in or register for YOUR best price

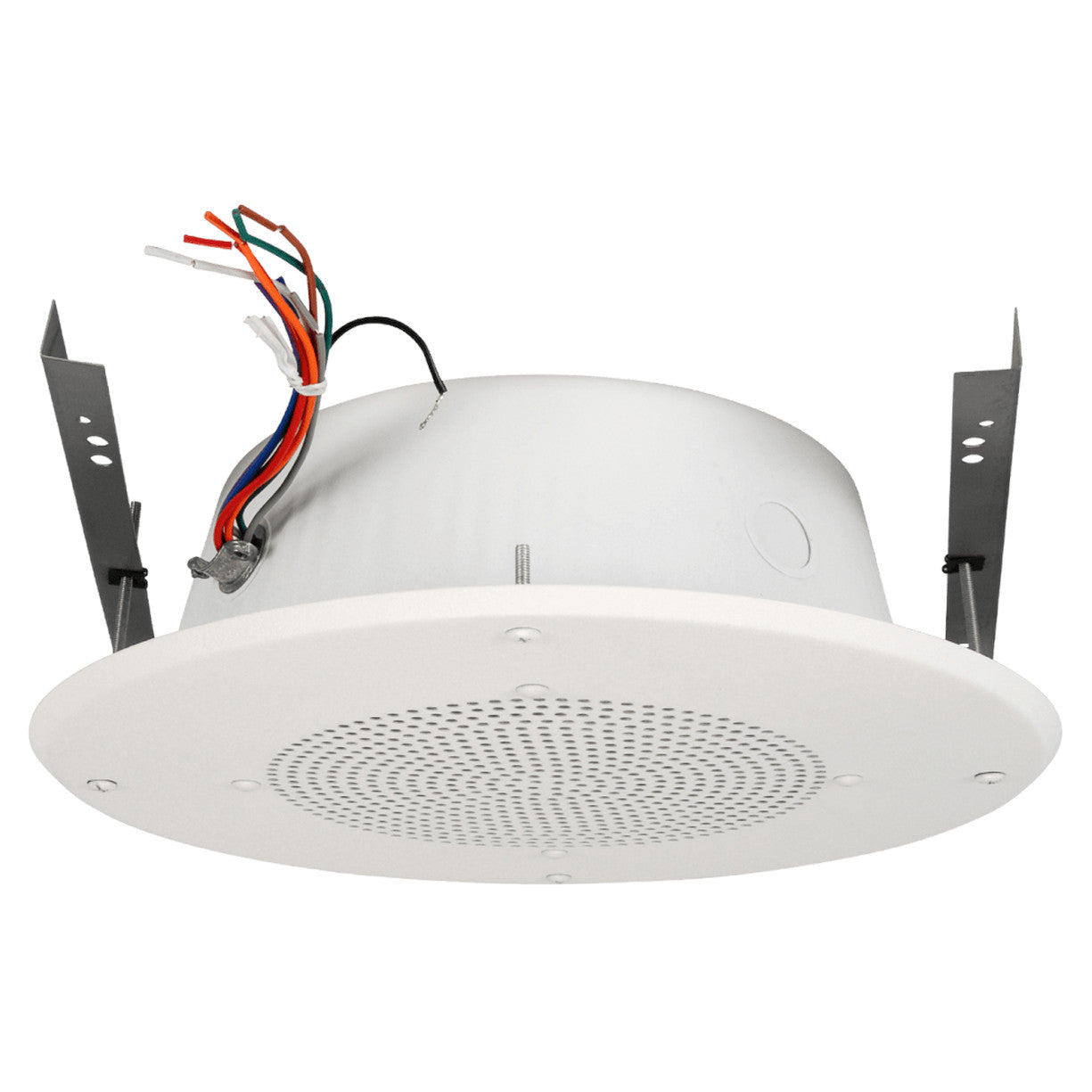

The Quam SYSTEM 21 Ceiling Speaker is a complete, recessed mount loudspeaker system for hard ceiling applications. It consists of an 8″ O.D., dual cone loudspeaker with a 10 oz. magnet and a 5W, 25/70V transformer mounted on a round, steel, screw mount baffle with a 275 CID, round, steel back box. The baffle and backbox have a white, powder coat finish.

View full details

Specifications

Dimensions
Baffle/Loudpspeaker Dimension
12 7⁄8 (Diameter) x
Backbox Dimension
12 5⁄16 (Diameter) x 4 1⁄16 (H)
Mounting Support Dimension
11 13⁄16 (W) x ¾ (H) x ¾ (D)
Weight
Magnet Type & Weight
BeFe Ceramic, 10 oz. Nominal
Combined Weight
7 lbs
Audio
Average Sensitivity
95dB SPL, 1W/1M
Frequency Response
65Hz - 17kHz, EIA 426A Standard
Connectivity
Calculated Output
102dB 5WSPL, /1M
Audio Connection
7, Color-coded, Pre-tinned Leads
Construction
Program Material
Signal tones, voice and music
Transformer
TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)
Finish
White powder coat finish on baffle and backbox
General
Intended Use
Indoor environment
Installation
Hard ceiling, recessed mount
Loudspeaker Power Rating
20W RMS, EIA 426A Standard
Nominal Coverage Angle
100° Included Angle, -6dB/2 kHz, Half Space
Baffle
5⁄16 (H)
Loudspeaker Model
8C10PAX
Backbox
ERD8U, steel
