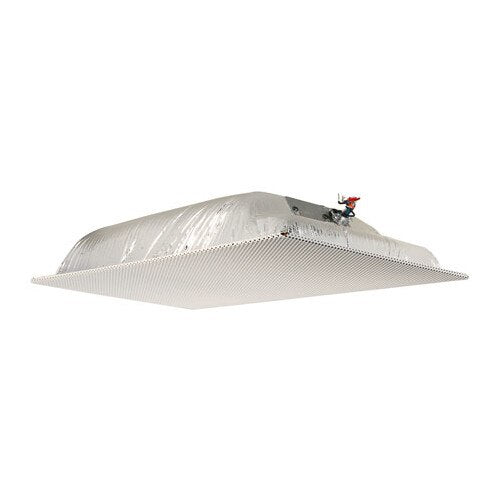

• Quam SYSTEM 5 Ceiling Tile Speaker System

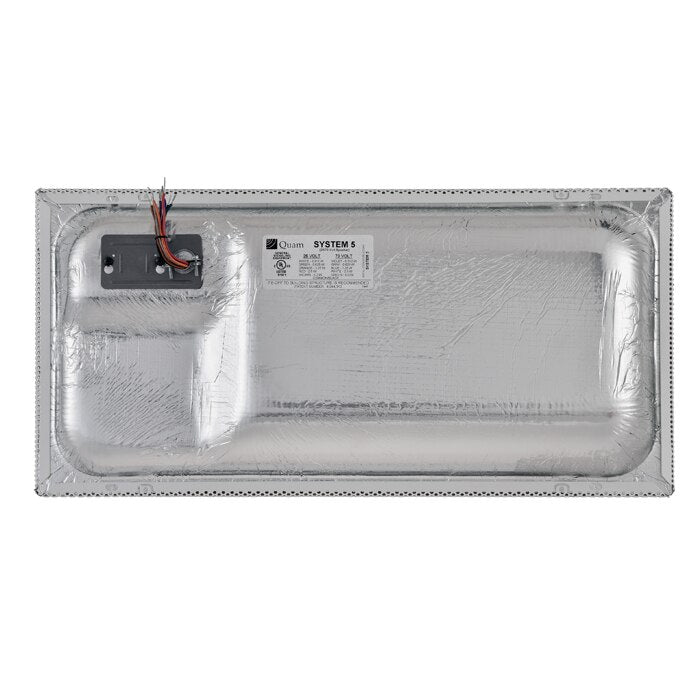

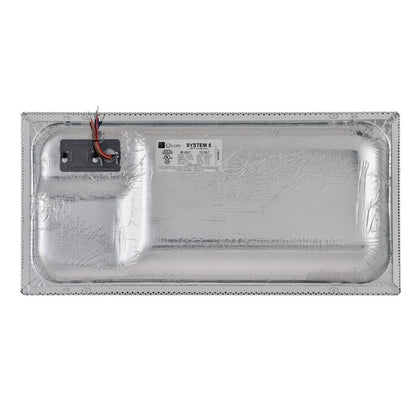

  • Quam SYSTEM 5 Ceiling Tile Speaker System back
1 2

Quam SYSTEM 5 Ceiling Tile Speaker System

Quam SYSTEM 5 Ceiling Tile Speaker System

SoundPro Item: 99332 | Part Number: SYSTEM 5

$126.68
$126.68 $126.68
Your Price Sold out
MSRP: $126.68 | MAP: $126.68

Usually ships in 5-7 business days

  • Average Sensitivity - 92 dB SPL, 1W/1M
  • Loudspeaker Power Rating - 12W RMS EIA 426A Standard
  • Maximum Output - 15W @ 8 Ohms
  • Calculated Output - 99 dB-SPL 5W/1M
  • Magnet Type & Weight - BeFe Ceramic, 5 oz. Nominal
  • Frequency Response - 65 Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle - 100° Included Angle -6 dB / 2 kHz, Half space
  • Audio Connection - 4" Color-Coded Leads
  • Unit Weight - 3.85 lbs
Log in or register for YOUR best price

The SYSTEM 5 is a complete, UL Listed, shallow depth, lightweight, 1' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W-25/70V transformer. Molded fiber enclosure is 617 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp and one (1) 24" "T" rail for finishing the edge are included. No assembly required.

View full details

Specifications

Certifications
Certification
UL Listed 1480When installed with supplied installation instructions and requirements of NEC /AHJ. (UEAY, UEAY7- Canada), UL Listed 2043Suitable for use in air-handling spaces
Dimensions
Dimension
3 1/2" (H) x 23 13⁄16" (W) x 11 13⁄16" (D)
Weight
Magnet Type & Weight
BeFe Ceramic, 5 oz. Nominal
Audio
Average Sensitivity
92dB SPL, 1W/1M
Frequency Response
65Hz-17kHz, EIA 426A Standard
Connectivity
Calculated Output
99dB SPL, 5W/1M
Audio Connection
4", Color-coded, Pre-tinned Leads
Construction
Program Material
Signal tones, voice, and music
Transformer
TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W
Grille
Standard perforated steel with four (4) seismic tie-off points
Finish
White powder coat finish
Shipping
Weight
3.85 lbs
General
Intended Use
Lay-in ceiling tile replacement
Installation
Mounted parallel to floor plane in a 24" wide suspended ceiling tile grid
City of Chicago Approved
Material and construction permits use where ceiling plenum is part of the air handling system.
Loudspeaker Power Rating
12W RMS, EIA 426A Standard
Maximum Power Rating
15W @ 8 Ohms
Nominal Coverage Angle
100° Included Angle, -6dB/2kHz, Half Space
Loudspeaker Model
8C5PAX
Loudspeaker Specs
8" O.D. loudspeaker, 5 oz. magnet
Integral Enclosure
617 CID molded fiber
