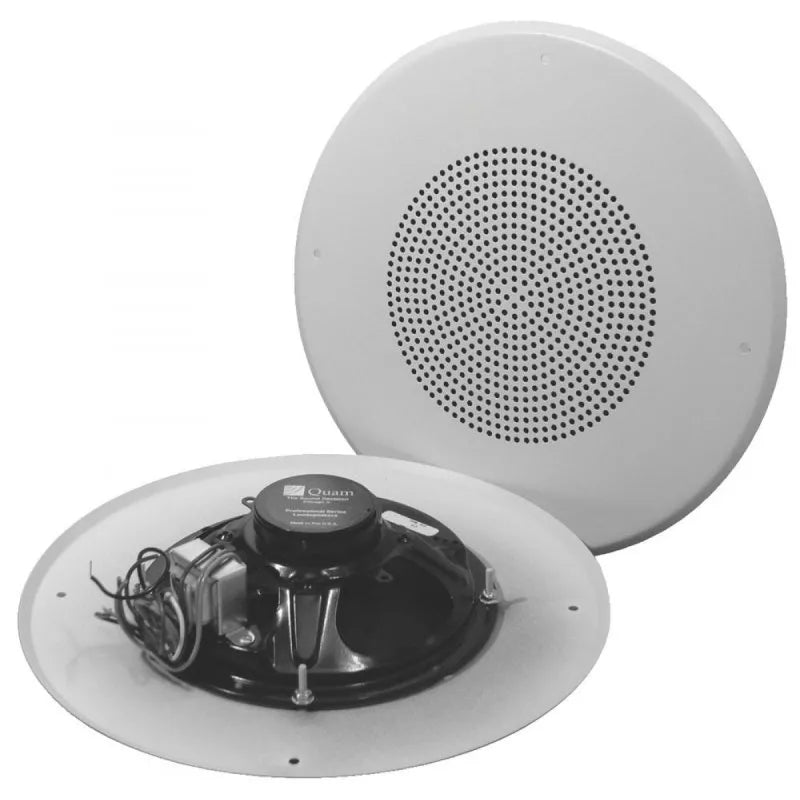

Quam C5/BU/W 8" Dual-Cone Speaker Assembly (25/70V, Screw Mount)
Quam C5/BU/W 8" Dual-Cone Speaker Assembly (25/70V, Screw Mount)
SoundPro Item: 95589 | Part Number: C5/BU/W
Usually ships in 5-7 business days
- Includes speaker, transformer, and baffle
- Finish: White baked epoxy hybrid
- 12W dual-cone loudspeaker
The Quam C5/xx/ Wx/x is a complete loudspeaker assem- bly, with 8” frame.
INTENDED USE
All variants: Interior environment, Downward facing, ceiling mounted, Program Material: Signal tones, voice and music
Average Sensitivity: 96 dB SPL, 1W/ 1M
Power Rating: 12W RMS, EIA 426A Standard
Calculated Output: 103 dB SPL, 10W/ 1M
Frequency Response: 65 Hz - 17 kHz
Nominal Coverage Angle: 90° Included Angle, -6 dB / 2 kHz, Half space
Audio Connection: 7” long, color-coded tinned wires, pre-cut
Specifications
