Radial Exo-Pod Passive Line-Level Splitter
Radial Exo-Pod Passive Line-Level Splitter
SoundPro Item: 75332 | Part Number: EXO-POD
Usually ships in 5-7 business days
- Passive splitter with 14 transformer-isolated outputs
- Set & forget trim control to adjust output levels
- Balanced line-level XLR input can handle up to +24dB
- Daisy-chain multiple Exo-Pods for large events

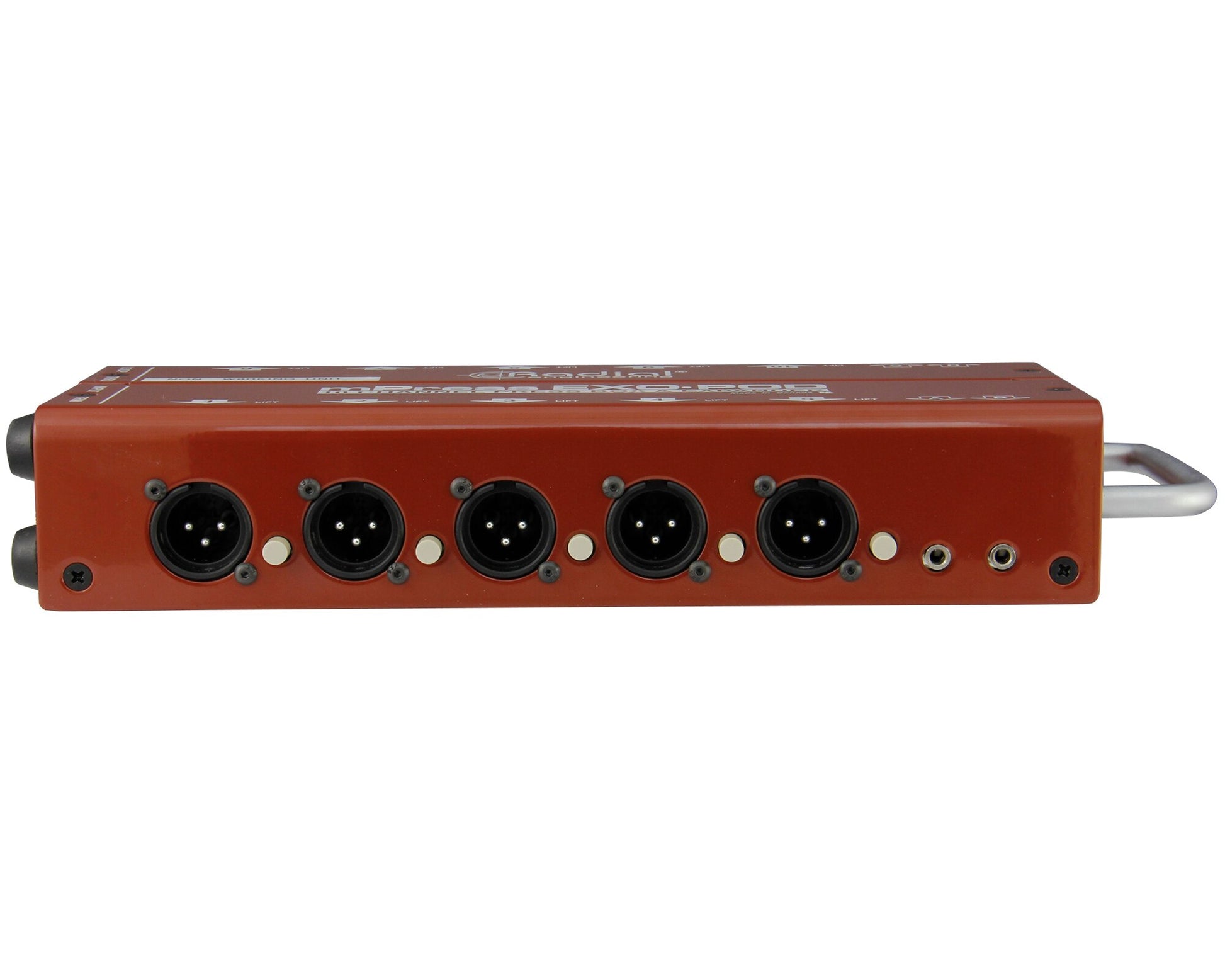

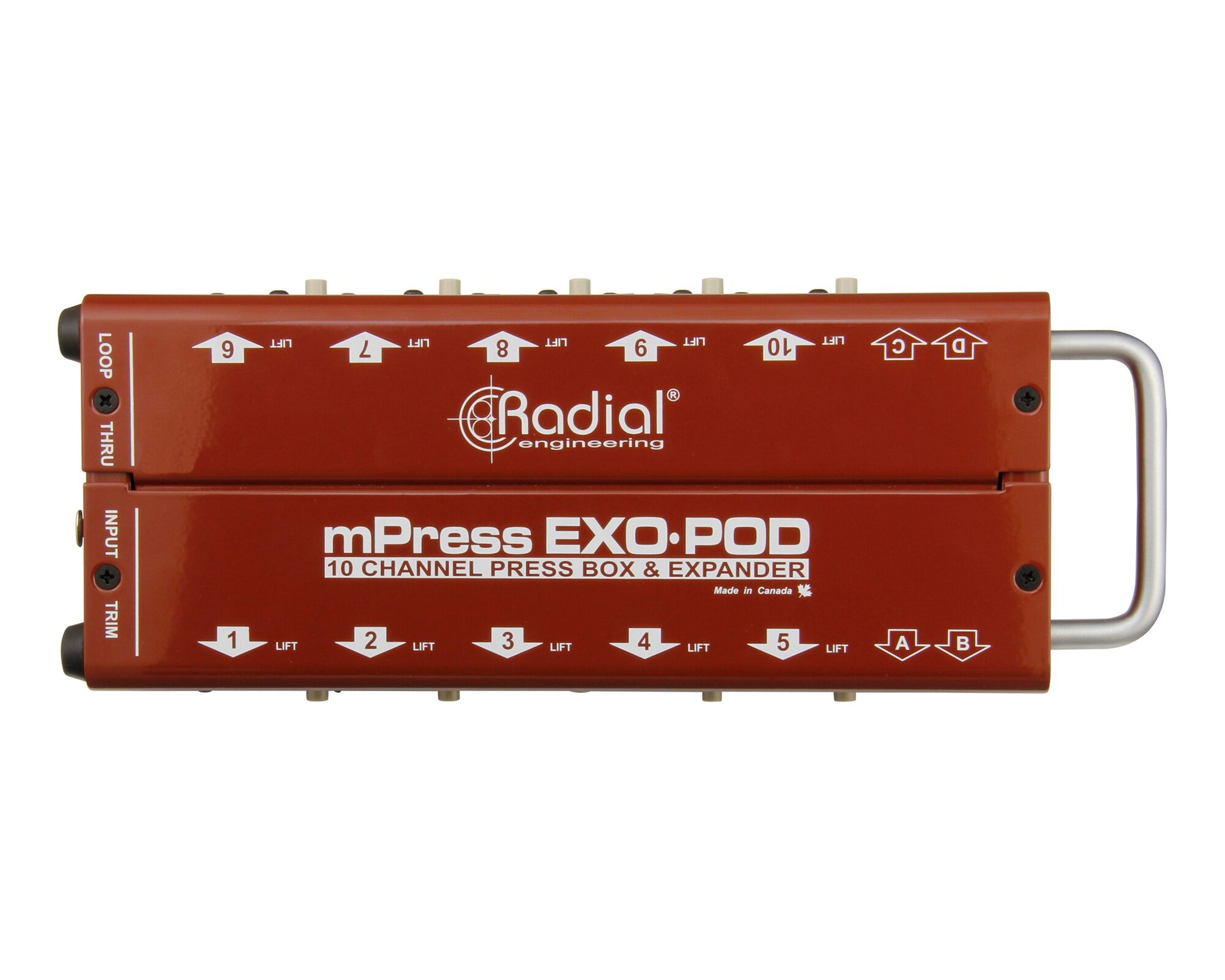

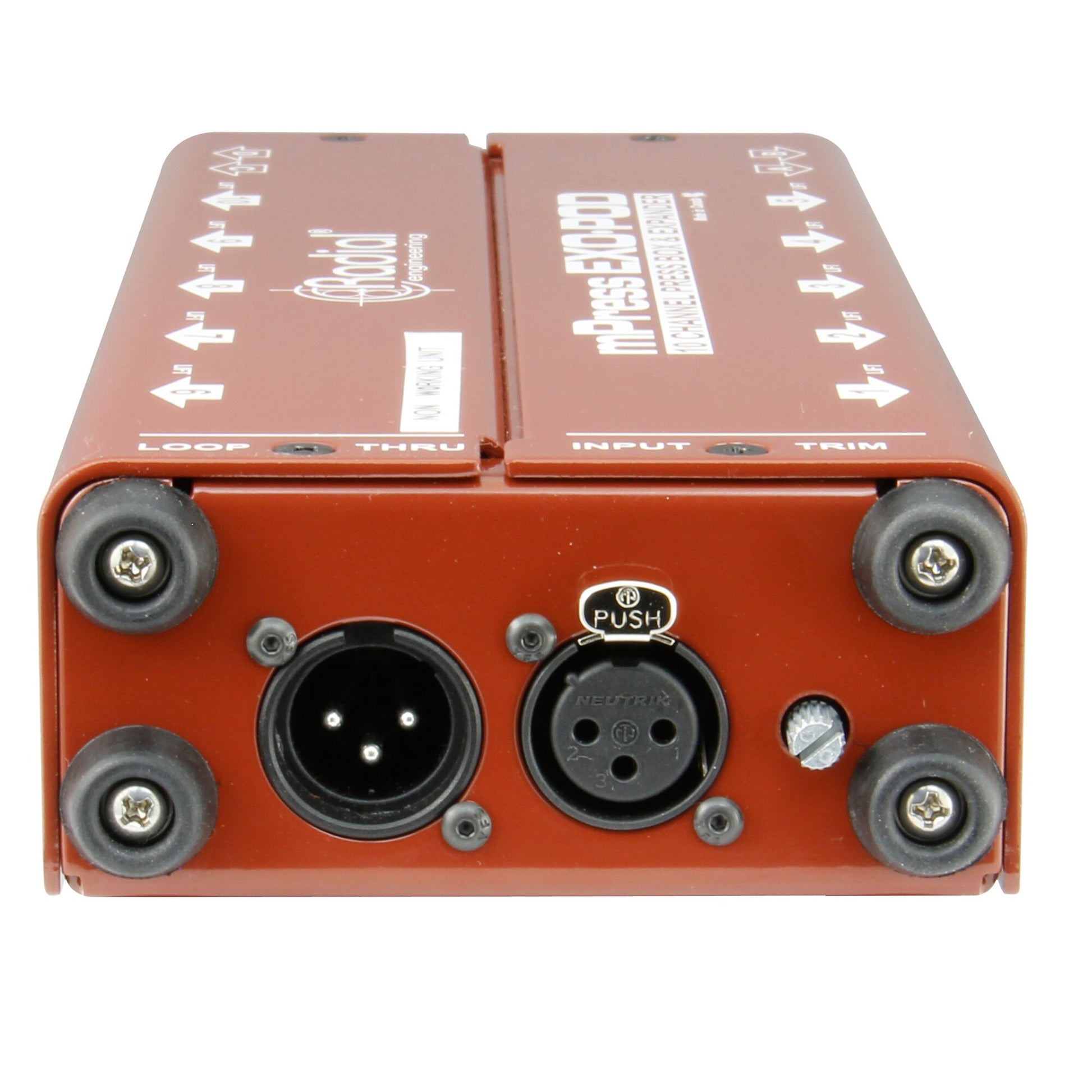

The Exo-Pod takes a line-level XLR input and splits it cleanly to ten XLR outputs and four 3.5mm TRS jacks for connection to video cameras, hand-held recorders, tablets or other media systems. A variable input trim allows the broadcast technician to reduce the global output level locally for convenience, and all of the outputs are transformer isolated to eliminate hum and buzz that is often encountered due to ground loops. The XLR outputs are supplemented with individual ground lift switches to further abate noise, and an XLR thru connector allows multiple Exo-Pods to be linked together to provide an expandable solution to handle events of any size.
- Audio circuit type Passive
- Number of channels 14 outputs
- Frequency response <20Hz to >20kHz ±1dB
- Dynamic range >136dB / >100dB
- Gain -3.5dB / -18dBu
- Clip Level >+26dBu
- Total harmonic distortion 0.001%
- Intermodulation Distortion 0.006%
- Phase Deviation -5/+25°
- Input Impedance 350 Ω
- Output Impedance XLR:1000Ω | 3.5mm:4600Ω
- Common Mode Rejection Ratio 63dB
- Equivalent Input Noise -108dBu/-84dBu
- Noise Floor XLR:-111dBu | 3.5mm: -86dBu
- Ground lift, Level Control
- Input Connectors: XLR
- Output Connectors: XLR, 3.5mm
- Construction 14-gauge steel chassis & outer shell
- Size (LxWxD)11.75x5x2.25" (298.45x127x57.15mm)
- Weight 3.6 lbs
- Shipping size (LxWxD)13.37x5.5x3.25" (571.5x260.35x114.3mm)
- Shipping weight 4 lbs
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
