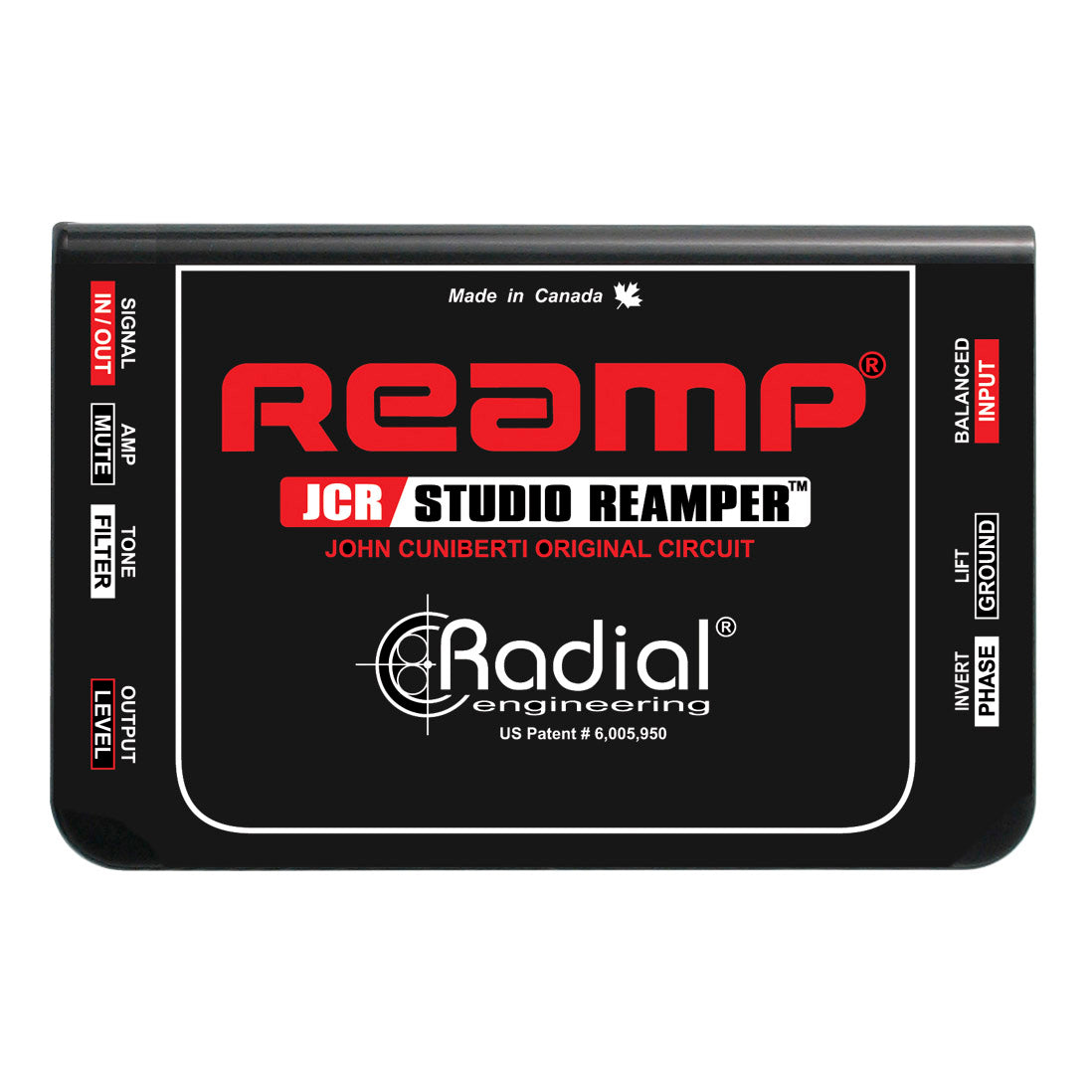

• Radial JCR Studio Reamper Top

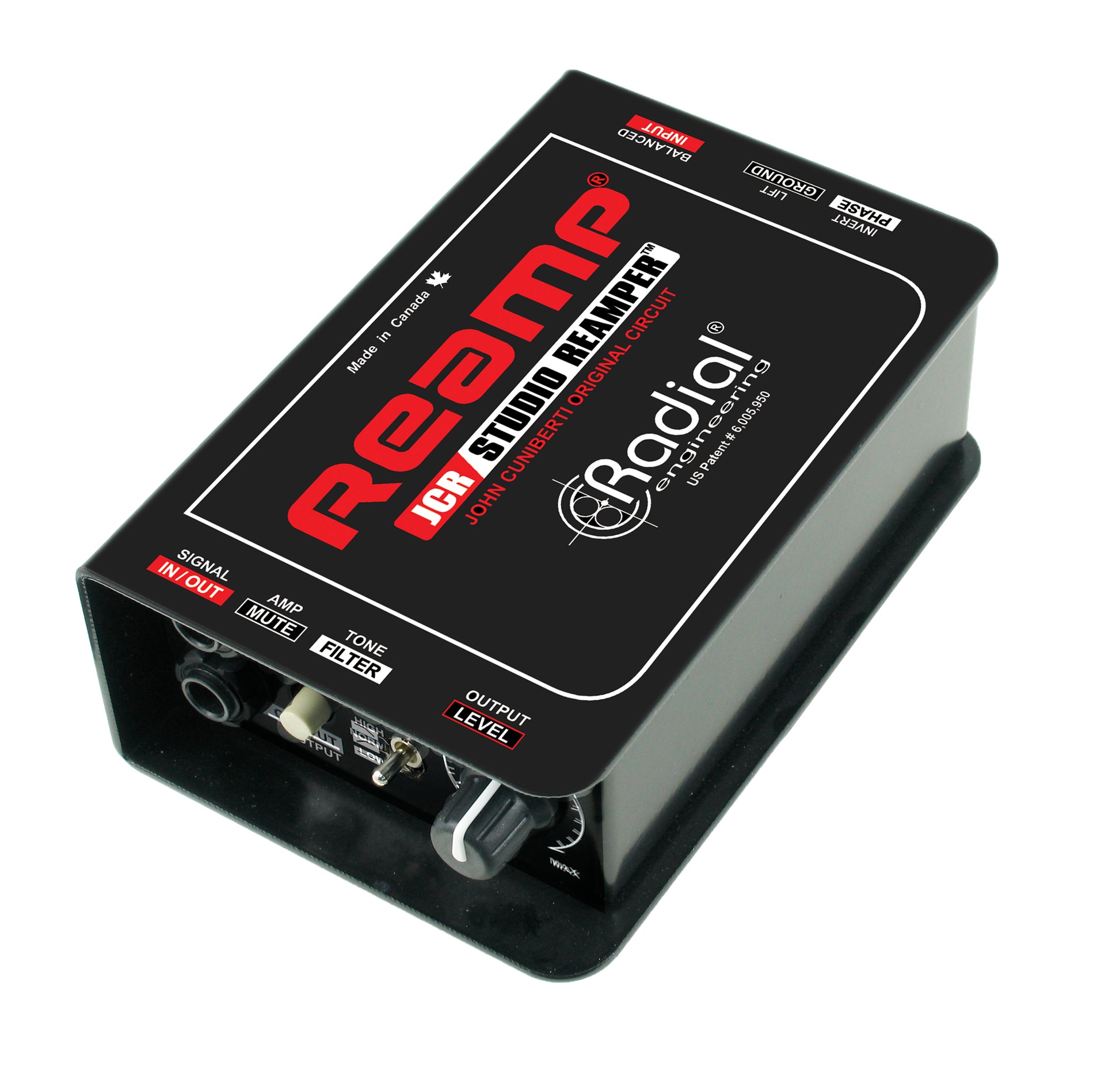

  • Radial JCR Studio Reamper Right Side

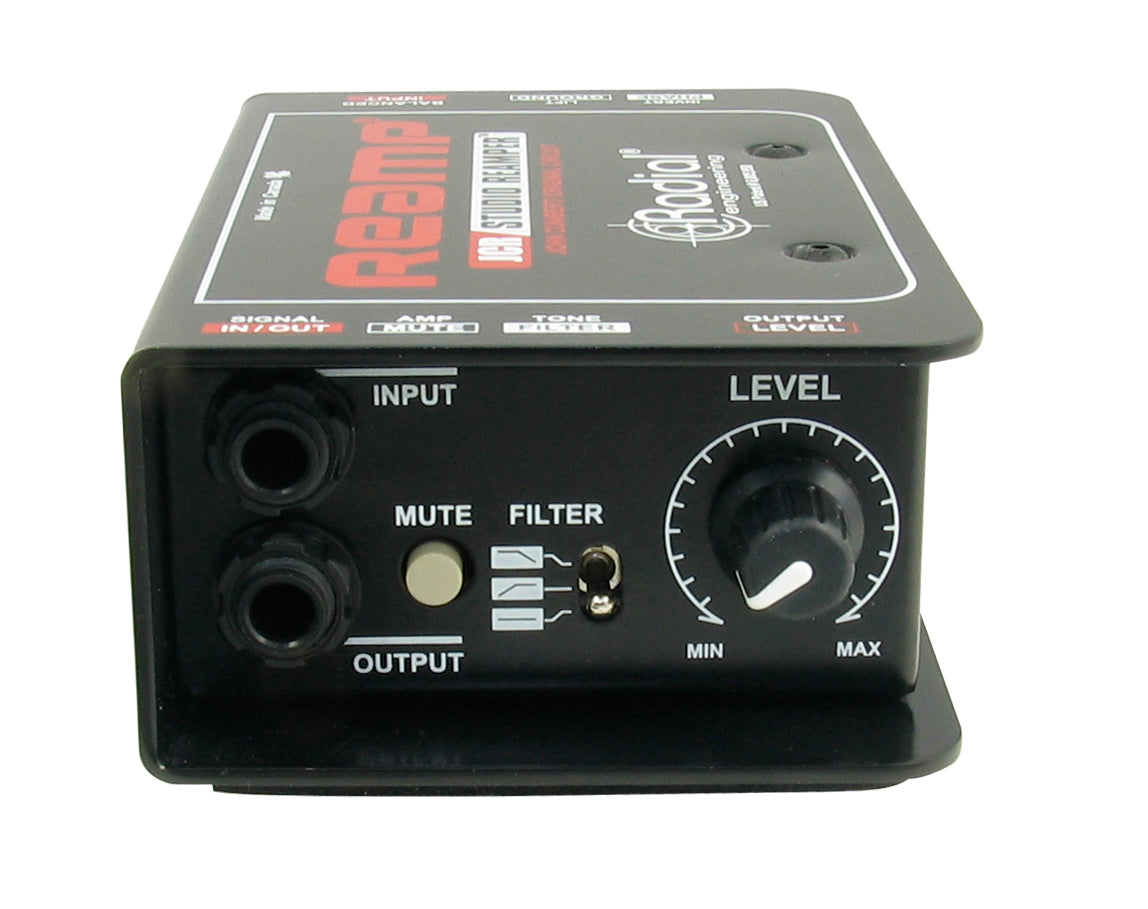

  • Radial JCR Studio Reamper Front

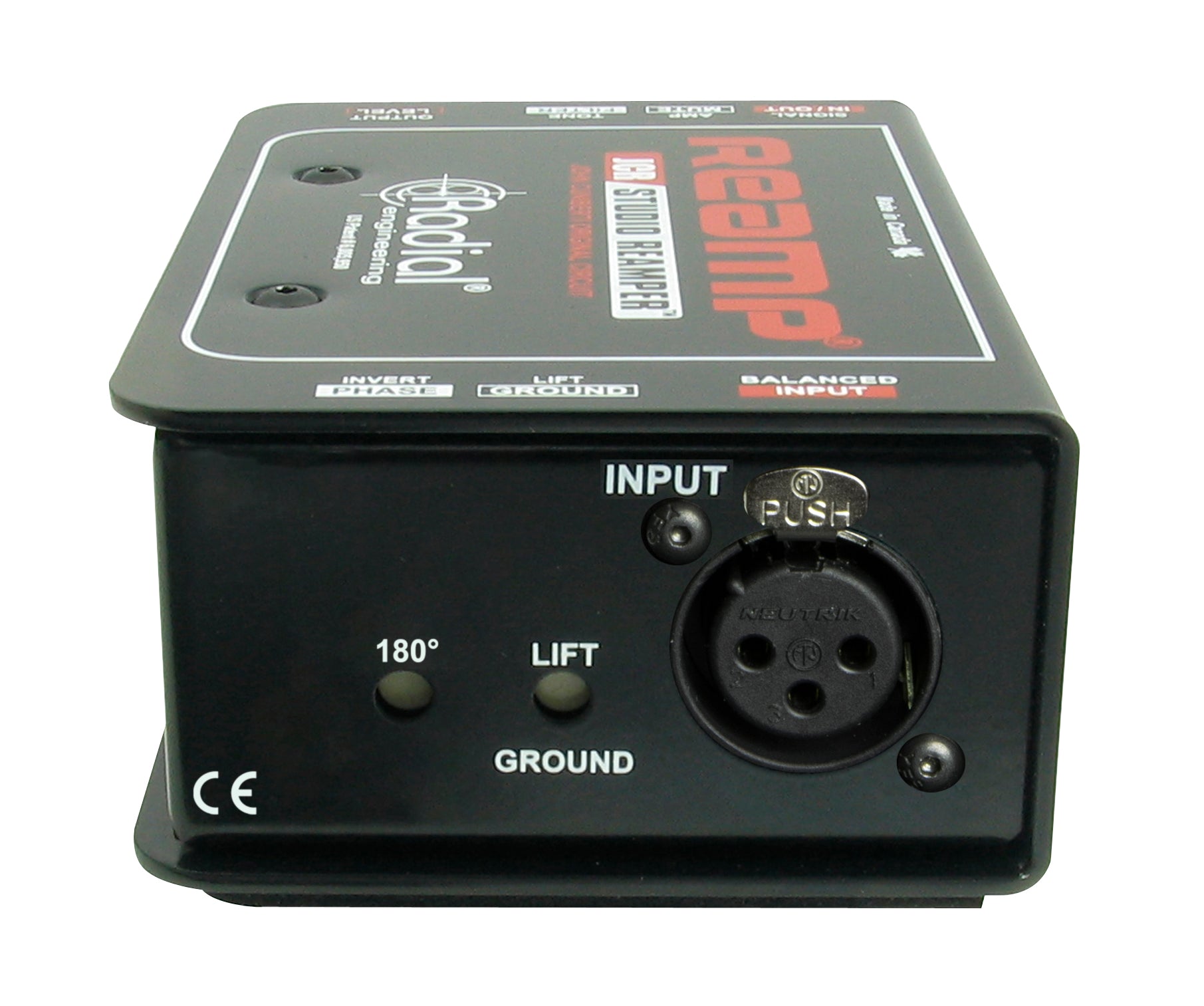

  • Radial JCR Studio Reamper Back
1 4

Radial JCR Studio Reamper

Radial JCR Studio Reamper

SoundPro Item: 88623 | Part Number: Reamp JCR

$259.99
$300.00 $259.99
Your Price Sold out
MSRP: $300.00 | MAP: $259.99

Usually ships in 5-7 business days

  • Lets you re-record tracks through a guitar or bass amp
  • Original Reamp circuit designed by John Cuniberti
  • Plug and play easy to use passive design
  • Improves productivity while expanding creative options
Log in or register for YOUR best price

The Reamp® JCR is a high-performance passive Reamper that gives you the ability to take a pre-recorded track and send it through a guitar amp or pedal chain, allowing you to explore new sonic textures and experiment with microphone placement, amp and pedal settings without limit. The JCR utilizes the original Reamp circuit designed by recording industry legend John Cuniberti, providing exceptional audio quality that preserves every detail of the original recording while optimizing it to feed amplifiers and effects pedals.

The Radial Reamp JCR is the latest version of the original Reamp that was designed and patented by John Cuniberti. It features a 100% passive design with John's original custom-wound 'Made in the USA' transformer and circuit. The latest Radial version features separate XLR and ¼" TRS input connectors, variable output level plus a three-position filter that lets you tame excessive highs, warm up the lows or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to allow you to shut off the signal going to the amps when making adjustments or moving mics around the studio.

View full details

Specifications

Dimensions
Size (LxWxD)
3.3x5x2" (84x127x48mm)
Weight
Shipping Weight
1.85lb (840g)
Audio
Audio Circuit Type
Passive, transformer isolated
Frequency Response
20Hz ~ 20kHz (+0dB/-1dB)
Total Harmonic Distortion
0.001% @ 1kHz/0dBu input
Input Impedance
1800 Ohms
Output Impedance
4.8k Ohms
Output Connectors
1/4" unbalanced
Connectivity
Maximum Input
+26dBu
Input Connectors
1/4" TRS, XLR
Construction
Construction
14-gauge steel chassis & outer shell
Controls
Level Control
180° polarity reverse, Ground lift, HPF, LPF
Shipping
Weight
1.32 lbs (600g)
Shipping Size (LxWxD)
4x3x6.5" (102x76x165mm)
General
Dynamic Range
140dB
Intermodulation Distortion
0.0025% @ 1kHz/-10dB input
Phase Deviation
2º @ 100Hz; 0º @ 800Hz
Common Mode Rejection Ratio
-55dB @ 55Hz
Noise Floor
-115dBu
Conditions
For use in dry locations only between 5°C and 40°C
Power
Power
Passive, no power required
