• Radial JD6 6-Channel Passive Direct Box
1 1

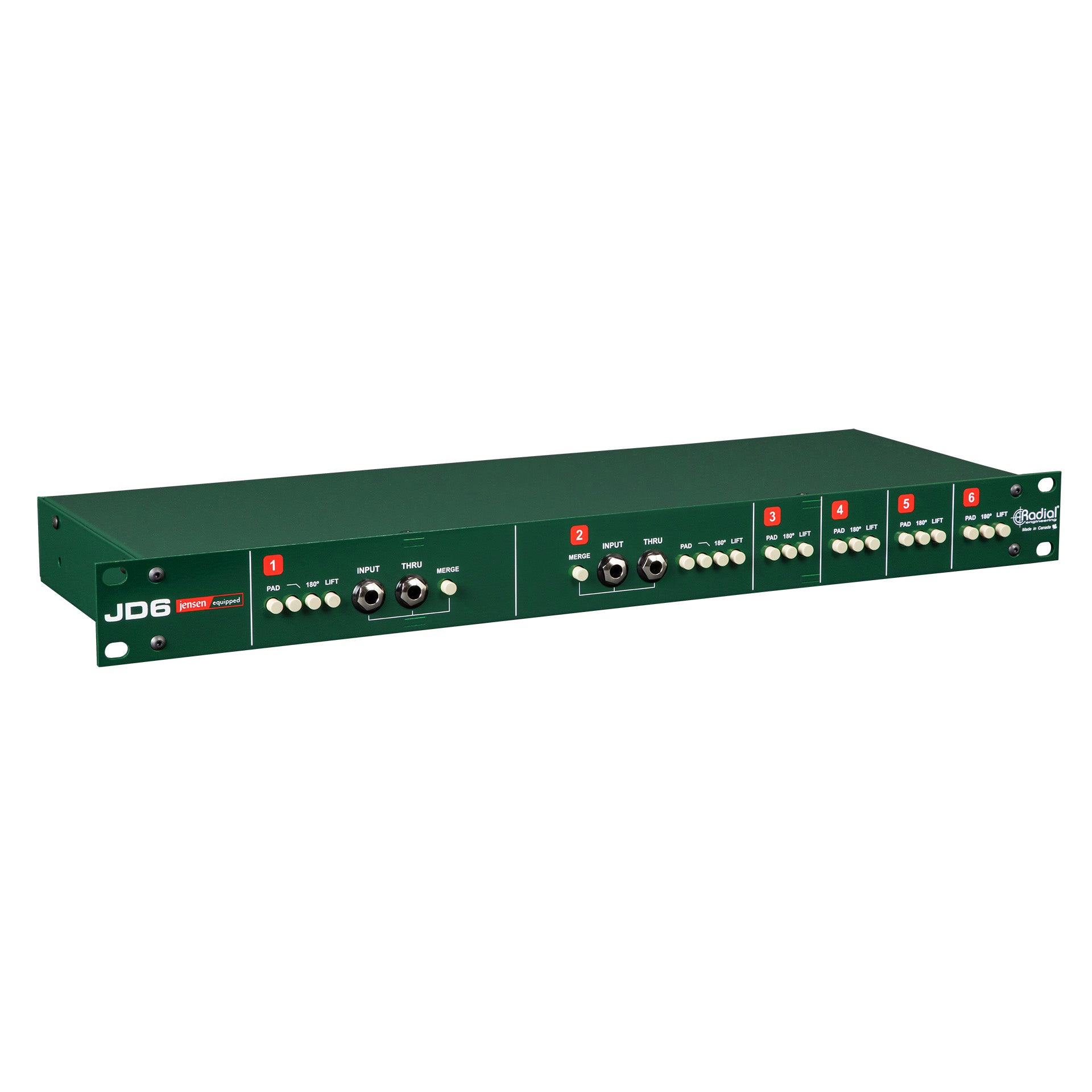

Radial JD6 6-Channel Passive Direct Box

Radial JD6 6-Channel Passive Direct Box

SoundPro Item: 47763 | Part Number: R800 6000 00 / JD6

$1,139.99
$1,320.00 $1,139.99
Your Price Sold out
MSRP: $1,320.00 | MAP: $1,139.99

Usually ships in 5-7 business days

  • Multi-channel direct box for concert touring and studio recording
  • Jensen transformer-equipped for exceptional audio quality
  • Handles hot signal levels without distortion
  • Front and rear panel connectivity for additional routing options
Log in or register for YOUR best price

The JD6™ a high performance six-channel rackmount direct box designed for the most demanding studio and live touring applications.

View full details

Specifications

Dimensions
Size (LxWxD)
19x6.25x1.75" (48.3x15.875x4.45cm)
Weight
Shipping Weight
3.7 kg (8.15 lbs)
Audio
Audio Circuit Type
Passive, transformer based
Frequency Response
20Hz ~ 20KHz (± 0.2dB)
Total Harmonic Distortion
0.05% from 20Hz ~ 20kHz @-10dB
Input Impedance
140k Ohms, unbalanced
Output Impedance
150 Ohms, balanced
Output Connectors
1/4", XLR
Connectivity
Maximum Input
+21dB @ 20Hz
Input Connectors
1/4", RCA
Construction
Transformer
Jensen JT-DBE, 12:1 ratio
Construction
14-gauge steel chassis & outer shell
Shipping
Weight
3.6 kg (8 lbs)
Shipping Size (LxWxD)
22x10.375x4.5" (55.9x26.4x11.4cm)
General
Dynamic Range
135dB
Phase Deviation
0.3° @ 100Hz; 3° @ 20Hz
Conditions
For use in dry locations only between 5°C and 40°C
LPF
Input pad, Mono Sum, 180° polarity reverse, Ground lift
RF
Number of Channels
6
Power
Power
Passive, no power required
