Radial JS2 Passive 2-Way Microphone Splitter
Radial JS2 Passive 2-Way Microphone Splitter
SoundPro Item: 88262 | Part Number: JS2
Usually ships in 5-7 business days
- Send one microphone signal to three destinations simultaneously
- Jensen transformer-equipped for exceptional audio quality
- Eliminates hum and buzz caused by ground loops
- Single isolated output provides optimal noise rejection

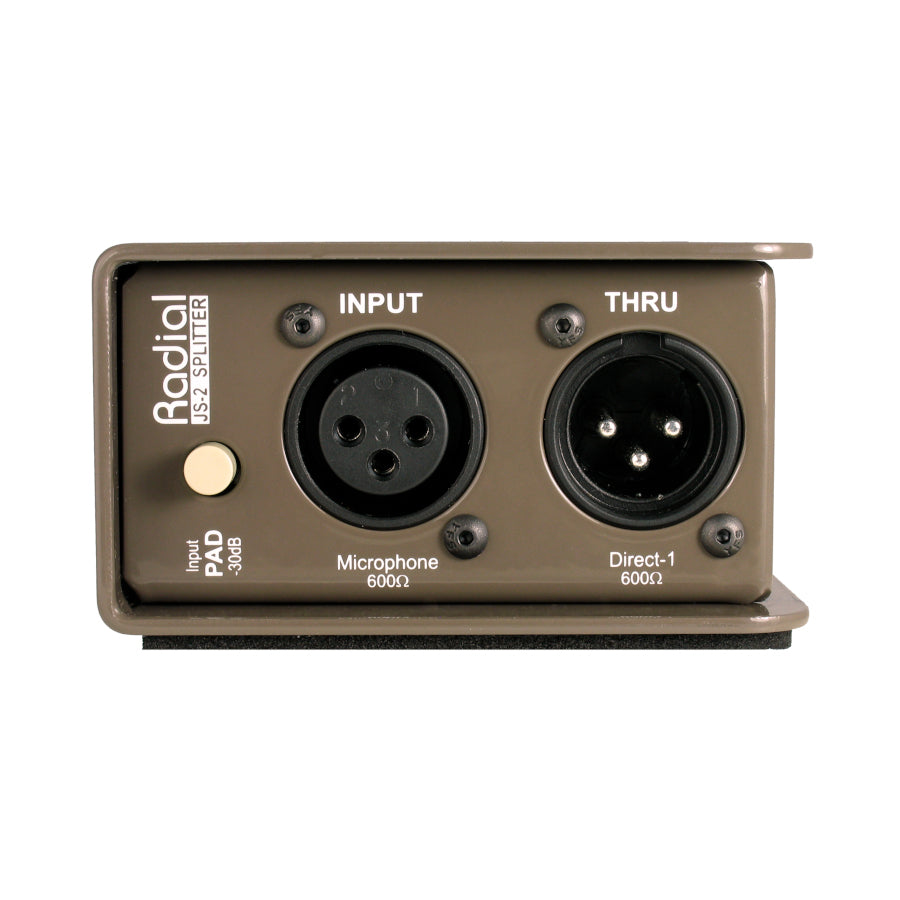

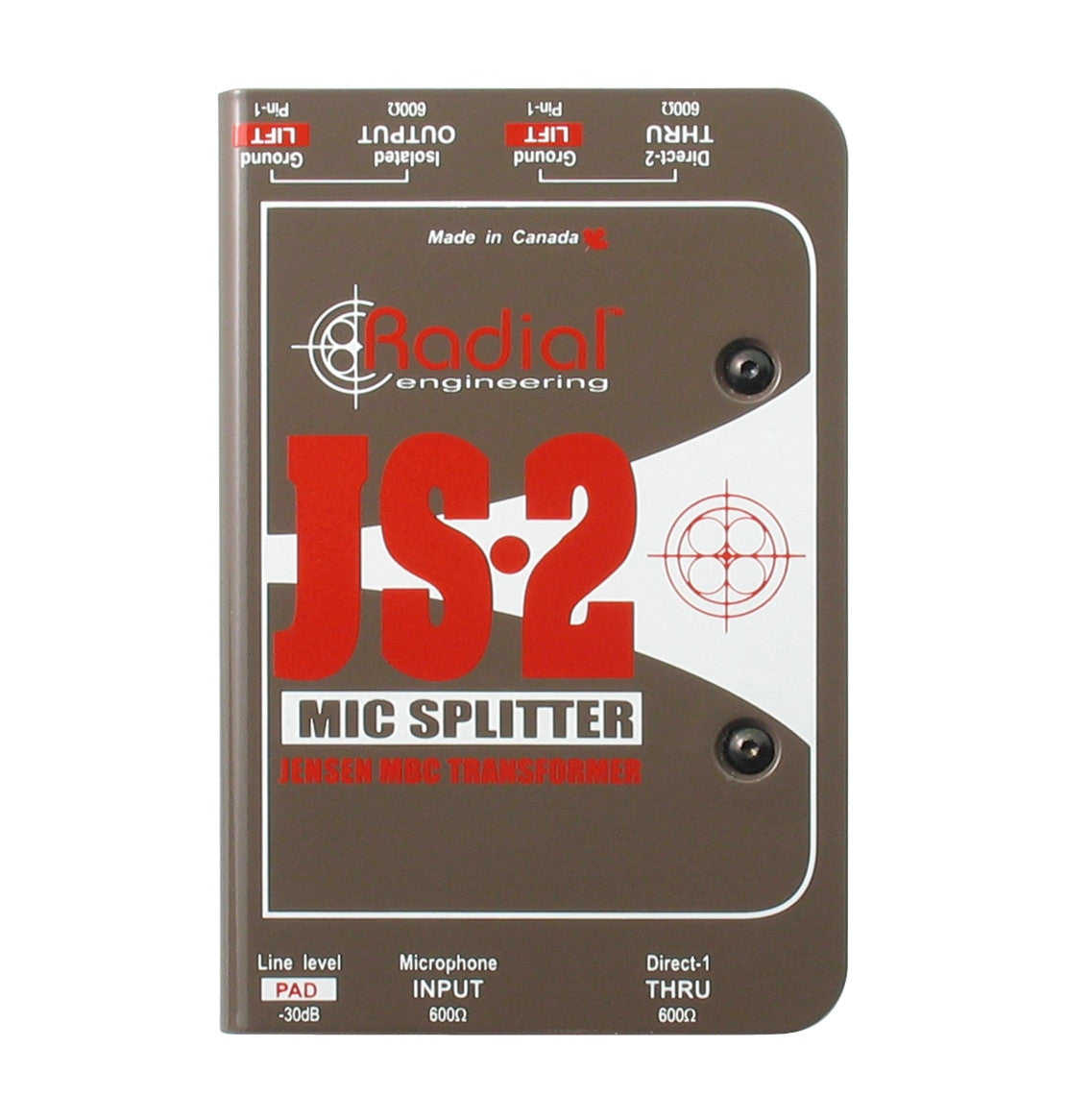

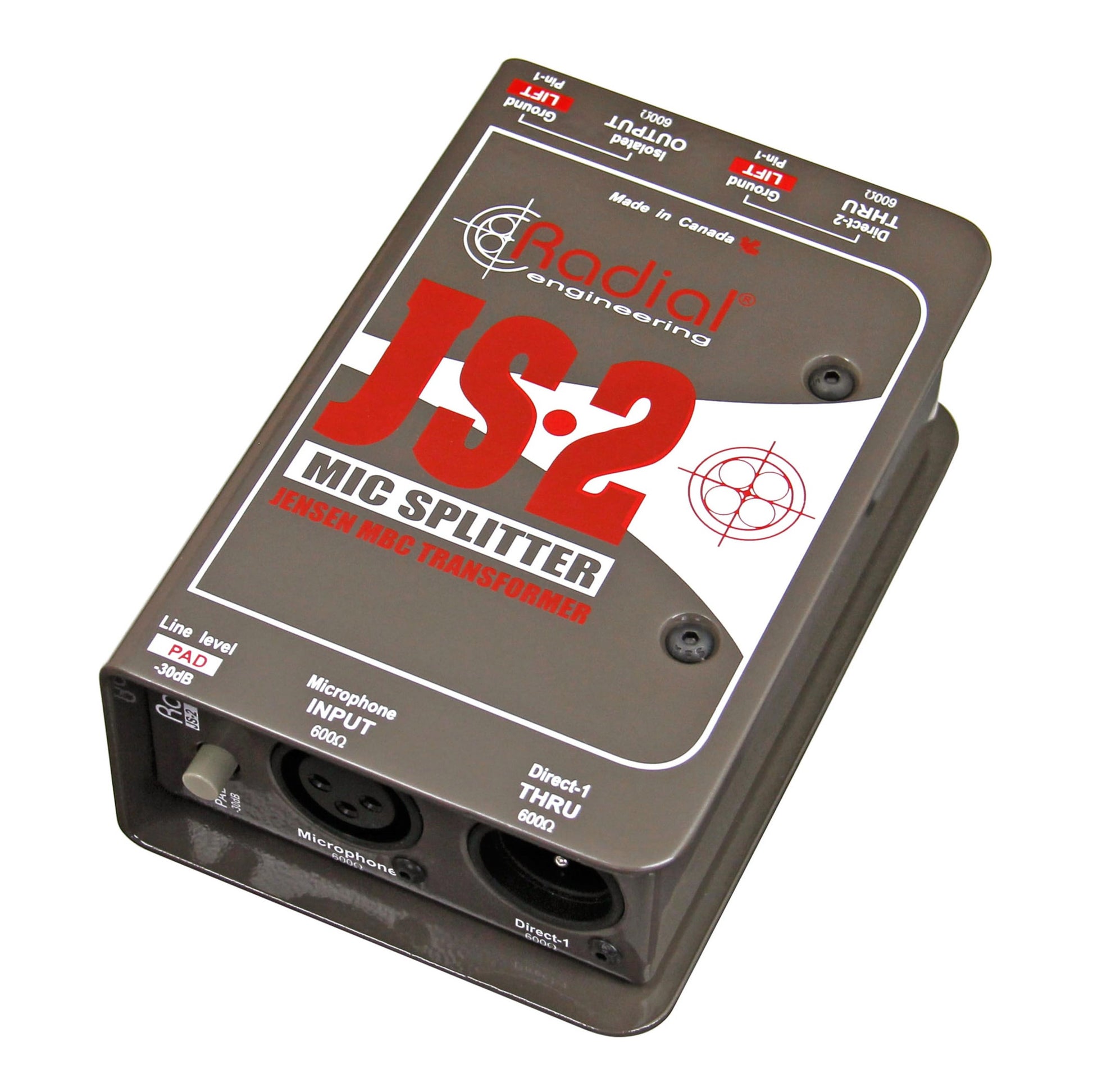

The JS2™ is a high performance balanced mic-level splitter designed to send a signal to multiple destinations simultaneously, with one transformer-isolated output and two direct outputs.
The JS2 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
- Audio circuit type Passive mic/line splitter, transformer based
- Transformer JT-MB-CPC, 1:1 ratio
- Number of channels Three-way splitter (one in/three out)
- Frequency response 20Hz ~ 20KHz (+0dB/ -2dB)
- Dynamic range 140dB
- Total harmonic distortion 0.0005% @ 1kHz
- Phase Deviation 0.7° @ 100Hz; 2.8° @ 20Hz
- Input Impedance Source dependent, 10kΩ with Pad on, unbalanced
- Output Impedance Source dependent, 10kΩ with Pad on, balanced
- Maximum Input +25dBu @ 1kHz
- Features
- Input pad, Ground lift
- Input Connectors: XLR-F in
- Output Connectors: Isolated output
- Construction 14-gauge steel chassis & outer shell
- Size (LxWxD) 3.3x5x2" (84x127x48mm)
- Weight 1.55lb (0.7kg)
- Shipping size (LxWxD) 4x3x6.5" (102x76x165mm)
- Shipping weight 1.92lb (0.87kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
