Radial JS3 Passive 3-Way Microphone Splitter
Radial JS3 Passive 3-Way Microphone Splitter
SoundPro Item: 48869 | Part Number: JS3
Usually ships in 5-7 business days
- Send one microphone signal to three destinations simultaneously
- Jensen transformer-equipped for exceptional audio quality
- Eliminates hum and buzz caused by ground loops
- Dual isolated outputs provide optimal noise rejection
- Input pad, Ground lift

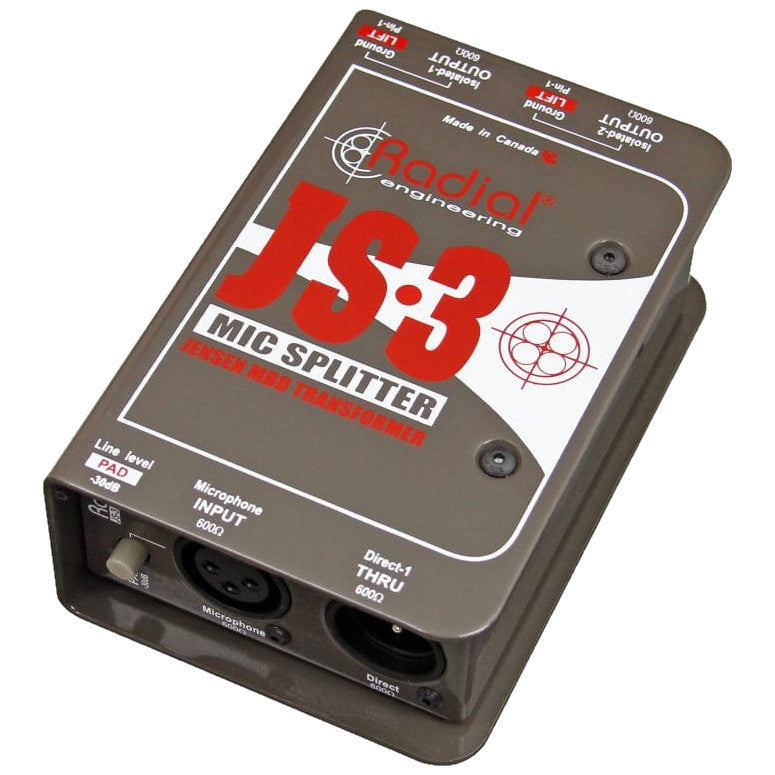

The JS3™ is a high performance balanced mic-level splitter designed to send a signal to multiple destinations simultaneously, with two transformer-isolated outputs and one direct output.
The JS3 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
- Audio circuit typePassive mic/line splitter, transformer based
- TransformerJT-MB-DPC, 1:1:1 ratio
- Number of channelsThree-way splitter (one in/three out)
- Frequency response20Hz ~ 20KHz (+0dB/ -2dB)
- Dynamic range140dB
- Total harmonic distortion0.0005% @ 1kHz
- Phase Deviation0.7° @ 100Hz; 2.8° @ 20Hz
- Input ImpedanceSource dependent, 10kΩ with Pad on, unbalanced
- Output ImpedanceSource dependent, 10kΩ with Pad on, unbalanced
- Maximum Input+25dBu @ 1kHz
- Input ConnectorsXLR-F in
- Output ConnectorsTwo isolated outputs
- Construction14-gauge steel chassis & outer shell
- Dimensions (LxWxD) 3.3x5x2" (84x127x48mm)
- Weight1.55lb (0.7kg)
- Shipping size (LxWxD)4x3x6.5" (102x76x165mm)
- Shipping weight1.92lb (0.87kg)
- PowerPassive, no power required
- ConditionsFor use in dry locations only between 5°C and 40°C
- WarrantyRadial 3-year, transferable
