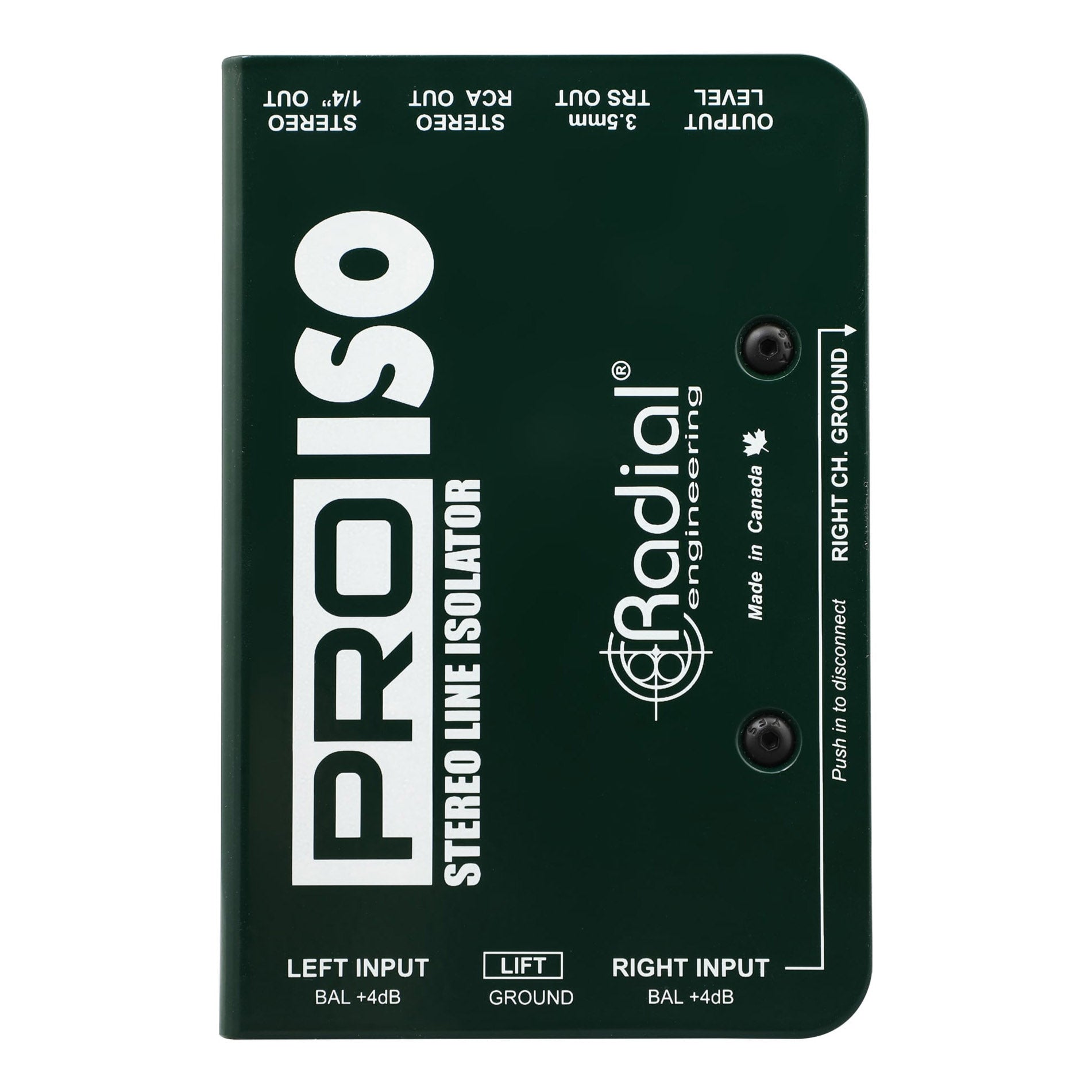

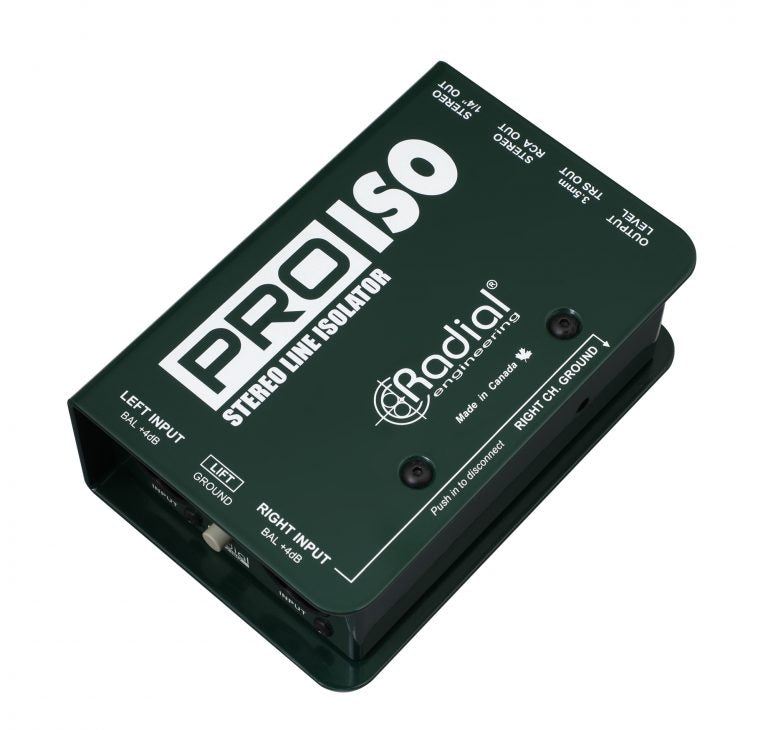

Radial Pro-Iso +4dB to -10dB Converter
Radial Pro-Iso +4dB to -10dB Converter
SoundPro Item: 88600 | Part Number: PROISO
Usually ships in 5-7 business days
- Converts balanced line level signals to unbalanced
- Stereo signal path with set & forget level control
- Transformer isolated to eliminate hum & buzz
- J-Iso features Jensen™ transformers for optimal signal path
The Pro-Iso™ is a +4dB to -10dB converter that employs a cost effective transformer that focuses the energy in the voice range. This makes the Pro-Iso a great choice for sermons, news gathering and spoken voice.
The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¼" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.
- Audio circuit type Passive, transformer based
- Transformer Radial transformer
- Number of channels Stereo (dual mono)
- Frequency response 20Hz ~ 18KHz (+0dB/ -3dB)
- Dynamic range 130dB
- Total harmonic distortion 0.005% @1kHz
- Phase Deviation 1.5° @100Hz; 3° @20Hz
- Input Impedance 1.3k Ohms
- Output Impedance 1.9k Ohms
- Common Mode Rejection Ratio -76dB
- Maximum Input +20dBu @1kHz/1% THD+N
- Features
- Ground lift, Level Control

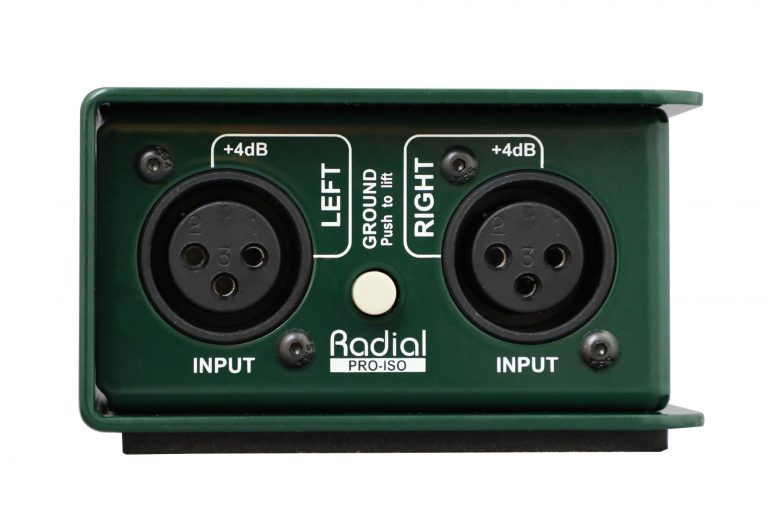

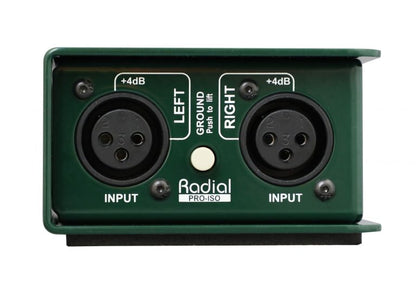

- Input Connectors: Balanced XLR

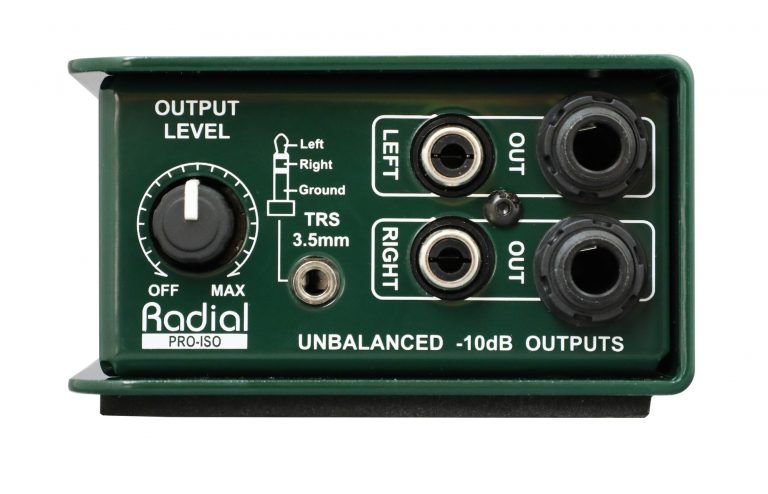

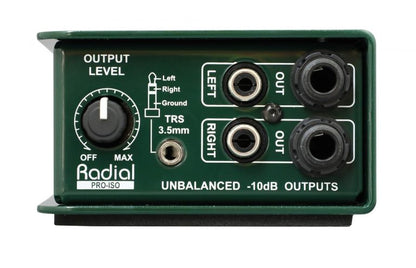

- Output Connectors: 1/4", RCA and 3.5mm TRS unbalanced output
- Construction 14 gauge steel chassis
- Size (LxWxD) 8.4x12.7x4.8cm (3.3x5x2")
- Weight 0.7 kg (1.55 lbs)
- Shipping size (LxWxD) 10.2x7.6x16.5cm (4x3x6.5")
- Shipping weight 0.87 kg (1.92 lbs)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
