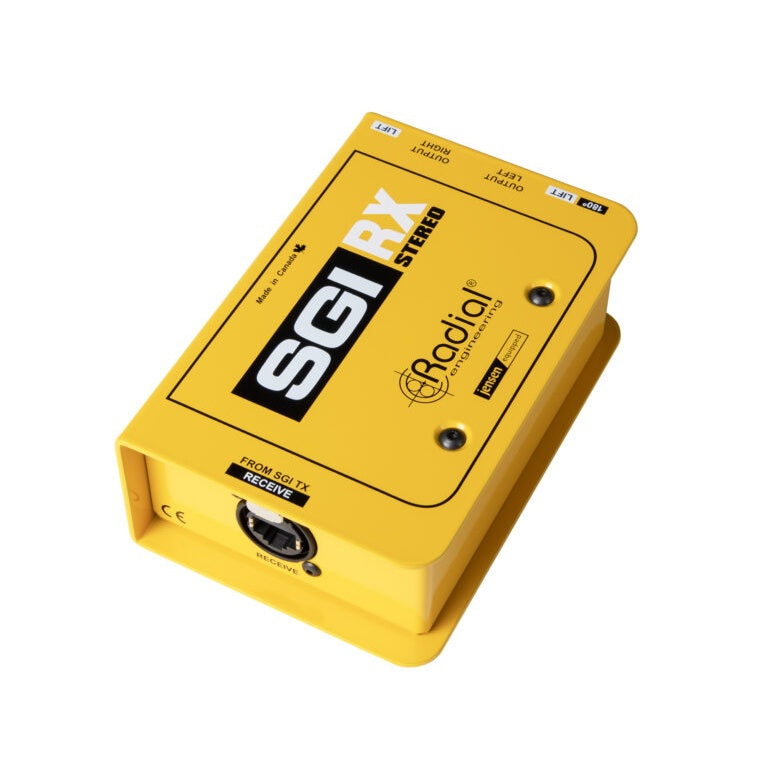

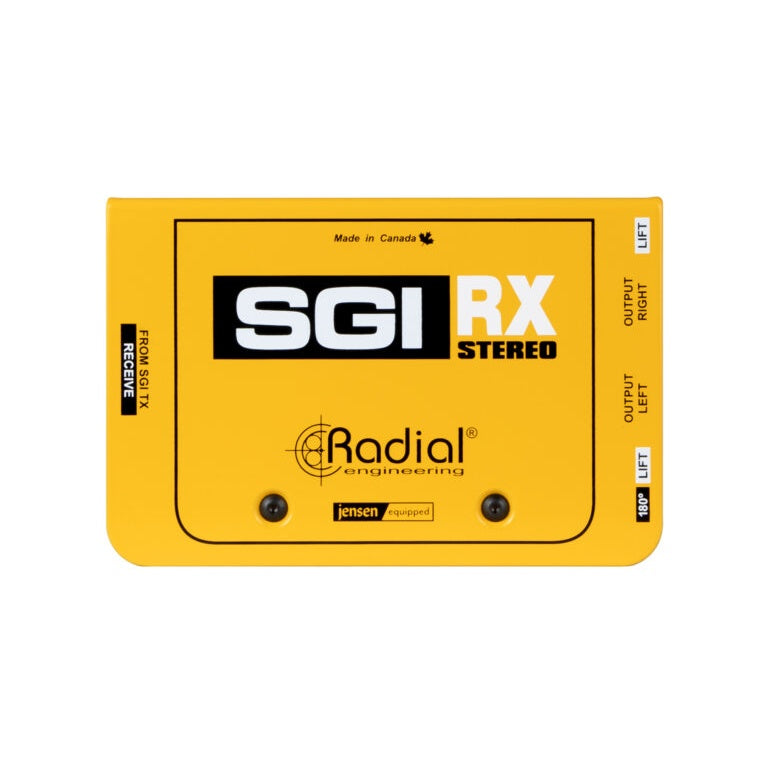

Radial SGI Stereo RX Receiver With Polarity Switch

Radial SGI Stereo RX Receiver With Polarity Switch

SoundPro Item: 202538 | Part Number: R800 1800 02

$249.99
$249.99 $249.99
Your Price Sold out
MSRP: $249.99 | MAP: $249.99

Usually ships in 5-7 business days

  • Premium Jensen Transformer Delivers Wide Flat Response And Enhanced Dynamic Range
  • EtherCON Locking Input Accepts Cat 5 Cable Runs Up To 300 Feet
  • Independent Ground Lift Switches Eliminate Hum From Ground Loops On Each Channel
  • 180 Degree Polarity Reverse Switch Corrects Phase Cancellation On Left Output
  • 14 Gauge Steel Chassis Withstands Touring And Installation Environments
  • Flexible Power Input Accepts 9 To 18V DC Pedalboard Supplies
Log in or register for YOUR best price

The SGI Stereo RX receiver completes Radial's long-distance instrument signal delivery system for live performance and installation environments where running dual 1/4" cables is impractical. When paired with the SGI-TX transmitter, this receiver accepts stereo instrument-level signals transmitted up to 300 feet over standard Cat 5 Ethernet cable, eliminating the high-frequency roll-off and noise accumulation that plague extended unbalanced cable runs.

A premium Jensen transformer at the output stage preserves natural tone with flat frequency response from 20 Hz to 18 kHz while maintaining over 103 dB of dynamic range. Independent ground lift switches on each channel eliminate hum caused by ground loops in complex stage or studio wiring, while the 180-degree polarity reverse switch on the left output corrects phase issues when amplifiers or house systems are wired out of phase. The 14-gauge steel chassis handles the demands of touring and installed sound applications, and the 9-18V DC power input integrates seamlessly with standard pedalboard power supplies.

Downloads

View full details

Specifications

Audio
Frequency Response
20 Hz - 18 kHz, ±1 dB
Dynamic Range
>103.4 dB @ -20 dBV, 20 kHz BW
Total Harmonic Distortion
<0.0052% @ -20 dBu, 1 kHz, 22 Hz - 22 kHz
Intermodulation Distortion
<0.024% 60 Hz/7 kHz, 4:1, +4 dBu
Total Harmonic Distortion + Noise
<0.0056% @ -20 dBu, 1 kHz, 22 Hz - 22 kHz
Signal to Noise Ratio
>91 dB re -20 dBu, 1 kHz
Input Impedance
200 kΩ
Output Impedance
1.3 kΩ
Maximum Input
>8.28 dBu @ 1% THD+N, 1 kHz, unbalanced
Cross Talk
<-32.7 dB @ -20 dBu, 10 kHz
Connectivity

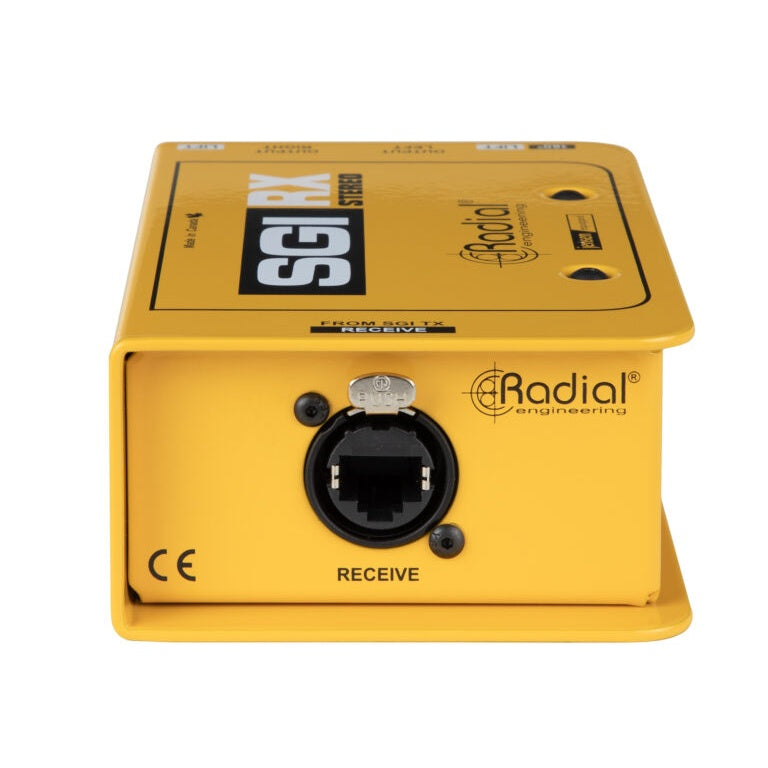

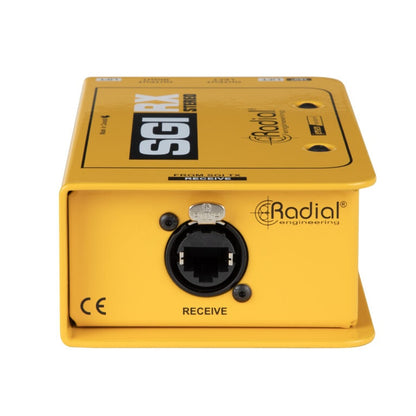

Input Connectors
etherCON locking RJ45

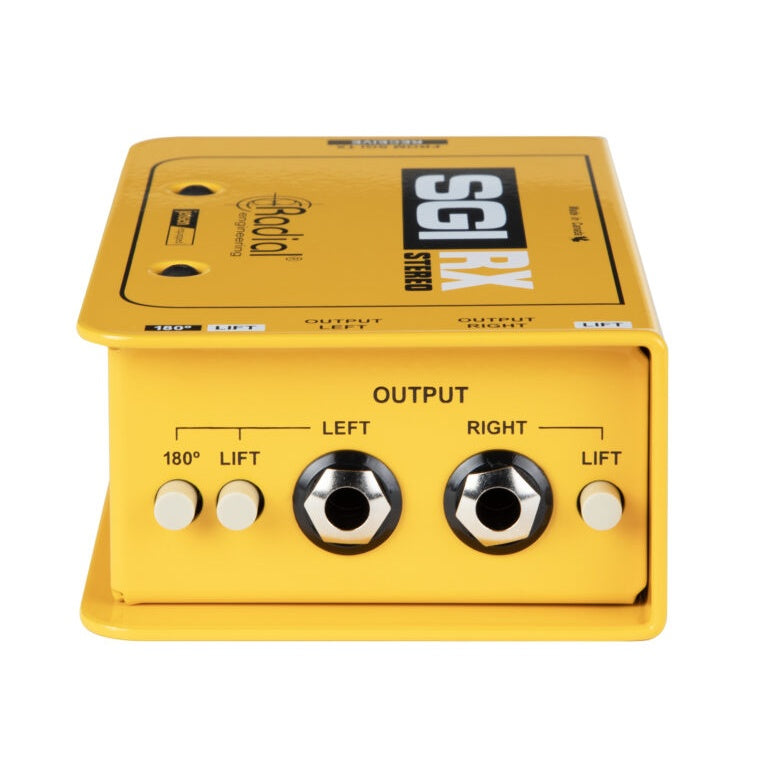

Output Connectors
2x 1/4" TS
Controls
180 Switch
Reverses Polarity on Left output
Ground Lift Switches
Disconnects Pin-1 on associated 1/4" jack
Electrical
Power Input
9-18V DC
Construction
Chassis Material
14-gauge Steel
Finish
Durable Powder Coat
Dimensions
Product Width
3.3"
Product Length
5"
Product Height
1.8"
Weight
Package Weight
1.8 lbs
Environmental
Operating Temperature
5°C to 40°C
Conditions
For use in dry locations only
Shipping
Package Width
4.25"
Package Length
6.25"
Package Height
2.75"
Warranty
Warranty
Radial 3-year, transferable
