Radial Shotgun Instrument Buffer & Splitter
Radial Shotgun Instrument Buffer & Splitter
SoundPro Item: 75306 | Part Number: SHOTGUN
Usually ships in 5-7 business days
- 1×4 mono or 2×2 stereo operation
- Isolated outputs eliminate buzz and hum
- Buffered outputs prevent signal loss
- 180° polarity switches to phase-match amps

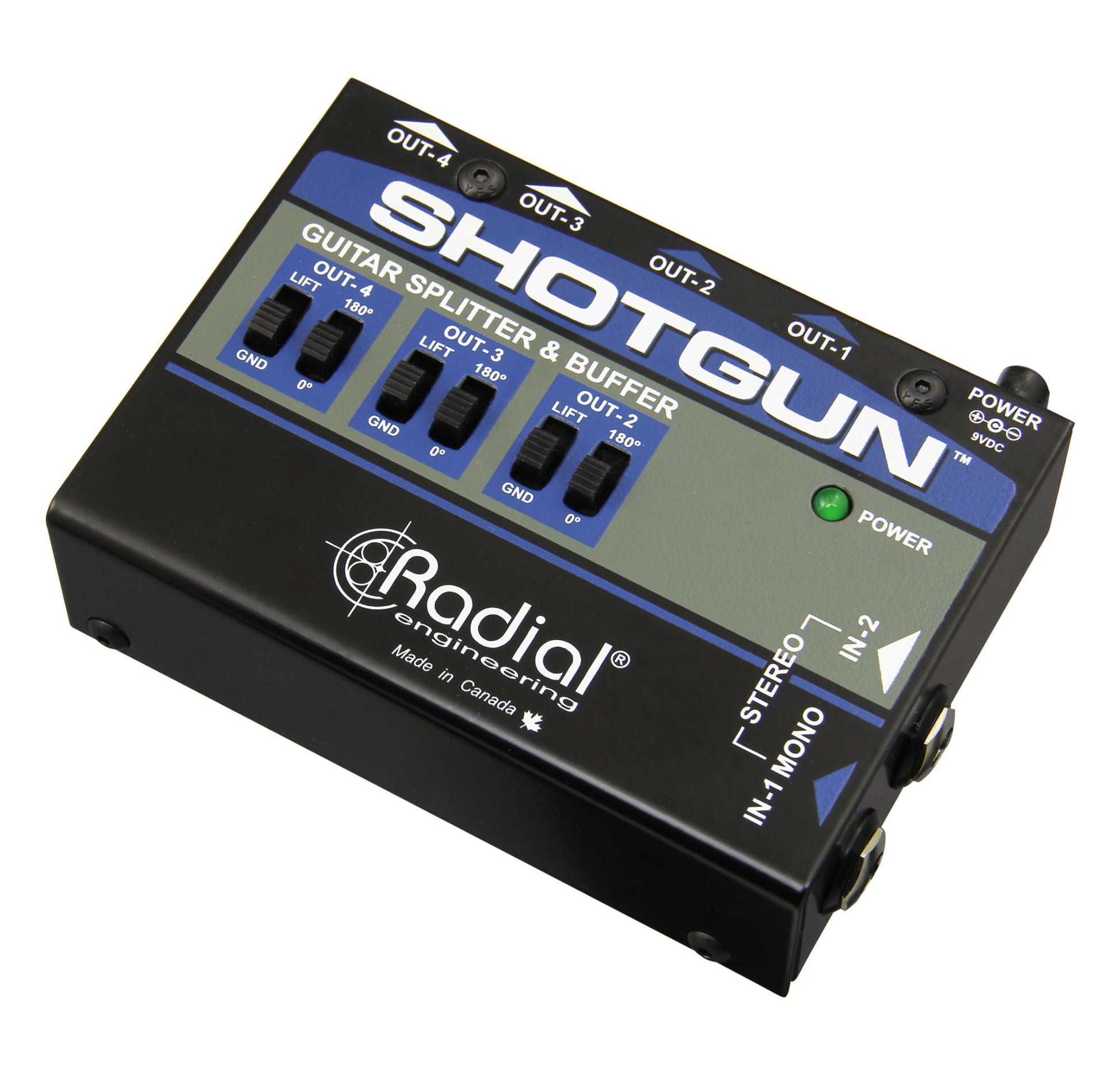

The Shotgun is a compact guitar-level signal buffer designed to drive up to four amplifiers simultaneously while fitting easily on any pedalboard.
The Shotgun makes it easy to drive multiple amplifiers cleanly and in phase without buzz or hum from ground loops. In mono operation, connect to input-1 of the Shotgun and you can feed up to four amps simultaneously. For stereo setups, the Shotgun automatically reconfigures when both inputs are used; feeding input-1 to the first two amplifiers, and input-2 to the second pair. Isolation transformers and ground lifts are included on the outputs to eliminate ground loop noise, along with 180° polarity reverse switches to ensure all amps are phase-matched.
- Audio Circuit Typebuffered signal distribution with 3 isolated outputs
- Frequency Response20Hz to 20,000Hz (+0 / -2 dB)
- THD<0.02% (-20dB)
- Dynamic Range>103dB/92dB (Out-1 / Out-2,3,4 - High Impedance Load)
- Input Impedance400K/200K (stereo/mono)
- Max. Input> +8dBu
- Gain0dB / -0.2dB (Out-1 / Out-2,3,4 - High Impedance Load)
- Clip Level - Output> +7.5 dBu
- Output Impedance100Ω / 1.8kΩ (Out-1 / Out-2,3,4)
- Noise Floor< -95dBu / -86dBu (Out-1 / Out-2,3,4)
- Intermodulation Distortion~0.02% (-20dB)
- Power9V adapter / 50mA
- Constructionsteel enclosure
- Dimensions (LxWxD)4.5x3.62x1.37"
- Weight1.1 pounds
