Radial StageBug SB-1 Compact Active Direct Box
Radial StageBug SB-1 Compact Active Direct Box
SoundPro Item: 71602 | Part Number: SB-1 ACTIVE
Usually ships in 5-7 business days
- Active direct box for acoustic guitar
- Ultra compact to fit in your guitar case
- Plug & play easy to use feature set
- 48V phantom powered, no batteries needed!
- Input pad, 180° polarity reverse, Ground lift

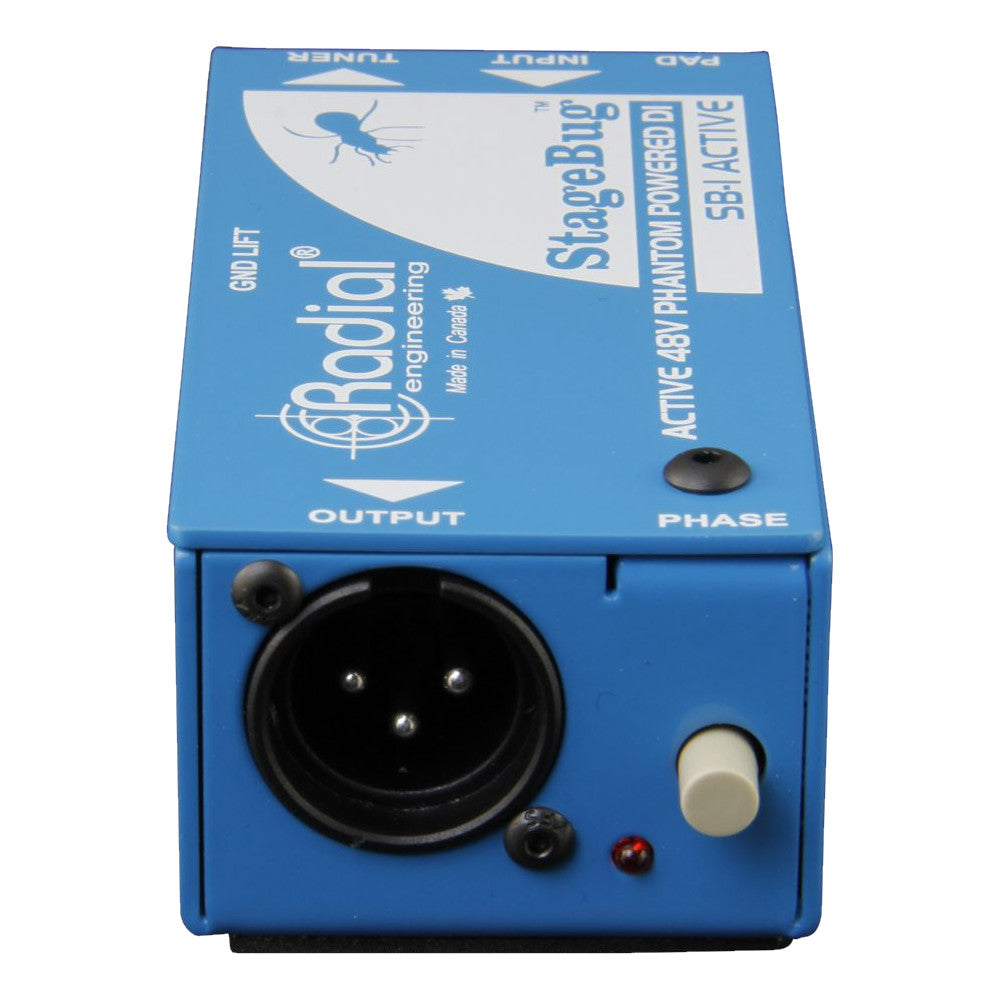

The StageBug SB-1 is a compact active direct box designed to fit inside a guitar case for artists who prefer to travel light.
The design begins with standard ¼ instrument input with a thru-put to feed your tuner or your on-stage amp. The ultra-quiet active circuit at once converts the signal from high to low impedance to reduce susceptibility to noise. The signal is then buffered and balanced for long cable runs to the PA system. 48 volt phantom provides the power, so the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are ready to go!
- Audio circuit type Active Buffer with Phase Splitter
- Number of channels 1
- Frequency response 20Hz to 20KHz
- Dynamic range >100dB
- Gain +1.3dBu/+4.4dB
- Clip Level +3.3dBu/+12.3dBu
- Total harmonic distortion <0.006%
- Intermodulation Distortion <0.01%
- Phase Deviation 25/12° Maximum
- Input Impedance 800K/23K
- Output Impedance 330 Ohms
- Equivalent Input Noise -101dBu
- Noise -97dBu
- Maximum Input +2dBu/+8dBu
- Input Connectors 1/4"
- Output Connectors XLR
- Construction 16 gauge steel chassis & outer shell
- Dimensions (L x W x D) 4.5 x 1.85 x 1.35 inches (114 x 47 x 34mm)
- Weight 0.55 lbs (250 grams)
- Shipping size (L x W x D) 8 x 5 x 3 inches (203 x 127 x 76mm)
- Shipping weight 0.8 lbs (365 grams)
- Power 48V phantom power, 5mA
- Conditions For use in dry locations only between 5°C and 40°C
