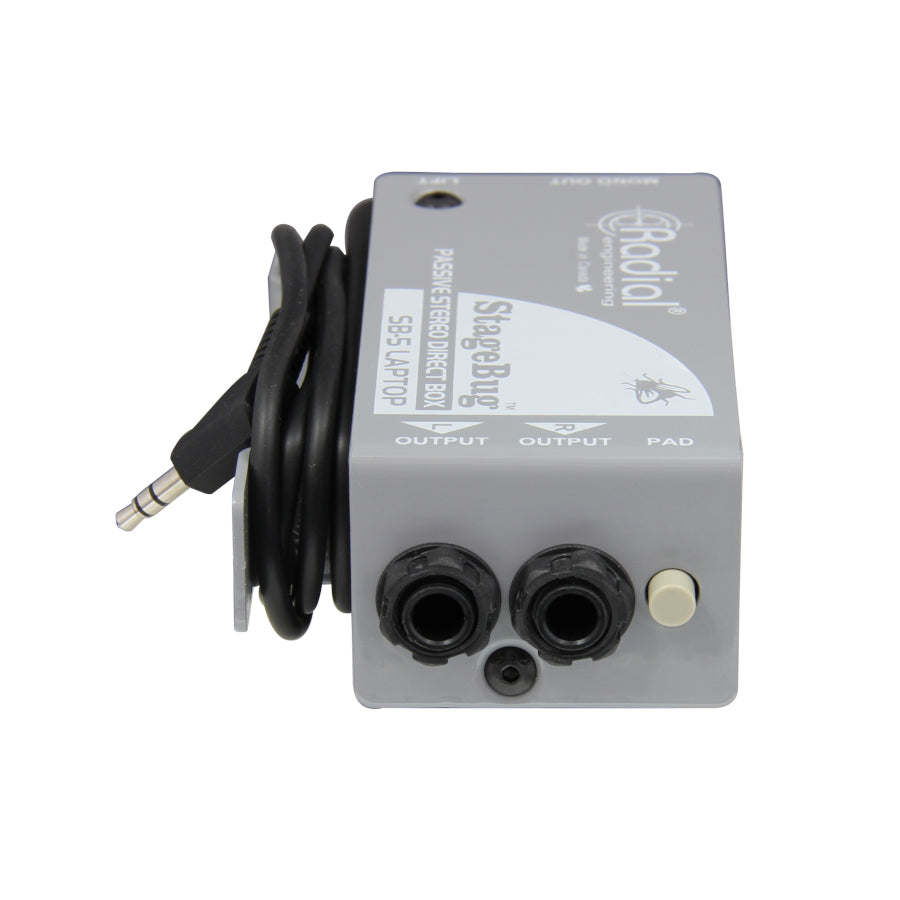

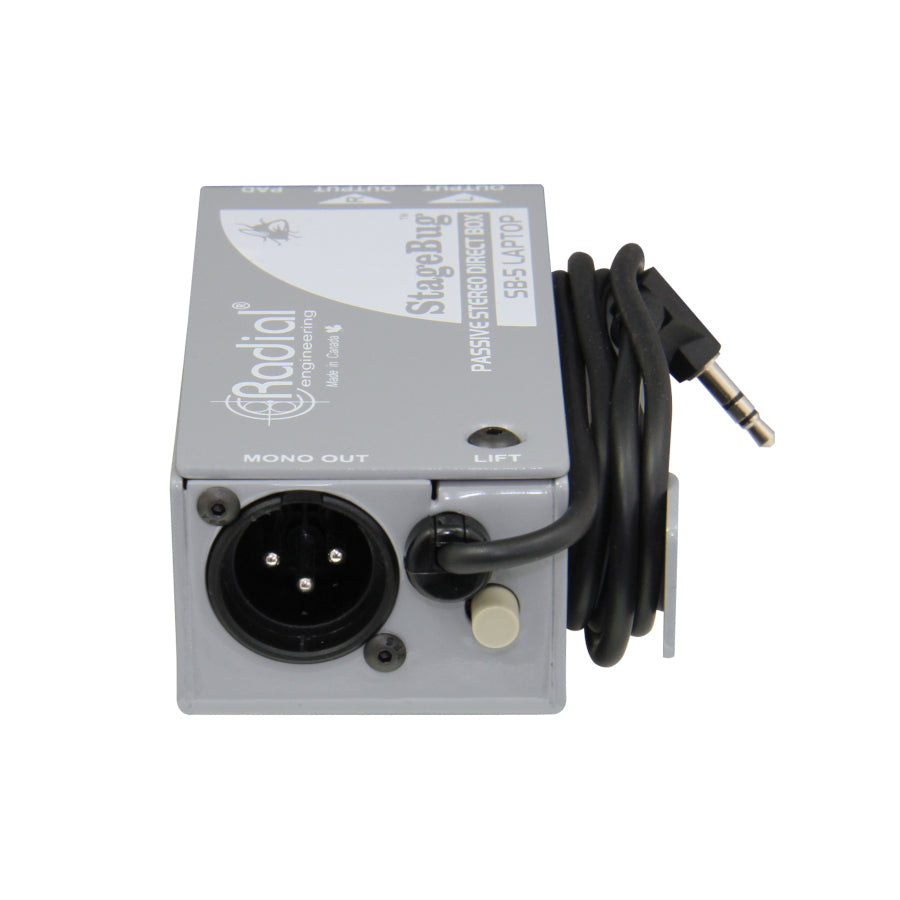

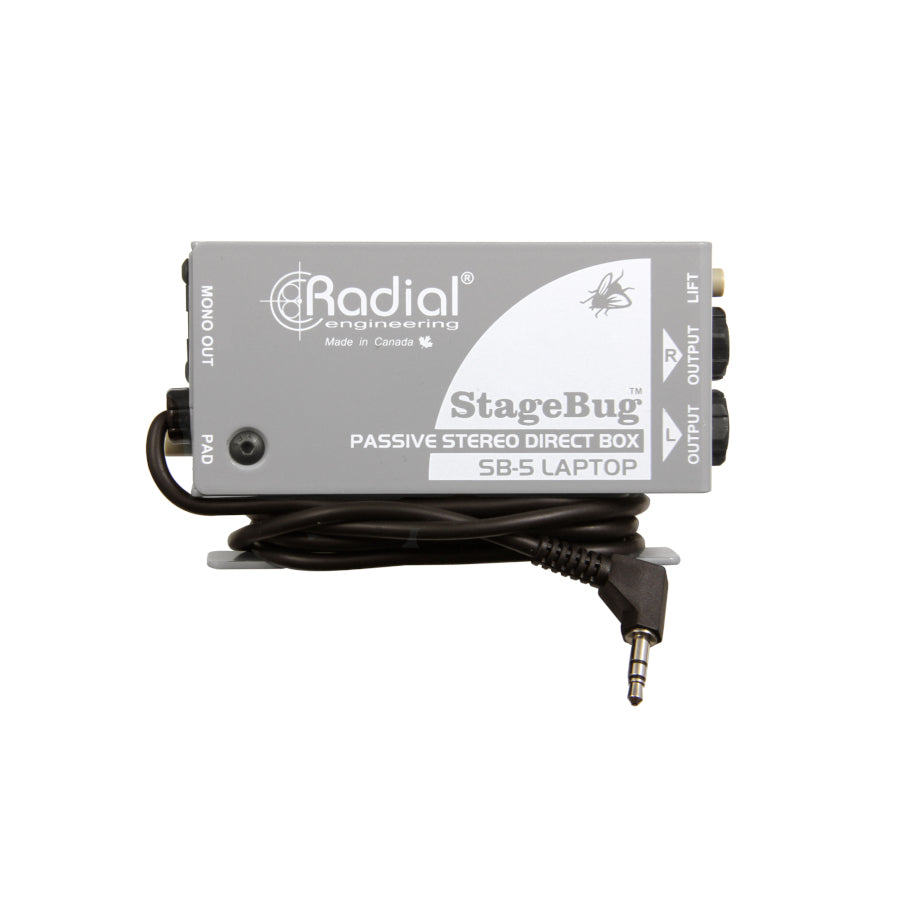

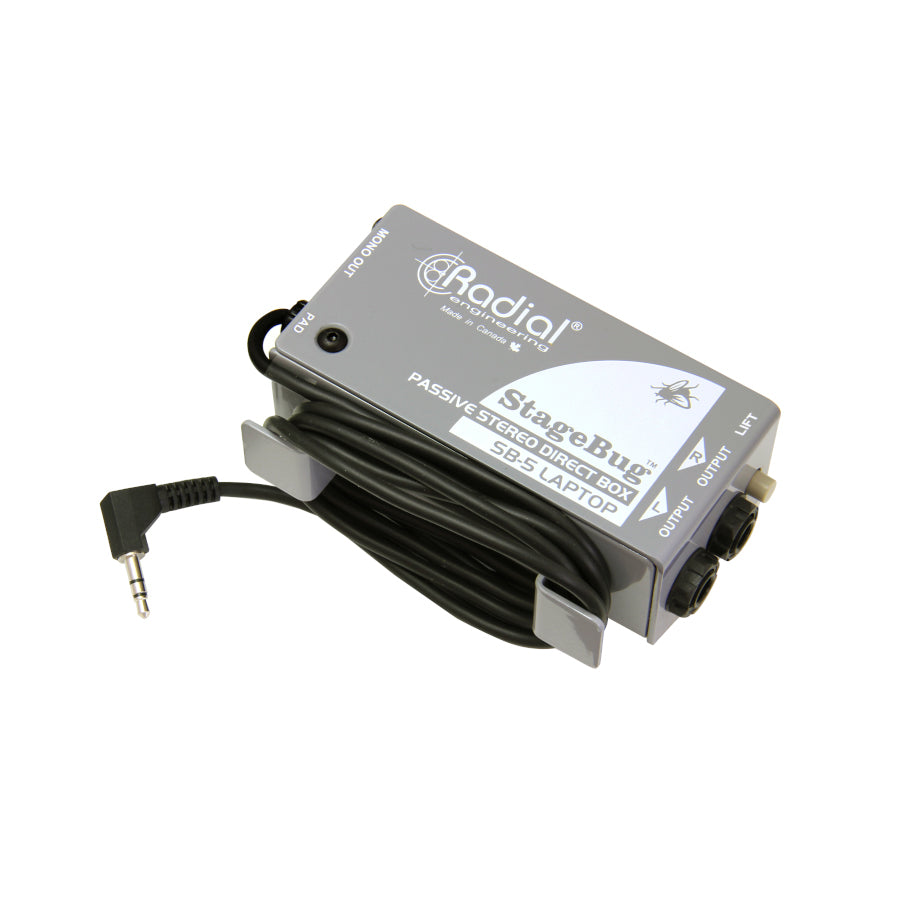

Radial StageBug SB-5 Compact Stereo Laptop Direct Box
Radial StageBug SB-5 Compact Stereo Laptop Direct Box
SoundPro Item: 71613 | Part Number: SB-5 LAPTOP
Usually ships in 5-7 business days
- Stereo direct box for laptop computer
- Integral 1.5m cable with sidewinder cleat
- Transformer isolation eliminates noise
- Plug & play easy to use – no power required
- Input pad, Mono Sum, Ground lift
The Radial StageBug SB-5 is a compact & portable stereo direct box designed to accommodate laptop computers, tablets, and other consumer audio products when amplifying the signal through a PA system.
The StageBug SB-5 provides an easy to use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.
- Audio circuit type Passive, transformer based
- Number of channels 2
- Frequency response 20Hz ~ 20KHz (± 1dB)
- Dynamic range 100dB
- Total harmonic distortion 0.01% @ 1kHz
- Phase Deviation 2° @ 100Hz; 5° @ 50Hz
- Input Impedance 40k Ohms, unbalanced
- Output Impedance 2.8k Ohms, balanced
- Maximum Input +20dB
- Input Connectors 3.5mm
- Output Connectors 1/4" TRS, XLR
- Construction 14 gauge steel chassis & outer shell
- Dimensions (L x W x D) 4.5 x 1.85 x 1.35 inches (114 x 47 x 34mm)
- Weight 0.55 lbs (250 grams)
- Shipping size (L x W x D) 8 x 5 x 3 inches (203 x 127 x 76mm)
- Shipping weight 0.8 lbs (365 grams)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
