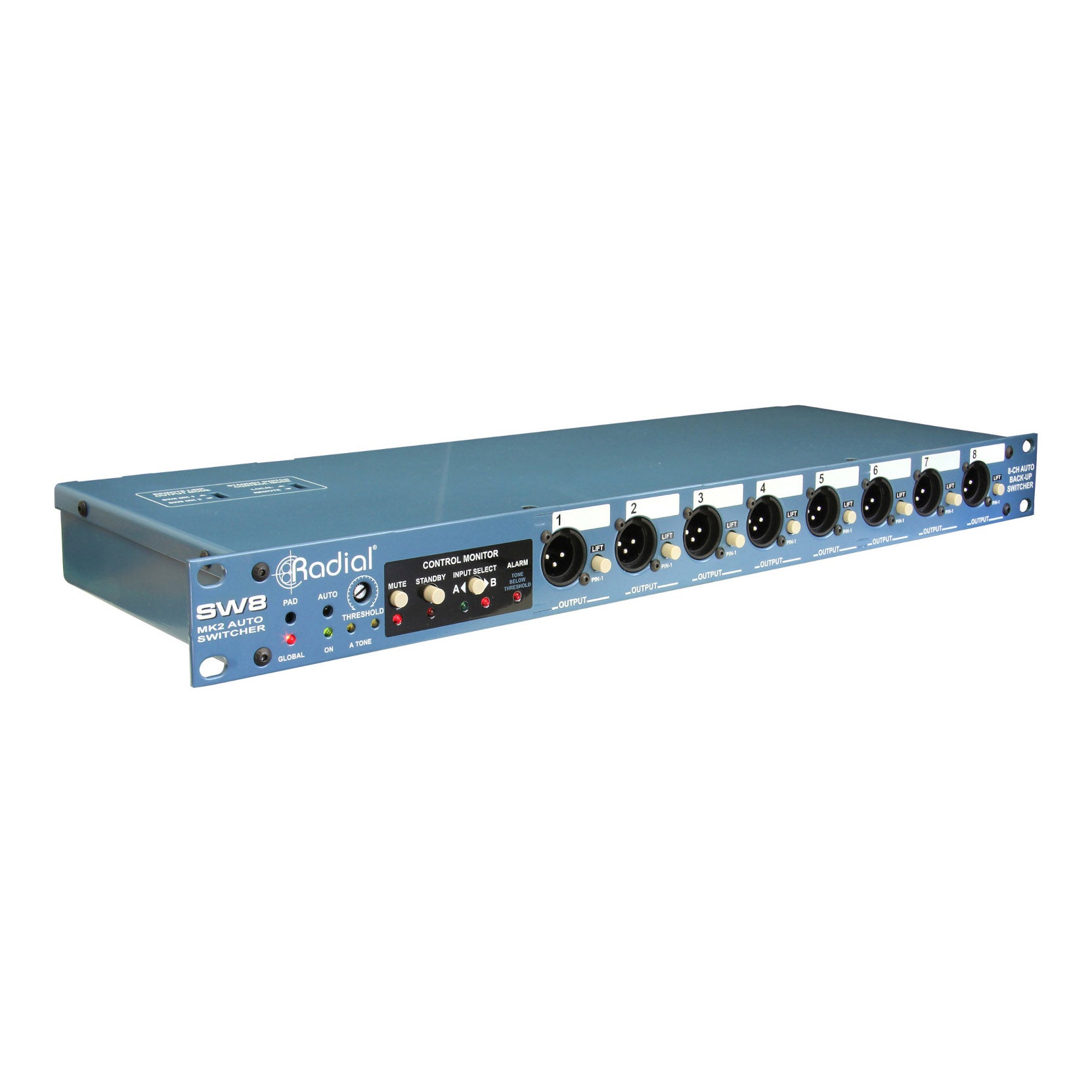

Radial SW8 Auto-Switcher
Radial SW8 Auto-Switcher
SoundPro Item: 47125 | Part Number: SW8
Usually ships in 5-7 business days
- Switch between redundant playback systems
- Manual or seamless automatic switching
- Line level or transformer isolated mic level outputs
- May be linked for larger playback systems
The Radial SW8™ is an 8-channel auto-switcher that allows you to set up a redundant backup system by automatically switching between two multi-channel playback systems.
Designed primarily for live concerts and stage shows where backing tracks are used for orchestration, vocals and sound effects, SW8 employs an adjustable gate to detect a machine malfunction and automatically switch to a second backup machine to deliver a seamless performance. The SW8 will monitor any continuous audio signal such as SMPTE on the main playback system, and should the signal drop it will automatically switch to the backup. Switching can also be performed manually on the front panel, or by using a footswitch such as the Radial JR2. For larger systems beyond 8 channels, multiple SW8s may be linked together.
- Input A & B
- 1/4" Phone: TRS balanced +4dB / -10dB
- D-Sub: DB25 balanced +4dB / -10dB
- Input Impedance
- Without Global PAD: 140K ohms typical
- With Global PAD: 10k ohms typical
- Direct Output
- Type: passive balanced signal path
- Switching Time: 3ms maximum @ 20°C
- XLR Output
- Frequency Response: 20Hz to 20,000Hz +/-2.5dB
- THD: 0.01% from 20Hz to 20,000Hz
- Output Impedance: 600Ω
- Output: -50dB (mic level) balanced (pin-2 hot)
- PAD: -20dB (Global - all channels)
- Foot-SW
- 1/4" Phone: contact closure to ground
- Contact Relay
- 1/4" Phone: 5-24 VDC relay circuit
- Dimensions: 19" x 6.5" x 1.75" (1RU)
- Weight: 7.2 pounds
- Power Supply: output 15 VDC @ 400mA
