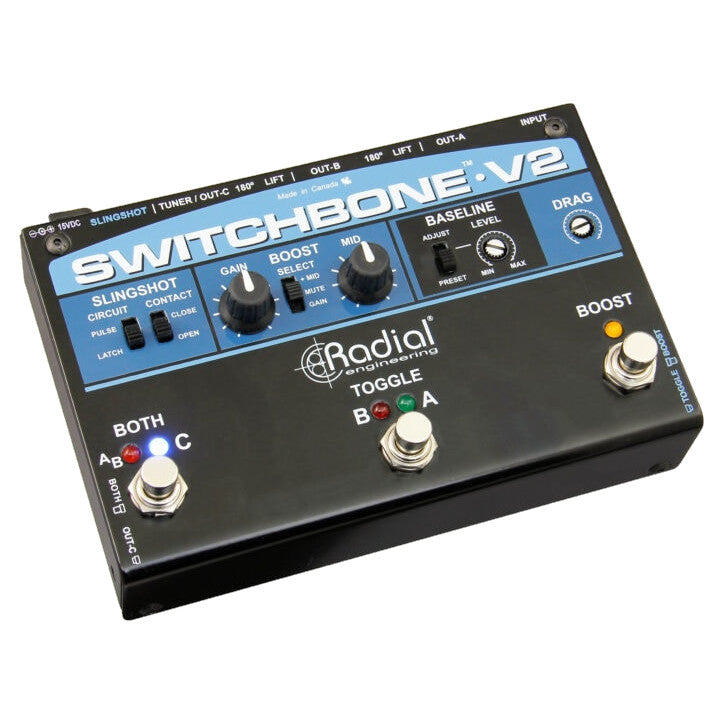

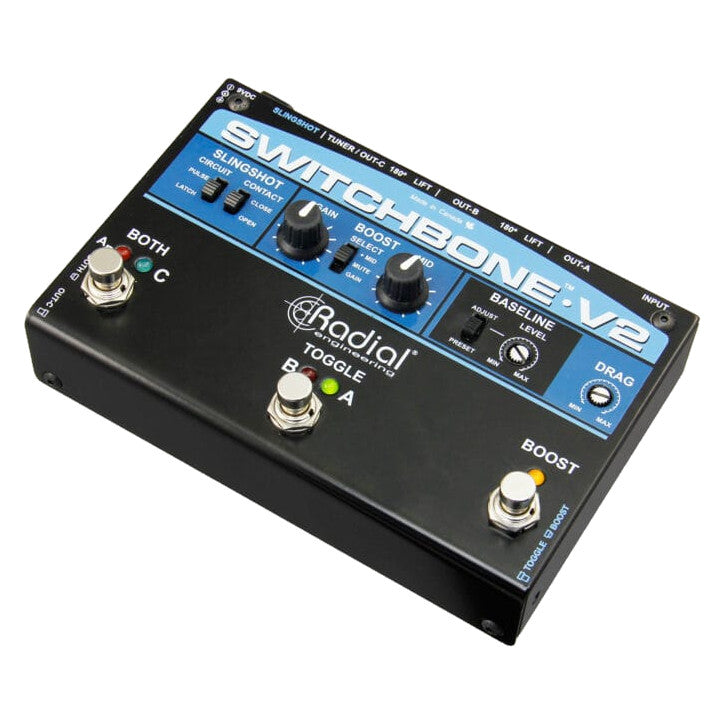

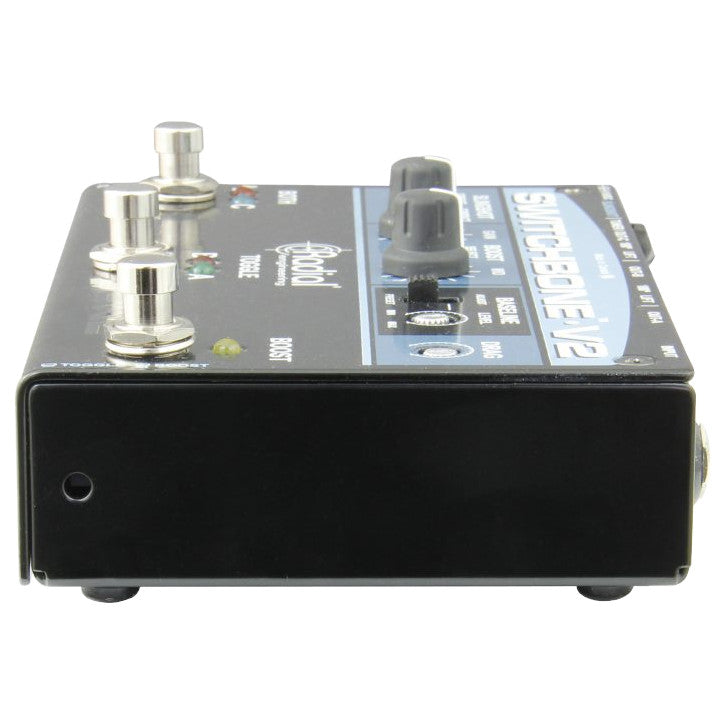

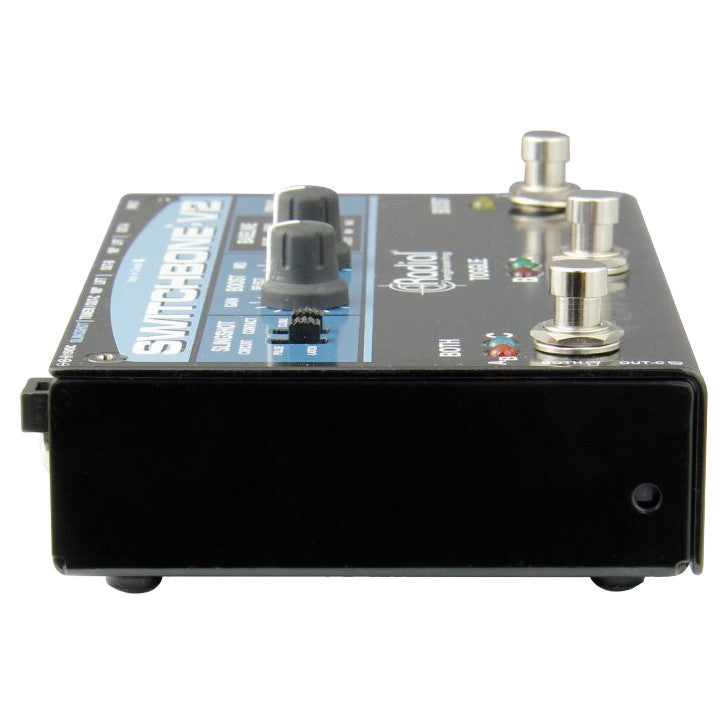

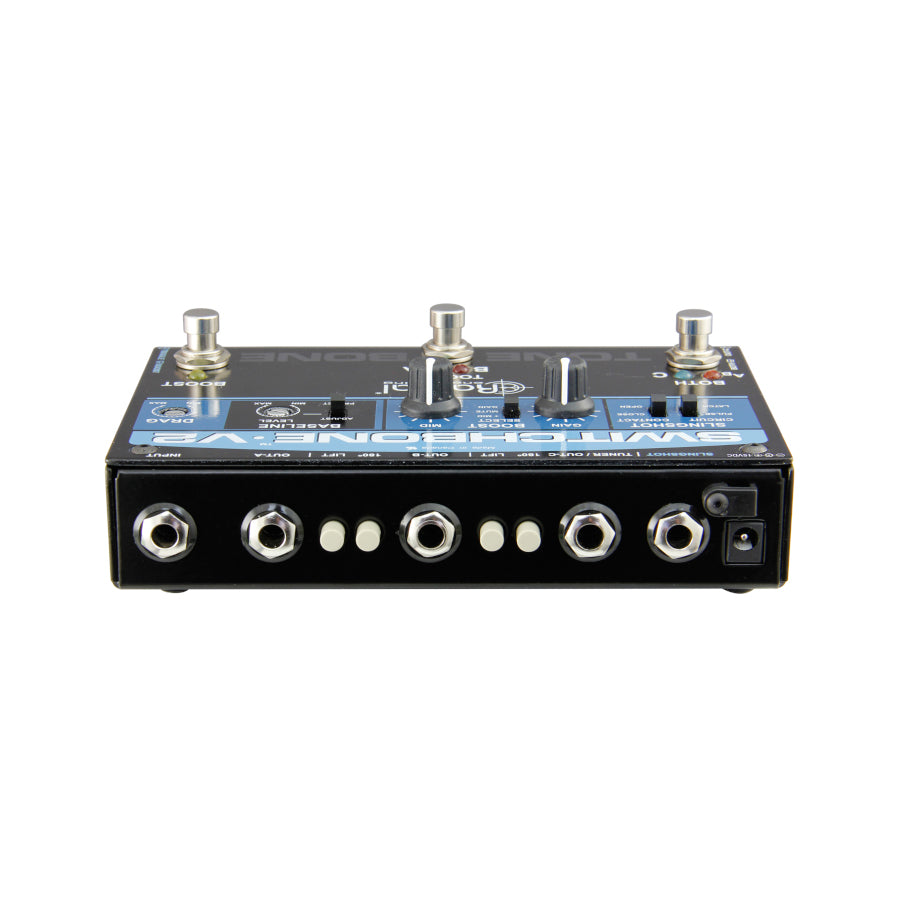

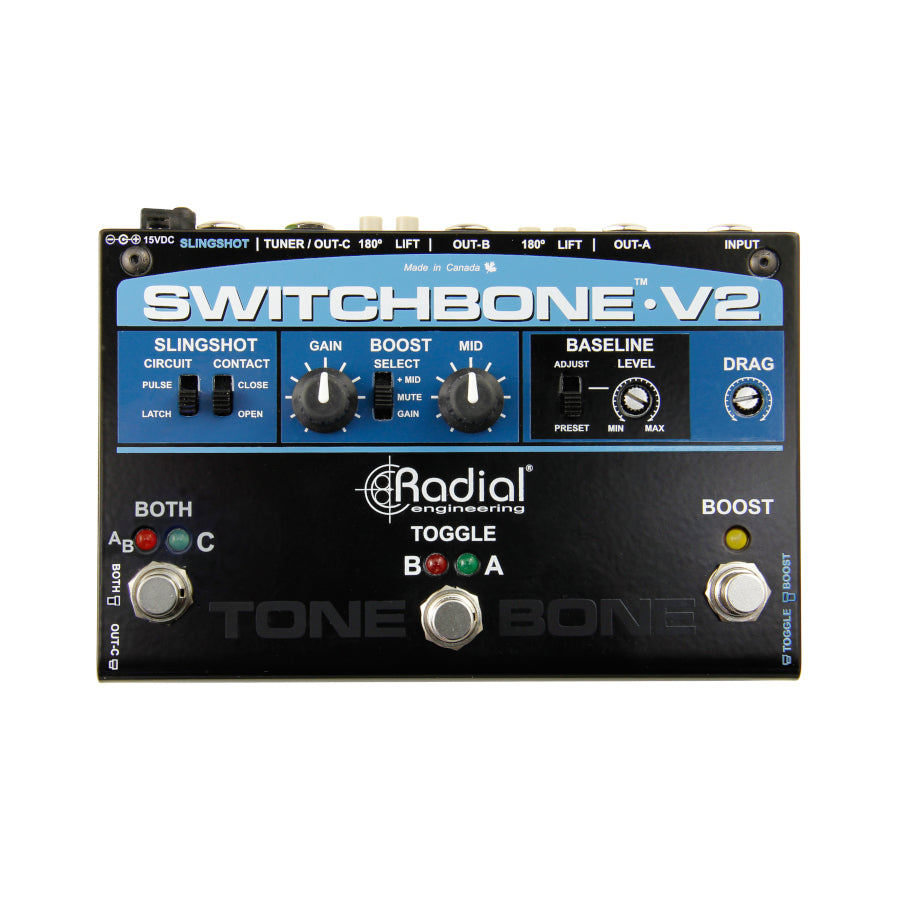

Radial Switchbone-V2 Amp Selector & Boost Pedal
Radial Switchbone-V2 Amp Selector & Boost Pedal
Soundpro Item: 75374 | Part Number: SWITCHBONE-V2
Usually ships in 5-7 business days
- 100% discrete Class-A signal path for exceptional audio
- Drag™ control load correction for natural tone
- Opto-coupler for noiseless switching
- Transformer isolated to eliminate buzz and hum
- 180° polarity reverse, Ground lift, Boost
Couldn't load pickup availability
The Switchbone V2™ controls your two or three-amp setup, with the ability to switch between amps silently, eliminate buzz and hum, and activate a high-powered clean boost for soloing.
The Switchbone V2 may well be the ultimate guitar amp switcher. This device lets you switch and combine up to three guitar amplifiers without introducing distortion, switching noise, or hum into the signal path. Most importantly, it will retain the natural tone and feel of your instrument so that your natural playing style shines through. The Switchbone V2 may be used as a standard ABY switcher with both A and B outputs used separately or together, or the tuner output can be repurposed to feed a third amplifier. A built-in power booster at the output delivers up to +18db of ultra-clean boost with the option to add mid-boost for extra sustain when playing lead.
Specifications
- Audio circuit type Discrete Class-A
- Gain Unity to +12dB (Baseline gain)
- Input Impedance Variable with drag control
- Output Impedance 10k Ohm
- Noise Floor -111dB
- Input Connectors1/4" input
- Output Connectors4 1/4" outputs
- Construction14-gauge steel chassis & outer shell
- Dimensions (LxWxD)6.62x4.5 x2" (168x114x51mm)
- Weight2.35lbs (1.07kg)
- Shipping size (LxWxD)10.75x4.75x2.5" (273x120x64mm)
- Shipping weight3.35lbs (1.5kg)
- Power15VDC 400mA, center pole positive
- ConditionsFor use in dry locations only between 5°C and 40°C
- WarrantyRadial 3-year, transferable
