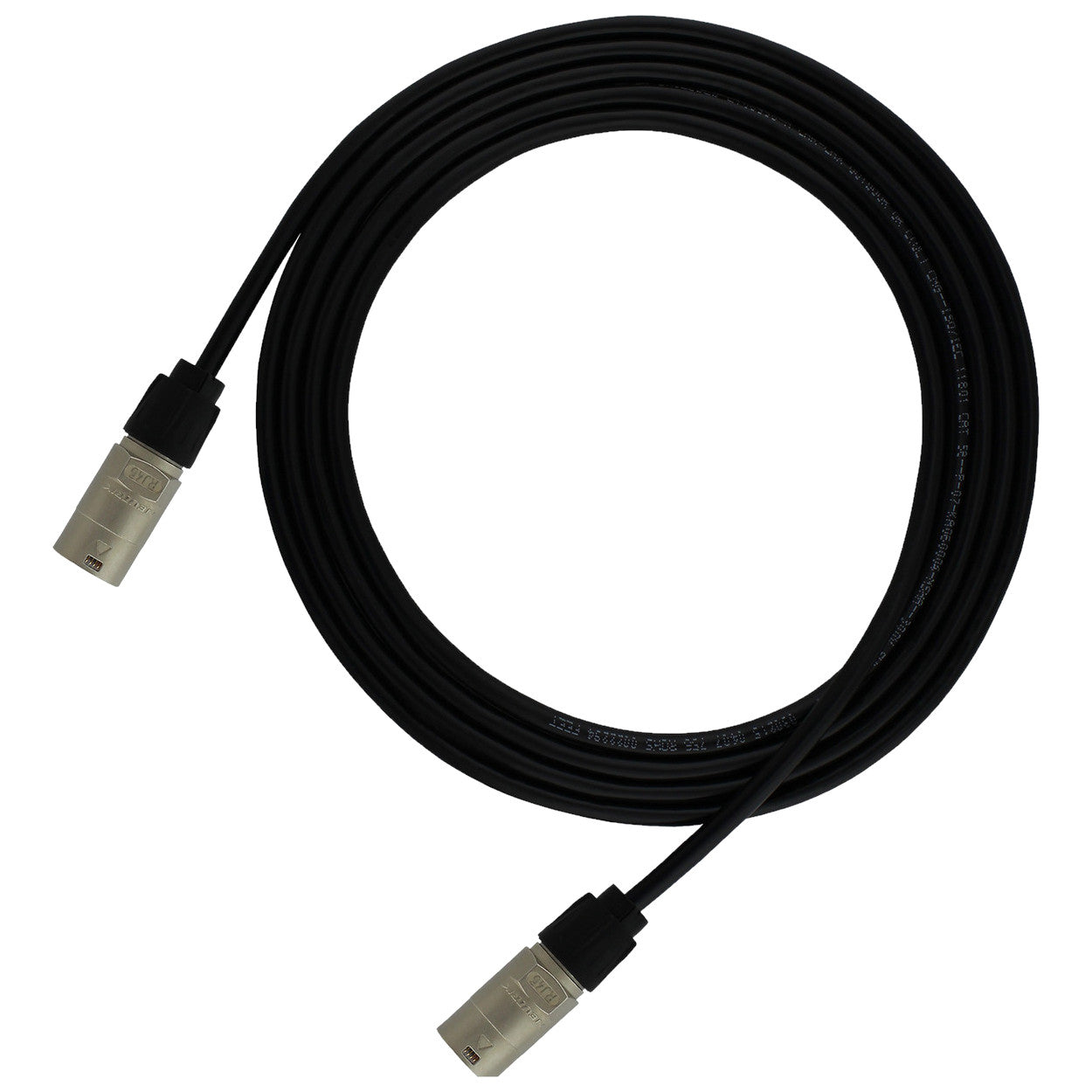

ProCo C270201 Shielded Cat5e Cable with etherCON Connectors | Length: 300 feet

ProCo C270201 Shielded Cat5e Cable with etherCON Connectors | Length: 300 feet

SoundPro Item: 135751 | Part Number: C270201-300F

$306.17
$306.17 $306.17
Your Price Sold out
MSRP: $306.17 | MAP: $306.17

In stock and ready to ship

  • Structured cabling for Ethernet Networks
  • Foil shield reduces electromagnetic interference (EMI) for optimal performance
  • Performance guaranteed to 350 MHz
  • Sequential footage markings
  • Verified by third-party for guaranteed performance
Log in or register for YOUR best price

The C270201 Shielded Cat5e Cable with etherCON Connectors from ProCo is a 24 AWG 4Pair F/UTP Category 5E cable that has been tested to 350 MHz. Aluminum Mylar Foil Shield. Available in Pull Box.

Applications:

  • IEEE 802.3 1000Base-T, 100Base-TX, 10Base-T, PoE, PoE+
  • CDDI, Token Ring, ATM
  • Broadband and Baseband Analog Video

Standard Compliances:

  • ANSI/TIA 568-C.2
  • ANSI/TIA 862 (Building Automation)
  • ISO/IEC 11801 Ed. 2.0 (Class EI)
  • ICEA 8-102-700 (Category 6 or 5E)
  • REACH Compliant
  • CPR Compliant (Fully Comply to 305/2011 & EN 50575:2014-09)
  • RoHS Compliant Directive 2002/95/EG
View full details

Specifications

Dimensions
Packing Length
1000ft/Pull
Electrical
Voltage Rating (Max)
300V
1.0 - 250.0MHz Characteristic Impedance (ohms)
100±15
Max. Conductor DC Resistance Unbalance (%)
95
Max. Resistance Unbalance (%)
3
Max DC Loop Resistance
25
Min DC Insulation Resistance
-
ELECTRICAL CHARACTERISTICS
Aging Period (C x hrs) Tensile Strength (Mpa) ≥85% of unagedElongation (%): ≥50% of unaged
ELECTRICAL PERFORMANCE
ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m), NEXT - Near End Crosstalk (dB/100m), ACR - Attenuation to Crosstalk Ratio (dB/100m), PSNEXT - Power Sum Near End Crosstalk (dB/100m), ELFEXT - Equal Level Far End Crosstalk (dB/100m), PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m), RL - Return Loss (dB), TCL - Transverse Conversion Loss (dB/100m), ATT - Attenuation (dB/100m)
Construction
Screen Material
Al-Foil
Construction
CMR/Non-Plenum
Jacket Material
FR-PVCAverageThickness: 0.55mmMinimum Point Thickness: 0.50mmOutside Diameter (±0.2mm): 5.7
Environmental
Temperature Range
-20 ~ 75C
General
PHYSICAL PROPERTIES
Conductor Material CopperNominal Outside Diameter (mm) 0.515, Insulation Material HDPEDiameter (± 0.05mm) 0.96
Rip Cord
250D Nylon
Drain Wire
0.4 TC
BoxWeight
25 lbs
250-650.0MHz Delay Skew (ns/100m)
45
Pair-to-Ground Capacitance Unbalance (Pf/100m)
53
Max Mutual Capacitance
330
Max Propagation Delay Skew
4
Before Aging Tensile Strength (Mpa)
≥13.8Elongation (%): ≥100
Cold Bend (No Visible Crack)
-40±2C
Velocity of Propagation (%)
NVP 70
