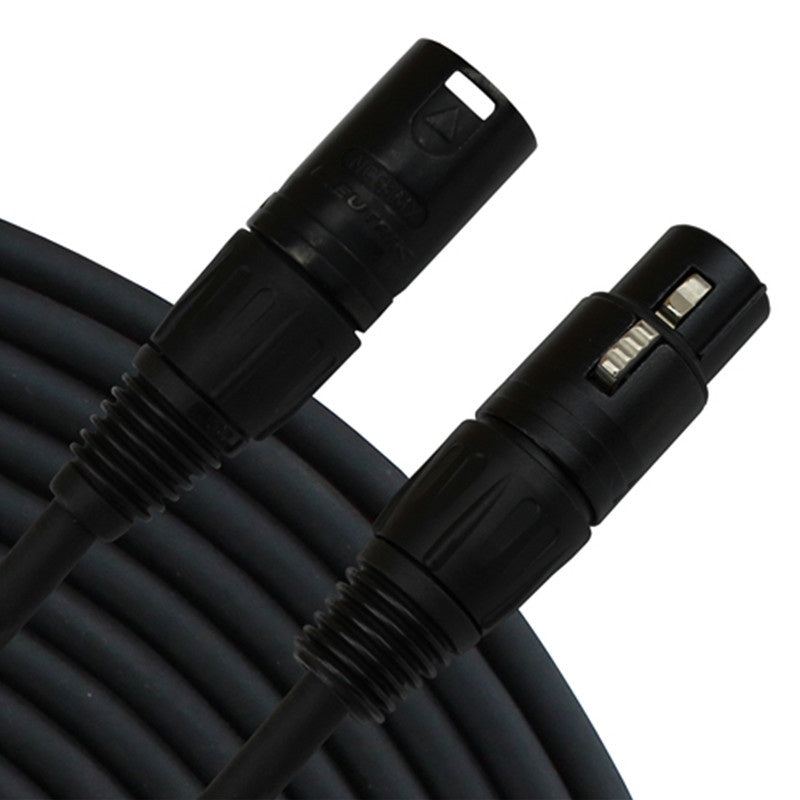

RapcoHorizon Neutrik 5-Pin DMX Cable | 3 ft

RapcoHorizon Neutrik 5-Pin DMX Cable | 3 ft

SoundPro Item: 20607 | Part Number: NBDMX5-3

$85.52
$85.52 $85.52
Your Price Sold out
MSRP: $85.52 | MAP: $85.52

Usually ships in 5-7 business days

  • Dual-Pair Conductor Configuration Supports Full 5-Pin DMX512 Protocol
  • Metal Neutrik Connectors Provide Secure, Long-Lasting Terminations
  • Aluminum/Polyester Overall Shield Rejects RF And Electromagnetic Interference
  • Flexible Matte PVC Jacket Withstands Repeated Handling And Tight Routing
  • Individual Cable Testing Ensures Performance Before Leaving The Factory
Log in or register for YOUR best price

Lighting technicians, touring production crews, and installed AV integrators who need a reliable DMX link between controllers and fixtures will find this cable purpose-built for the task. The two-pair, 24-gauge conductor configuration meets the electrical demands of 5-pin DMX512 protocol, and the 110-ohm nominal characteristic impedance matches the standard DMX line impedance for clean, interference-free transmission across the full cable run.

An overall aluminum/polyester shield combined with a 24 AWG 7/32 T.C. drain wire provides consistent rejection of RF and electromagnetic interference — critical in environments crowded with wireless systems, LED drivers, and switching power supplies. The matte black PVC jacket remains flexible enough for tight routing in racks or truss runs while holding up to the abrasion and handling stress of repetitive touring use.

Metal Neutrik connectors at both ends deliver the locking retention and cycle-life that plastic-shell alternatives cannot match on a working rig. Every cable is individually tested before leaving the factory, making this a dependable choice when pre-show troubleshooting time is not an option. Available in multiple lengths to suit patch-bay connections, console-to-splitter links, and long fixture runs alike.

View full details

Specifications

Construction
Conductor Gauge
24 AWG
Conductor Configuration
2 pair
Shield
Overall aluminum/polyester with 24 AWG 7/32 T.C. drain wire
Jacket
Matte PVC
Outer Diameter
0.290"
Performance
Characteristic Impedance
110 ohm nominal
Capacitance (Conductor-to-Conductor)
13.5 pF/ft @ 1 kHz
Capacitance (Conductor-to-Shield)
25 pF/ft @ 1 kHz
D.C. Resistance @ 20°C
25.4 ohm/1000'
Identifiers
MPN
NBDMX5-3
Length
3 ft
