Specifications
Cable
Conductor Gauge
24 gauge (2-conductor)
Shield
Bare annealed copper serve
Shield Coverage
95%
Jacket
Matte PVC
Outer Diameter
0.230"
Capacitance
21 pF/ft. @ 1 kHz
Conductor-Shield Capacitance
37 pF/ft. @ 1 kHz
Characteristic Impedance
70Ω nominal
D.C. Resistance @ 20°C
23Ω/1000'
Connectivity
Connector Type

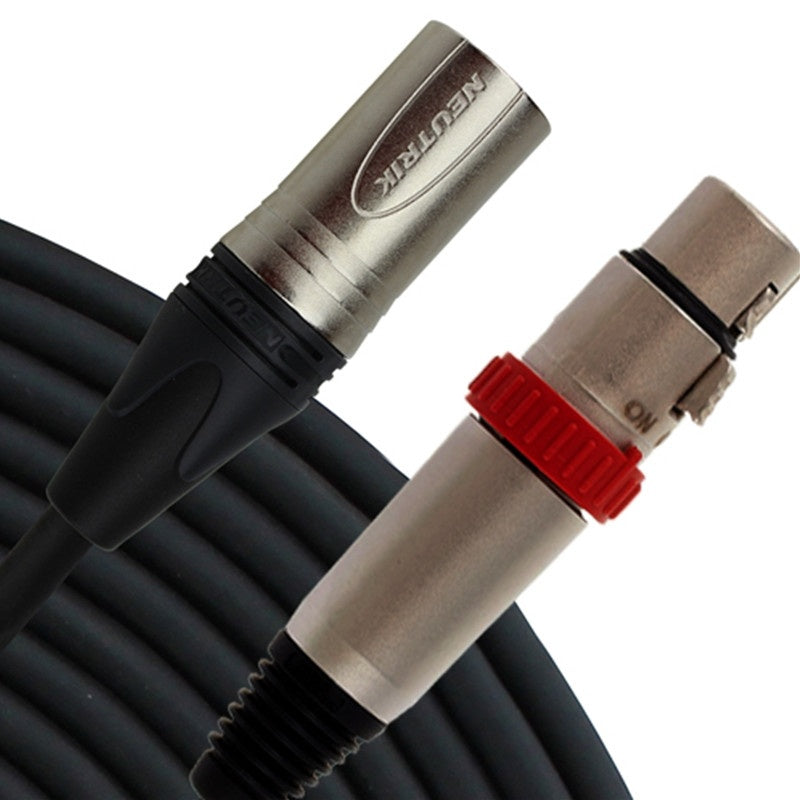

XLR to XLR (balanced)
Switch
Silent on/off rotary switch on XLR female
Identifiers
Length
10 ft
