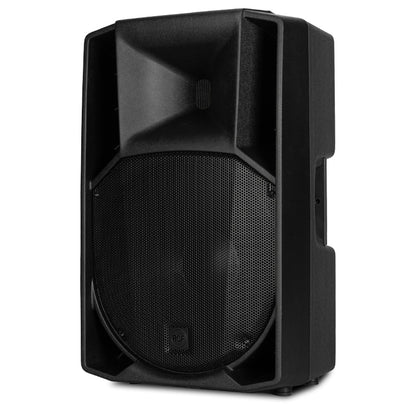

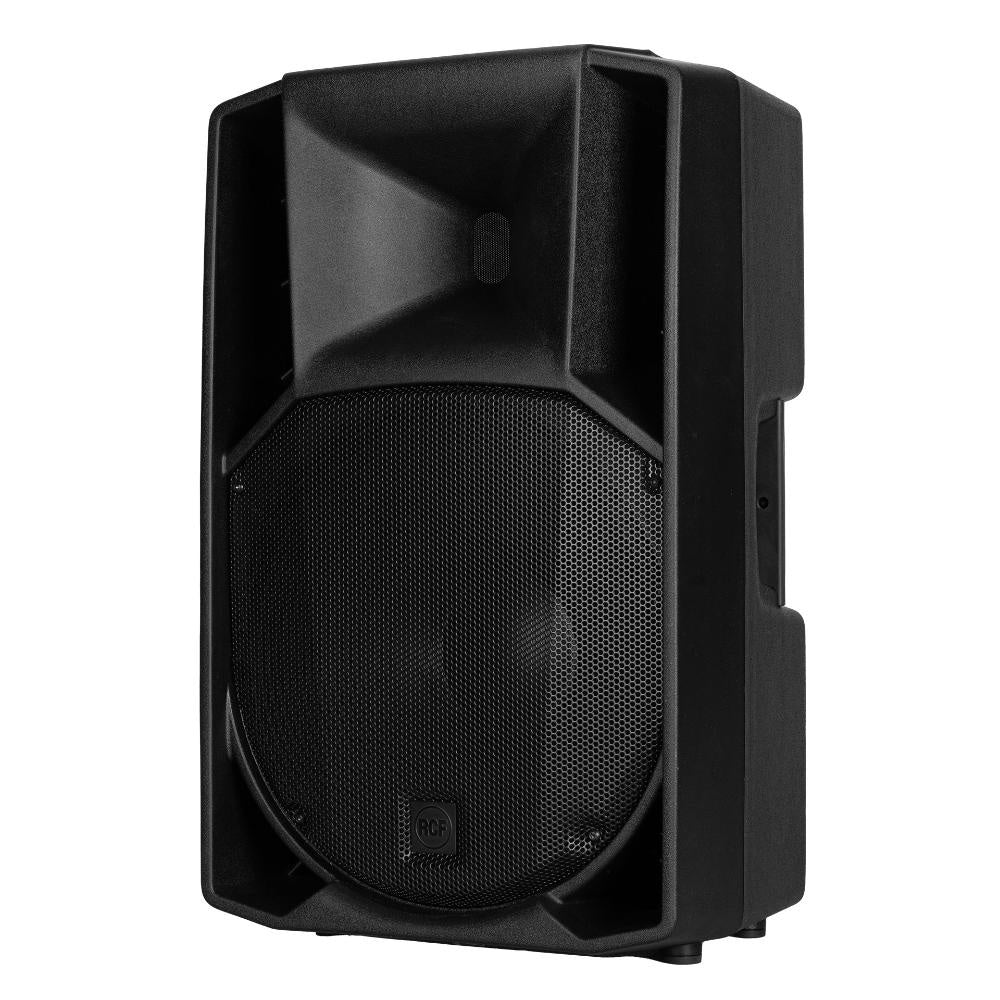

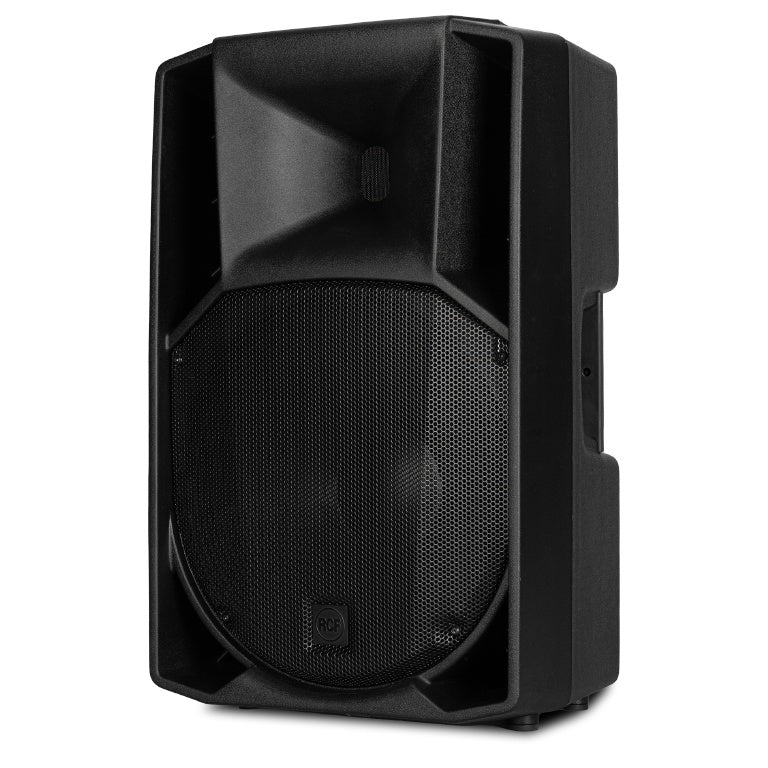

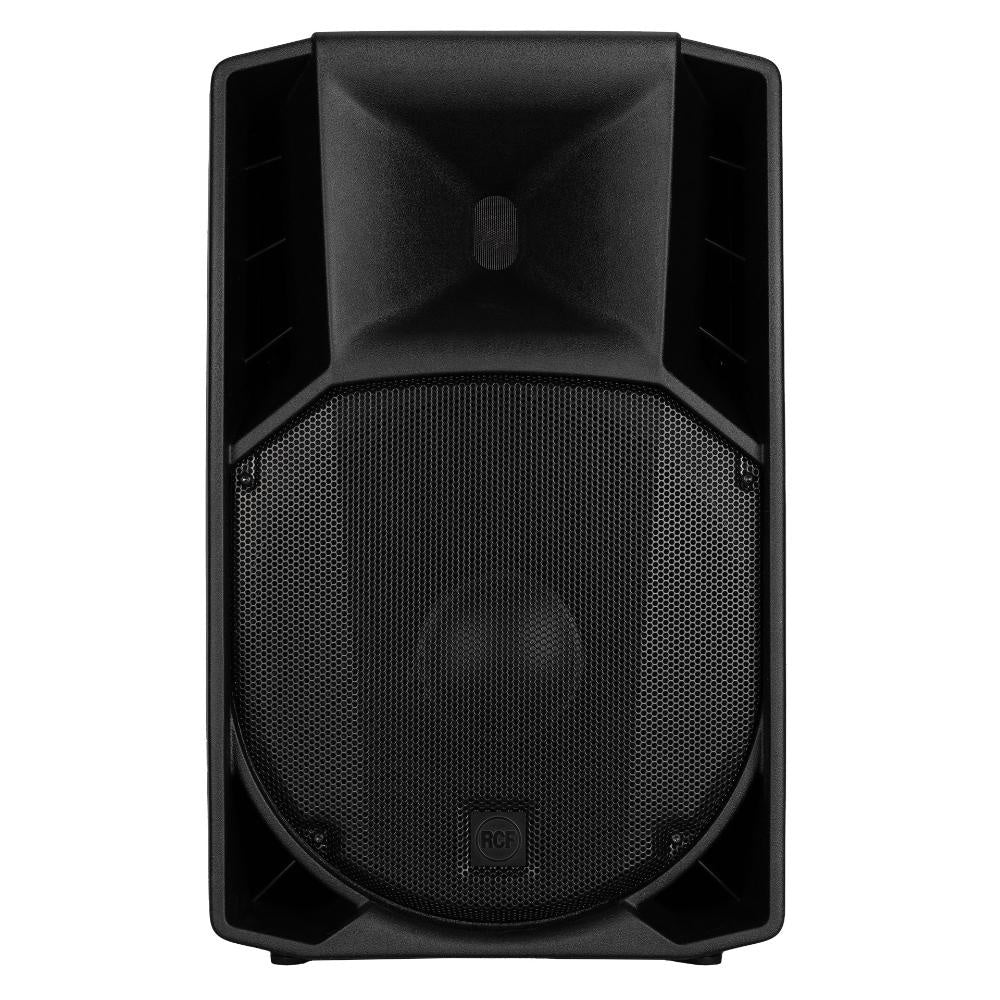

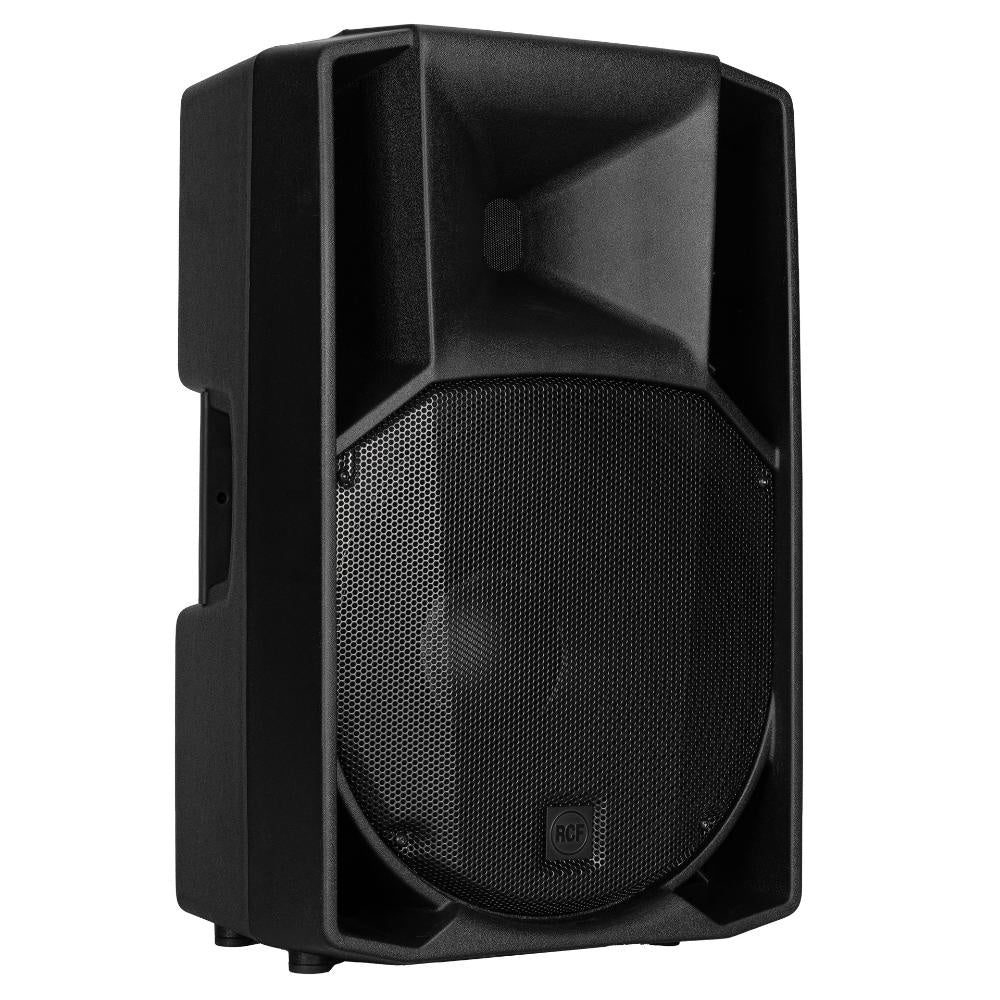

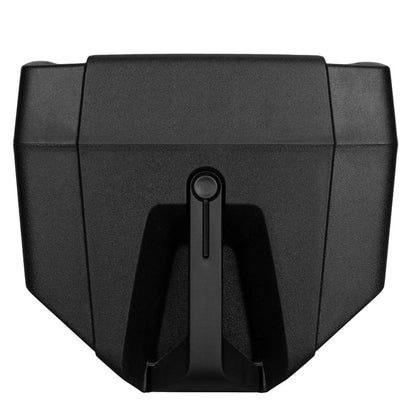

RCF ART 7 MK5 Series Active Two-Way Speaker With DSP | 15" | 3" HF Driver

RCF ART 7 MK5 Series Active Two-Way Speaker With DSP | 15" | 3" HF Driver

SoundPro Item: 143266 | Part Number: ART-735A-MK5

$999.00
$1,379.00 $999.00
Your Price Sold out
MSRP: $1,379.00 | MAP: $999.00

Usually ships in 5-7 business days

  • FiRPHASE DSP Technology Delivers Precise Phase Alignment Across The Crossover Point
  • XBOOST Low-Frequency Enhancer Extends Bass Output Without Overdriving Transducers
  • Constant-Directivity Horn Maintains Consistent Coverage Across The Listening Area
  • 1400W Peak Amplification Provides High-Output Performance From A Self-Contained Cabinet
  • Balanced And Unbalanced Inputs With Mic Sensitivity Support Direct Source Connections
  • PP Composite Enclosure With Steel Grille Handles Portable And Fixed-Install Deployment
  • Soft Limiter And Thermal RMS Protection Safeguard Transducers During Demanding Use
Log in or register for YOUR best price

The RCF ART 7 MK5 Series is built for sound engineers and production teams who demand consistent, accurate output from a portable point-source PA system. Available in 8", 12", and 15" woofer configurations paired with compression drivers ranging from 1.4" to 4" voice coil formats, the lineup scales from compact front-fill and monitor applications up to full-range main PA duty in medium to large venues. Each enclosure houses transducers manufactured with advanced assembly processes to deliver linear low-frequency response and clear, projecting high-frequency reproduction suited to speech intelligibility and musical program material alike.

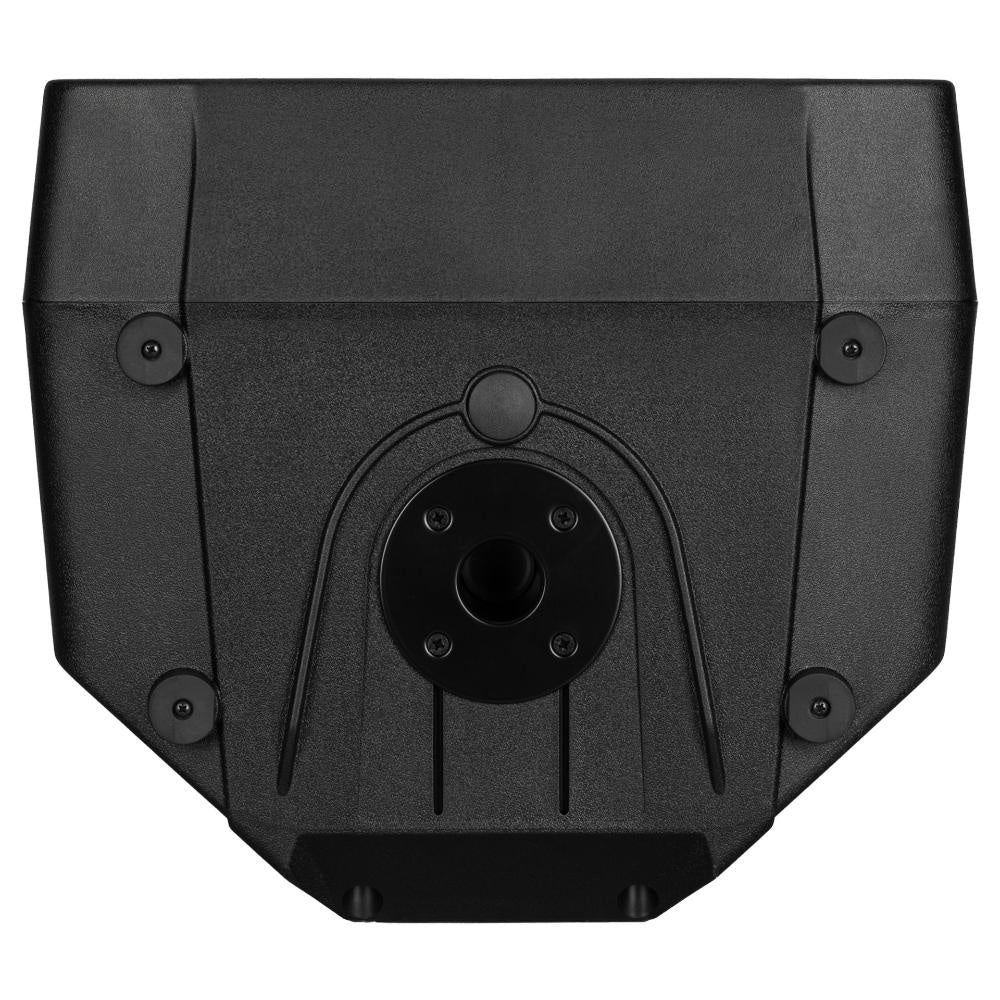

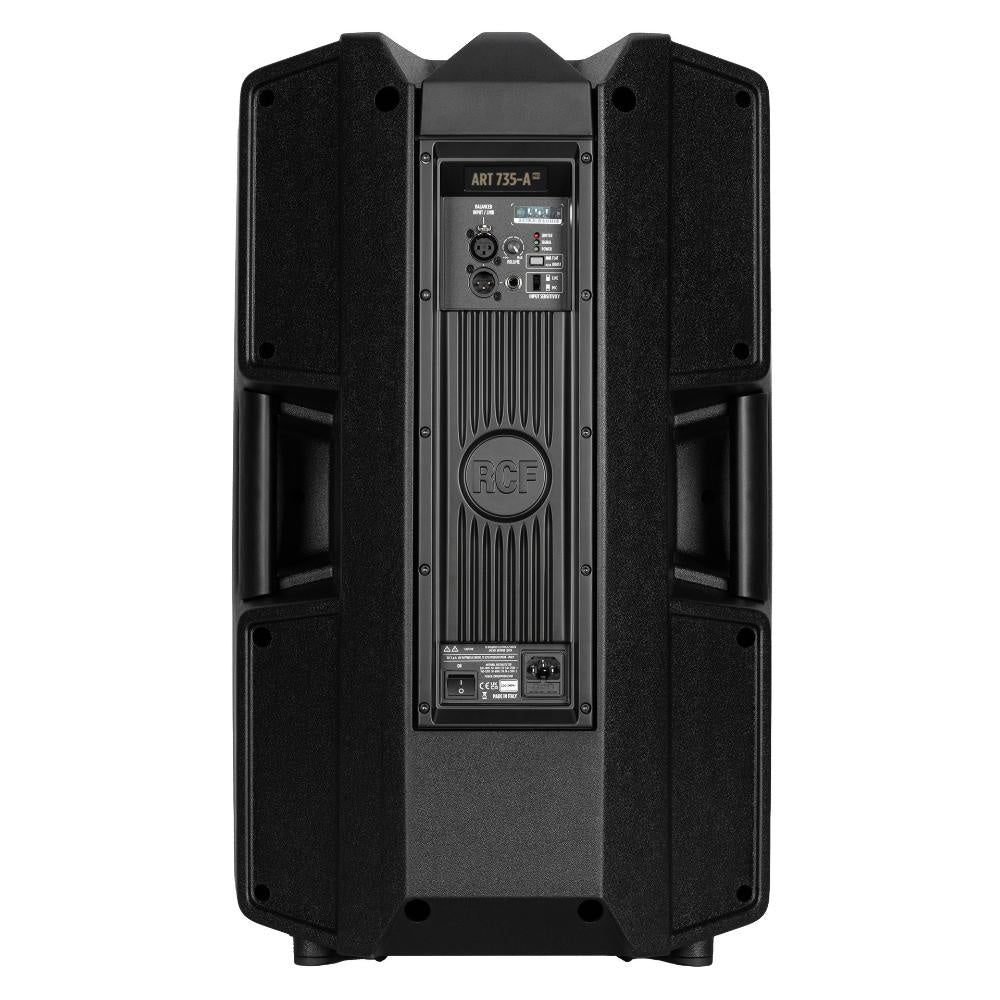

Every model in the series runs 1400 watts of peak power through a DSP that handles crossover alignment, equalization, phase control via FiRPHASE technology, soft limiting, and thermal and RMS speaker protection, removing the need for external processing in most portable PA scenarios. The XBOOST low-frequency enhancer extends perceived bass output without sacrificing transducer reliability. XLR and jack inputs accept balanced and unbalanced line-level signals as well as mic-level sources, and an XLR link output allows daisy-chaining additional cabinets. The PP composite enclosure, steel grille, and 35 mm pole-mount socket make these cabinets equally at home on a stand at a corporate event, flown on an M10 fitting in a fixed install, or stacked at the front of a club stage.

View full details

Specifications

Audio
Frequency Response
45 Hz - 20000 Hz
Max SPL @ 1m
132 dB
Horizontal Coverage Angle
90°
Vertical Coverage Angle
60°
Crossover Frequency
800 Hz
Transducers
Compression Driver
1 x 1.4" neo, 3.0" v.c
Woofer
1 x 15", 3.0" v.c
Electrical
Total Power
1400 W Peak
HF Power
400 W Peak
LF Power
1000 W Peak
Cooling
Convection
Power Connections
VDE
Connectivity
Input Signal
Balanced/Unbalanced
Input Connectors
XLR, Jack
Output Connectors
XLR
Input Sensitivity
-2 dBu/+4 dBu
Mic Input Sensitivity
-32 dBu
Controls
Controls
Volume, Boost, MIC/Line
Limiter
Soft Limiter
Protections
Thermal, RMS
Construction
Cabinet Material
PP Composite
Grille
Steel
Hardware
2 x M10
Handles

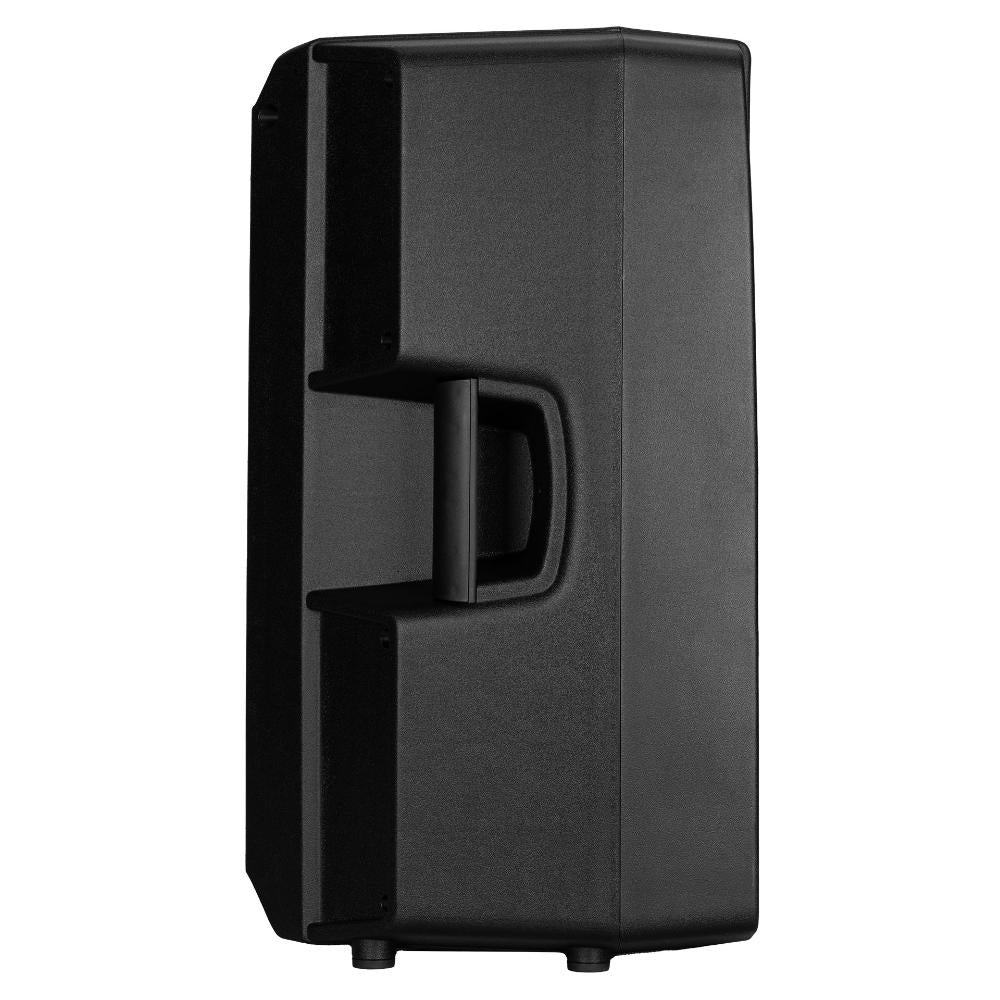

1 on top, 1 each side
Pole Mount
35 mm insert
Color
Black
Certifications
Safety Agency
CE Compliant
Dimensions
Height
27.87"
Width
17.2"
Depth
15.31"
Weight
Product Weight
47.18 lbs
Shipping
Package Height
29.53"
Package Width
19.69"
Package Depth
17.32"
Package Weight
53.79 lbs
