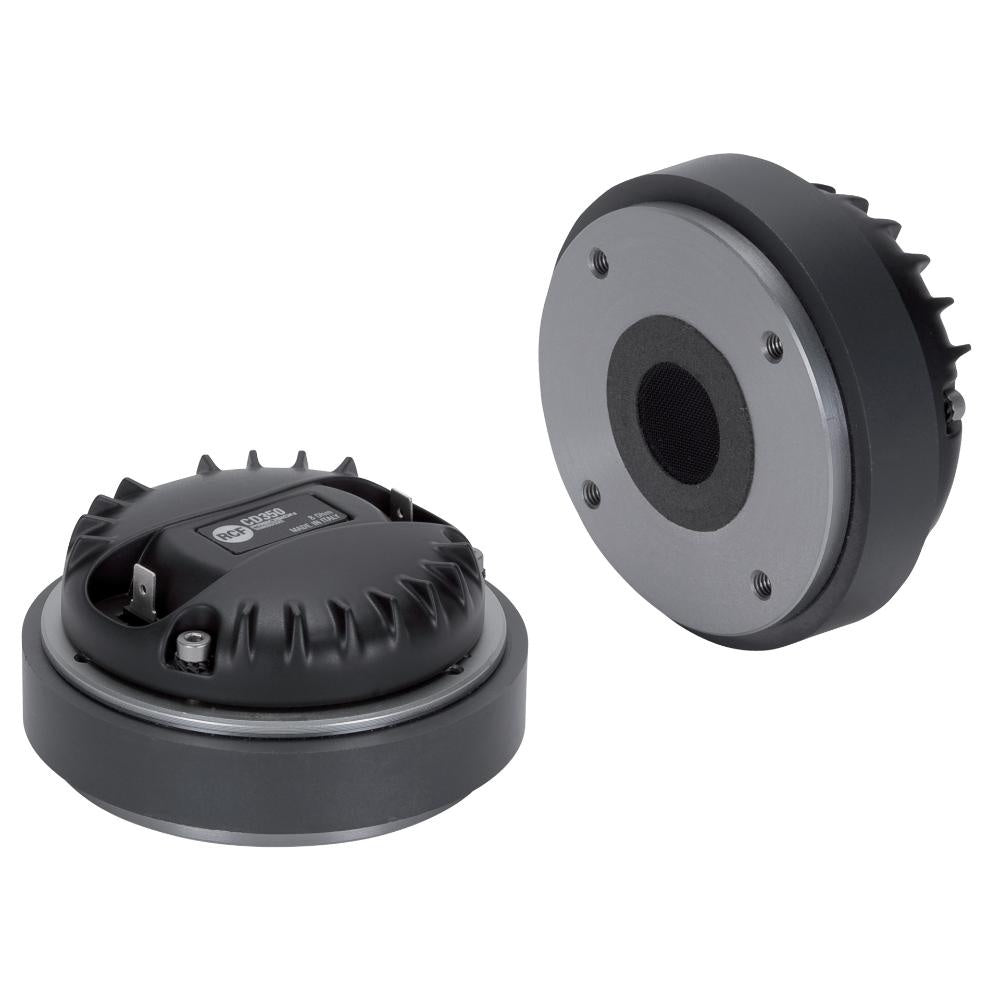

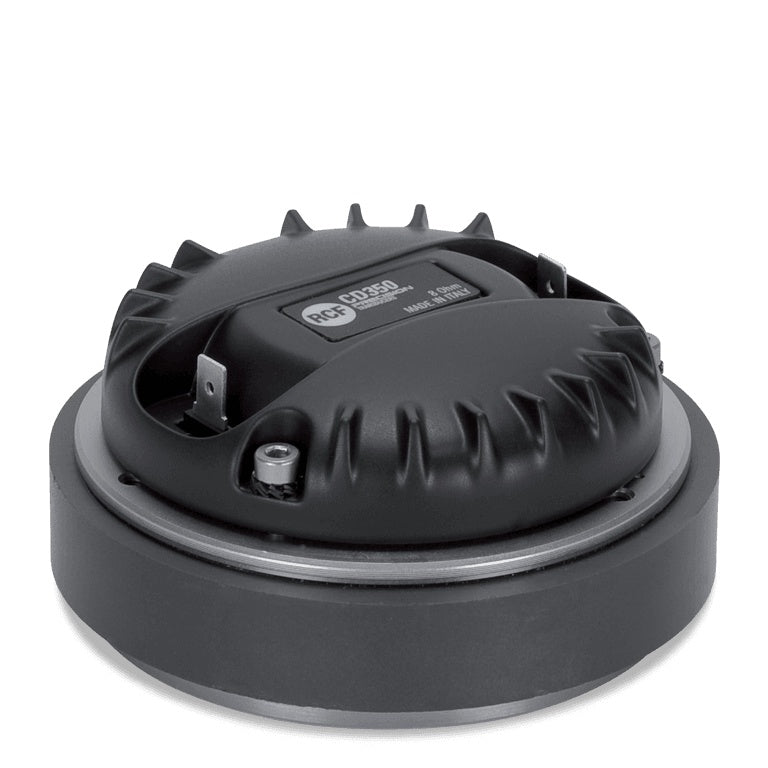

RCF CD350 Compression Driver 1" Exit With Polyester Diaphragm | 8 Ohm

RCF CD350 Compression Driver 1" Exit With Polyester Diaphragm | 8 Ohm

SoundPro Item: 113849 | Part Number: CD350

$169.00
$249.00 $169.00
Your Price Sold out
MSRP: $249.00 | MAP: $169.00

Usually ships in 5-7 business days

  • 2-Slot Optimized Phase Plug Promotes Even Dispersion At Horn Transitions
  • Kapton Voice Coil Former Withstands High-Temperature Operating Conditions
  • Vented Suspension System Reduces Thermal Compression During Extended Use
  • Compact Ceramic Magnet Assembly Suits Tight-Clearance Enclosure Builds
  • Precision-Formed Polyester Diaphragm Delivers Controlled High-Frequency Rolloff
  • CE Compliant Construction Supports International Installed And Touring Deployments
Log in or register for YOUR best price

The RCF CD350 is engineered for system integrators, speaker cabinet builders, and touring engineers who require a reliable, high-sensitivity compression driver for mid-high frequency reproduction. Its 1.75-inch voice coil, Kapton former, and edgewound aluminum winding deliver consistent thermal handling under demanding program levels, making it a practical choice for both installed sound replacements and custom enclosure builds.

The 2-slot optimized geometry phase plug promotes even dispersion across the driver's operating bandwidth, reducing coloration at horn transitions. The compact ceramic magnet assembly and flat polyester suspension keep the package depth minimal, which benefits tight-clearance installations and retrofit applications where dimensional constraints are a factor.

Compared to drivers relying on aluminum or titanium diaphragms, the precision-formed polyester diaphragm offers a balanced combination of controlled breakup characteristics and smooth rolloff at frequency extremes. CE compliance confirms the unit meets European safety standards, supporting international project deployments. This driver pairs with standard 1-inch throat horns common across professional line array, column, and point-source enclosure designs.

View full details

Specifications

Certifications
Safety Agency
CE Compliant
Audio
Sensitivity
108 dB
Frequency Range
1200 - 20000 Hz
Nominal Impedance
8 ohm
Minimum Impedance
6.50 ohm
Program Power
100 W
Power Handling (RMS)
50 W
Construction
Diaphragm Material
Polyester
Suspension Material
Polyester
Suspension Design
Flat
Magnetics
Ceramic
Phase Plug Design
2 Slot
Phase Plug Material
PP Composite
Voice Coil Diameter
1.75" / 44 mm
Voice Coil Winding Material
Edgewound Aluminum
Voice Coil Former Design
Straight - Kapton
Voice Coil Layers
1
Layer Position
Outside
Flux Density
1.6 T
Bl Factor
6.70 T x m
Dimensions
Exit Throat Diameter
1.0" / 25 mm
Overall Diameter
4.02" / 102 mm
Overall Height
1.97" / 50 mm
Mounting
4 x 6 mm threaded holes at 90 degrees
Weight
Product Weight
2.71 lbs / 1.23 kg
Shipping
Package Height
2.91" / 74 mm
Package Width
4.8" / 122 mm
Package Depth
4.84" / 123 mm
Package Weight
2.98 lbs / 1.35 kg
