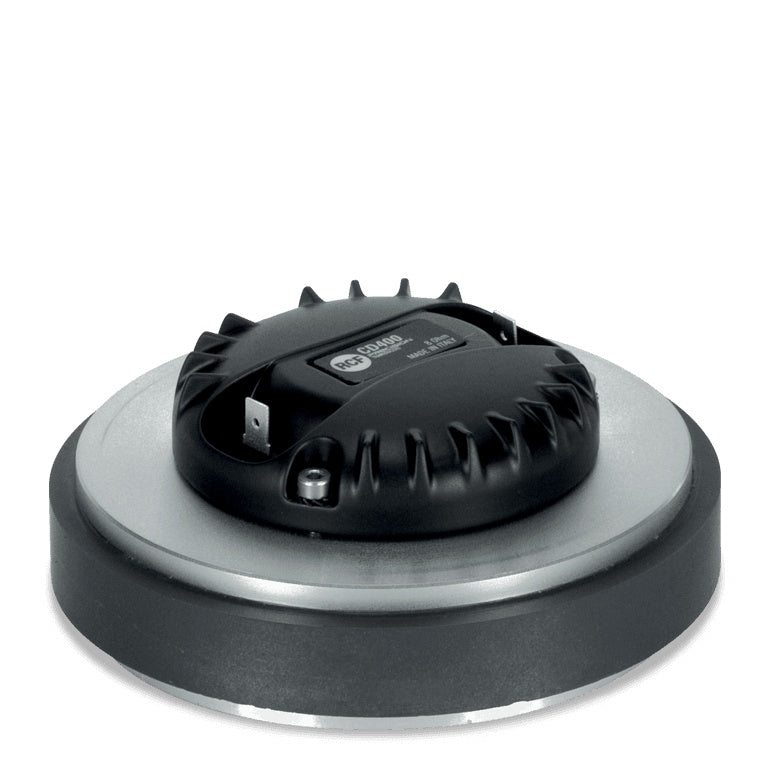

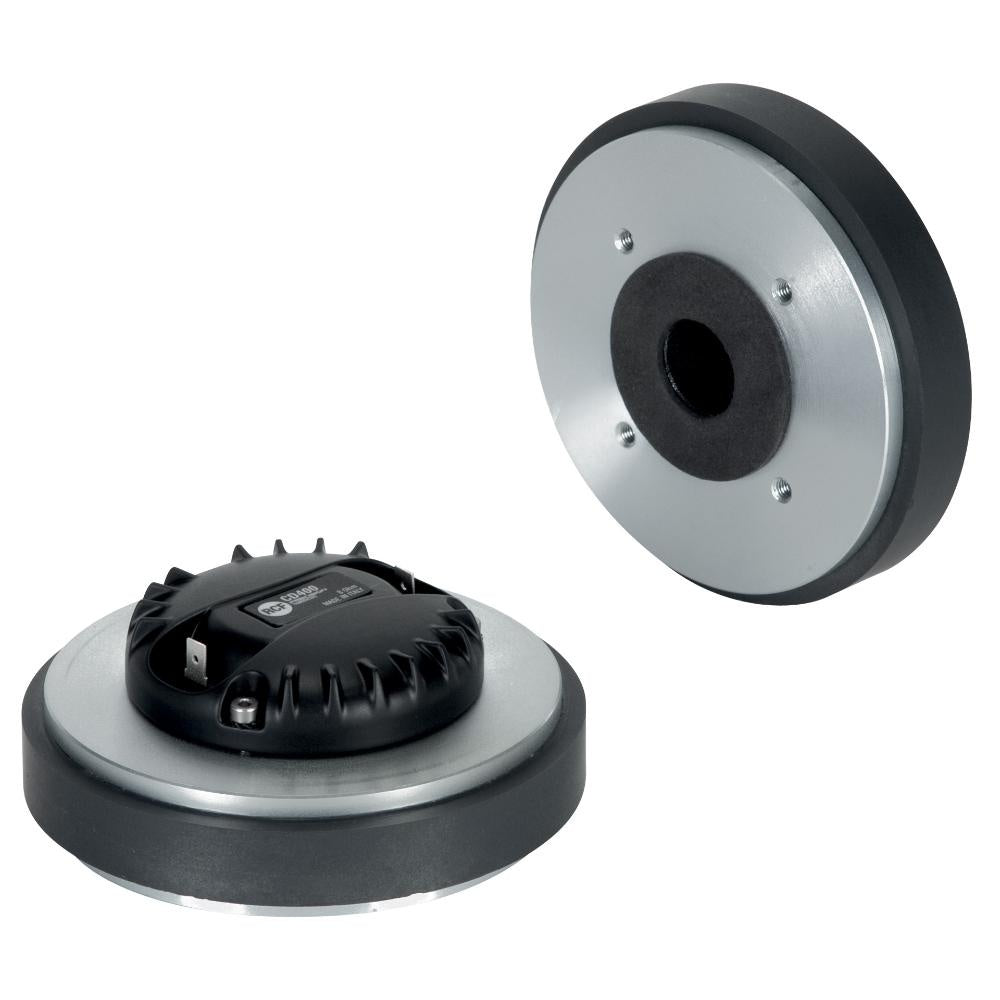

RCF CD400 Compression Driver 1.75" Diaphragm Polyester | 8 Ohm

RCF CD400 Compression Driver 1.75" Diaphragm Polyester | 8 Ohm

SoundPro Item: 113848 | Part Number: CD400

$169.00
$249.00 $169.00
Your Price Sold out
MSRP: $249.00 | MAP: $169.00

Usually ships in 5-7 business days

  • Ceramic Magnet Assembly Delivers Stable Magnetic Field For Consistent HF Output
  • 2-Slot Optimized Phase Plug Geometry Smooths High-Frequency Dispersion
  • Kapton Voice Coil Former Withstands Elevated Operating Temperatures
  • Vented Suspension System Reduces Compression During High-SPL Operation
  • Polyester Diaphragm Precision Formed For Accurate Transient Response
  • CE Compliant Construction Meets Professional Installation Standards
Log in or register for YOUR best price

The RCF CD400 is a professional-grade compression driver built for system integrators, OEM speaker builders, and live sound technicians sourcing reliable HF transducers for horn-loaded enclosures. The 1.75-inch polyester diaphragm paired with a 1.0-inch exit throat makes it a direct fit for a wide range of industry-standard horn flares used in installed audio, touring line arrays, and point-source cabinets. The 2-slot optimized phase plug geometry and vented suspension system work together to maintain smooth response at the top of the frequency band, where lesser drivers compress or break up under sustained program levels.

At 50W RMS continuous and 100W program power handling, the CD400 holds up in demanding live applications without thermal compression becoming a liability. The Kapton voice coil former and edgewound aluminum winding are designed to shed heat efficiently, keeping performance stable during extended high-SPL sets. For integrators building or refurbishing speaker systems, this driver offers a technically complete solution: ceramic magnet structure, PP composite phase plug, and CE compliance confirm it meets the build standards expected in professional installations and touring rigs alike.

View full details

Specifications

Certifications
Safety Agency
CE Compliant
Performance
Sensitivity
109 dB
Frequency Range
1200 - 20000 Hz
Program Power
100 W
Continuous Power (RMS)
50 W
Flux Density
1.8 T
Bl Factor
7.50 T x m
Audio
Nominal Impedance
8 ohm
Minimum Impedance
6.50 ohm
Construction
Diaphragm Material
Polyester
Suspension Material
Polyester
Suspension Design
Flat
Magnetics
Ceramic
Phase Plug Design
2 Slot
Phase Plug Material
PP Composite
Voice Coil Diameter
1.75" / 44 mm
Voice Coil Winding Material
Edgewound Aluminum
Voice Coil Former Design
Straight - Kapton
Voice Coil Layers
1
Layer Position
Outside
Exit Throat Diameter
1.0" / 25 mm
Dimensions
Overall Diameter
5.28" / 134 mm
Overall Height
2.05" / 52 mm
Mounting
4 x 6 mm threaded holes at 90 degrees
Weight
Product Weight
5.42 lbs / 2.46 kg
Shipping
Package Height
2.68" / 68 mm
Package Width
6.02" / 153 mm
Package Depth
6.1" / 155 mm
Package Weight
5.8 lbs / 2.63 kg
