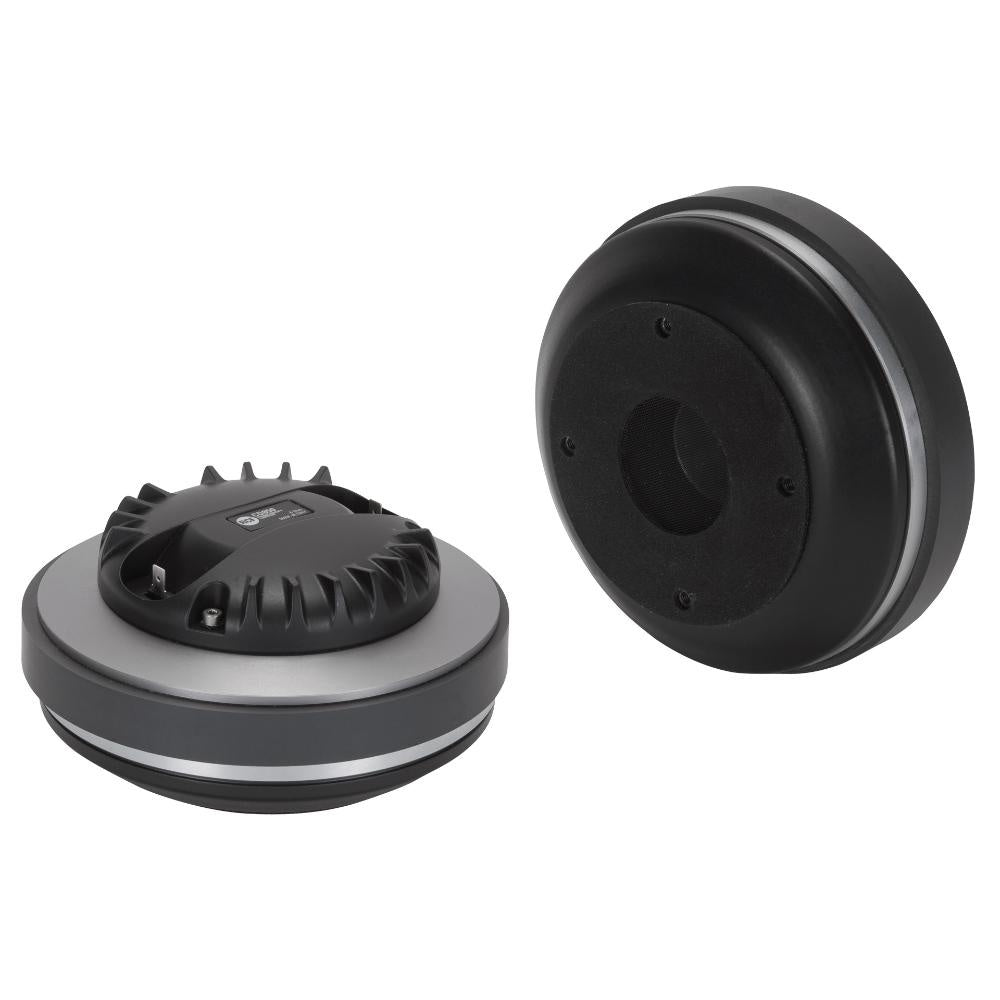

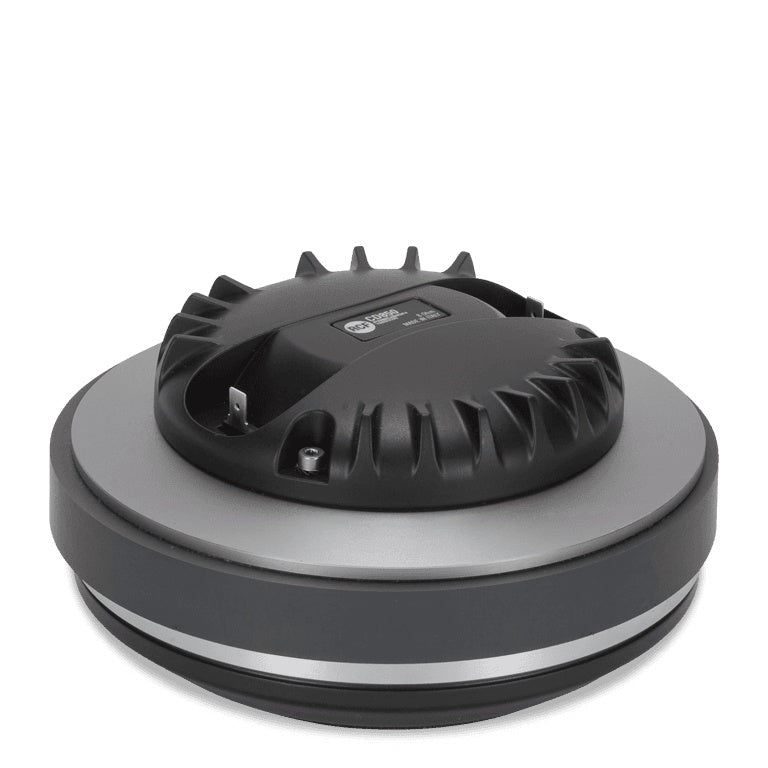

RCF CD950 Compression Driver Titanium Diaphragm 3" Voice Coil | 8 Ohm
RCF CD950 Compression Driver Titanium Diaphragm 3" Voice Coil | 8 Ohm
SoundPro Item: 113837 | Part Number: CD850 2
Usually ships in 5-7 business days
- Pure Titanium Diaphragm Delivers Extended High-Frequency Clarity Under Load
- High-Temperature Kapton Former Sustains Performance During Extended Program Use
- 3-Slot Optimized Phase Plug Reduces Throat Distortion For Cleaner Dispersion
- Copper Demodulation Ring Extends Upper Frequency Response
- Vented And Damped Suspension Minimizes Resonance Artifacts
- Ceramic Magnet Assembly Supports High Sensitivity For Efficient System Design
- CE Compliant Construction For Professional Installed And Touring Applications
The RCF CD950 compression driver series is designed for professional system integrators, touring engineers, and OEM speaker builders who require a high-performance transducer capable of handling sustained program levels without thermal or mechanical compromise. The 3-inch voice coil, wound with edgewound aluminum on a high-temperature Kapton former, provides the thermal headroom needed for long set times and continuous touring duty, while the precision-formed pure titanium diaphragm delivers the stiffness-to-mass ratio that keeps response clean well into the upper frequency range.
In horn-loaded line arrays, installed theater systems, and outdoor PA enclosures, these drivers pair with a wide range of horn geometries through a 2-inch exit throat. The 3-slot optimized geometry phase plug reduces intermodulation at the throat, and the copper demodulation ring extends the upper frequency response by managing voice coil inductance. These are design details that separate professional transducers from cost-reduced alternatives and show up as audible clarity at throw distances where lesser drivers begin to smear.
A vented and damped polyester suspension minimizes resonance artifacts, and the ceramic magnet assembly delivers a flux density that supports high sensitivity output. For integrators building systems to a defined coverage and SPL budget, that sensitivity number directly reduces the amplifier power required to hit target levels, a meaningful factor in both system cost and rack space. CE compliance supports deployment in European installed and touring contexts.
Specifications
