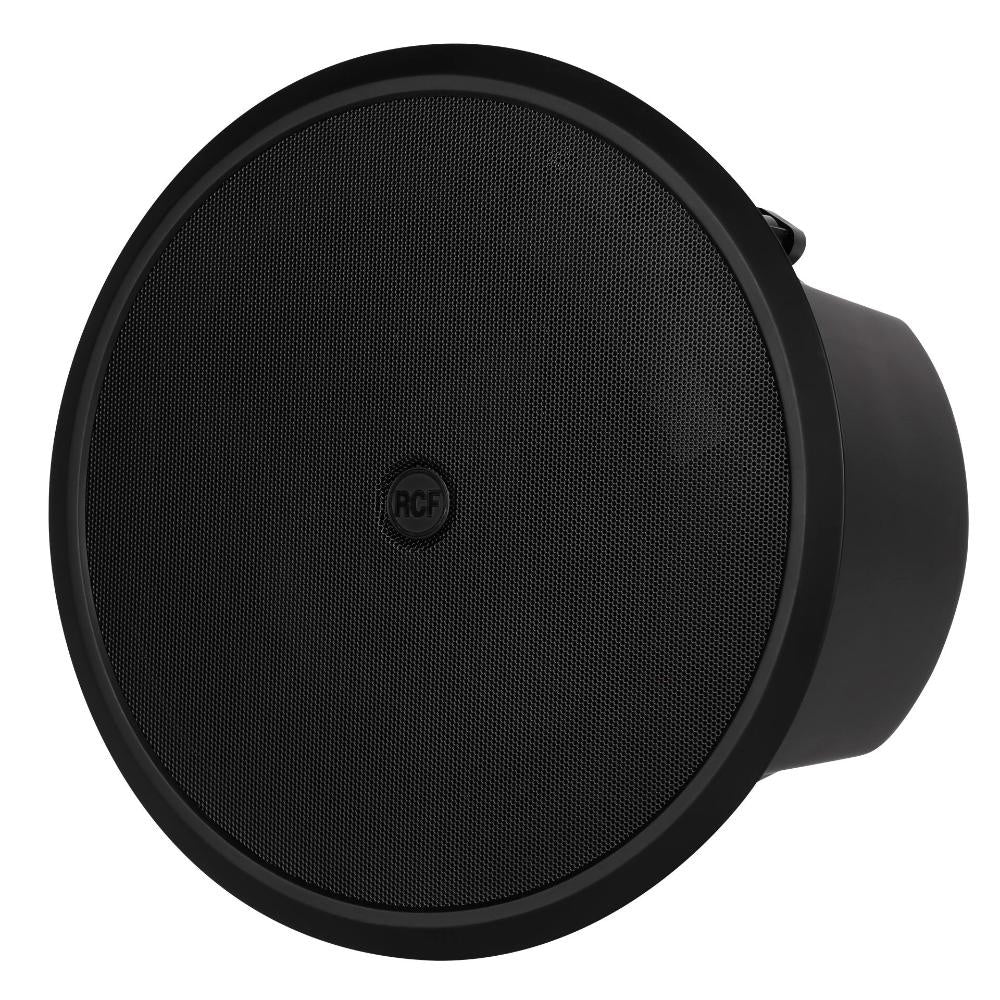

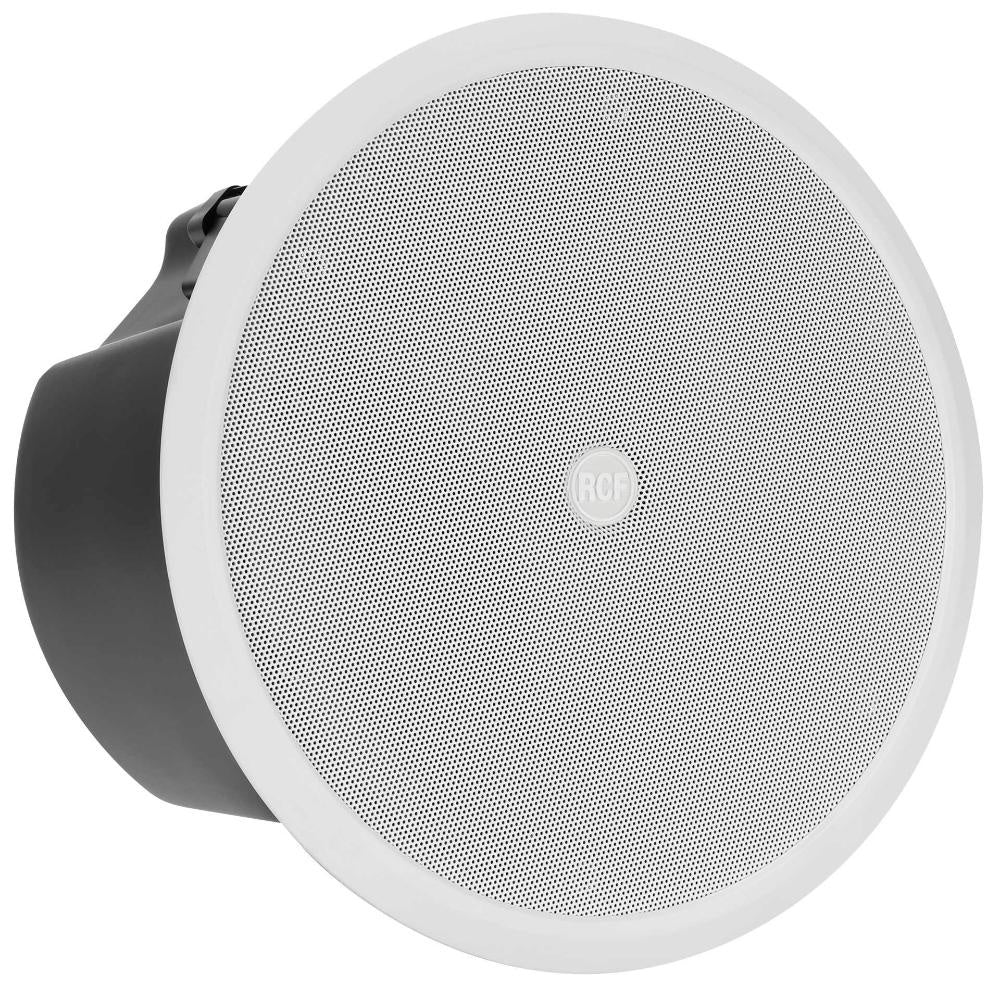

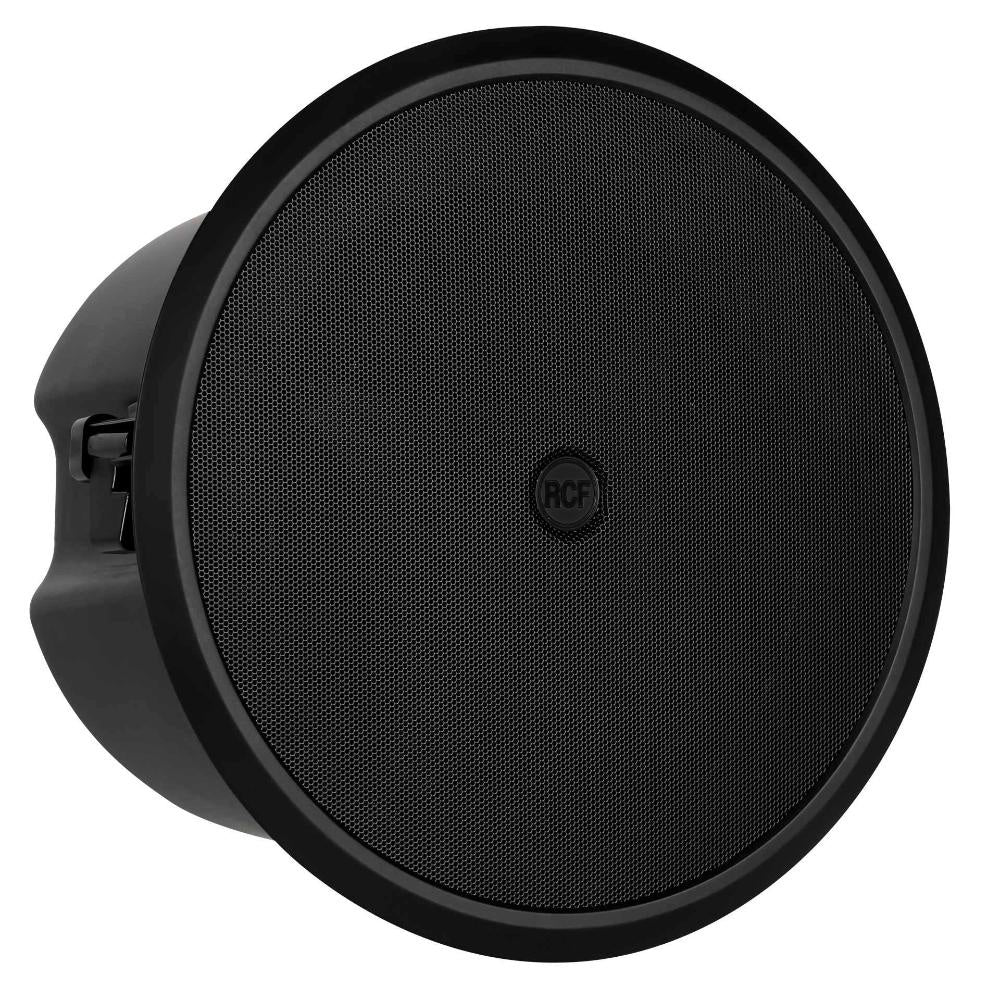

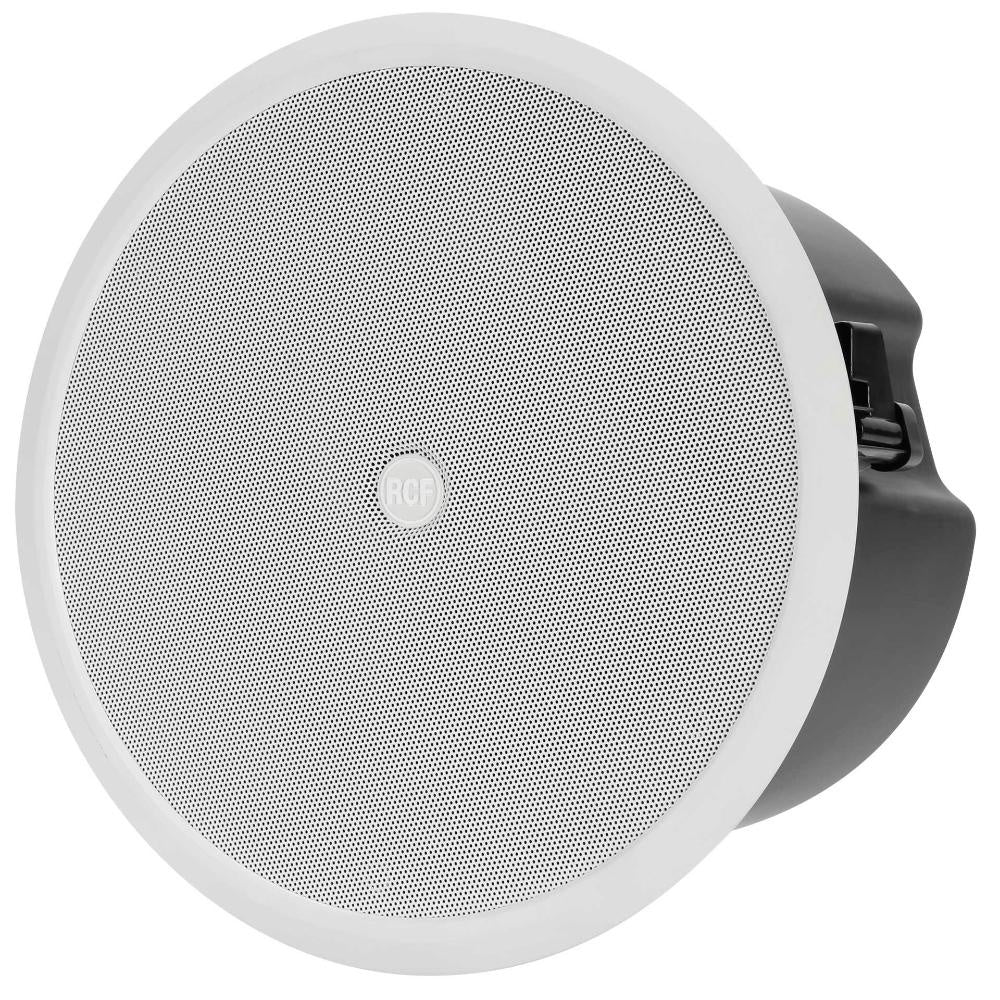

RCF CMR-S-60T-W Passive Ceiling Subwoofer With Transformer
RCF CMR-S-60T-W Passive Ceiling Subwoofer With Transformer
SoundPro Item: 205388 | Part Number: CMR-S-60T-W
Usually ships in 5-7 business days
- 70/100V Onboard Transformer Enables Direct Constant-Voltage Distribution Without External Attenuators

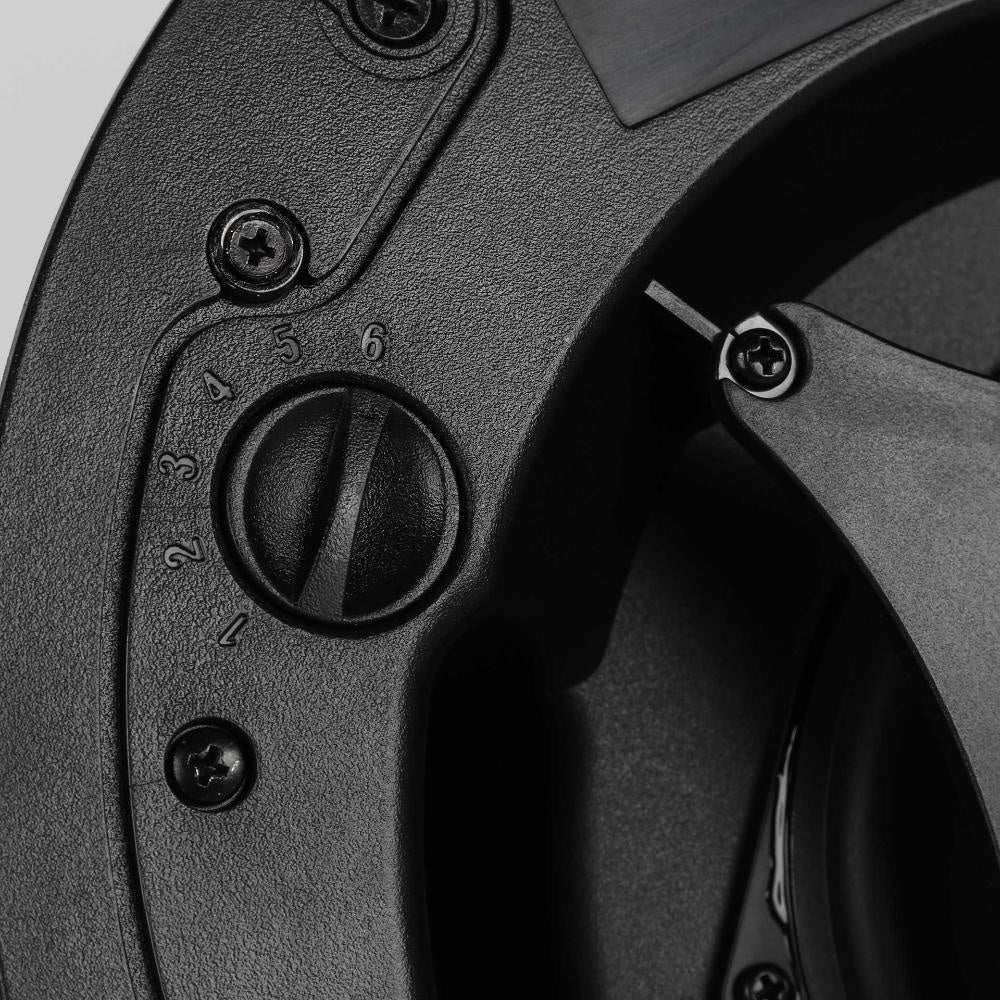

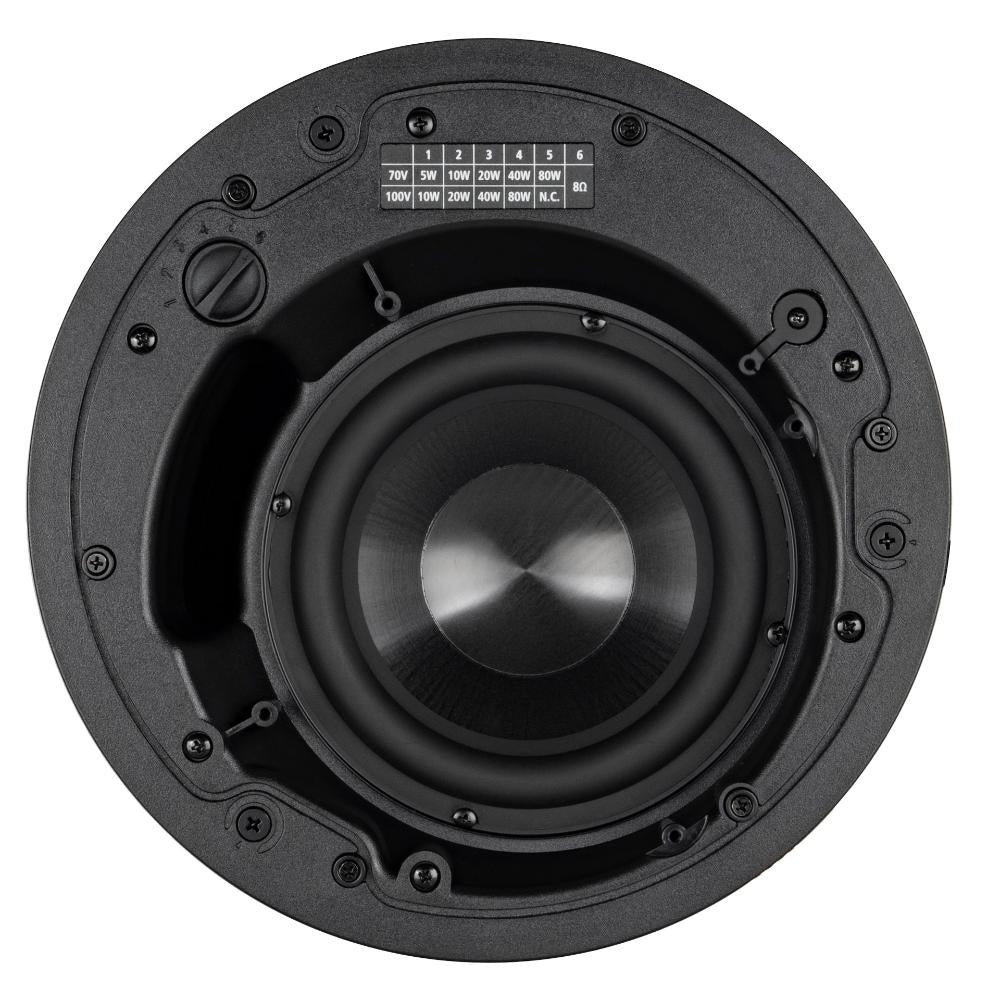

- Five Selectable Power Taps Allow Per-Speaker Level Matching Across Multi-Zone Installed Systems
- Magnetically Attached Steel Grille Provides Tool-Free Access To Power Rotary Switch

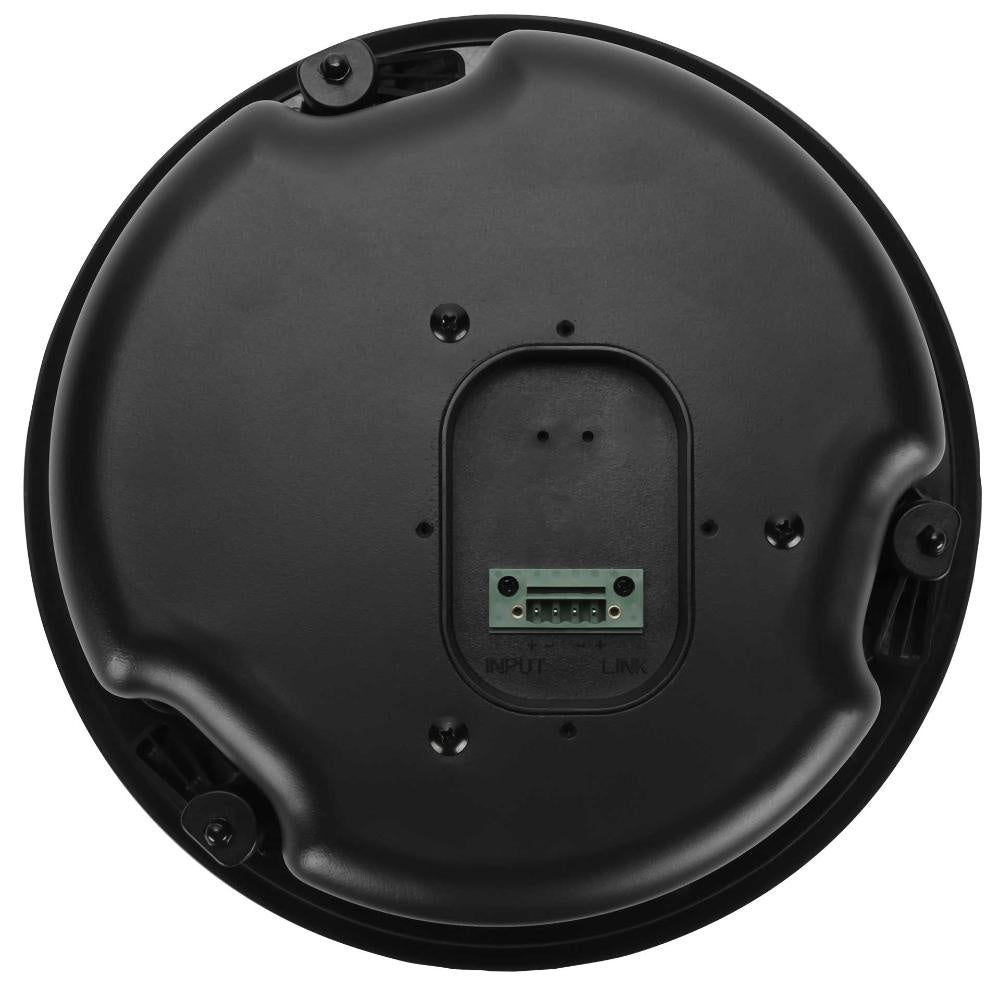

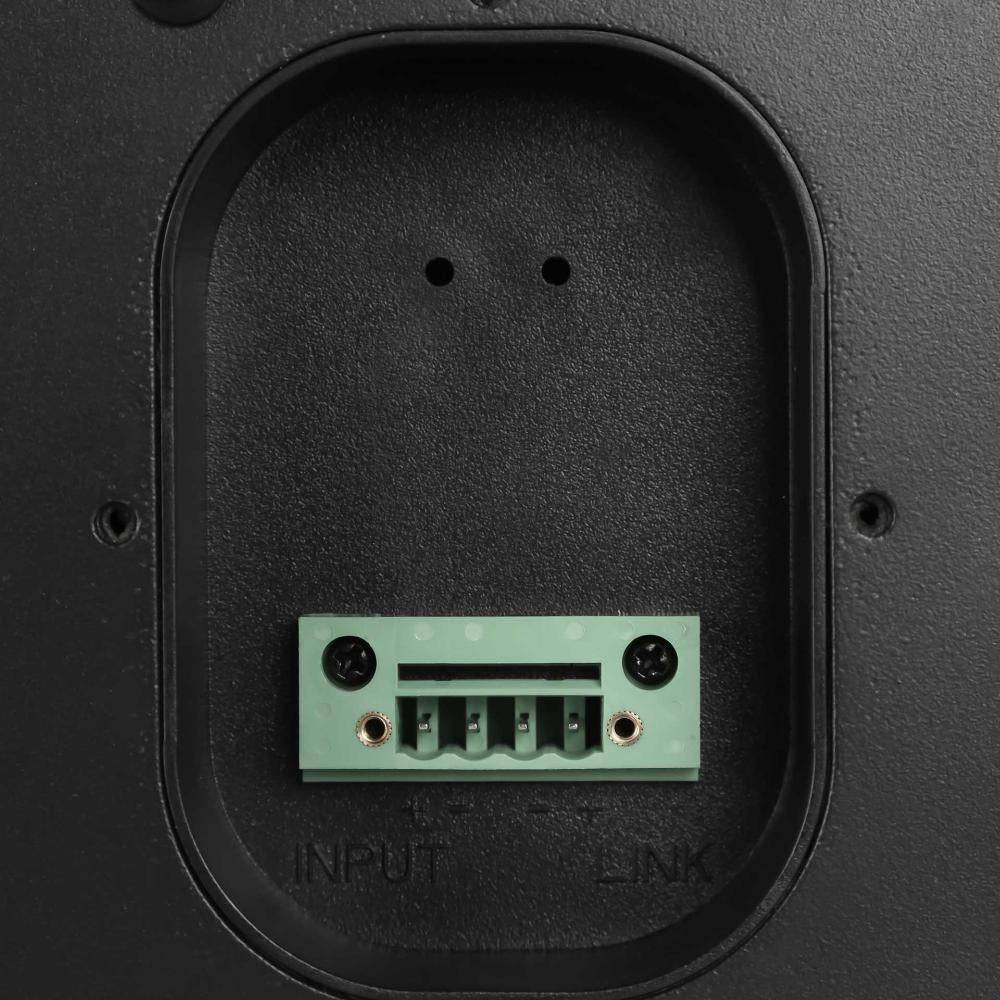

- Removable Euroblock Connectors On Input And Parallel Link Output Simplify Wiring And Serviceability
- Self-Extinguishing ABS Body With Steel Backcan Meets Commercial Installation Safety Requirements
- Omnidirectional Coverage Pattern Supports Even Bass Distribution In Open Ceiling Environments
- Bulb Lamp Protection Safeguards The Transducer During Overload Conditions
The RCF CMR-S-60T-W is a passive ceiling subwoofer built for installed audio applications where low-frequency extension and architectural discretion are both required. AV integrators specifying distributed audio systems in hospitality venues, retail spaces, corporate environments, houses of worship, and educational facilities will find this unit well-suited to constant-voltage infrastructure. Its onboard 70/100V transformer with five selectable power taps allows precise level matching across multi-zone installations without external attenuators, simplifying both initial commissioning and long-term zone management.
The 6.5" high-power woofer with a 1.5" voice coil delivers a frequency response reaching down to 45 Hz, filling in the low-end content that standard ceiling satellites cannot reproduce. At 109 dB max SPL for a compact ceiling-mount form factor, it punches well above its physical footprint. The 180-degree omnidirectional coverage pattern makes it effective in open-ceiling environments where even bass distribution is a priority. Removable Euroblock connectors on both input and parallel link output keep the wiring process clean and serviceable post-installation.

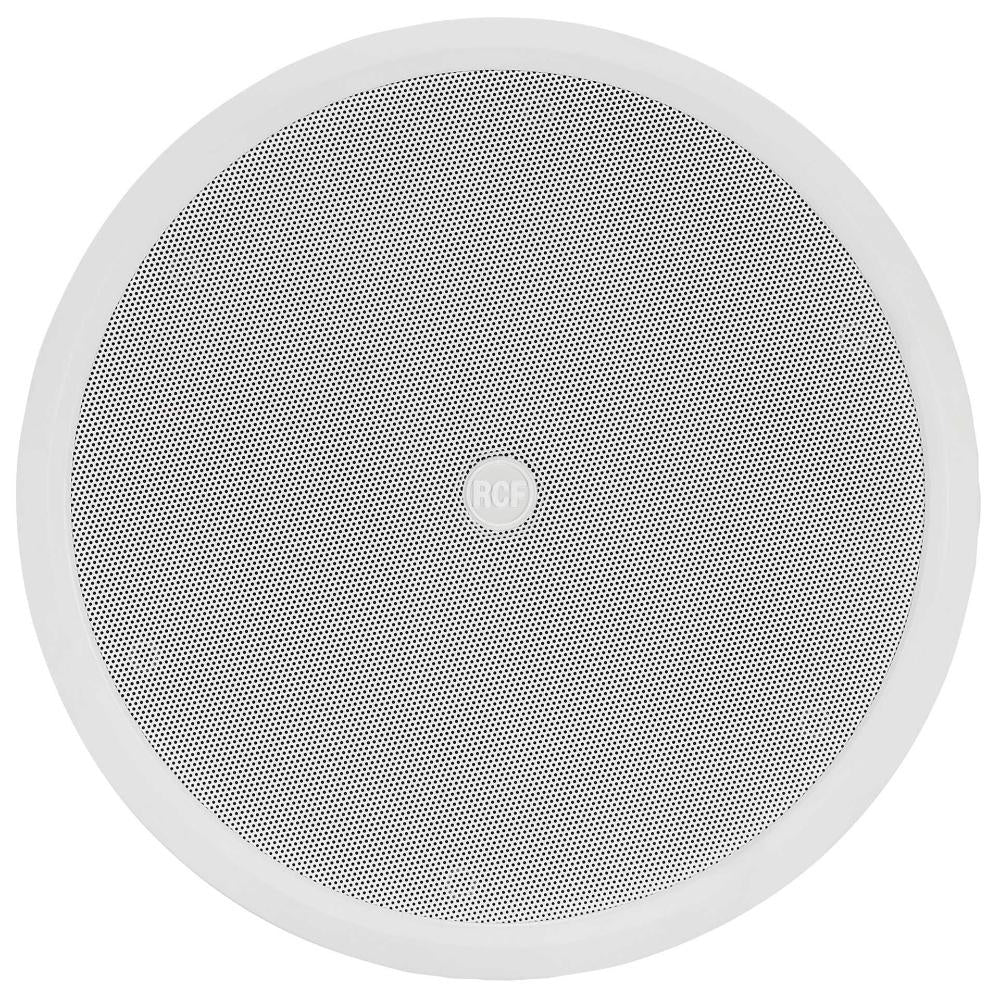

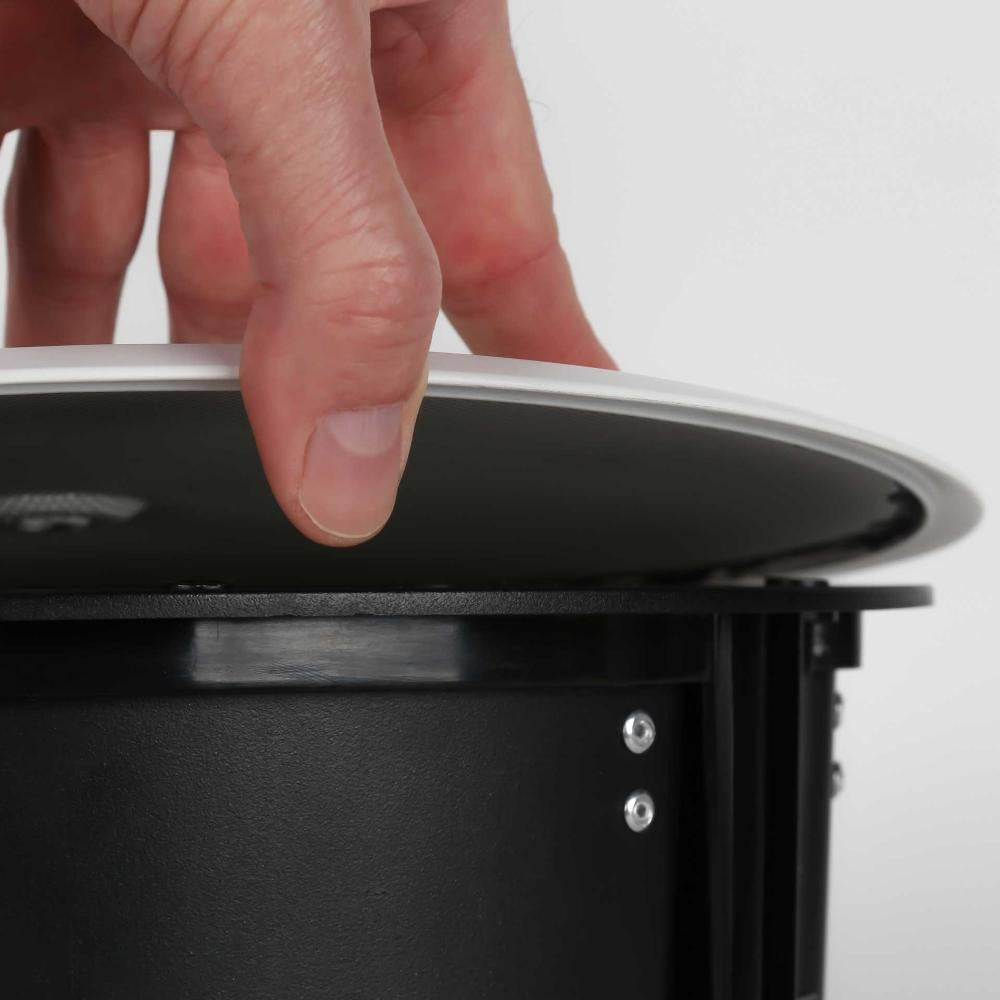

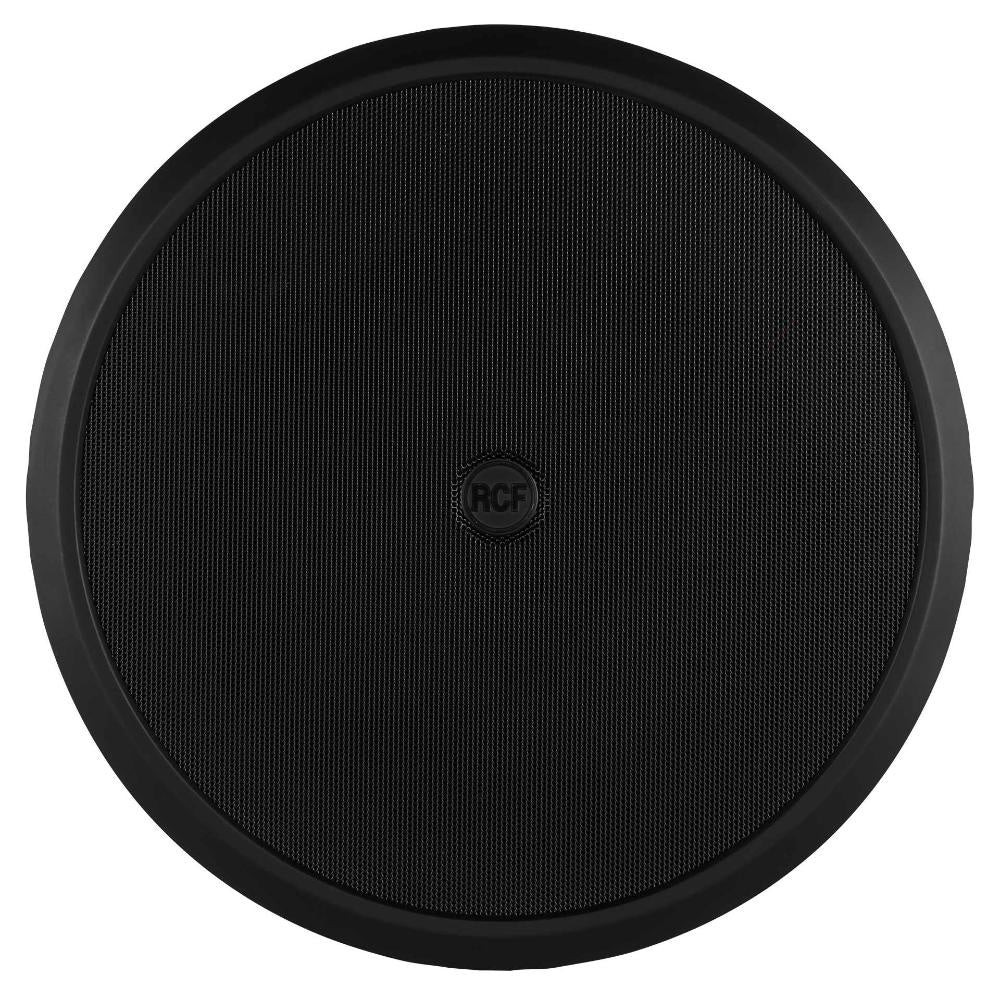

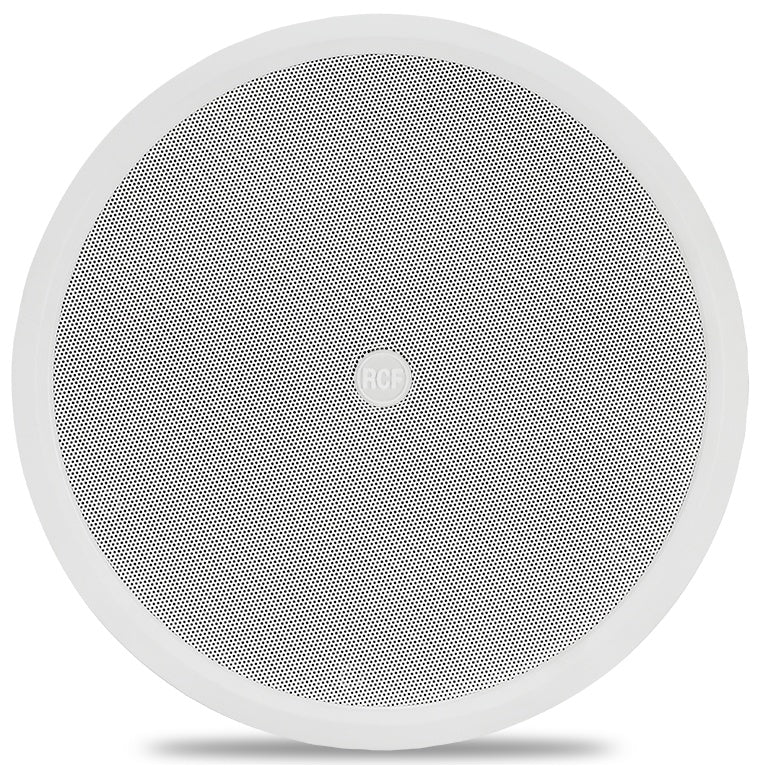

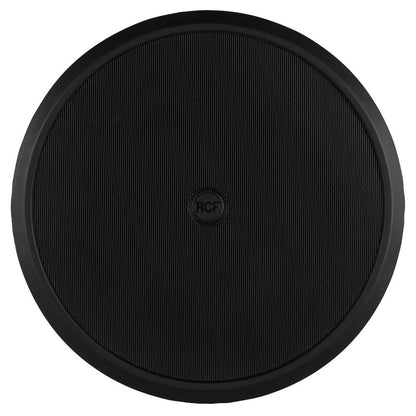

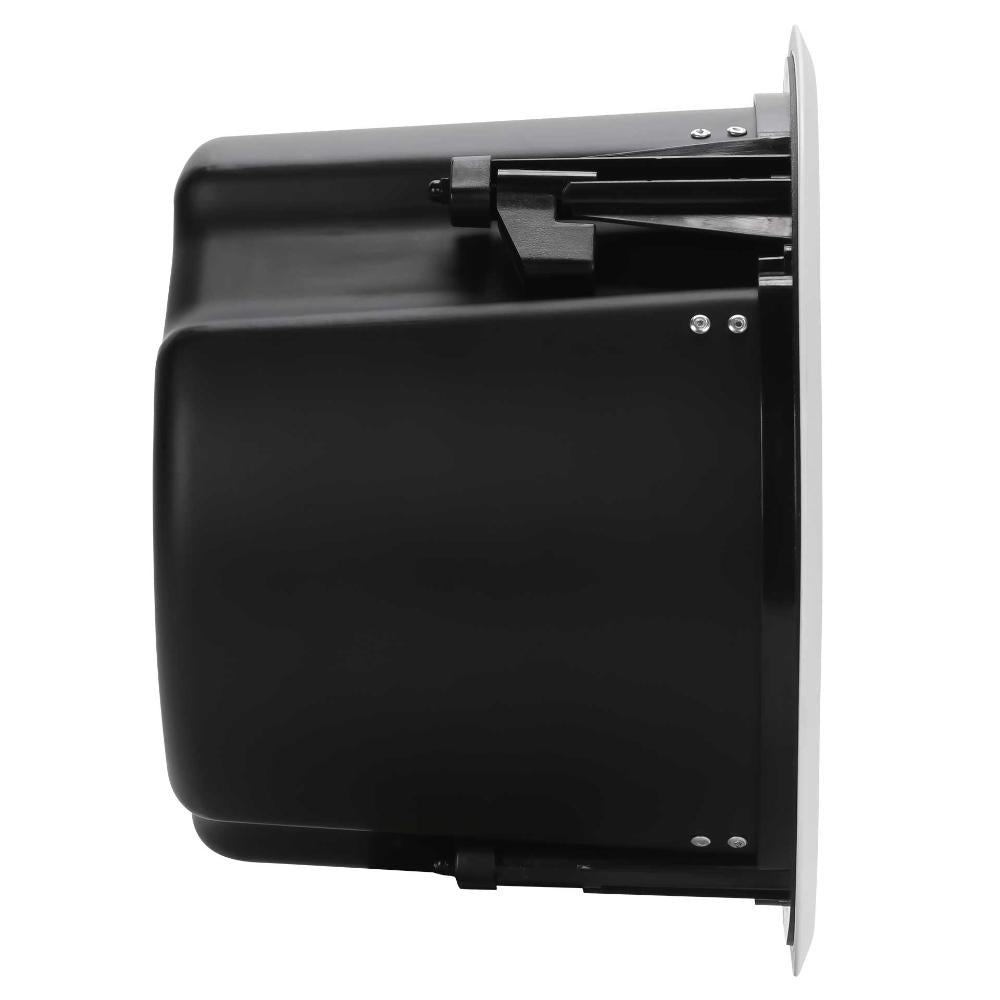

Construction uses a self-extinguishing ABS body paired with a steel backcan and a magnetically attached steel front grille. The magnetic grille attachment allows quick access to the power rotary switch without tools, which is a practical advantage during commissioning or post-install adjustments. CE compliance and RCF's recommended amplifier pairings from the XPS, KPS, and DMA series give integrators a clear, supported signal chain from source to ceiling.
Specifications
