RCF COMPACT M 04 4-Inch Compact Surface Mount Speaker | Color: White
RCF COMPACT M 04 4-Inch Compact Surface Mount Speaker | Color: White
SoundPro Item: 121820 | Part Number: COMPACT M 04-W
Usually ships in 5-7 business days
- 60W RMS power handling
- 113dB max. SPL
- 90 ÷ 20000 Hz frequency range
- 120° x 120° constant directivity coverage angle
- 1x4" coax woofer
- 1x1" voice coil neodymium dome tweeter
- High quality plywood cabinet

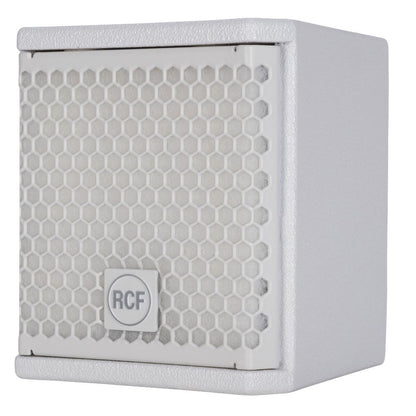

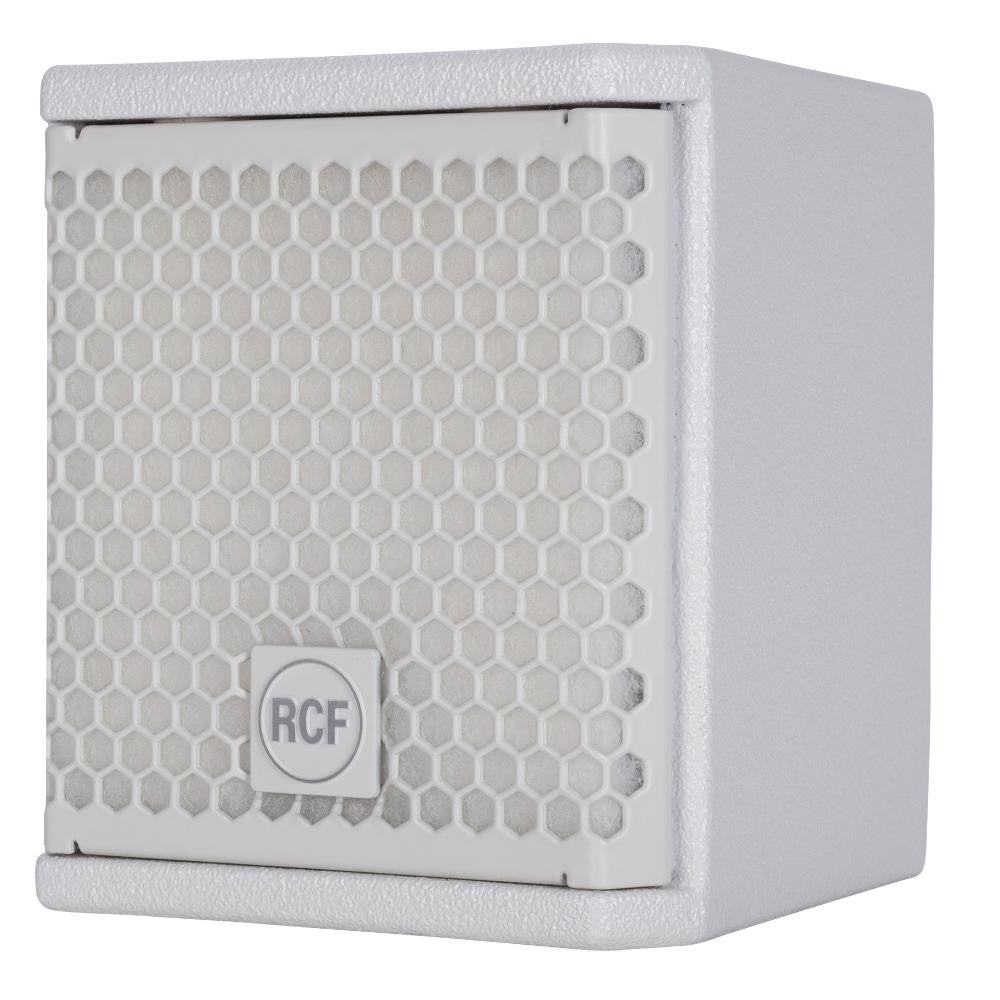

COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response. The SPL level of low-distortion audio the M 04 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints. Included wall mount bracket allow the use of the M 04 on wall or ceiling installations.
- Acoustical Specifications
- Frequency Response (-10dB): 90 Hz ÷ 20000 Hz
- Max. SPL (@ 1m): 113 dB
- Coverage (HxV): 120° x 120°
- Directivity Index Q: 6
- System Sensitivity: 89 dB
- Power Section
- Nominal Impedance: 16Ω
- Power Handling: 60W
- Peak Power Handling: 240W peak
- Recommended Amplifier: 120W
- Crossover Frequencies: 1800 Hz
- Transducers
- Dome Tweeter: 1.0'' neo, 1.0'' v.c
- Woofer: 4.0'', 1.0'' v.c
- Input / Output Section

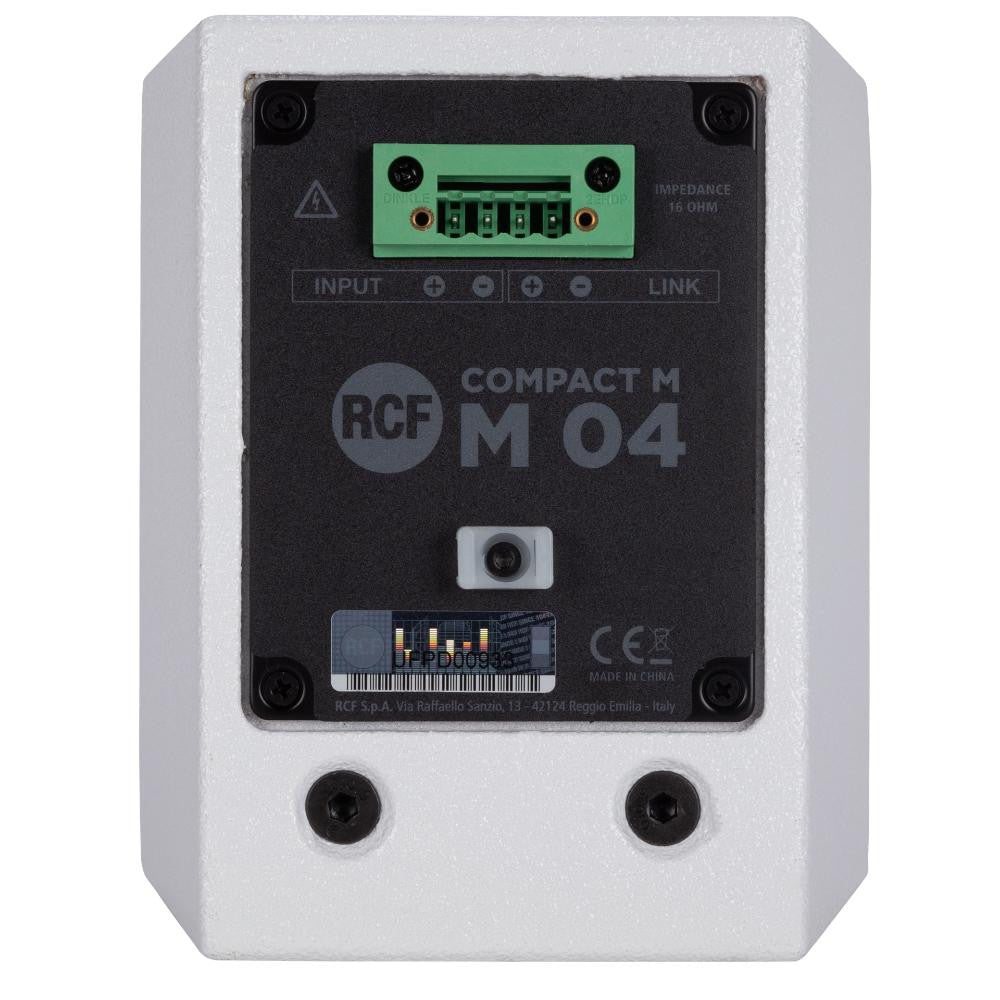

- Input Connectors: Euroblock
- Output Connectors: Euroblock
- Construction
- Cabinet / Case Material: plywood
- Hardware: 2 x M6, 2 x M8
- Grille: steel with clothing
- Dimensions (HxWxD)5.83x5.2x5.71"
- Weight5.07 lbs
