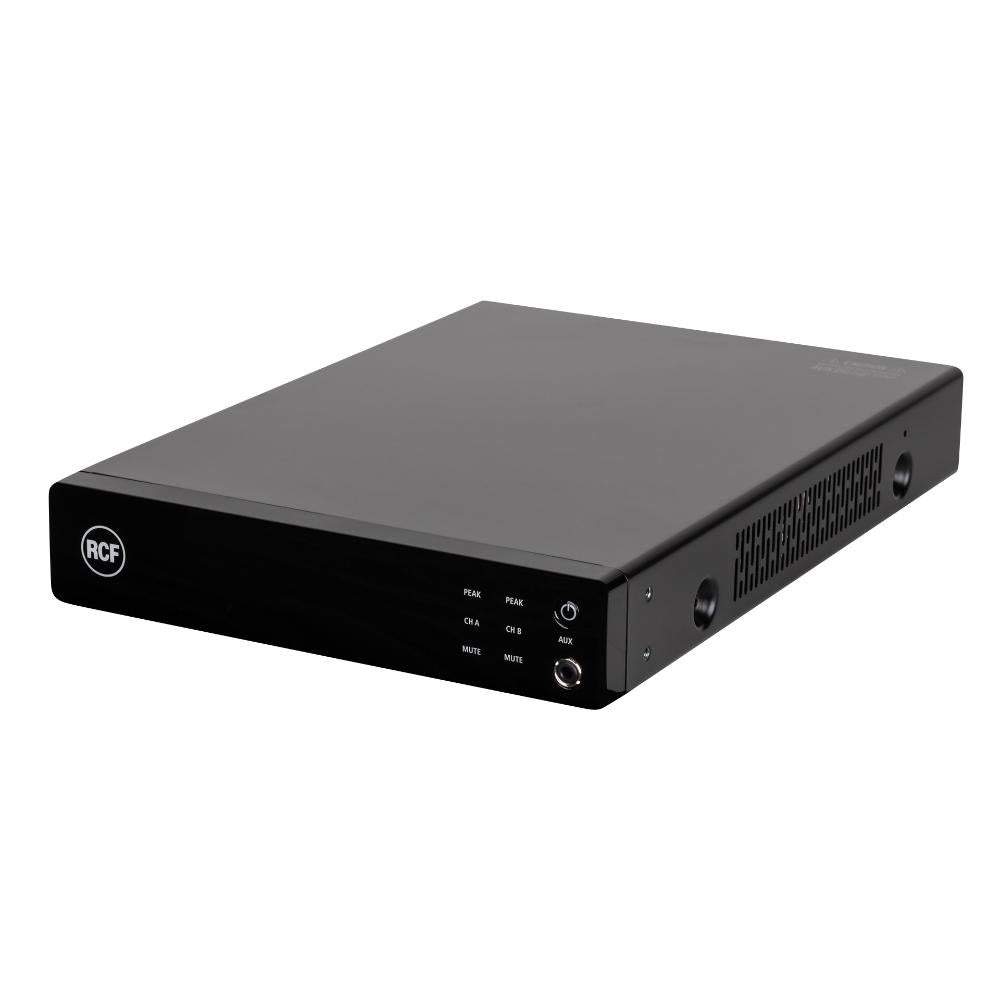

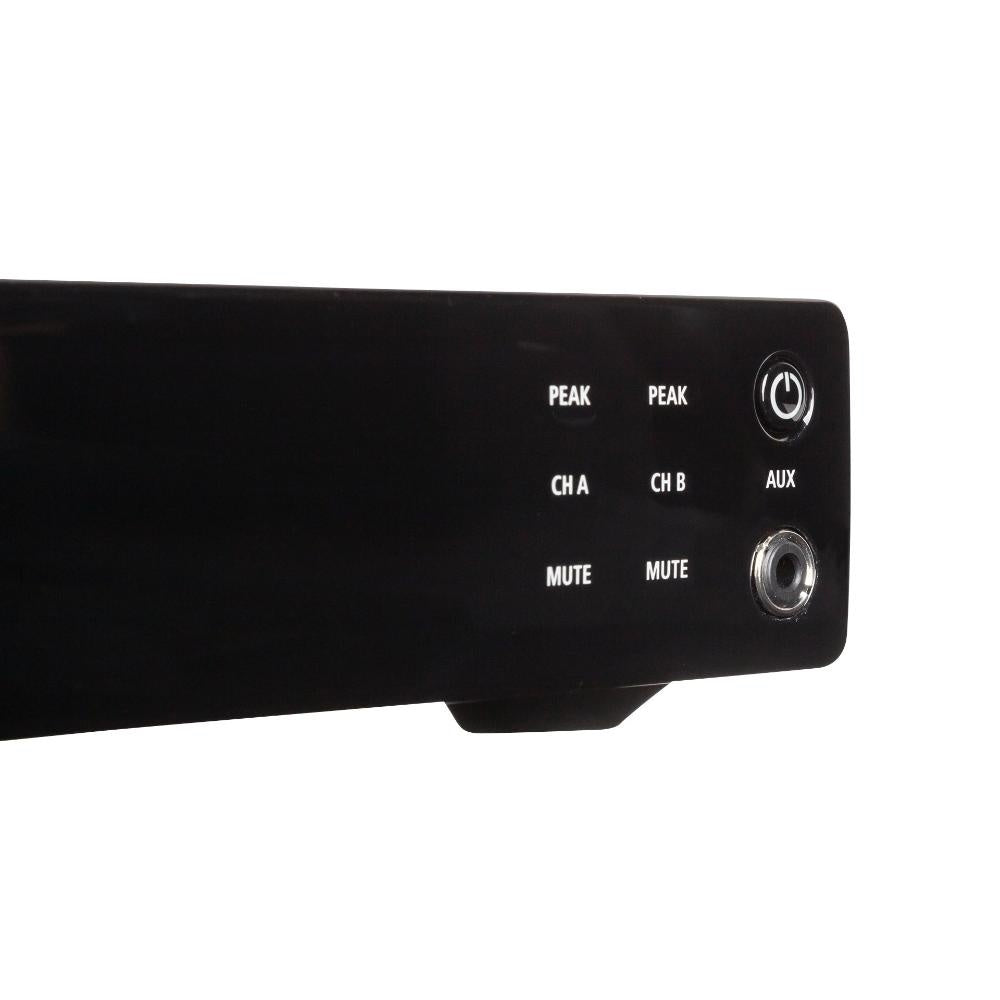

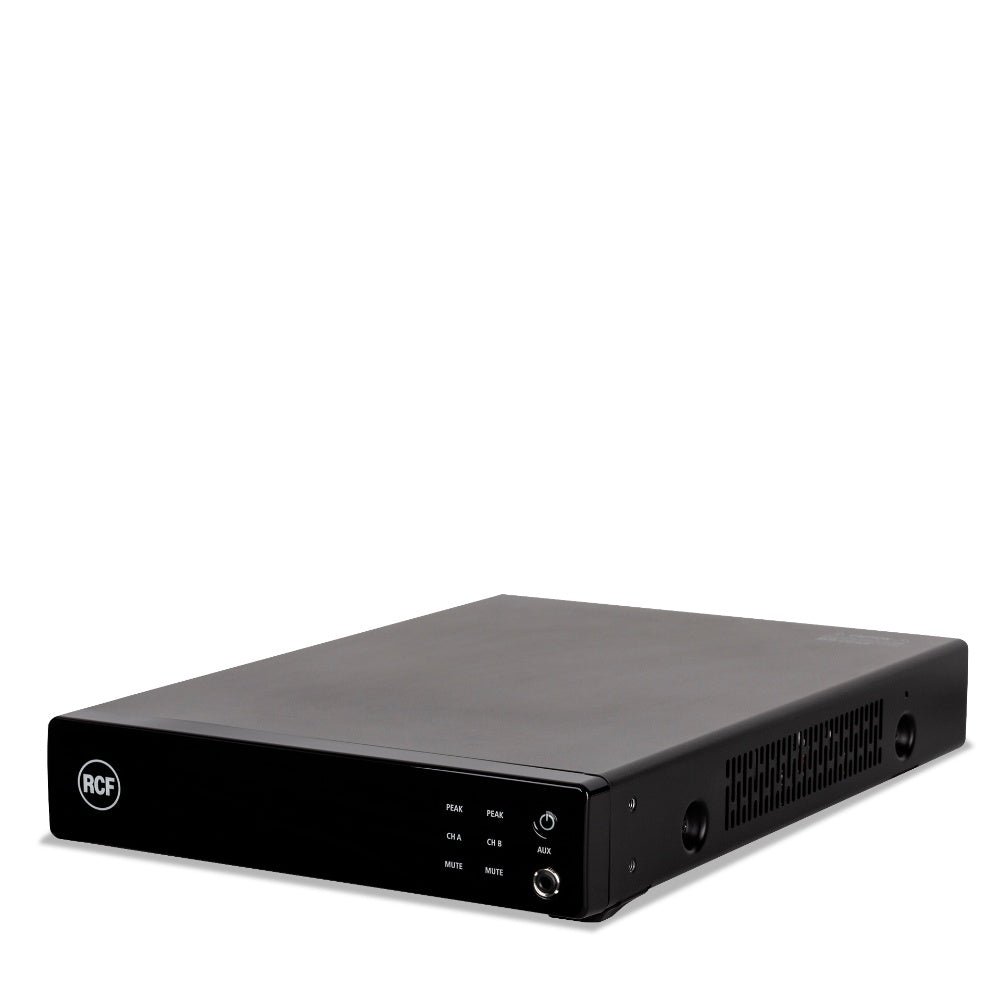

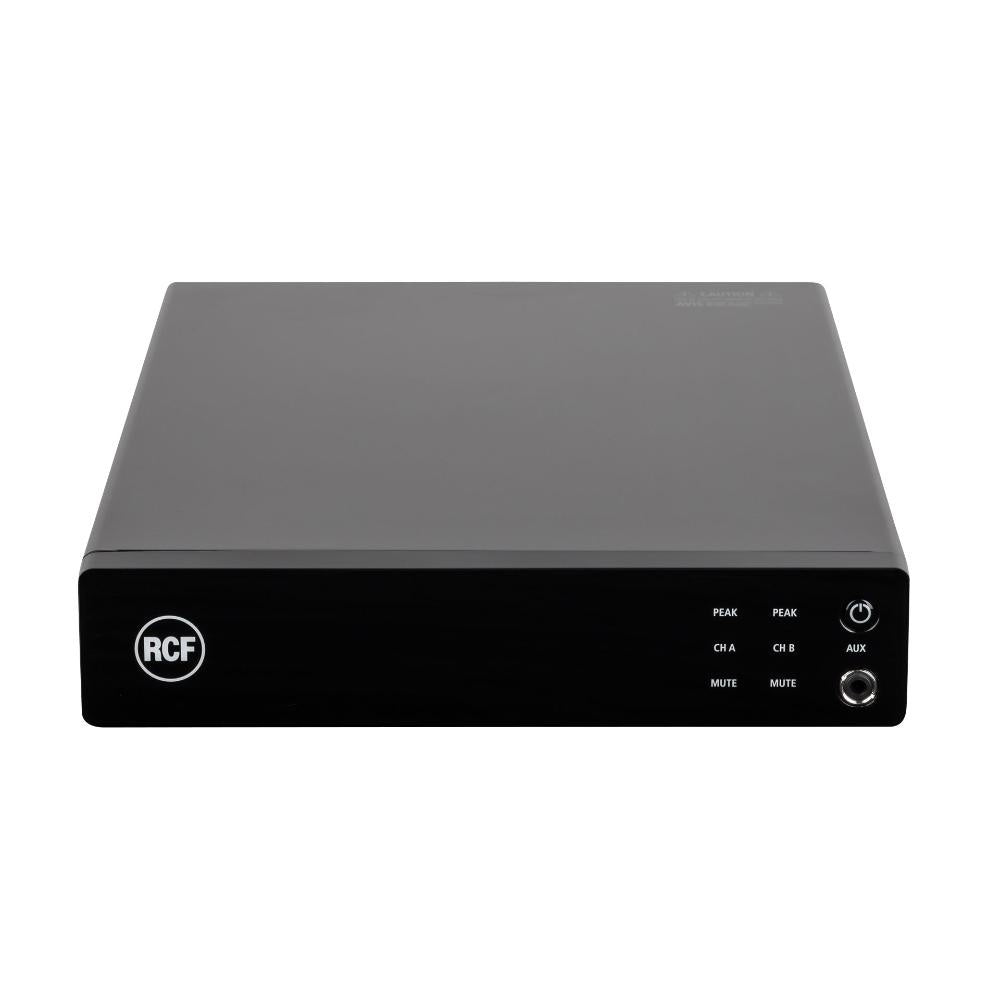

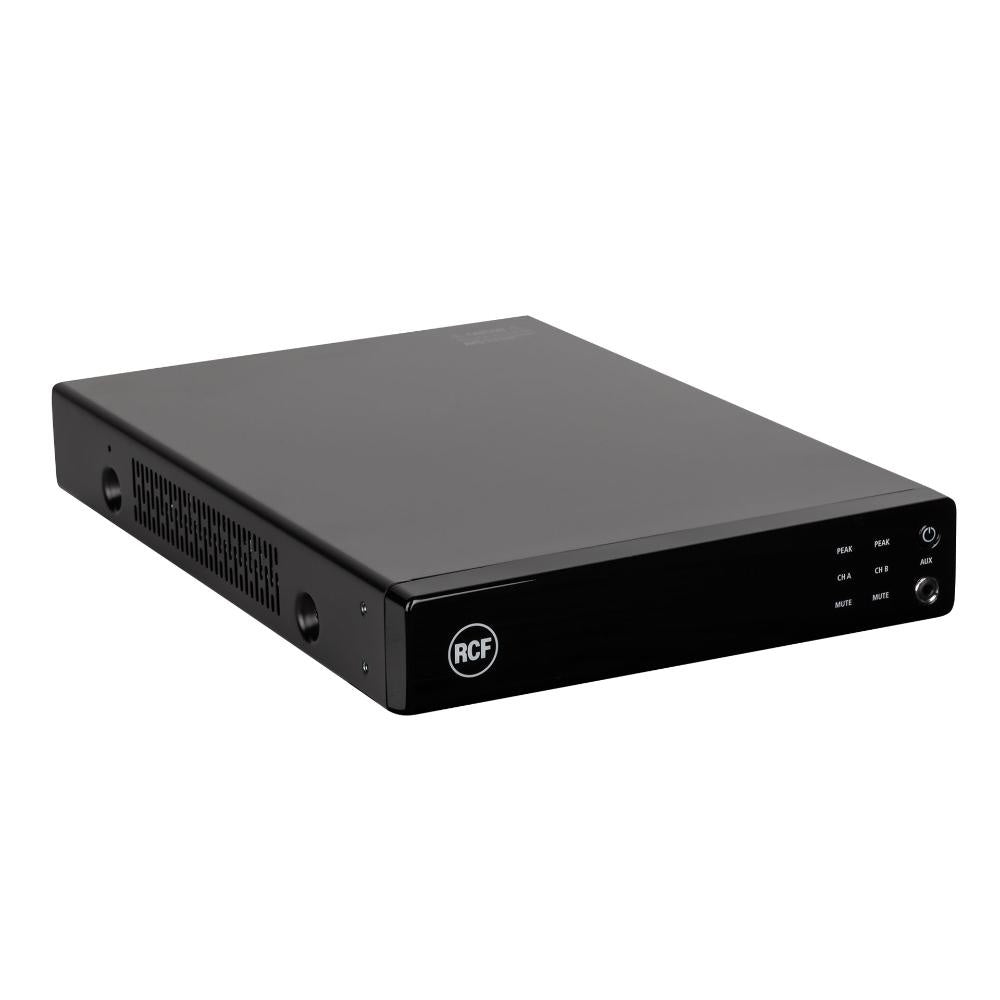

RCF DMA-162P Two-Channel Class-D Power Amplifier With DSP
RCF DMA-162P Two-Channel Class-D Power Amplifier With DSP
SoundPro Item: 113790 | Part Number: DMA-162P
Usually ships in 5-7 business days
- Onboard DSP With FiRPHASE Linear-Phase Filters For Precise System Tuning
- RCF Speaker Presets Streamline Commissioning With Compatible Loudspeakers
- Proprietary Bass Enhancer Algorithm Extends Low-Frequency Performance
- Optional RDNet Board Enables Full Networked Monitoring And Remote Control
- Flexible Multi-Room Architecture Expands Scalable Commercial Audio Systems

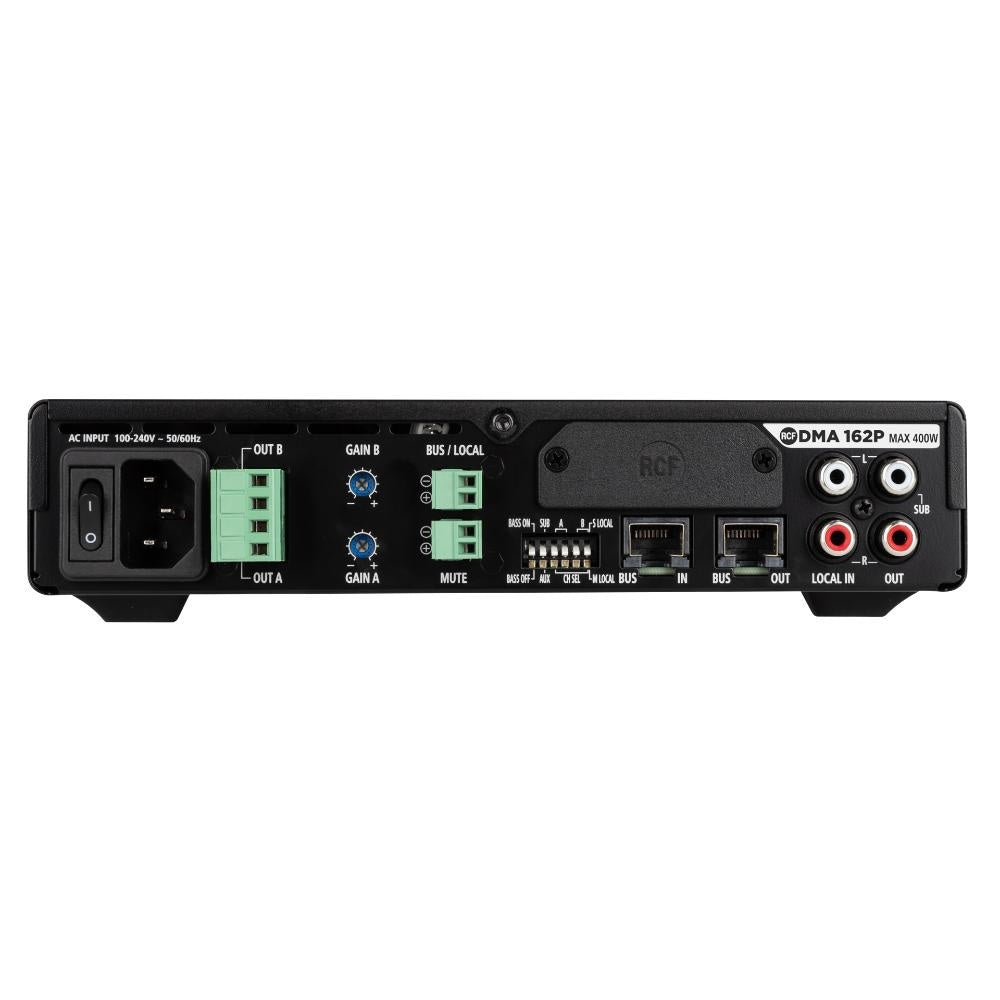

- Six Line Inputs With Balanced And Unbalanced Options For Routing Flexibility
- Half-Rack Metal Chassis Supports Desktop Or Rack Installation In Tight Spaces
The RCF DMA-162P is a two-channel Class-D power amplifier built for commercial audio integrators who need scalable, networkable amplification in a minimal footprint. Its primary role is as an expansion unit within DMA-based multi-room architectures, letting integrators add output capacity without reworking signal routing or control infrastructure. The onboard DSP platform, FiRPHASE linear-phase filters, proprietary bass enhancer algorithm, and RCF speaker presets eliminate the need for external processing, reducing rack space and system complexity in restaurants, retail spaces, corporate environments, and similar installed sound applications.
Despite its natural pairing with the DMA ecosystem, the DMA-162P operates effectively as a standalone amplifier. Six line inputs, including four balanced and two unbalanced, combined with two general-purpose inputs, provide the routing flexibility that system designers need in multi-source environments. DIP-switch configuration keeps setup straightforward on the bench, while PC software enables deeper DSP control in the field. Adding the optional RDNet board unlocks full networked management and speaker preset recall, making the unit suitable for facilities that require centralized monitoring and remote configuration across multiple zones.
At under 1U in half-rack width, the DMA-162P fits installations where rack space is at a premium. The metal chassis, forced-air cooling, and comprehensive protection circuitry covering short circuit, thermal, DC, fuse, and VHF events reflect the reliability expectations of commercial installs where service calls are costly. Universal voltage operation from 90 to 240 V makes it a straightforward choice for international projects without additional hardware modifications.
