RCF EVOX JMIX9 Portable Column Array with Integrated Mixer | Black

RCF EVOX JMIX9 Portable Column Array with Integrated Mixer | Black

SoundPro Item: 205412 | Part Number: EVOX-JMIX9

$1,999.00
$2,899.00 $1,999.00
Your Price Sold out
MSRP: $2,899.00 | MAP: $1,999.00

Usually ships in 5-7 business days

  • Integrated 8-Channel Stereo Digital Mixer Eliminates The Need For A Separate Console
  • JMixRemote App Enables Full Wireless Remote Control From Stage Or Audience Position
  • Three-Way Active Design Delivers Controlled Dispersion Across The Full Frequency Range
  • Class-D Amplification With Built-In DSP Provides Efficient High-Output Performance
  • Phantom Power, Reverb, EQ, And Compressors Onboard For Complete Signal Processing
  • Quick-Fit Pole Socket And Padded Top Speaker Bag Included For Fast Portable Deployment
  • Available In Black And White To Suit Different Venue And Stage Environments
Log in or register for YOUR best price

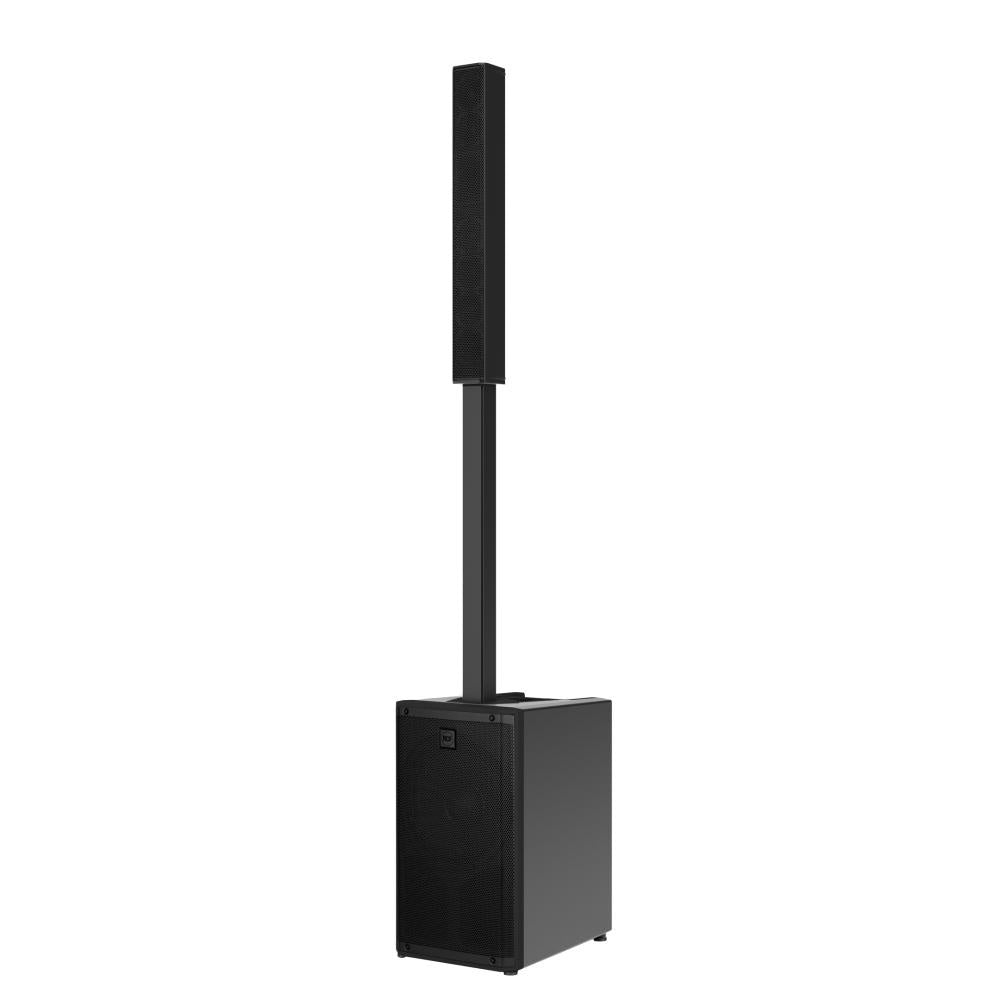

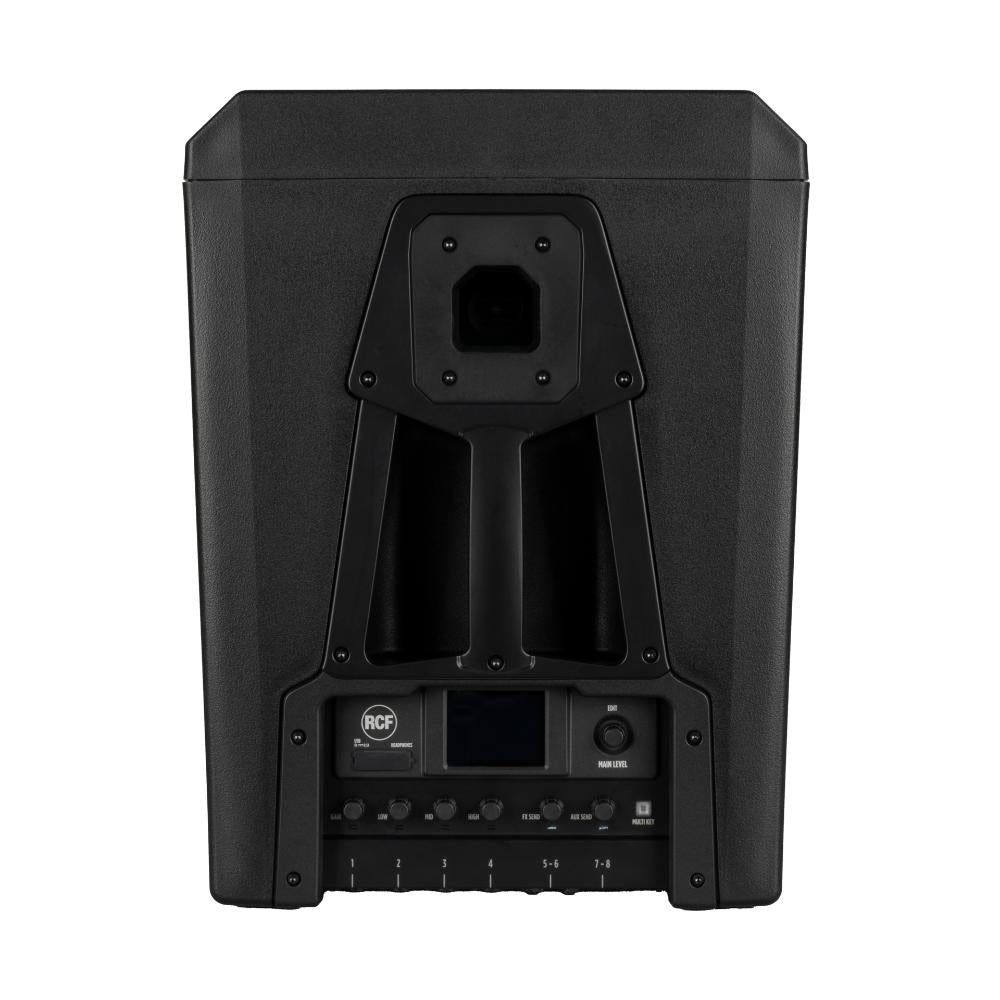

The RCF EVOX JMIX9 is built for performing musicians, small production companies, and mobile entertainers who need a complete front-of-house solution without the weight and complexity of a separate mixing console. The integrated 8-channel stereo digital mixer features a color touch display, physical encoders, and Bluetooth streaming, while the JMixRemote app enables full wireless control from the stage or audience position. Phantom power, onboard reverb, three-band EQ per channel, output delay up to 135 ms, and compressors on mic and line channels give engineers the processing depth typically found only in dedicated rack systems.

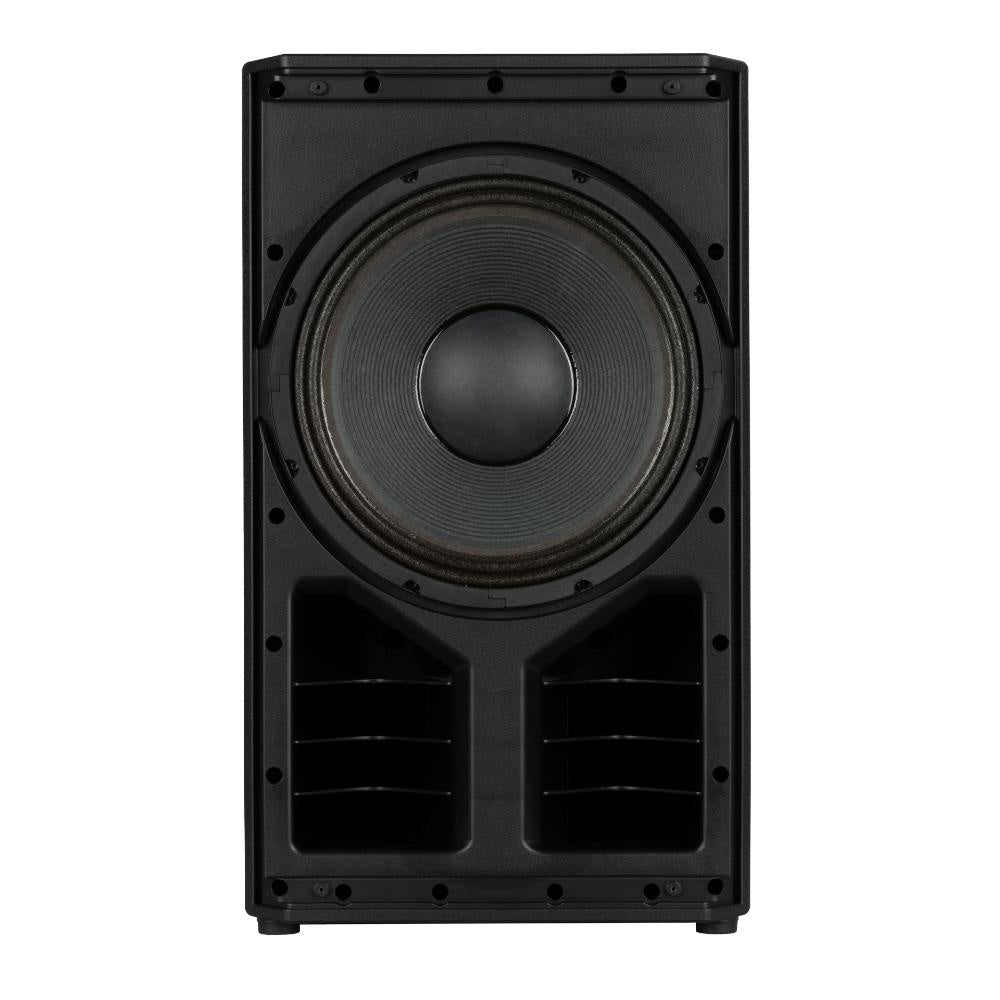

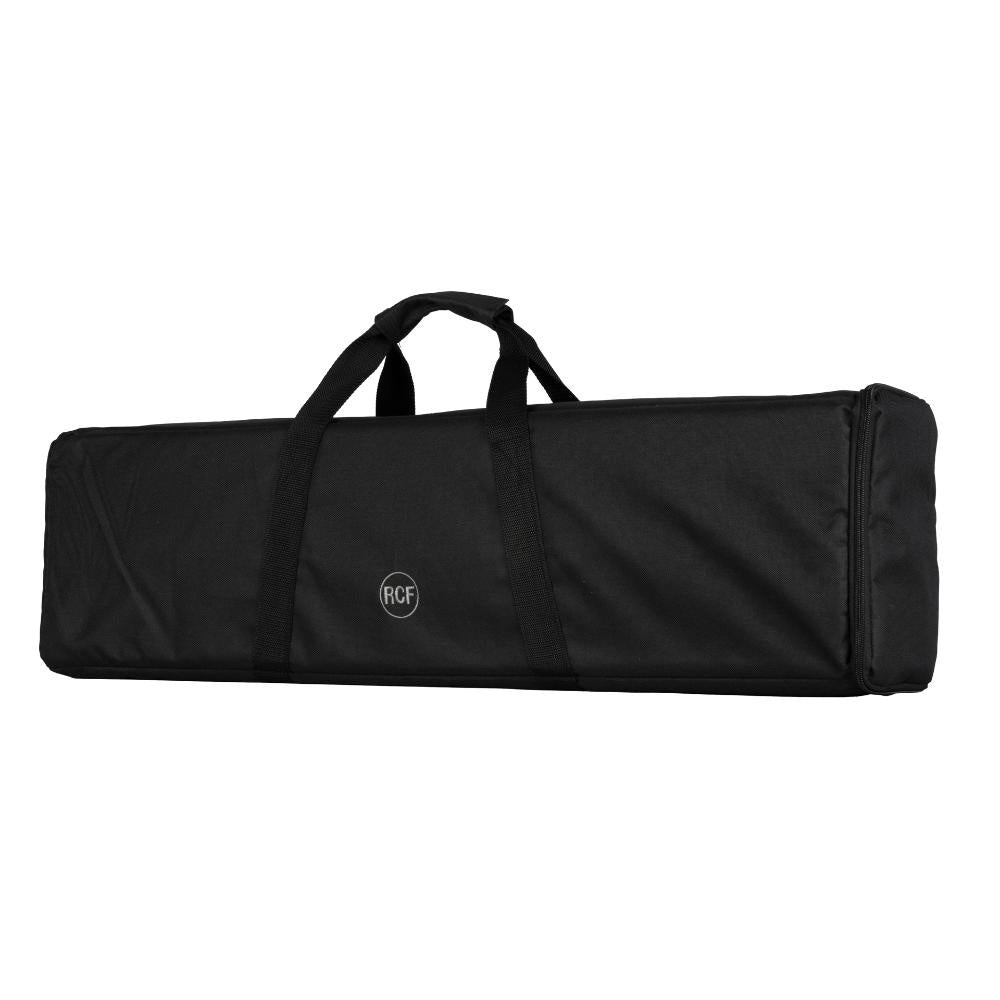

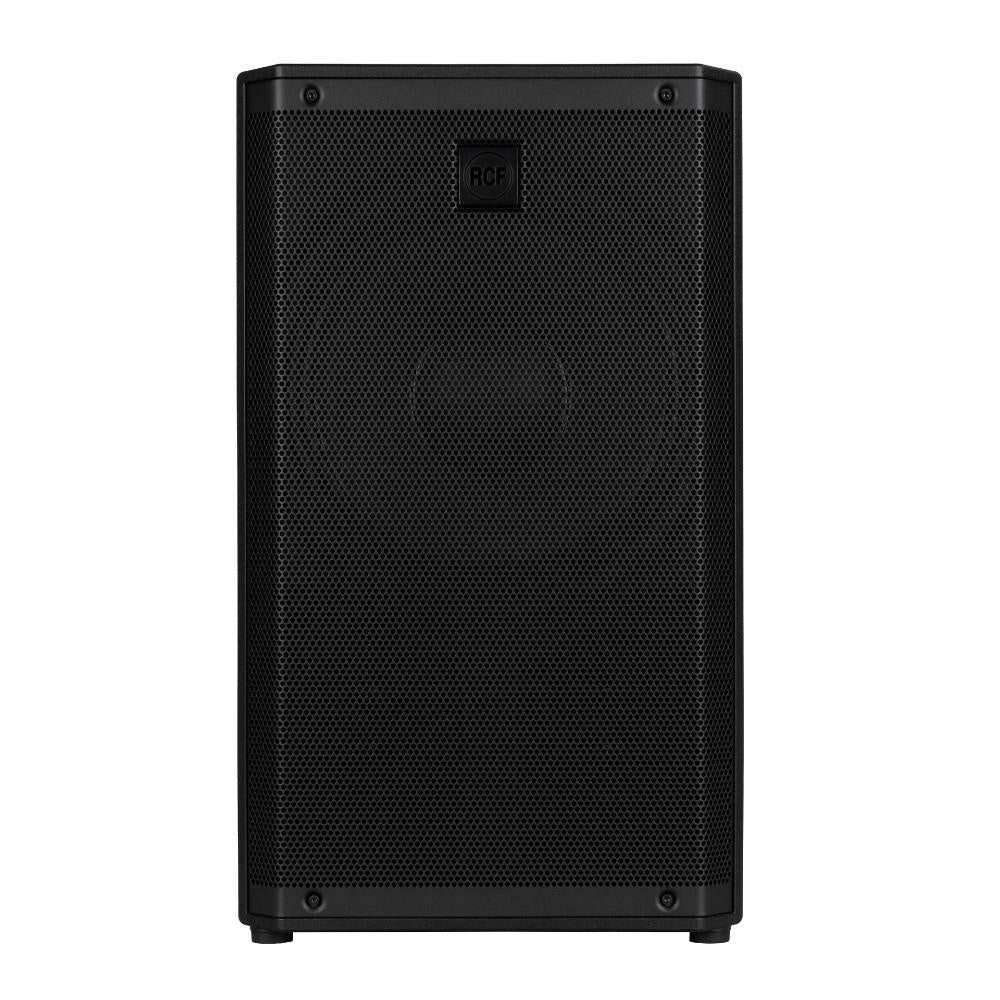

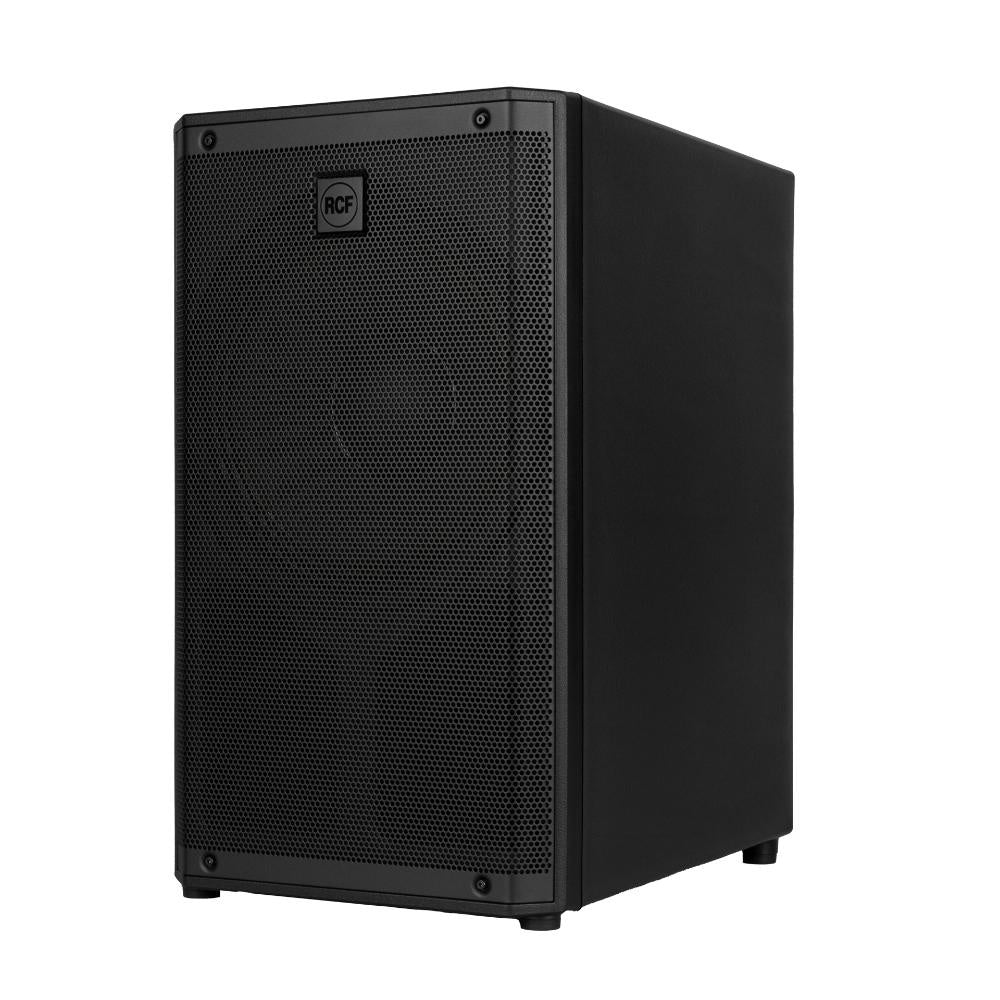

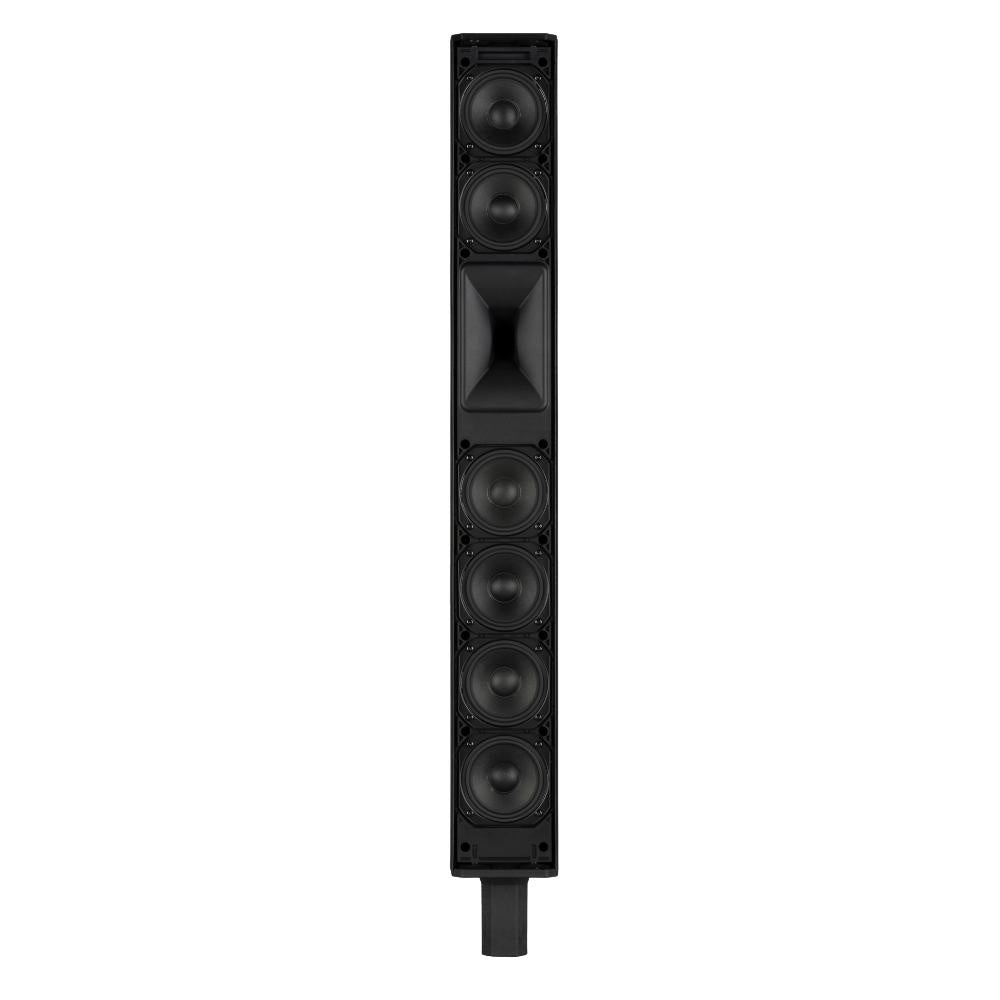

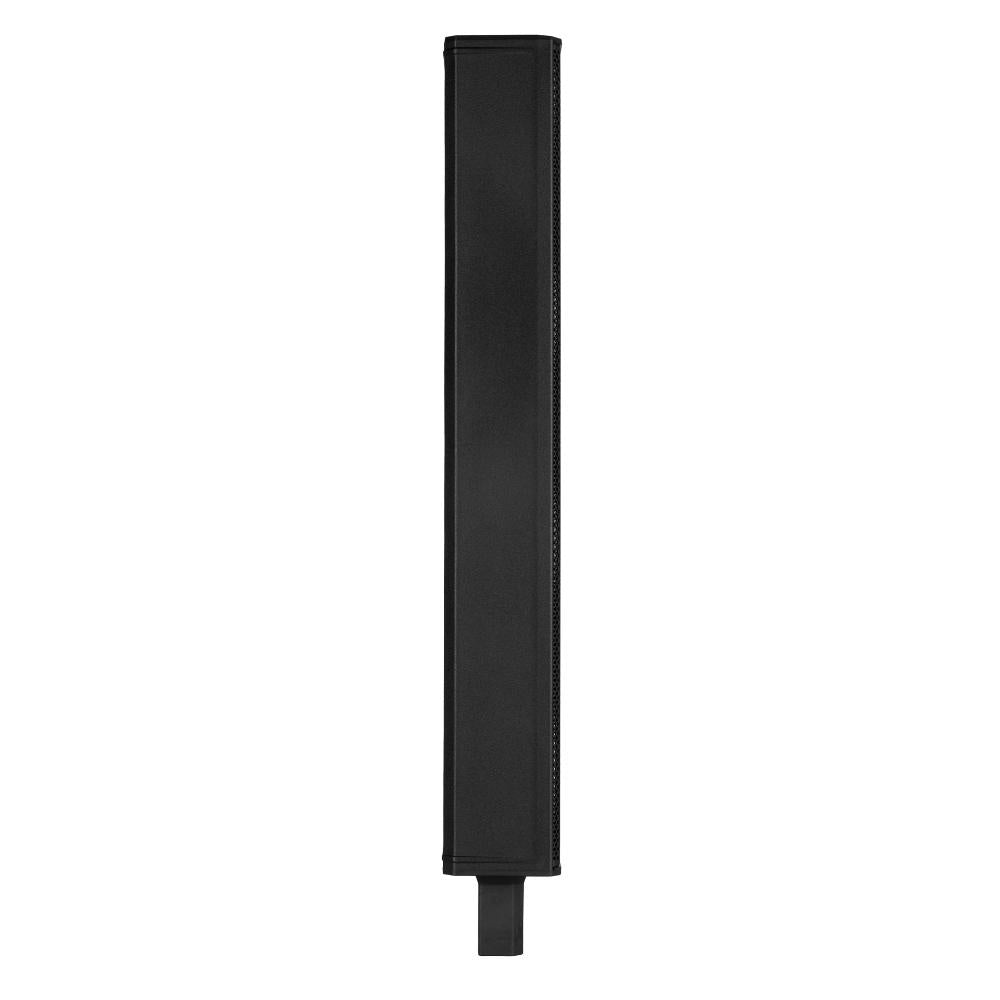

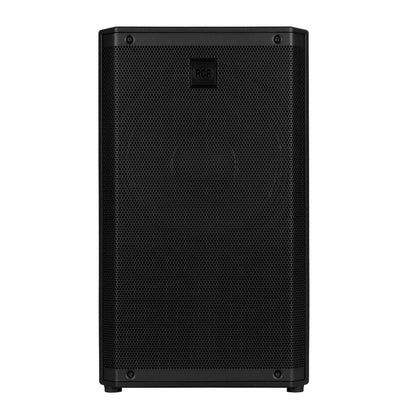

The acoustic architecture is a true three-way design: a 12" high-power woofer handles low frequencies at 1400W peak, six 3" neodymium full-range transducers cover midrange, and a 1.75" neodymium compression driver on a 120 by 40 degree true resistive waveguide delivers controlled high-frequency dispersion at 700W peak. The combined 2100W Class-D amplifier with built-in DSP reaches 130 dB max SPL across a 40 Hz to 20 kHz frequency range, making it competitive with systems requiring multiple separate cabinets. The composite PP cabinet with steel grille mounts on a standard pole via a quick-fit socket, and a padded carrying bag for the top speaker is included. Available in black and white to match venue or stage aesthetics.

View full details

Specifications

Audio
Frequency Response (Acoustic)
40 Hz - 20000 Hz
Max SPL @ 1m
130 dB
Horizontal Coverage Angle
120°
Vertical Coverage Angle
40°
THD+N (20dB gain, 0dBu out)
0.003% A-Weighted
Transducers
Compression Driver
1 x 0.75" neo, 1.75" v.c
Full Range
6 x 3.0" neo, 1.0" v.c
Woofer
1 x 12", 2.5" v.c
Power
Total Power
2100 W Peak
High Frequency Power
700 W Peak
Low Frequency Power
1400 W Peak
Cooling
Convection
Power Supply
Internal
Power Connections
VDE
Processing
Processing Channels
8
Signal Processing
32 Bit
A/D-D/A Conversion
24 Bit @ 48.0 kHz
Dynamic Range
114 dB
Crossovers
200 Hz / 1800 Hz
Limiter
Soft Limiter
Protections
Thermal, RMS
Controls
Digital mixer controlled by touch screen and encoders

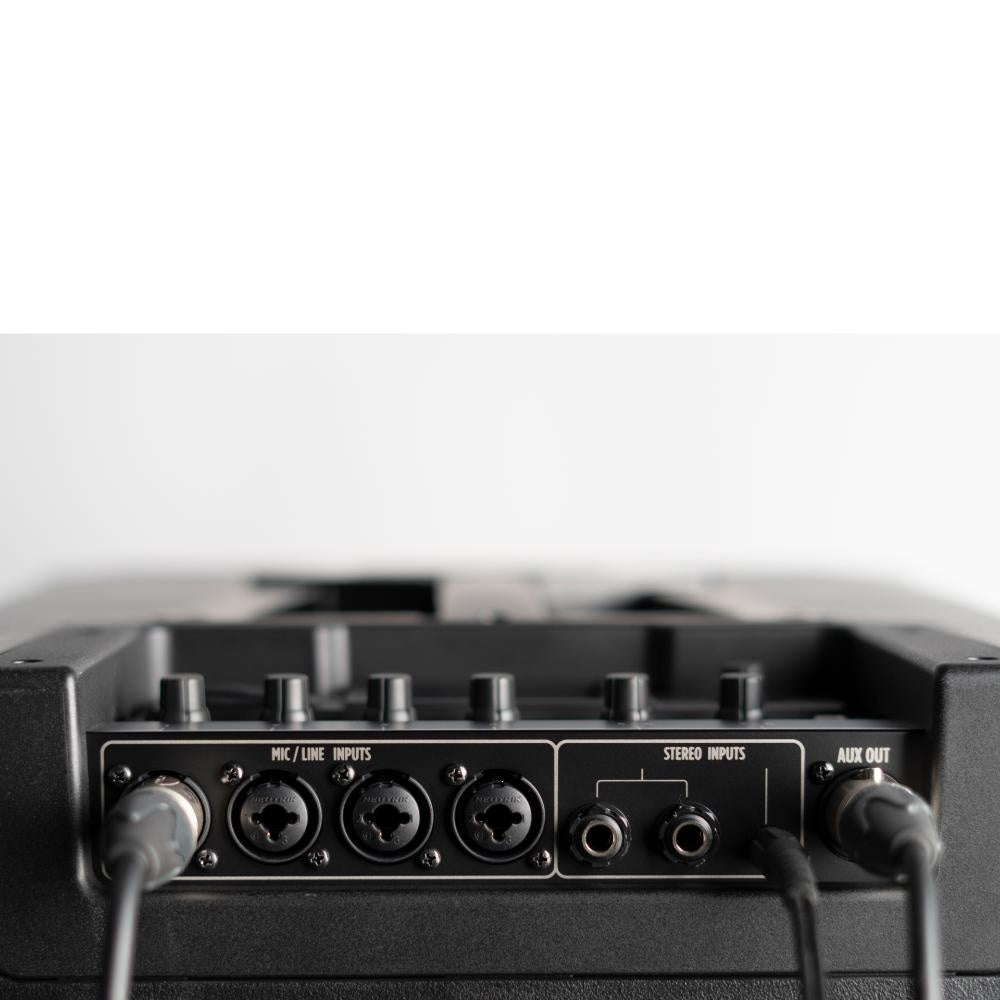

Inputs
Mic Inputs
4
Mono Line Inputs
4
Stereo Line Inputs
2
Input Connectors
Combo XLR/Jack
Input Signal
Balanced/Unbalanced
Input Sensitivity
−2 dBu / +4 dBu
Gain Range (Mic/Line)
0 dB - 36 dB
Mic Input Impedance
3 kohm
Line Input Impedance
10 kohm
Stereo Line Input Impedance
24 kohm
Input Noise Level
−114 dBu A-Weighted
A/D Dynamic Range
120 dB
Low Cut
20 Hz - 400 Hz
Phantom Power
+48V
Remote Controlled Storable Gain
Yes
Compressors
On MIC/LINE CH1 to CH4
Input Channels EQ
1 Semi Parametric / 2 Shelving
EQ Description
3-Band EQ (High/Low shelving, MID peak) on input; 8-Band EQ (6 full parametric, 1 high shelving, HPF 12dB/Oct) on amplifier and main output
AUX Send
1 PRE/POST
FX Send (POST)
1
Send Effects
1
Outputs
Output Connectors
XLR
Main MIX Outputs
1
AUX Output
1
Headphone Output
1
Main Out Impedance
150 ohm
Main Out Level
20 dBu
Aux Out Impedance
150 ohm
Aux Out Level
20 dBu
Phones Out Impedance
100 ohm
Phones Out Level
20 dBm
D/A Dynamic Range
118 dB
Main OUT Type
MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT
Certifications
Safety Agency
CE Compliant
Construction
Cabinet Material
PP Composite
Grille
Steel
Handles
1 Top
Pole Mount
Quick-fit socket
Color
Black
Dimensions
Height
81.89"
Width
13.78"
Depth
18.11"
Weight
Unit Weight
58.64 lbs
Shipping
Package Height
26.61"
Package Width
17.76"
Package Depth
22.87"
Package Weight
71.65 lbs
