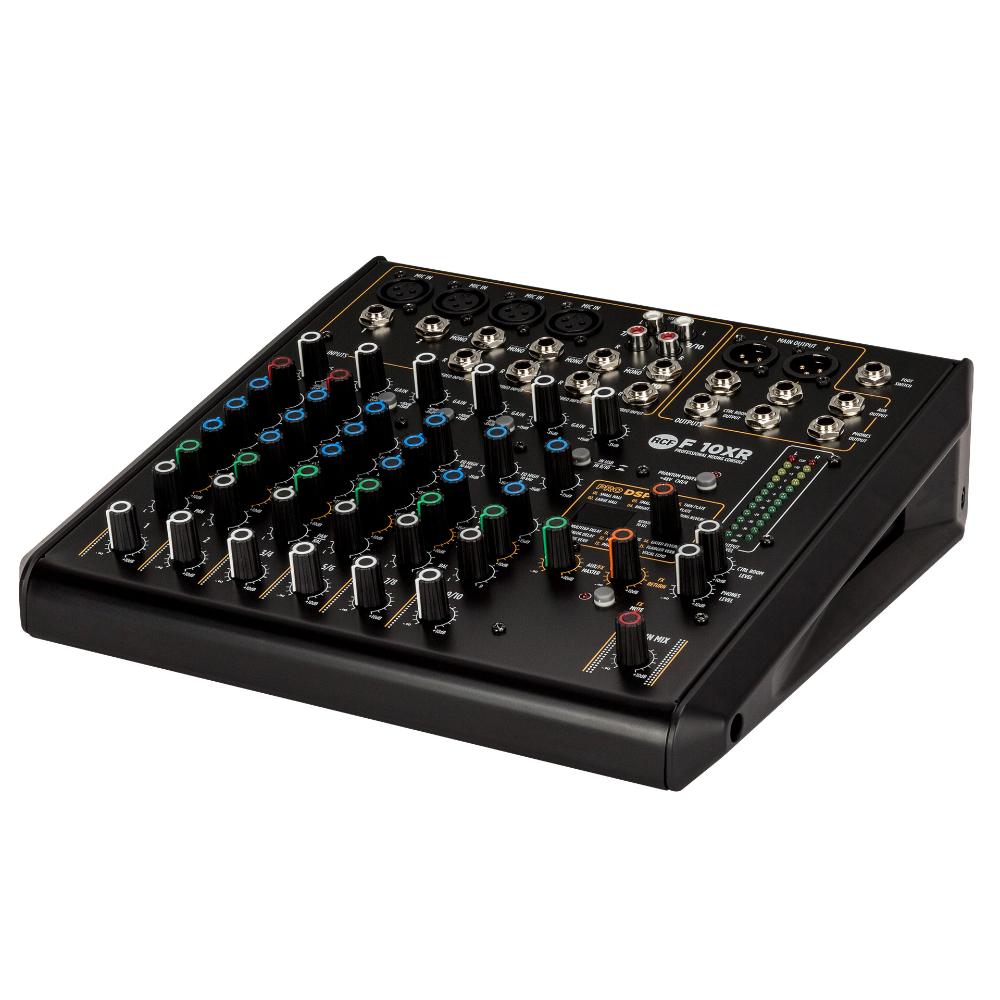

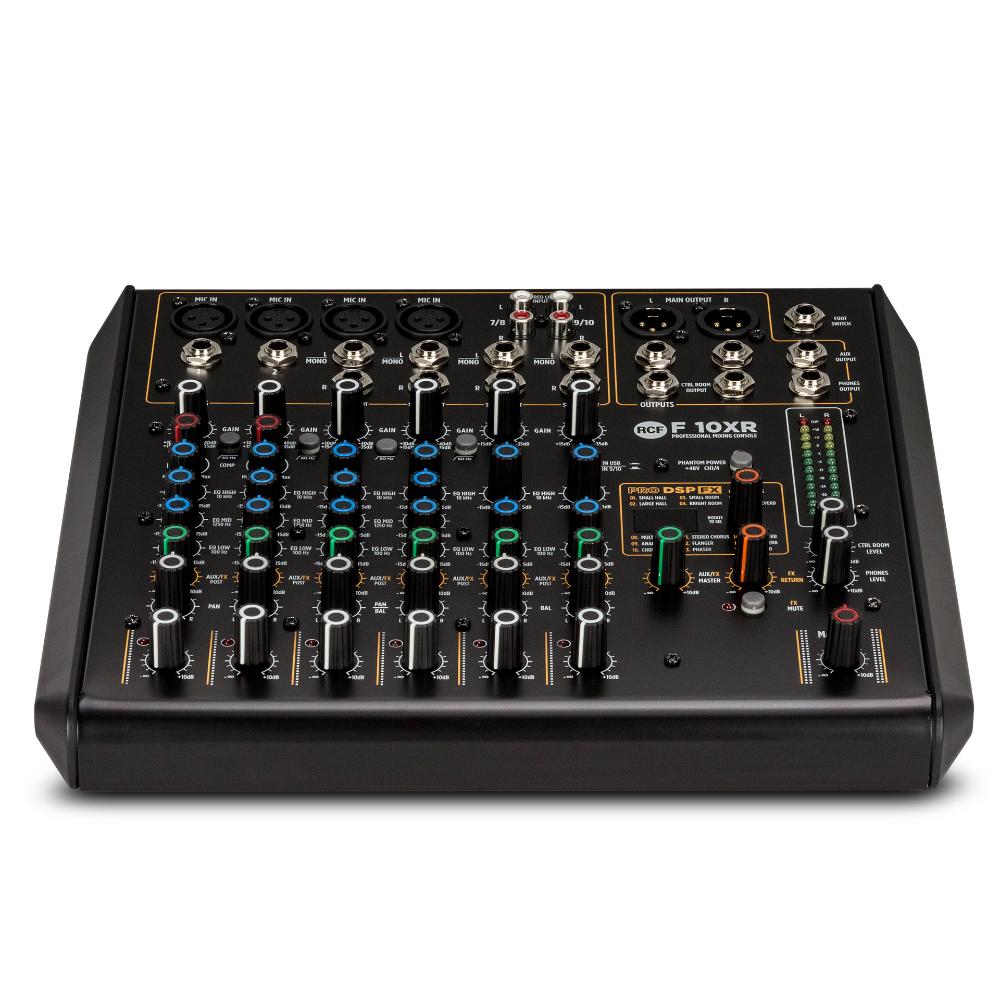

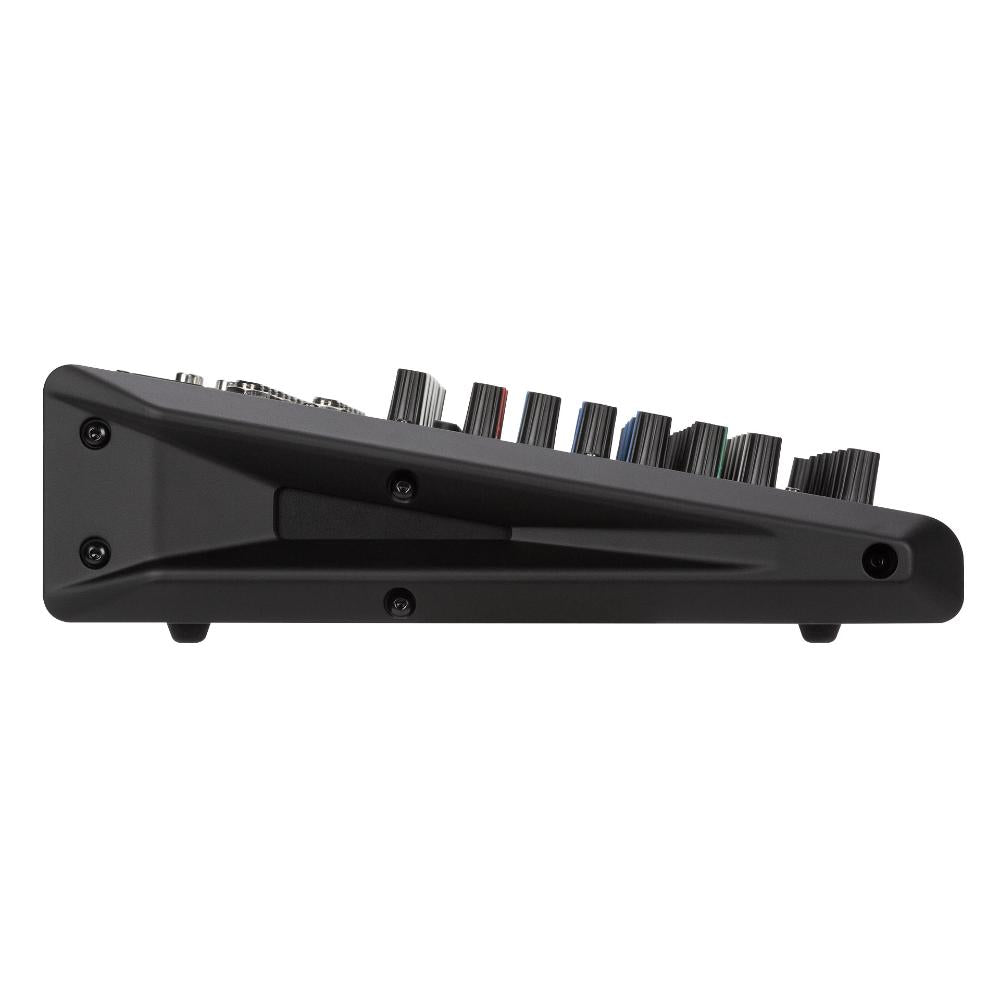

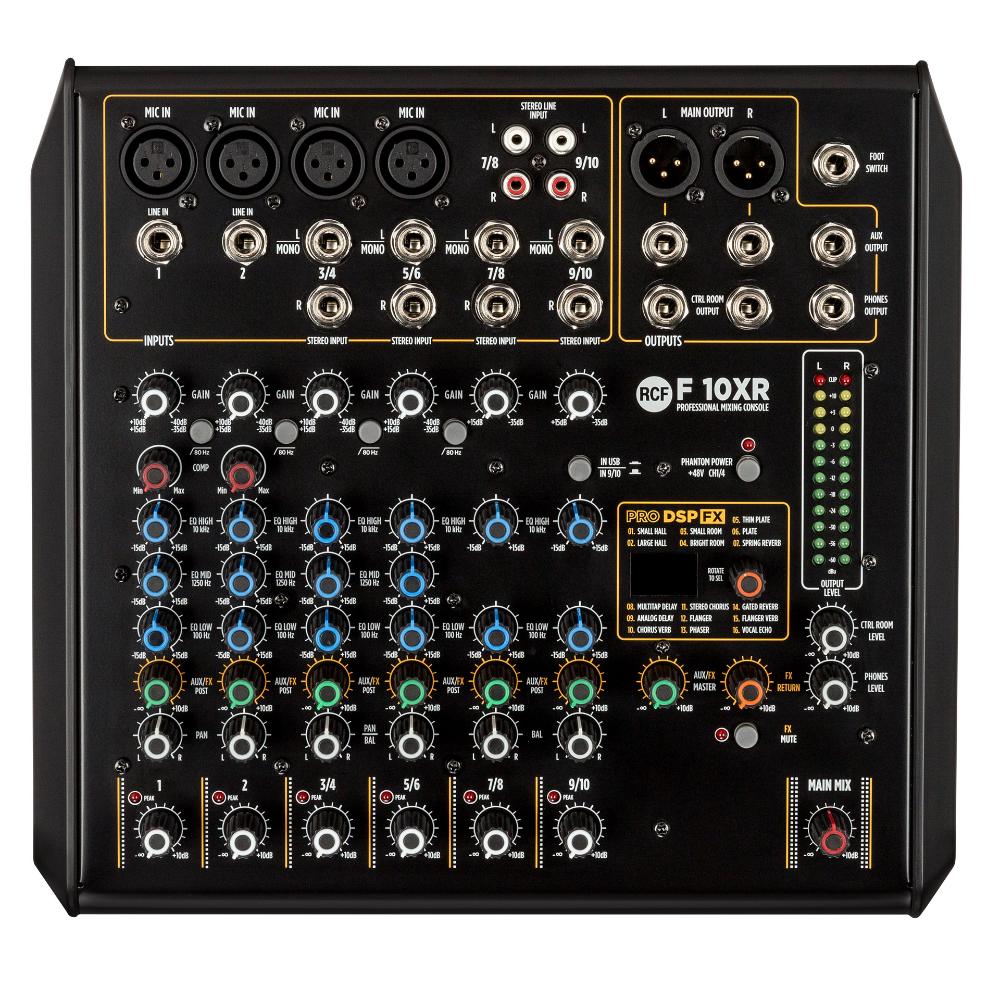

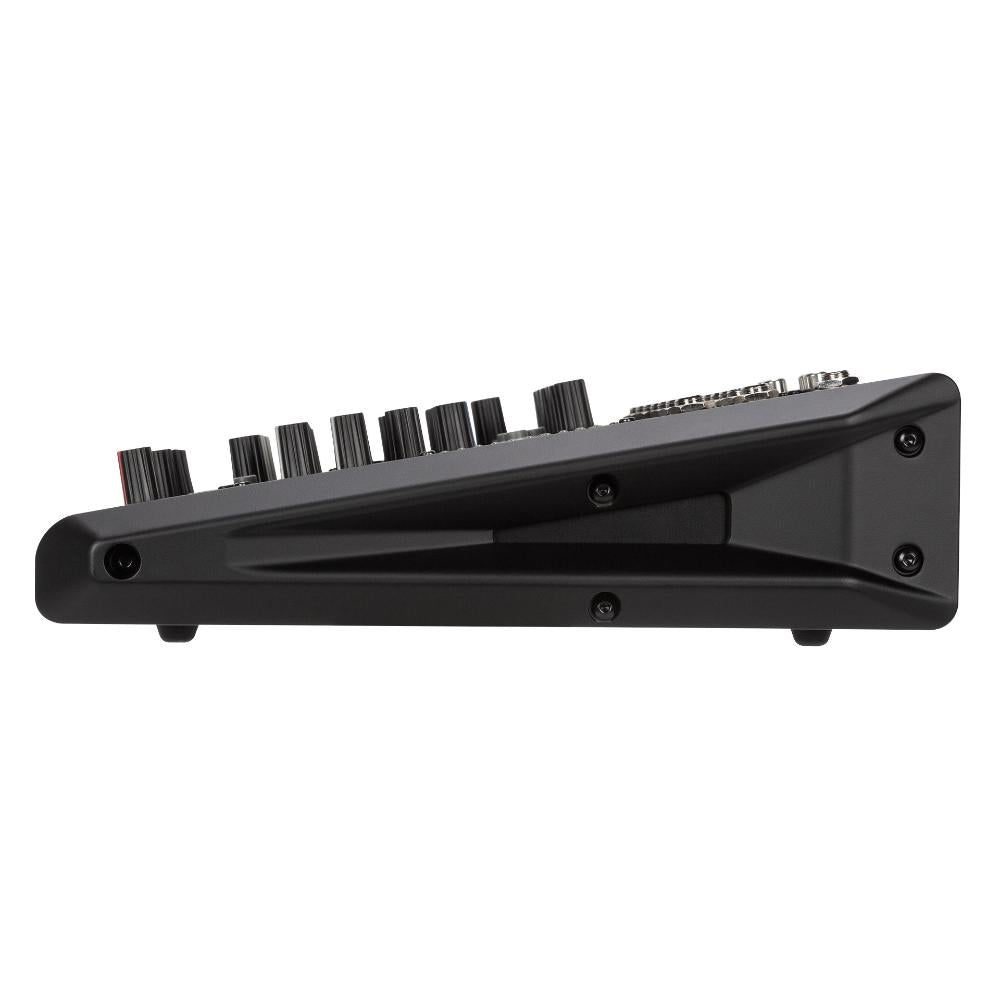

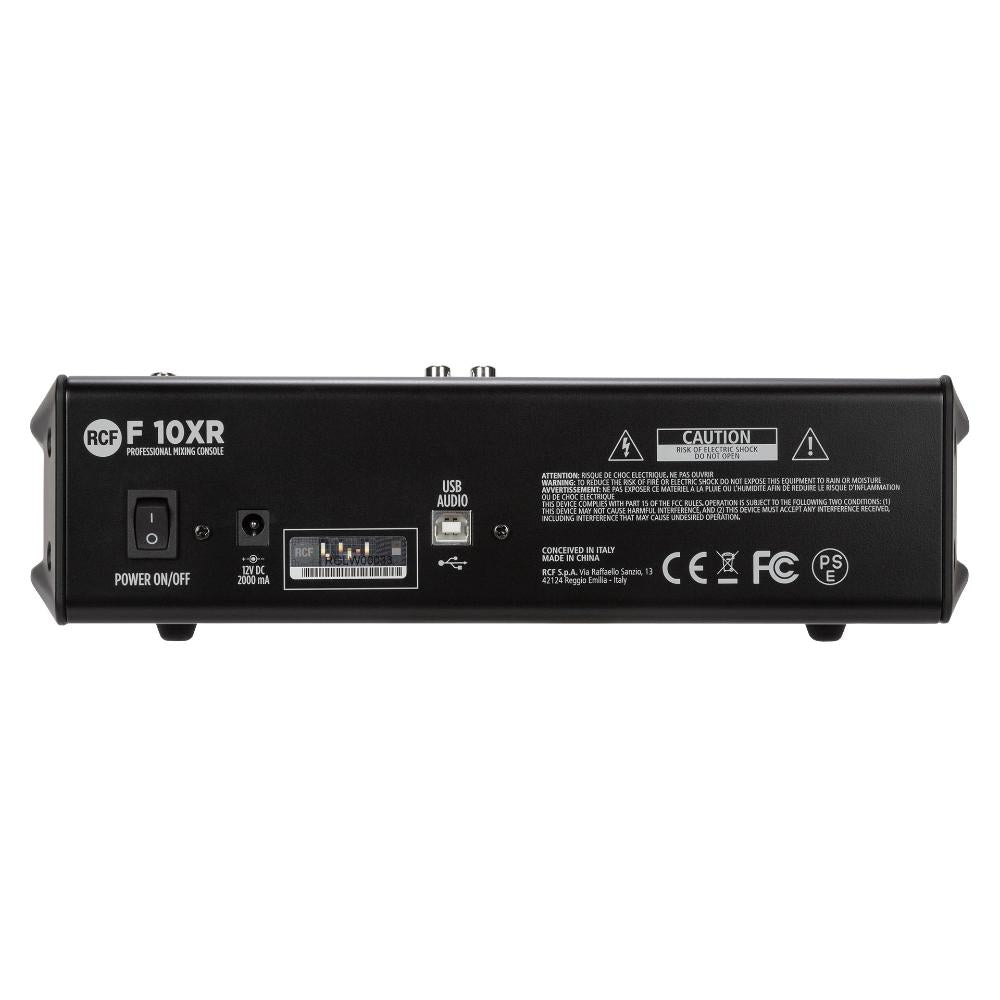

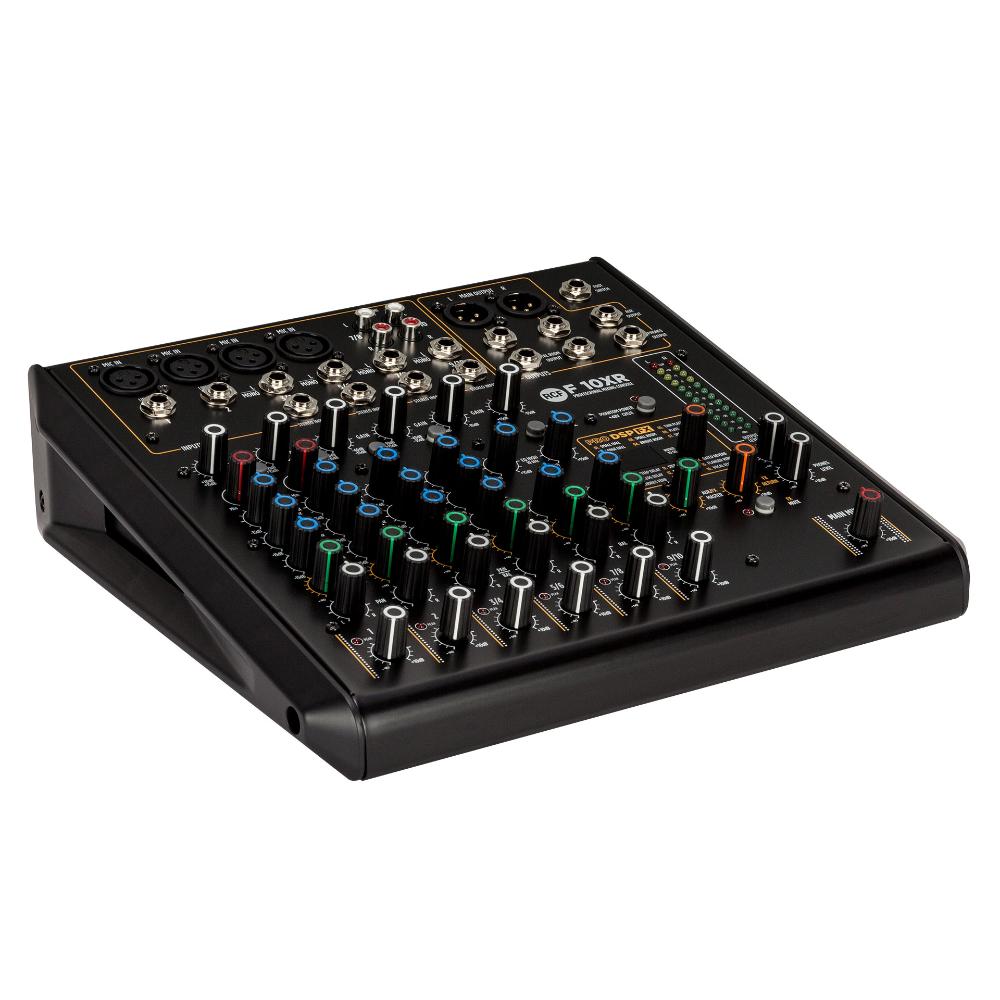

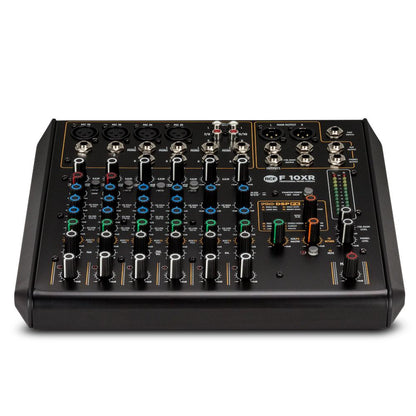

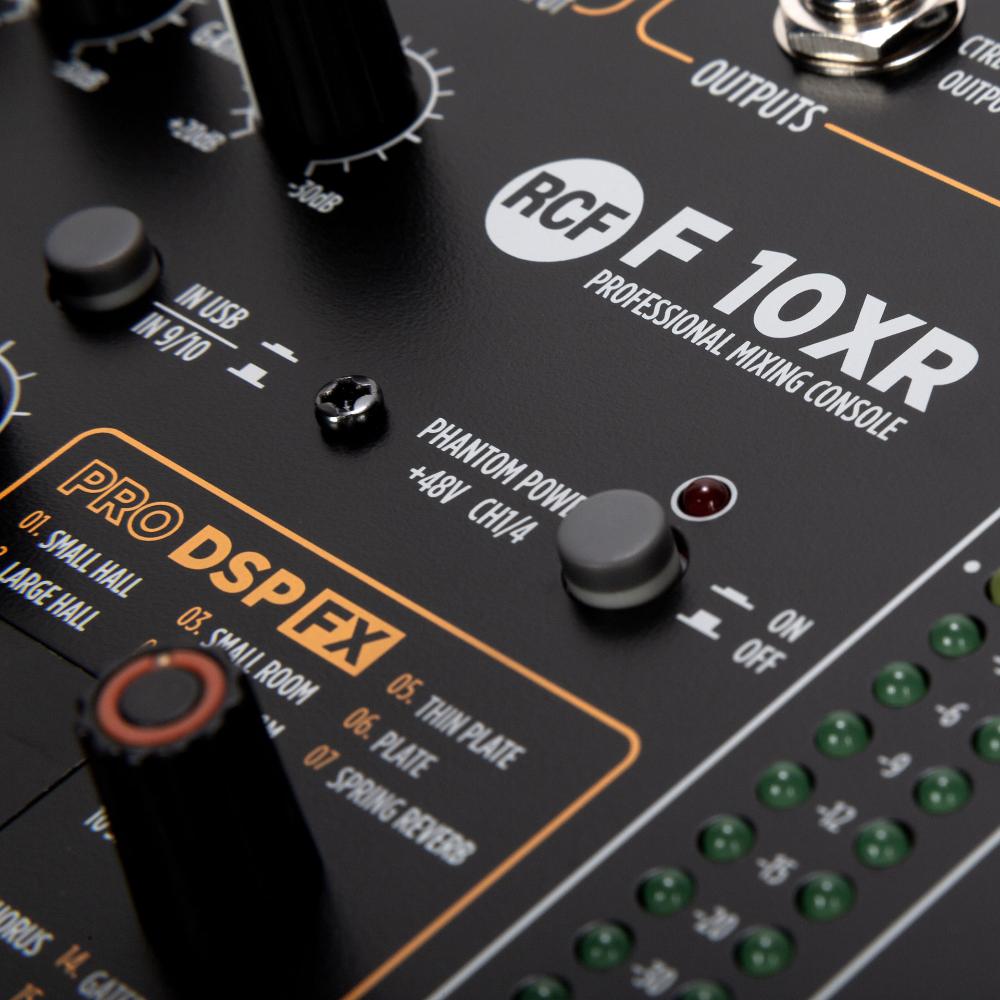

RCF F 10XR Mixing Console, Black

RCF F 10XR Mixing Console, Black

SoundPro Item: 47057 | Part Number: 17140089

Regular price $529.00
Regular price $719.00 Sale price $529.00
Your Price Sold out
MSRP: $719.00 | MAP: $529.00

In stock and ready to ship

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 2 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • External Universal Power Supply

RCF F 10XR, 10-channel mixing console with multi-FX & Recording, Portable.

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

View full details

Specifications

Electronic specifications
Frequency Response: 20 Hz - 20 kHz
THD+N, 20dB gain, 0dBu out <0,02% A-Weighted
Processing
Dynamic Range: >85dB
Inputs
Channels: 10
Mic: 4
Gain Range: 0 dB - -50 dB
Input Noise Level: -124 dBu A-Weighted
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power: +48V Yes
Mono Line: 2
Gain Selection: 20 dB - -30 dB
Line Input Impedance: 21 kohm
Stereo Line 4
Gain Selection: 20 dB - -30 dB
Stereo Line Input Impedance (kOhm): 15 kohm
Input Connectors: XLR, Jack, RCA
Outputs
Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Output: 1
Phones: 1
Output Connectors: XLR, Jack
Outputs specifications
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Compressors
RCF Compressors: n° 2 Single Control compressors on channels 1&2
EQ
Input Channels EQ: 2 Shelving / 1 Generic
Description: High:+/-15 dB @ 10 kHz Shelving
Mid:+/-15 dB @ 1,250 kHz Bell
Low:+/-15 dB @ 100 Hz Shelving
Auxiliary sends
FX POST: 1
Internal Effects
Send Effects: 1
USB audio
USB Audio Interface: Yes
Type: B
lay trk: 2
Rec trk: 2
Other features
Footswitch: Yes
Electrical specifications
Power supply: External
Voltage requirements: 100 V - 240 V
Power consumption: (MAX) 18 W
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Metal
Size / Weight
Height 82 mm / 3.23 inches
Width 294 mm / 11.57 inches
Depth 275 mm / 10.83 inches
Weight 2.8 kg / 6.17 lbs
