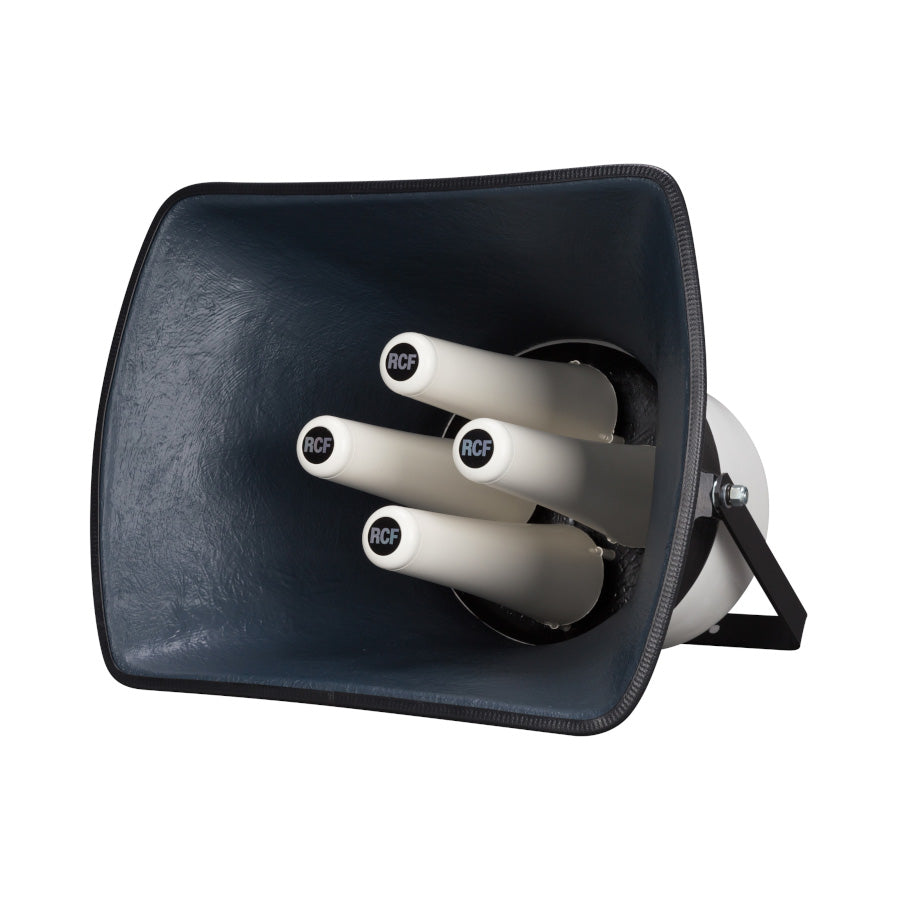

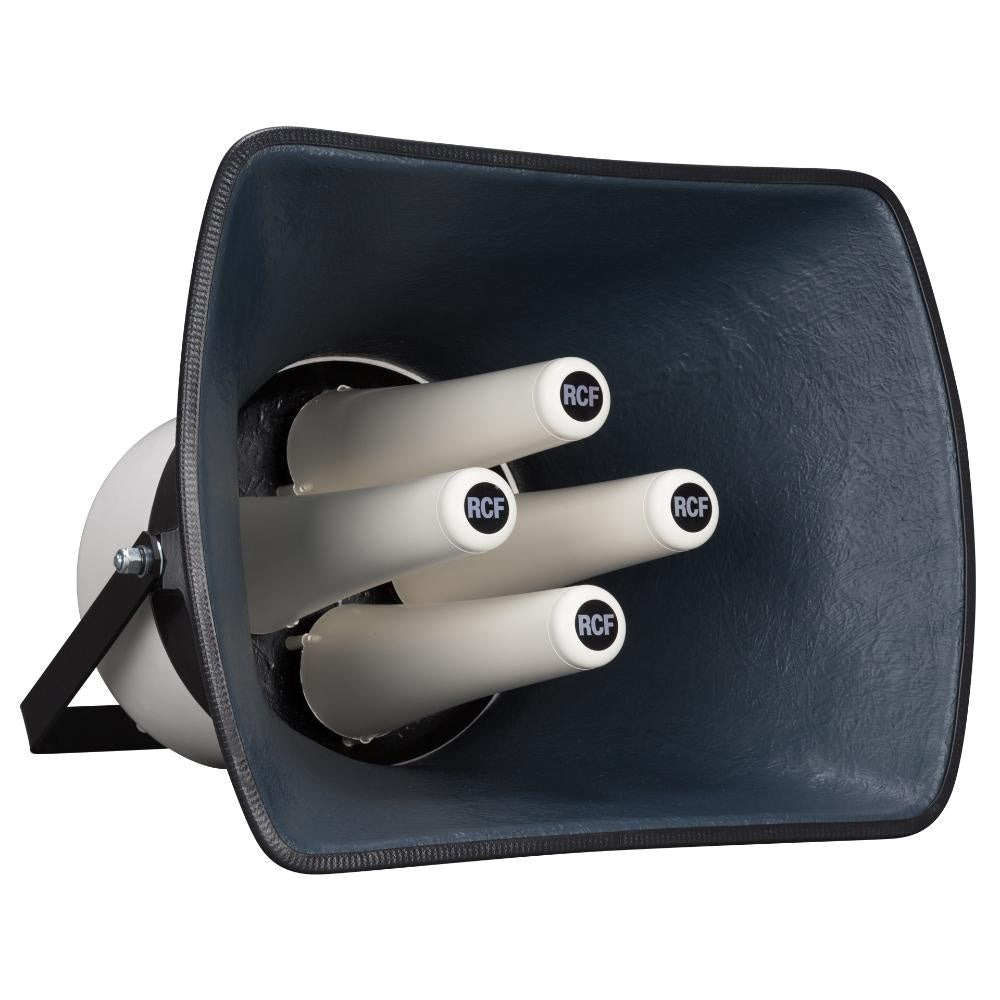

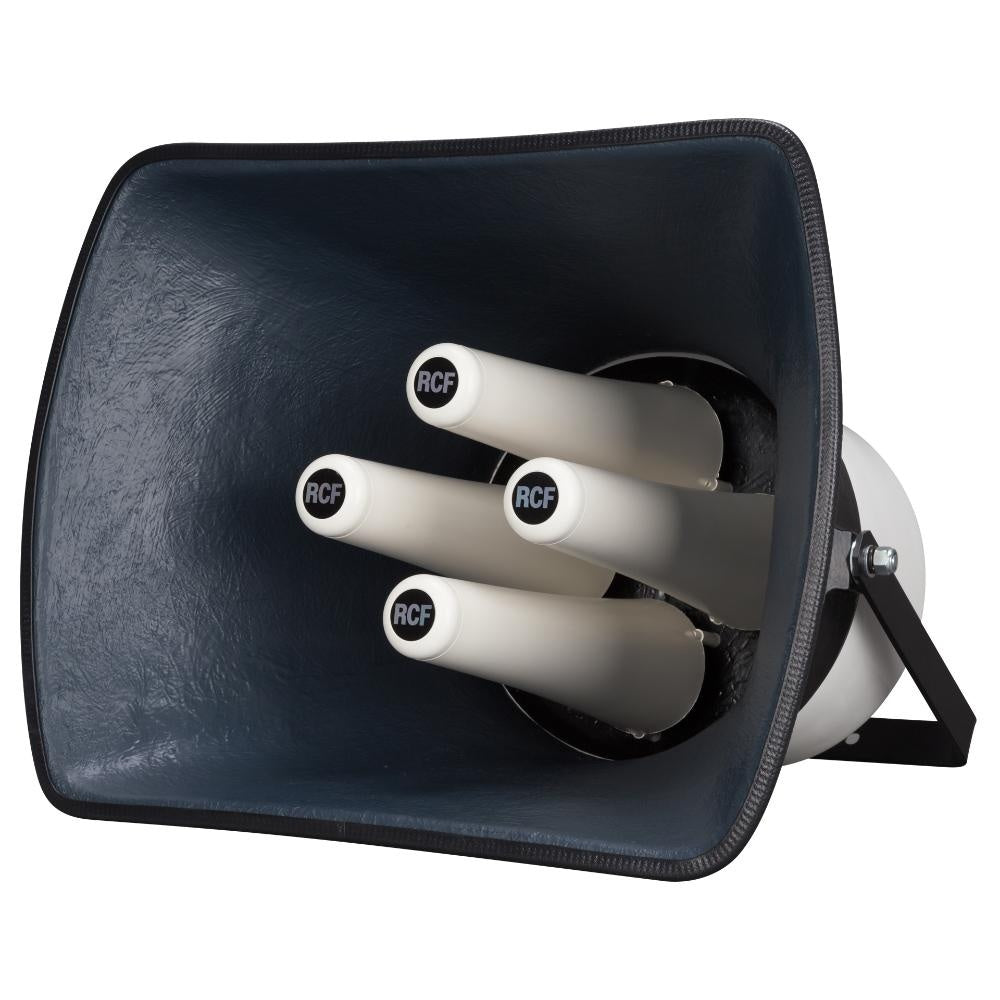

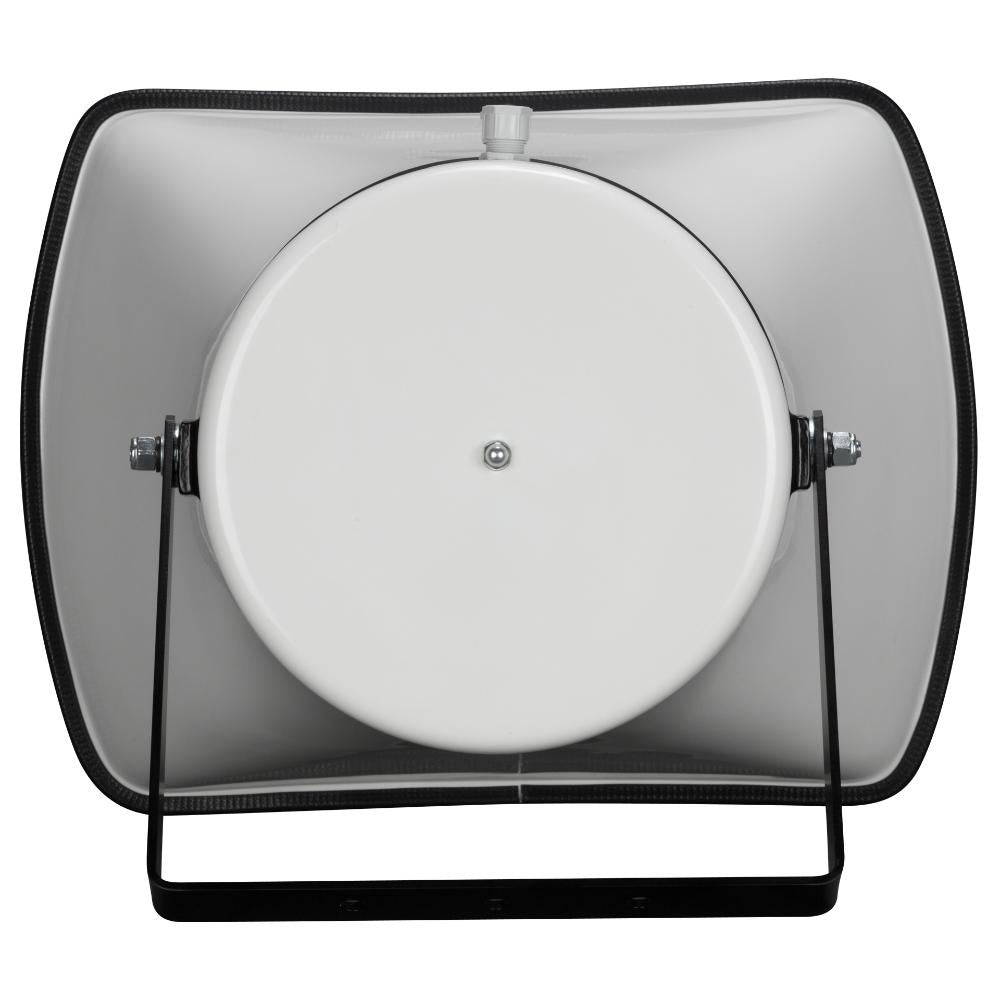

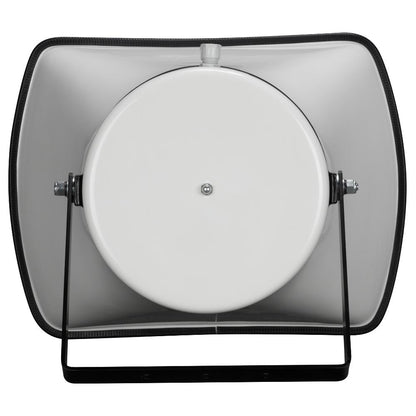

RCF HD6045-EN Long-Throw Fiberglass Horn Speaker

RCF HD6045-EN Long-Throw Fiberglass Horn Speaker

SoundPro Item: 47124 | Part Number: 13133085

$2,689.00
$3,859.00 $2,689.00
Your Price Sold out
MSRP: $3,859.00 | MAP: $2,689.00

Usually ships in 5-7 business days

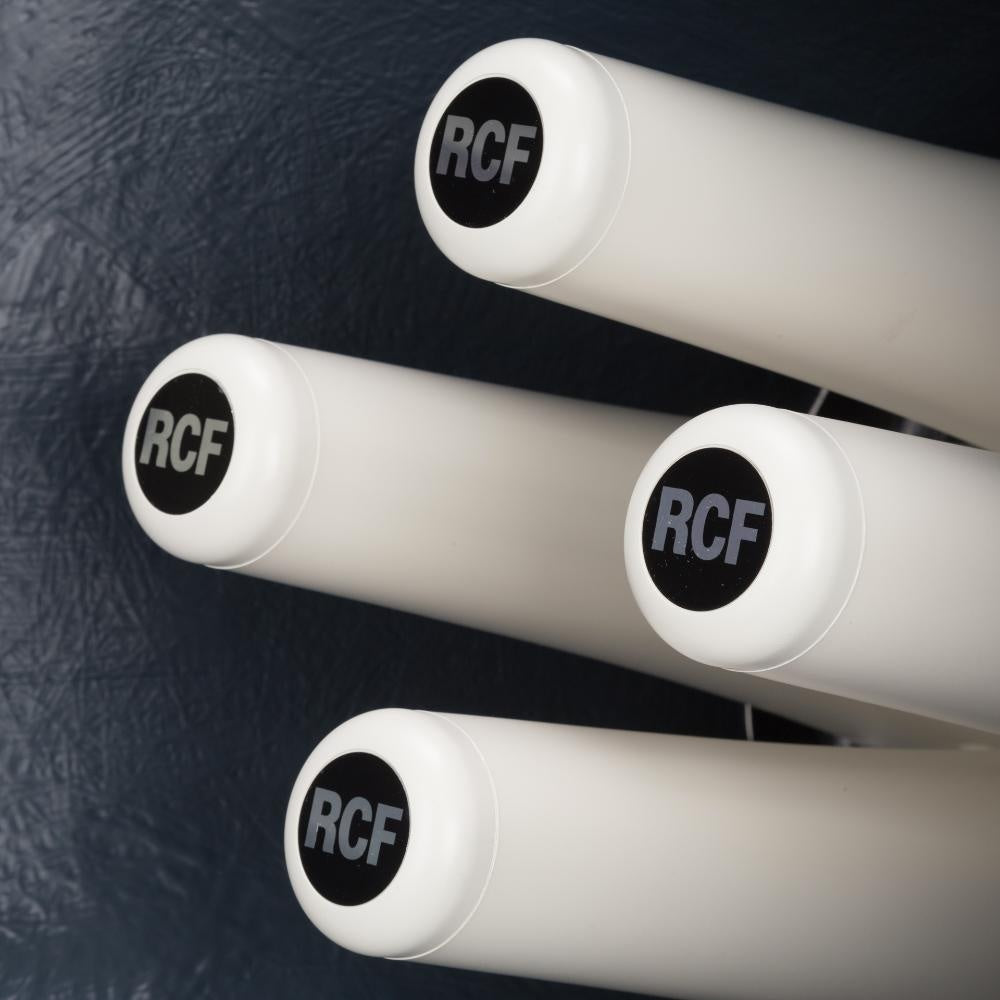

  • 4 x 2" compression drivers
  • Rated power (100 V): 200 W
  • 110 dB sensitivity
  • Colour white RAL 9003
  • Fiberglass body

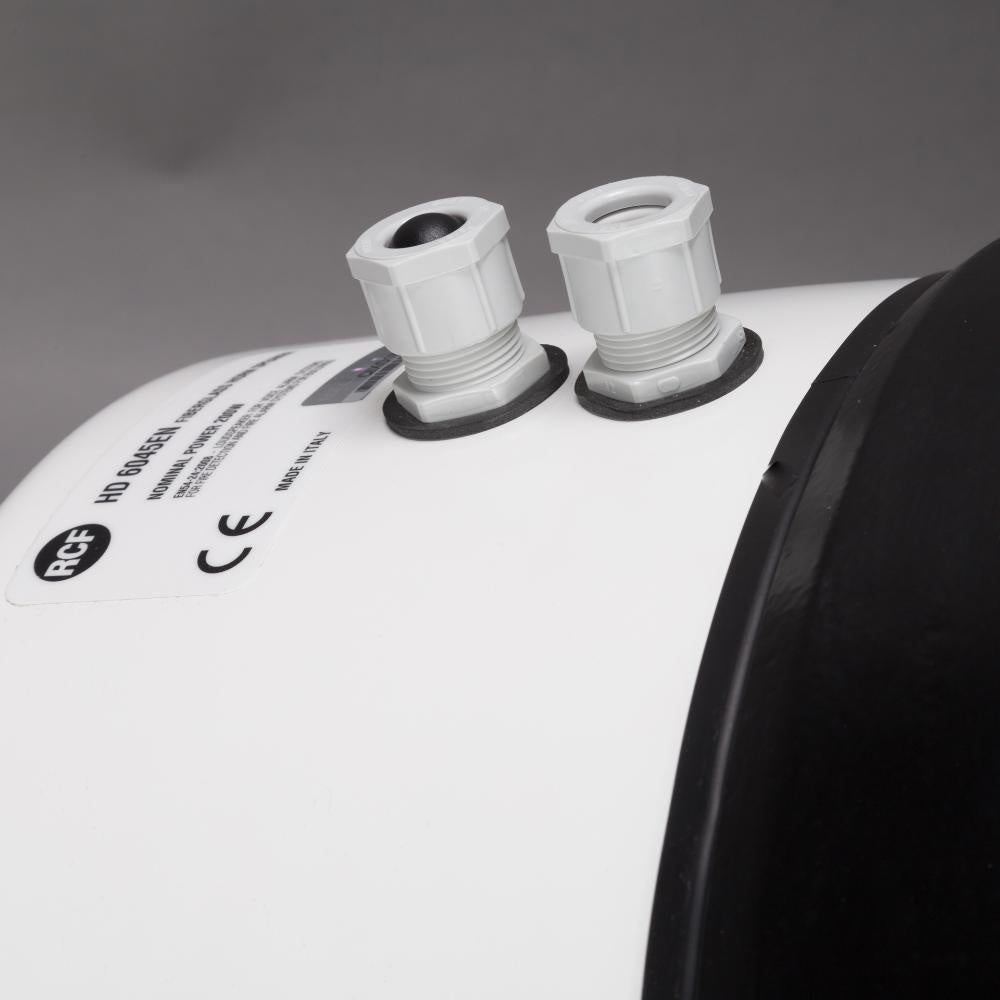

  • In/out ceramic terminal block
  • Thermal fuse protection
  • Protection grade IP65
Log in or register for YOUR best price

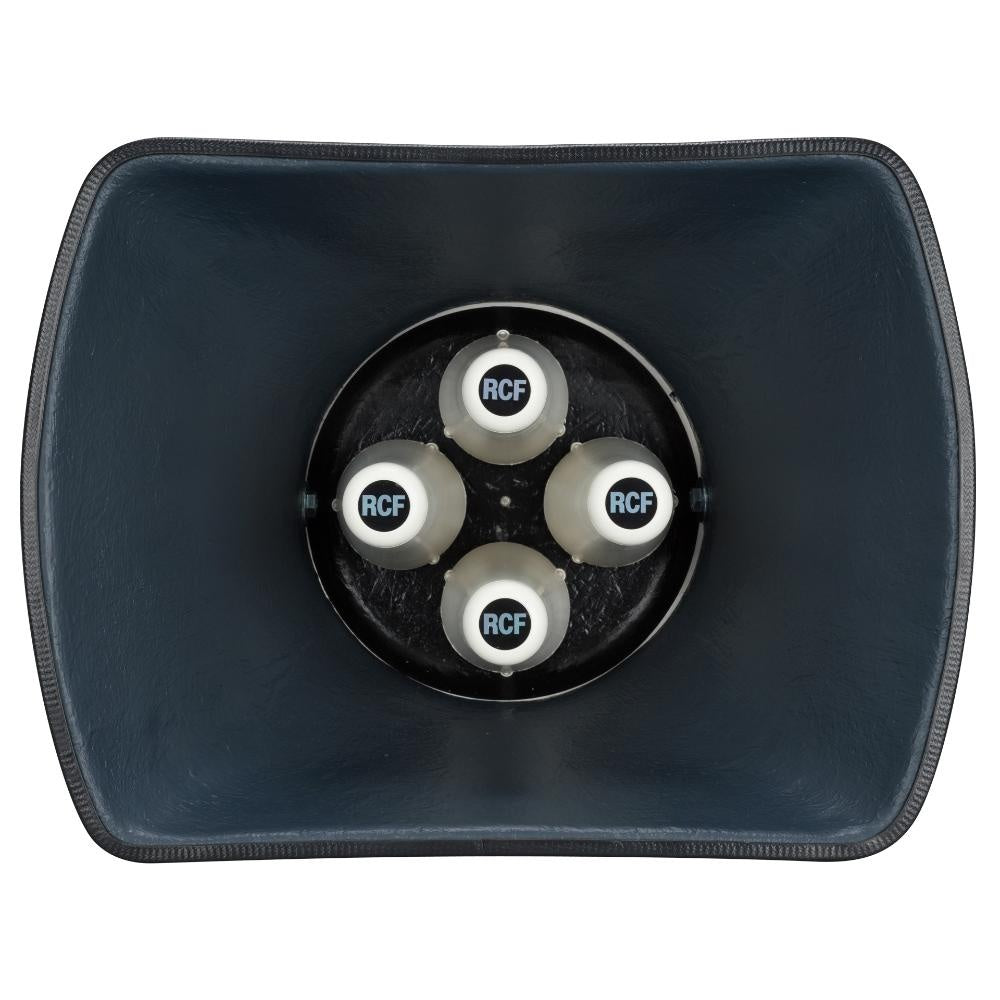

HD 6045EN is a fiberglass horn designed to withstand the most adverse weather conditions, offering high sound reproduction quality and sound pressure levels. A high level of efficiency and sound pressure can be obtained thanks to the use of 4 dynamic compression driver units. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.

View full details

Specifications

Certifications
EN54-24 Certified
Yes
Dimensions
Dimensions (HxWxD)
18.7x24.41x22.2" (475x620x564mm)
Weight
Package Weight
52.03 lbs (23.6 kg)
Electrical
Constant Voltage Transformer
100 V
Audio
Max SPL @ 1m
133 dB
Max SPL @ 4m
114 dB
System Sensitivity
110 dB
System Sensitivity 1W @ 4m
91 dB
Output Connectors
Ceramic screw terminals
Connectivity
Input Connectors
Ceramic screw terminals
Construction
Cabinet/Case Material
Fiberglass
Color
White - RAL 9003
Shipping
Weight
47.18 lbs (21.4 kg)
Shipping Information (HxWxD)
24.21x25.39x19.49" (615x645x495mm)
General
Frequency Response (-10dB)
200 Hz ÷ 10000 Hz
Horizontal Coverage Angle
60°
Vertical Coverage Angle
50°
Power Handling
200 W
Peak Power Handling
800 W PEAK
Recommended Amplifier
400 W
Protections
Thermal fuse
Transducers
Compression Driver: 4x2''
Power Selection 1
200 W - 50 ohm
IP Protection Grade
IP 65
CE Marking
Yes
CPR Number
0068-CPR-030/2015
